3-102-787

Description
Push button switch 30mm 10A 250VAC RING ILLUM SSA
CategoryMechanical and electronic products    switch    Push button switch
File Size910KB,10 Pages
ManufacturerSCHURTER
Websitehttp://www.schurterinc.com/
Environmental Compliance
Download Datasheet Parametric Compare View All

3-102-787 Online Shopping

Suppliers Part Number Price MOQ In stock
3-102-787 - - View Buy Now

3-102-787 Overview

Push button switch 30mm 10A 250VAC RING ILLUM SSA

3-102-787 Parametric

Parameter NameAttribute value
MakerSCHURTER
Product Categorypower switch button
Shipping restrictionsMouser does not currently sell this product.
productStandard Switches
illuminationIlluminated
Lamp typeLED
Contact formSPST
switch functionON - OFF
Current rating10 A
Voltage ratingAC250 VAC
Voltage ratingDC-
Power rating2.5 kW
Installation stylePanel
Installation typeSealed
Termination typeQuick Connect
Contact plating-
ActuatorPlunger
seriesMSM 30
diameter30 mm
length33.1 mm
Maximum operating temperature+ 85 C
Minimum operating temperature- 25 C
Factory packaging quantity10
unit weight49.780 g
Metal Line Switches
https://www.schurter.com /PG70

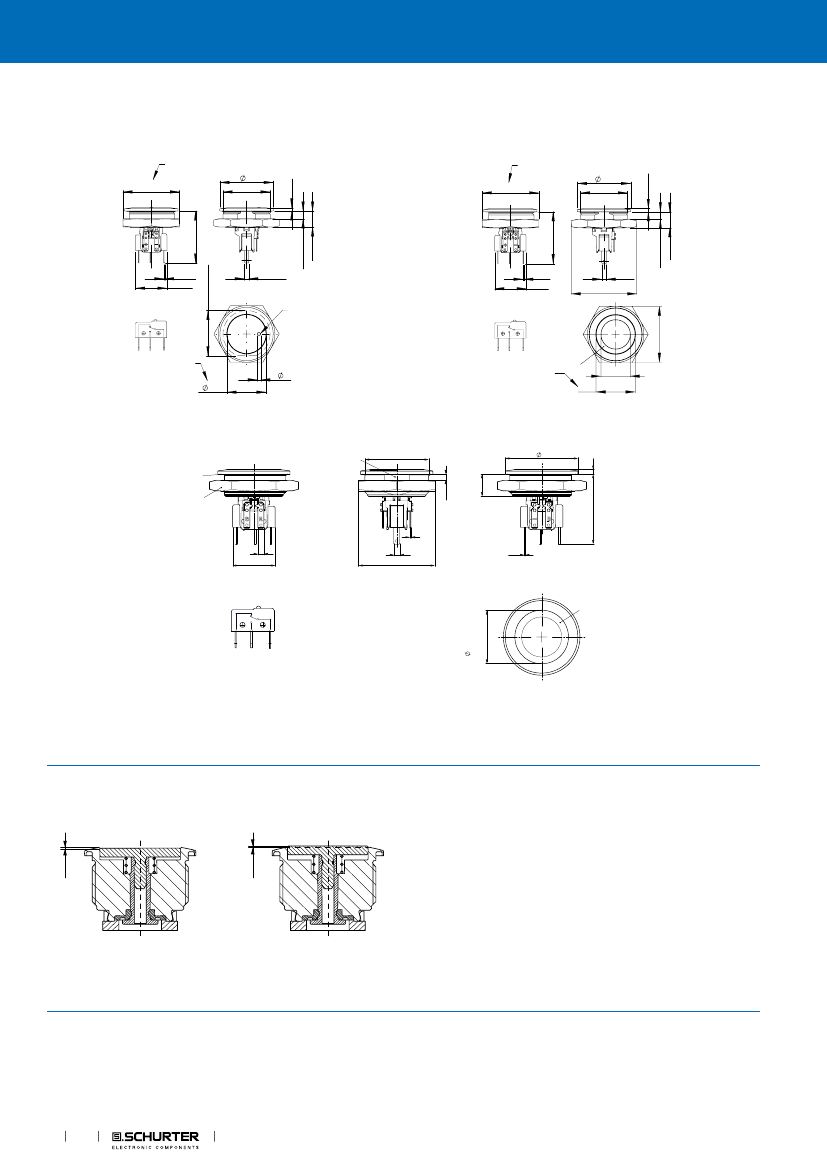

MSM 30
Metal Switch Medium Stroke, Switching Voltage up to 250 VAC
Single-color
RGB
RGB
See below:

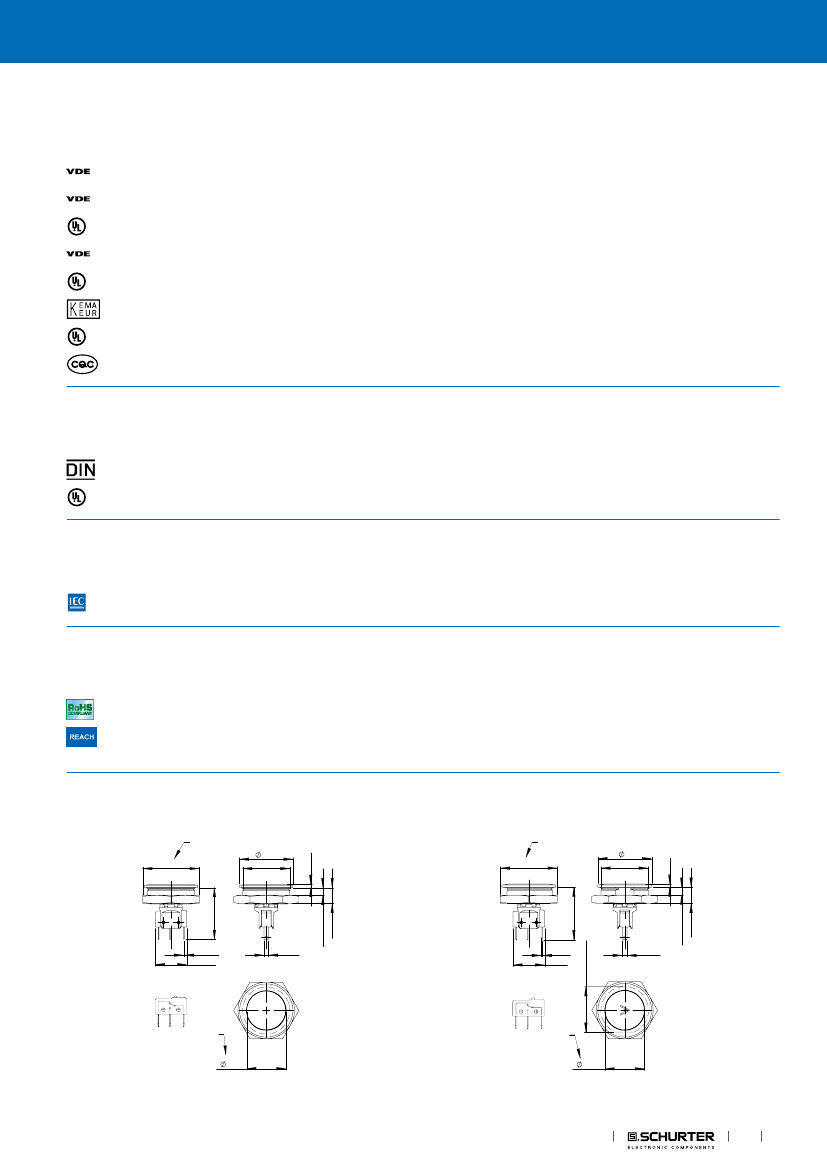

Approvals and Compliances
Description
- Momentary action switch available in version: Standard (ST), with Let-
tering (LE), with Point Illumination (PI) and with Ring Illumination (RI)
- Single color or RGB illumination
- Choice from 7 colors for RGB variants

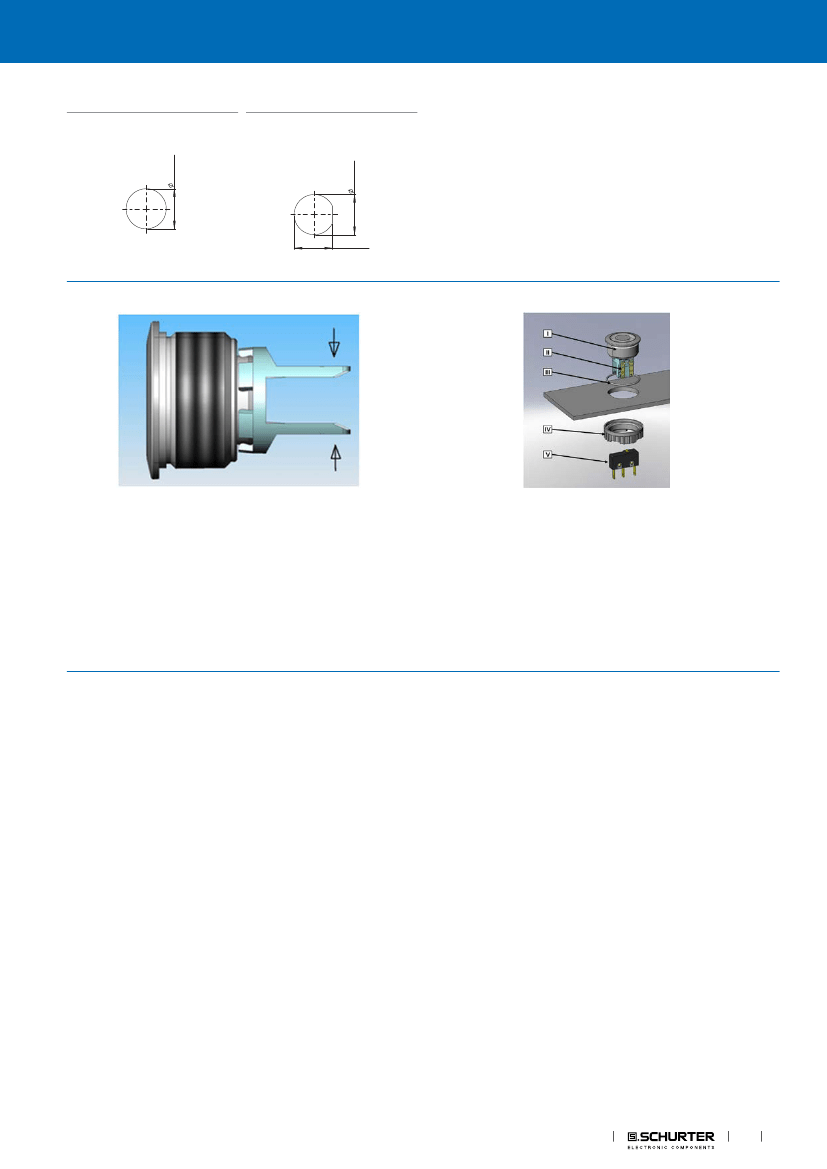

- Assembly method: clip micro-switch into the saddle, secure switch
using mounting nut
- Equipped with flat-pin plugs to permit fast connection
Characteristics
Unique Selling Proposition
-
-
-
-
- Housing and actuator material: high-quality stainless steel
- Variety of design options regarding size, colour, illumination, connec-
tion or lettering
- Switching voltage from 30 VDC to 250 VAC, switching current from 0.1
A to 10 A
- IP-Protection: IP 67 from front side to contact area, Micro-Switch is
available in versions IP 40 or IP 67
- for use in harsh environments (see technical data)
Attractive tactile feedback
High quality materials
Long life span
Single color or homogeneous RGB illumination
References
Alternative: double-pole switch:
MSM DP 19; MSM DP 22; MSM DP
30
Alternative: Other diameter
MSM DP 19; MSM DP 22; MSM DP
30; MSM 16
Weblinks
html-datasheet, General Product Information, CAD-Drawings, Product
News, Detailed request for product
Switches
1

3-102-787 Related Products

3-102-787 3-102-785
Description Push button switch 30mm 10A 250VAC RING ILLUM SSA Push button switch 30mm 100mA 30VDC RING ILLUM SSA
Maker SCHURTER SCHURTER
Product Category power switch button power switch button
Shipping restrictions Mouser does not currently sell this product. Mouser does not currently sell this product.
product Standard Switches Standard Switches
illumination Illuminated Illuminated
Lamp type LED LED
Contact form SPST SPST
switch function ON - OFF ON - (ON)
Current rating 10 A 100 mA
Power rating 2.5 kW 3 W
Installation style Panel Panel
Installation type Sealed Sealed
Termination type Quick Connect Quick Connect
Actuator Plunger Plunger
series MSM 30 MSM 30
diameter 30 mm 30 mm
length 33.1 mm 33.1 mm
Maximum operating temperature + 85 C + 85 C
Minimum operating temperature - 25 C - 25 C
Factory packaging quantity 10 10
unit weight 49.780 g 49.780 g
