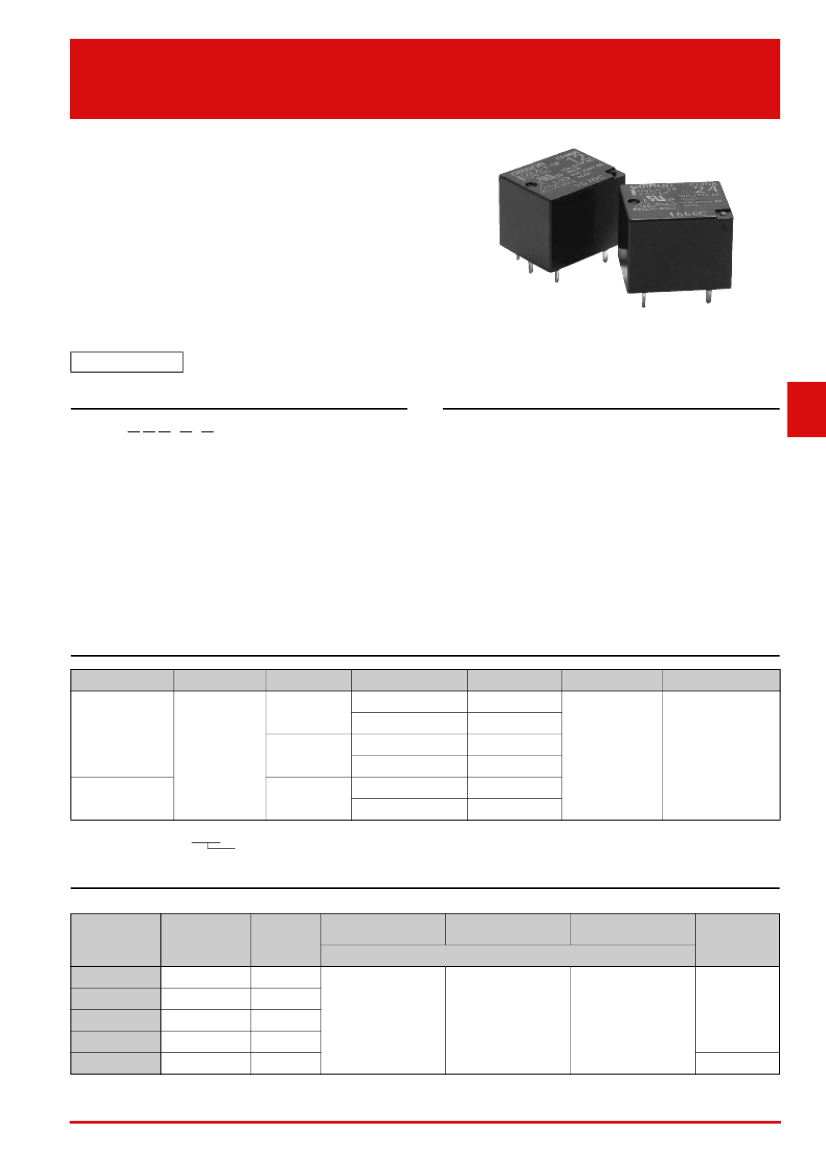

G5LA
PCB Power Relay
A Cubic, Single-pole 10A
Power Relay
• Economical cube relay with universal terminal footprint
• Conforms to VDE0435
• UL recognized/CSA certified.
• High switching power: 10A @ 250VAC
• Withstands impulse of up to 4,500V
• Coil power consumption: 360mW
• UL Class F coil insulation type also available
• Tracking resistance: CTI>250
RoHS Compliant
■Model
Number Legend
G 5 L A -@
@ @
-
@
-
@
1 2 3
4
5
4. Classification
None: Standard
E:
High capacity (NC side)
5. UL Insulation System
None: Standard
CF:
Class F
1. Number of poles
1:
1-pole
2. Contact Form
None: SPDT (1c)
A:
SPST-NO (1a)
3. Enclosure rating
None: Flux protection
4:
Fully sealed
■Application
Examples
• Home appliance
• OA equipments
• Vending machines, etc.
G
5
L
A
■Ordering
Information
Classification
Terminal Shape
Contact form
SPST-NO (1a)
Standard
PCB terminals
SPDT (1c)
Enclosure rating
Flux protection
Fully-sealed
Flux protection
Fully-sealed
Flux protection
Fully-sealed
Model
G5LA-1A(-CF)
G5LA-1A4(-CF)
G5LA-1(-CF)
G5LA-14(-CF)
G5LA-1-E(-CF)
G5LA-14-E(-CF)
5VDC
9VDC
12VDC
24VDC
48VDC
100 pcs/tray
Rated coil voltage
Minimum packing unit
High-capacity
SPDT (1c)
Note. When ordering, add the rated coil voltage to the model number.
Example: G5LA-1 DC 12
Rated coil voltage
■Ratings
●Coil
Rated voltage
(VDC)
5
9
12
24
48
Rated current
(mA)
72
40
30
15
10
Coil
resistance
(Ω)
69.4
225
400
1600
4800
Approx. 480
75% max.
10% min.
130% (at 85°C)
170% (at 23°C)
Approx. 360
Must operate voltage
(V)
Must release voltage
(V)
% of rated voltage
Max. voltage
(V)
Power
consumption
(mW)
Note 1. The rated current and coil resistance are measured at a coil temperature of 23°C with tolerances of ±10%.
2. Please avoid ultrasonic cleaning this relay.
1
G5LA
●Contacts
Item
Contact material
Load
NO
Rated load
NO/NC
Rate carry current
Max. switching voltage
Max. switching current
NO
Max. switching power
NO/NC
Failure rate (reference value)
Note. P level:
λ60
= 0.1 x 10 /operation
-5
PCB Power Relay
Standard model
Ag-alloy (Cd free)
Resistive load (cosφ=1)
10A at 250VAC
10A at 24VDC
5A/5A at 125VAC
5A/5A at 24VDC
10A (NO), 5A (NC)
250VAC, 24VDC
10A (NO), 5A (NC)
AC2,500VA, DC240W
AC625VA, DC120W
100mA at 5VDC
10A
High-capacity (-E) model
5A/5A at 250VAC
5A/5A at 24VDC
10A
AC1,250VAC, DC120W
■Characteristics
G
5
L
A
Contact resistance
Operate time
Release time
Max. switching frequency
Insulaion resistance
Dielectric strength
Vibration resistance
Shock resistance
Endurance
Ambient operating temperature
Ambient operating humidity
Weight
100 mΩ max.
10 ms max.
5 ms max.
Mechanical: 18,000 operations/hr
Electrical: 1,800 operations/hr (under rated load)
1,000 mΩ min. (at 500 VDC)
2,000 VAC, 1mA 50/60Hz for 1 min between coil and contacts
750 VAC 1mA 50/60Hz for 1 min between contacts of same polarity
Destruction: 10 to 55Hz, 1.5mm double amplitude
Malfunction: 10 to 55Hz, 1.5mm double amplitude
Destruction: 1,000m/s
2
(approx. 100G)
Malfunction: 100 m/s
2
(approx. 10G)
Mechanical: 10,000,000 operations min.
Electrical: Approx. 100,000 operations
-40° to 85° (with no icing or condensation)
5% to 85%
Approx. 7.5g
Note. Values in the above table are the initial values.
2

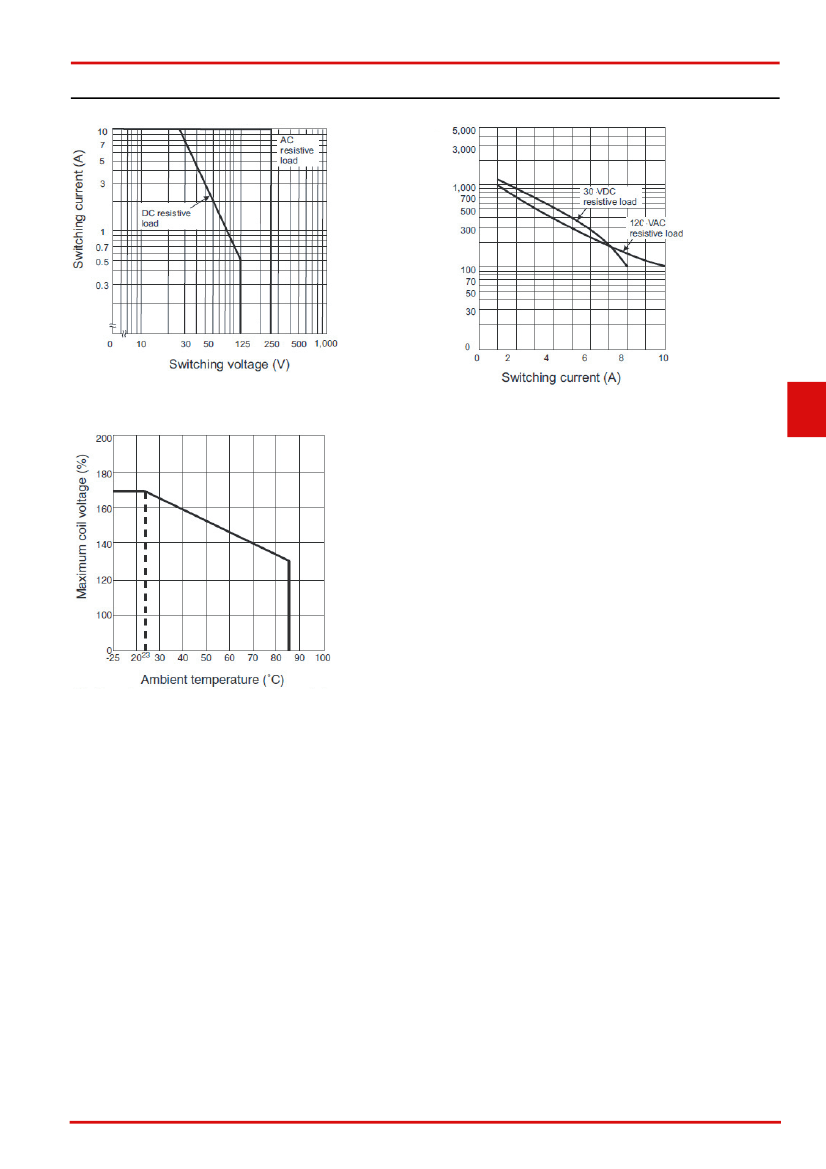

G5LA
■Approved
Standards
●UL
Recognized (File No. E41643)
Model
Contact form
Coil ratings
Contact ratings
10 A, 277 VAC, general use, 40°C
10 A, 30 VDC, resistive, 40°C
SPDT-NO (1a)
SPST-NO (1a)
G5LA
5 to 48 VDC
1/2 HP, 125-250VAC, 40°C
10 A, 277 VAC, general use, 85°C (-CF type only)
200 W Tungsten, 125 VAC, 40°C
10 A, 125 VAC, resistive, 40°C
SPDT-NC (1b)
10 A, 277 VAC, general use, 40°C (-E type only)
10A, 24 VDC, resistive, 40°C (-E type only)
PCB Power Relay
Number of test operations
100,000
50,000
1,000
50,000
100,000
6,000
100,000
●CSA
Certified (File No. LR31928)
Model
Contact form
Coil ratings
Contact ratings
10 A, 277 VAC, general use, 40°C
SPDT-NO (1a)
SPST-NO (1a)
10 A, 24 VDC, resistive, 40°C
5 to 48 VDC
1/2 HP, 125-250VAC, 40°C
10 A, 277 VAC, general use, 85°C (-CF type only)
SPDT-NC (1b)
10 A, 125 VAC, resistive, 40°C
Number of test operations
6,000
1,000
6,000
G5LA
●VDE
Certified (Approval No. 40017051)
Model
Contact form
Coil ratings
Contact ratings
10 A, 250 VAC, resistive, 85°C (flux protection)
SPDT-NO (1a)
SPST-NO (1a)
G5LA
SPDT (1c)
10 A, 250 VAC, resistive, 85°C (fully sealed)
5, 9, 12, 24,
48 VDC
12 A, 250 VAC, resistive, 85°C
5 A, 250 VAC, resistive, 85°C (flux protection)
5 A, 250 VAC, resistive, 85°C (fully sealed)
Number of test operations
50,000
10,000
50,000
10,000
G
5
L
A
•
Application examples provided in this document are for reference only. In actual applications, confirm equipment functions and safety before using the product.
•
Consult your OMRON representative before using the product under conditions which are not described in the manual or applying the product to nuclear control systems, railroad
systems, aviation systems, vehicles, combustion systems, medical equipment, amusement machines, safety equipment, and other systems or equipment that may have a serious
influence on lives and property if used improperly. Make sure that the ratings and performance characteristics of the product provide a margin of safety for the system or
equipment, and be sure to provide the system or equipment with double safety mechanisms.
Note: Do not use this document to operate the Unit.
OMRON Corporation
ELECTRONIC AND MECHANICAL COMPONENTS COMPANY
Contact: www.omron.com/ecb
Cat. No. J184-E1-02
0113(1012)(O)
5
