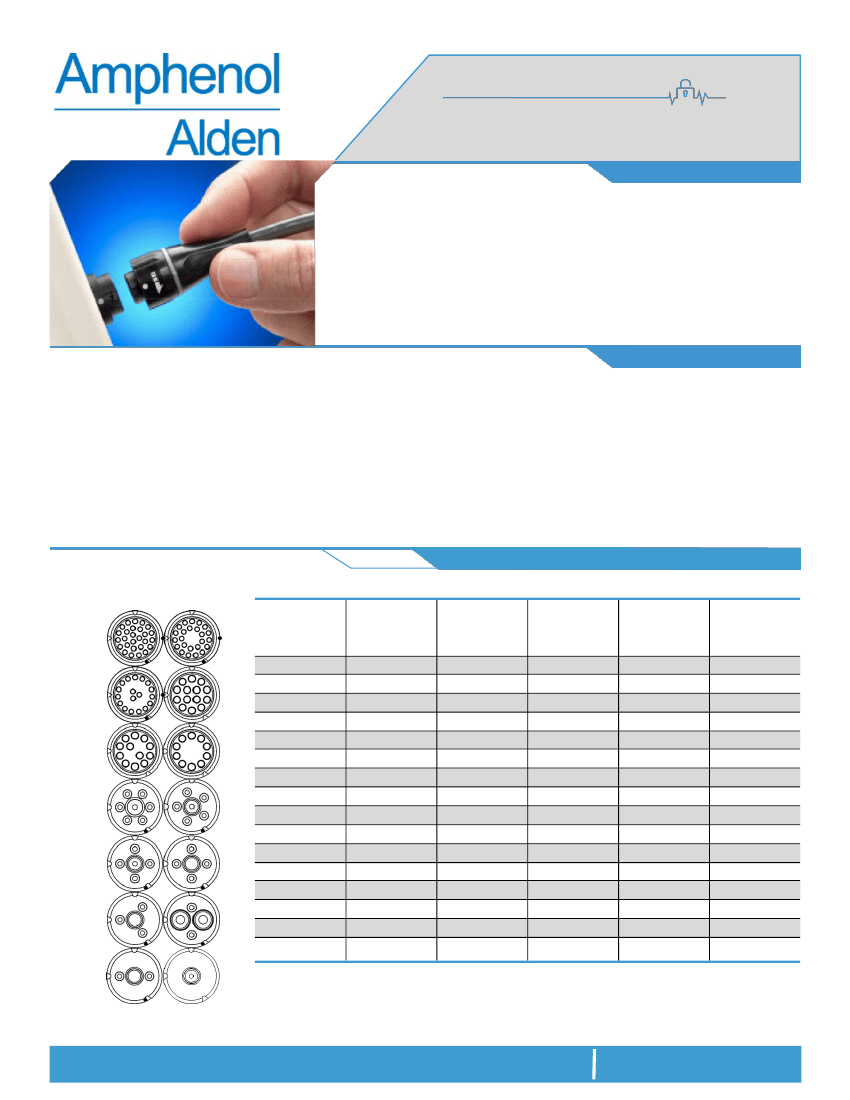

Compact and configurable, the PL-700SM-N Series connector is Amphenol
Alden’s most versatile offering in a sub .700” diameter package. PL-700SM-N
Series connectors attach to a cable with a Press & Seal
TM
backshell that provides
the refined look and performance of an overmolded product.
Electrical (see below)
Mating Life: 5,000 cycles min.
Contact Resistance: < 10 milliohms*
Material
Connector Housing: Thermoplastic
Flex Reliefs: Thermoplastic Rubber
Contacts: Brass / BeCu,
Gold Plate per MIL-G-45204
Reusable Socket = 30-45µ” Gold over
50-200µ” Nickel strike
Disposable Pin = 10-30µ” Gold over
50-200µ” Nickel strike
Packaging (intuitive, compact, configurable)
Pulse-Lok®
auto-latch / mating confirmation
Miniature .700” diameter circular shell
Up to 27 contact positions
16 standard color combinations
Multiple and proprietary keying options
Available as an overmolded cable assembly
Custom configurations available
Performance (for harsh environments)
Water proof (IP-67 rated)
Steam, EtO, & Gamma sterilizable
Chemical resistant housing
Up to 5,000 mating cycles (with std.Contacts)
Factory terminated, overmolded cable
assemblies for enhanced flex and strain relief
SPECIFICATIONS
Mechanical
Mating Cycles: 5K cycles max
Retention Force:
Mated Connectors: 25 lbs. Minimum
Cable to Connector: 35 lbs. Typical
Backshell to Connector: 45 lbs. Minimum
Housing Styles (Page 2)
Plug: In-Line
Receptacles: Front & Rear Panel-Mount
Receptacles: In-Line
Environmental
Operating Temp:
-20C
to +105C**
Moisture Resistance: to IP-67 (encapsulated)
Sterilizable: gamma, EtO & Autoclave
Chem. Resistance: common OR cleaning solvents
* post conditioning
**Dependent on overmold material
TABLE A:
Up to 27 Contact
Positions
Number of
Poles
27
24
18
14
12
10
7
6
5
4
2+2
3
2
2
1
1
STANDARD CONTACT CONFIGURATIONS & SPECFICATIONS
Contact Size
Pin
φ
(mm)
0.5
0.5
0.5
0.7
0.7
0.7
0.7
0.7
0.7
0.7
2(1.5)-2(0.7)
0.7
0.7
1.5
0.7
2.3
Max Wire
Gauge
26
26
26
22
22
22
22
22
22
22
2(16)-2(22)
22
22
16
22
12
Operating
Operating
Current Max
Voltage Max
(A)
300 V RMS
300 V RMS
300 V RMS
300 V RMS
300 V RMS
300 V RMS
300 V RMS
300 V RMS
300 V RMS
300 V RMS
300 V RMS
300 V RMS
300 V RMS
300 V RMS
300 V RMS
300 V RMS
0.5
0.5
0.9
0.9
1.2
2.0
2.1
2.1
2.4
2.4
7.0/3.0
3.0
3.0
13.0
3.0
15.0
Contact
Resistance
(ohms)
<14m
<14m
<14m
<6m
<6m
<6m
<6m
<6m
<6m
<6m
<6m
<6m
<6m
<2m
<6m
<2m
Custom contact inserts are available. Consult factory.
Standard Hybrid Circuit Arrangements
Coaxial & Custom Circuits Available
For additional information about this, or any other Amphenol Alden product, please contact
an Amphenol Alden specialist today.
Phone: 508-427-7000
Fax: 508-583-0164
www.amphenolalden.com
1
PL-700SM-N SERIES
Plastic
Shell Auto-Coupling
Connectors
27 pole
capacity circular shell connectors

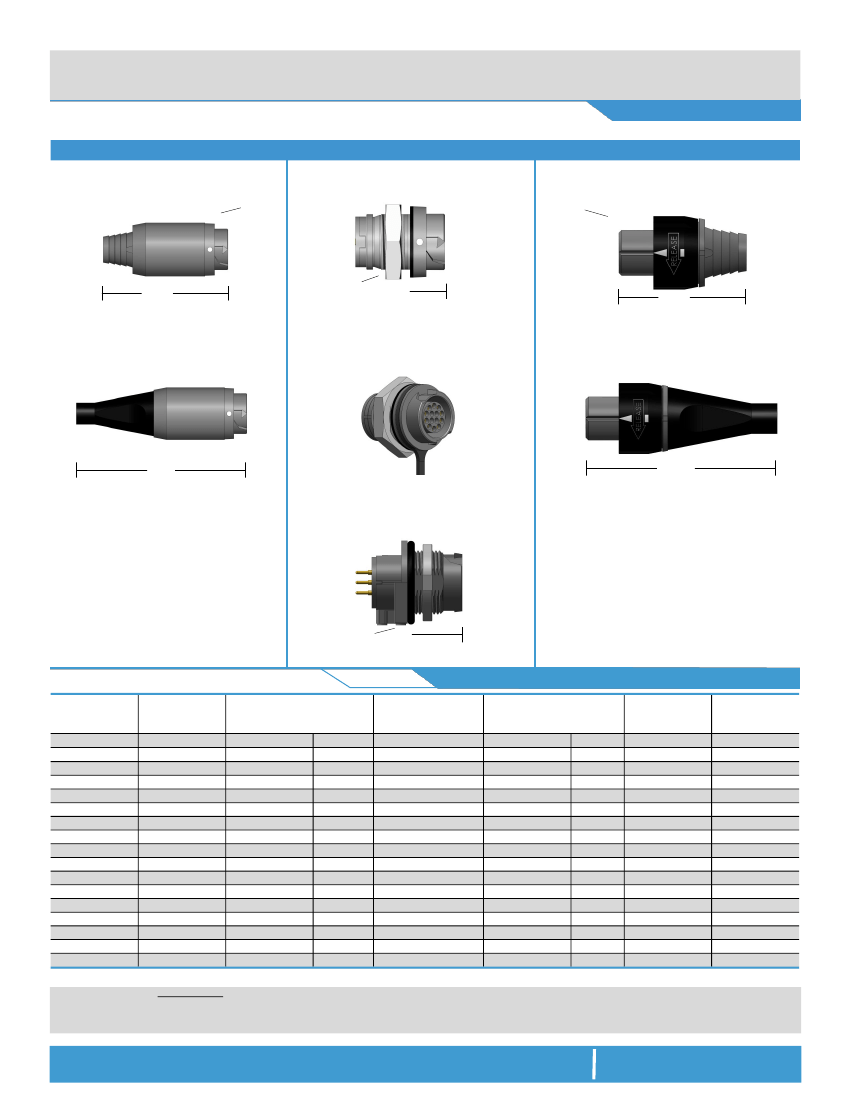

STANDARD HOUSING OPTIONS
In-Line Receptacles
In-Line Receptacle Kit
.720φ
Panel-Mount Receptacles
Front Panel-Mount
Receptacle Assembly
.70φ
Mounted
Height = 0.320
In-Line Plugs
In-Line Plug Assembly
1.54
Select this component from Table B
.720φ
.90
1.04
Select this component from Table B
Panel thickness range to 0.187
Select this component from Table B
In-Line Receptacle Kit
(w/ optional Press & Seal
TM
Backshell)
Front Panel-Mount Receptacle
(w/ Dust Cover)
In-Line Plug Kit
(w/ optional Press & Seal
TM
Backshell)
2.20
Select Press & Seal
TH
1.60
Select this component from Table B
Select this component from Table B
Backshell from Table C
Rear Panel-Mount Receptacle
Note: Standard color configuration is black on black.
See our online configurator for more color options at:
www.amphenolalden.com/configurator
.815φ
.89
Select this component from Table B
TABLE B:
Number of
Poles
27
24
18
14
12
10
7
6
5
4
2(16)+2(22)
3
2 (22)
2 (16)
1 (22)
1 (12)
STANDARD PART NUMBERS
Rear Panel-Mount
Receptacle
Solder Cup
301365
301351
301337
301323
301309
300697
300683*
300669*
300655*
300627*
300641*
301379*
300599*
300613*
300585*
300571*
PCB
331196
331336
331322
331182
331308
331294
331168*
331280*
331266*
331252*
331238*
331224*
331210*
In-Line
Receptacle
Solder Cup
300322
301270
301242
300294
301214
301186
300266*
301158*
301130*
301102*
300238*
300543*
301046*
301074*
301018*
300210*
Front Panel-Mount
Receptacle
Solder Cup
300196
301004
300990
300182
300976
300962
300168*
300948*
300934*
300920*
300154*
300529*
300892*
300906*
300878*
300140*
PCB
330196
330336
330322
330182
330308
330294
330168*
330280*
330266*
330252*
330238*
330224*
330210*
FPM Receptacle
(w/ Dust Cap)
In-Line Plug
Solder Cup
300112
300850
300822
300084
300794
300766
300056*
300738*
300710*
300482*
300028*
300501*
300428*
300500*
300400*
300000*
In-Line Plug
(Breakaway)
Solder Cup
301589
301575
301561
301547
301533
301519
301505*
301471*
301477*
301449*
301463*
301603*
301421*
301435*
301497*
301393*
Solder Cup
301784
301778
301772
301766
301760
301754
301748*
301742*
301736*
301730*
301724*
301718*
301712*
301706*
301700*
301790*
Note: Part numbers cover black housings in Key 1 configuration. For other color and housing options utilize the Amphenol Alden connector configurator located at
www.amphenolalden.com/configurator
Options Include:
Housing Color Options
Black & Gray
Mating Key Options
2 Standard Keys, Proprietary Keys Available
Panel-Mount Thickness Options Up to .125 Standard
*Press & Seal
TM
contacts, crimp or solder
termination
For additional information about this, or any other Amphenol Alden product, please contact
an Amphenol Alden specialist today.
Phone: 508-427-7000
Fax: 508-583-0164
www.amphenolalden.com
2
PL-700SM-N SERIES

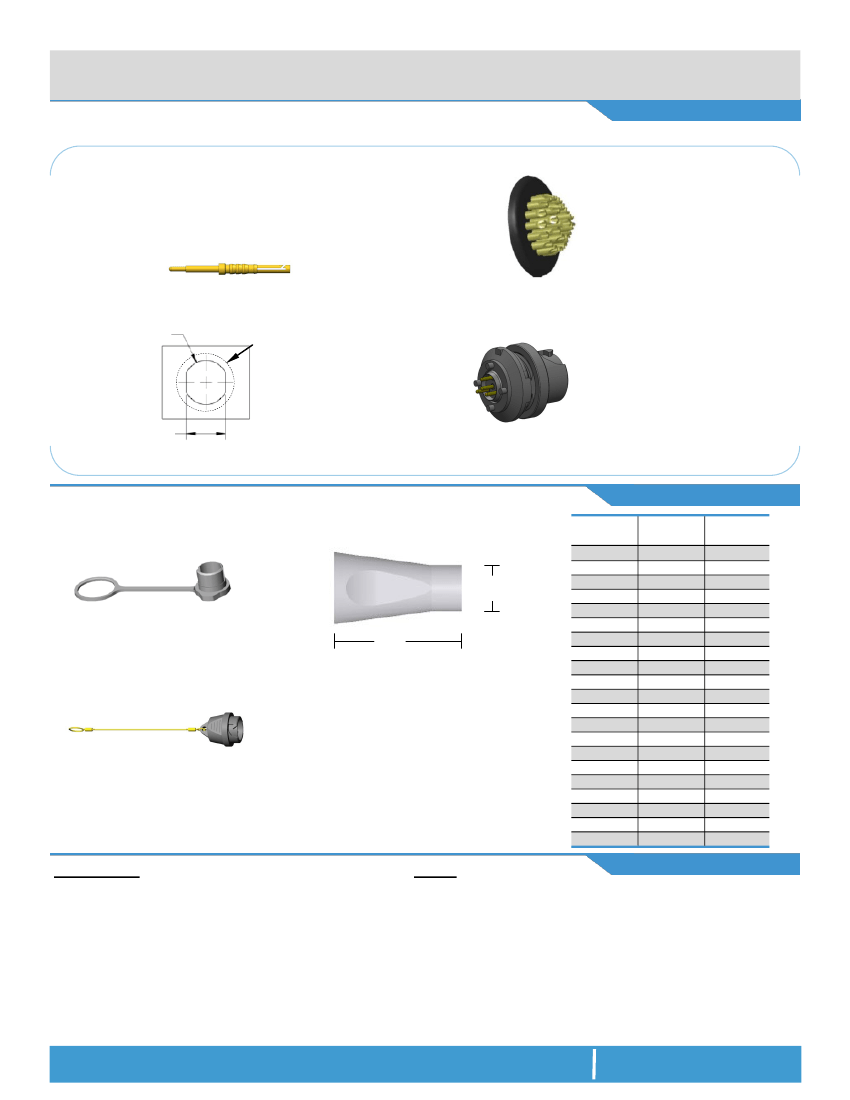

Contact Termination
Plastic
Shell Auto-Coupling
Connectors
27 pole
capacity circular shell connectors
CONNECTOR
TERMINATION OPTIONS
CONNECTOR
TERMINATION OPTIONS
Press & Seal
TM
Features & Benefits
Contacts provide IP-67 watertight seal when
Easy crimp & poke installation
Excellent contact retention
Contacts may be crimped or soldered
Press & Seal
TM
Contact System
Available on 1 to 7-Pole Configurations
Accepts multiple wire gauges 12, 16, 22 AWG
Panel-Mount, Cut-Out Template
.625φ
.70
φ
mounting
Flange Footprint
(.75φ for RPM
spanner nut)
inserted into insulator
Solder Cup (Available for All)
Features & Benefits
Tiered solder cups
provide easy access to
center positions. Canted
cups facilitate quick and
easy wire positioning.
Standard on 10-27 pole
configurations
PCB (Panel-Mount Receptacles only)
Features & Benefits
Available in most pole counts
PCB stand-offs ensure proper
Convenient packaging high
positioning
temperature contect cures may
be soldered to PCB and snapped
into panel-mounted receptacle
housing later
from 1 to 27 Poles
.560
Applies to both Front & Rear
Panel-Mount Receptacles
Request Sales Drawing for PCB
mounting template
Front Panel-Mount Receptacle
Dust Cover
Plug Backshell
ACCESSORIES
Dimension
A
(Inches)
A
Part #
(Black)
300350
300352
300354
300356
300358
300360
300362
300364
300366
300368
300370
300372
300374
300376
300378
300380
300382
300384
300386
300388
Part #
(Gray)
300351
300353
300355
300357
300359
300361
300363
300365
300367
300369
300371
300373
300375
300377
300379
300381
300383
300385
300387
300389
P/N
300390
Black (std.), Gray (opt.)
1.10
Plug Soaking Cap
The PL-700 plug housing is designed to accept
Amphenol Alden’s one piece, Press & Seal PVC
Backshell. This unique backshell simply snaps into
place providing an IP-67 rated seal to the plug
housing and cable exit without hardware resulting in a
clean overmolded look. For optimum sealing we
suggest selecting a wire exit i.d. that is at least .005”
smaller than your nominal cable diameter
.
P/N
300391
Black (std.), Gray (opt.)
Note: accessories sold separately
0.053
0.064
0.075
0.086
0.096
0.104
0.120
0.129
0.142
0.153
0.162
0.170
0.186
0.204
0.215
0.225
0.235
0.249
0.264
0.300
Receptacles:
AI-PL700SMN-IR01 (1Pole, 12AWG)
AI-PL700SMN-IR02 (2+2Pole, 16/22AWG)
AI-PL700SMN-IR03 (1-7Pole, 22AWG)
AI-PL700SMN-IR04 (10-14Pole, 22AWG)
AI-PL700SMN-IR05 (18-27Pole, 26AWG)
AI-PL700SMN-PMR01 (1Pole, 12AWG)
AI-PL700SMN-PMR02 (2+2Pole, 16/22AWG)
AI-PL700SMN-PMR03 (1-7Pole, 22AWG)
AI-PL700SMN-PMR04 (10-14Pole, 22AWG)
AI-PL700SMN-PMR05 (18-27Pole, 26AWG)
Plugs:
ASSEMBLY INSTRUCTIONS
AI-PL700SMN-P01 (1Pole, 12AWG)
AI-PL700SMN-P02 (2+2Pole, 16/22AWG)
AI-PL700SMN-P03 (1-7Pole, 22AWG)
AI-PL700SMN-P04 (10-14Pole, 22AWG)
AI-PL700SMN-P05 (18-27Pole, 26AWG)
