REVISIONS
REV
DESCRIPTION, ECN, EAR NO.
H
DATE
APP'D
5.50 [.217] DEEP
THREADED HOLES (2 PLCS)
SEE ORDERING CODE FOR
THREAD OPTIONS
1
C

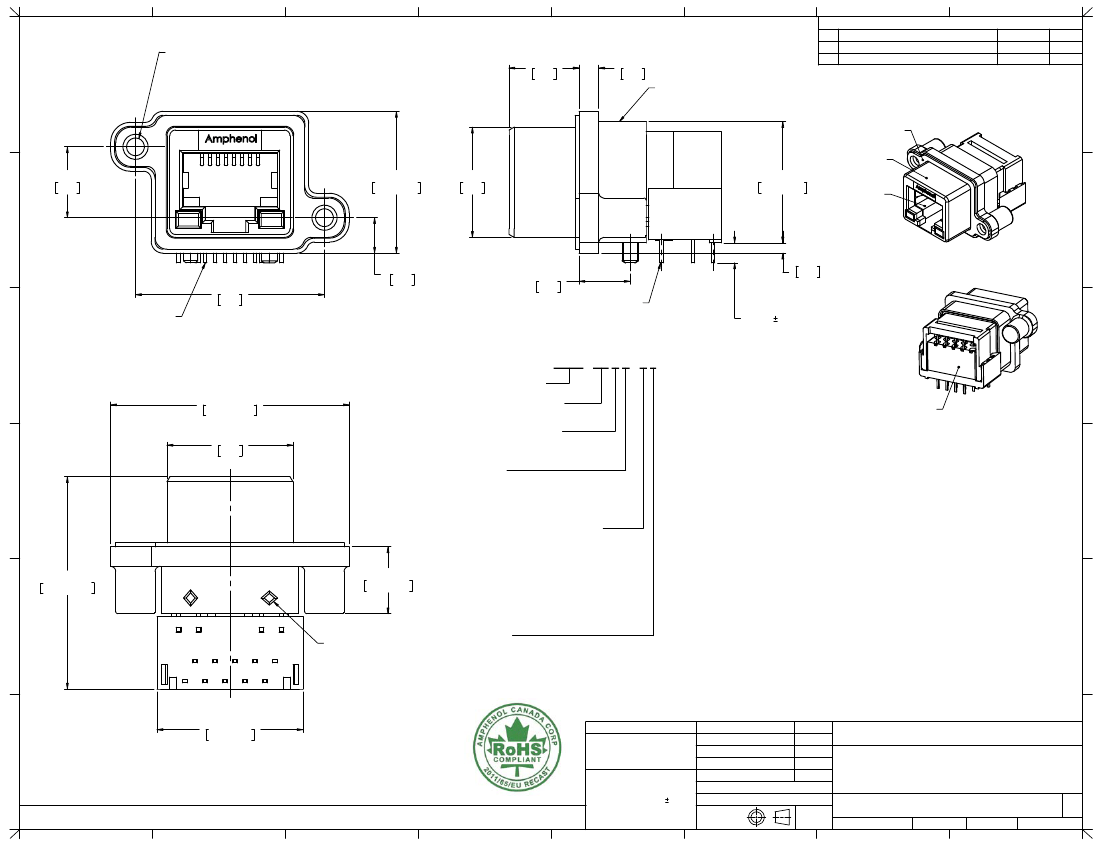

PRODUCT DRAWING (EAR 14600)
AUG31/17
K.L.
8.90
.350
2.50
.098
DATE CODE
INK MARKING
1
PANEL GASKET
SHELL
9.00
.354
2
18.00±0.25
.709±.010
14.00
.551
15.40±0.25
.606±.010
HOUSING
2
24.00
.945
0.46 [.018] x 0.36 [.014]
CONTACT TAILS
3
4.50
.177
6.50
.256
0.50 [.020]
SQUARE
LED TAILS
1.30
.051
REF
TAIL LENGTH 'A'
0.30 [.012]
SEE ORDERING CODE
3
ORDERING CODE: M R J - 6 3 X X - X 1
SERIES, RUGGED RJ
30.30±0.25
1.193±.010
16.00
.630
FILTERED RECEPTACLE,
RIGHT ANGLE, PCB TAIL
NUMBER OF CONTACTS
8 = 8 CONTACTS
A = 10 CONTACTS
LED OPTION
0 = NONE
1 = GREEN LEFT, YELLOW RIGHT
4 = YELLOW LEFT, GREEN RIGHT
5 = GREEN LEFT, GREEN RIGHT
TAIL LENGTH & MOUNTING HOLE
THREAD OPTION
0 = TAIL LENGTH 'A' = 2.54 [.100]
#4-40 UNC THREAD
B = TAIL LENGTH 'A' = 3.81 [.150]
#4-40 UNC THREAD
M = TAIL LENGTH 'A' = 2.54 [.100]
M3 x 0.5 THREAD
P = TAIL LENGTH 'A' = 3.81 [.150]
M3 x 0.5 THREAD
SINGLE PORT
FERRITE BLOCK FOR
EMI SUPPRESSION
NOTES:
1.
MATERIAL:
ALL MATERIALS ARE RoHS COMPLIANT PER EU DIRECTIVE 2011/65/EU AND
AMENDMENTS
•
SHELL - DIECAST ZINC, NICKEL PLATED
•
CONTACTS - PHOSPHOR BRONZE WITH 1.27µm [50µ"] GOLD OVER 1.27µm
[50µ"] MINIMUM NICKEL ON THE MATING AREA AND MATTE TIN OVER
NICKEL ON THE CONTACT TAILS.
•
INSERTS - ENGINEERING THERMOPLASTIC, UL94V-0 FLAMMABILITY RATING
REAR INSERTS: NYLON, FRONT INSERT: CLEAR POLYCARBONATE
•
PANEL GASKET - SILICONE RUBBER
•
FERRITE - NICKEL ZINC IRON OXIDE
•
LED'S - EPOXY LENS, STEEL TAILS WITH TIN PLATING
ENVIRONMENTAL PERFORMANCE PER IEC 60529 CODE IP67 FOR SEAL
BETWEEN MATING AREA AND PCB SIDE OF CONNECTOR. GASKET PROVIDES
SEAL TO INSIDE FACE OF PANEL.
CURRENT RATING: 1.5 AMPERES
CONTACT RESISTANCE: 30 MILLIOHMS MAXIMUM
OPERATING TEMPERATURE: -40°C TO +105°C
MINIMUM IMPEDANCE (FERRITE): 38 OHMS @ 25 MHz
CUSTOMER TO VERIFY THAT ALL PROCESS CLEANERS ARE COMPATIBLE WITH
POLYCARBONATE MATERIAL
DRAWN
4
4
26.95±0.40
1.061±.016
8.50±0.30
.335±.012
2.
5
3.
4.
5.
6.
7.
5
2.08 [.082]
MAJOR DIAGONAL
DIAMOND PEG
18.54±0.25
.730±.010
6
UNLESS SPECIFIED OTHERWISE
PRIMARY UNITS
SECONDARY
MILLIMETERS
CHECKED
INCHES
M.E. APP'D
Q.A. APP'D
DWG APPR.
ENG. REL. NO.
G.LI
K.LAMBIE
JAN18/08
JAN18/08
Amphenol Canada Corp.
www.amphenolcanada.com
REFERENCE IN PARENTHESES
GENERAL TOLERANCES
1 DECIMAL PLACE
2 DECIMAL PLACES
EAR 13217
MRJ SERIES RUGGED MODULAR JACK,
EMI FILTERED, 8 & 10 POSITION RIGHT
ANGLE, WITH LED, TAIL LENGTH &
THREAD OPTIONS, RoHS COMPLIANT
DWG. NO.
REV
6
0.15
REF.
THIRD
ANGLE
PROJECTION
THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION AND SUCH INFORMATION MAY NOT BE DISCLOSED TO OTHERS FOR ANY PURPOSE
OR USED FOR MANUFACTURING PURPOSES WITHOUT WRITTEN PERMISSION FROM AMPHENOL CANADA CORP.
A
B
C
D
3 DECIMAL PLACES
ANGULAR DEGREES
DO NOT
SCALE
DRAWING CODE ID NO.
P-MRJ-63XX-X1
03554
DWG SIZE:
X
G
SCALE:
C
SHEET
1
OF
2
4:1
H
E
F
A
B
C
D
E
F
G
REVISIONS
REV
DESCRIPTION, ECN, EAR NO.
H
DATE
APP'D
13.06
.514
1
C
PRODUCT DRAWING (EAR 14600)
AUG31/17
K.L.
1.27
.050
TYP
2
4
3
5
6
2.54
.100
TYP
8
7
0.90±0.05
.035±.002
12 PLCS
1
8.00
.315
2
2.54
.100
2 PLCS
12
1
2.54
.100
11
10
9
4.00
.157
16.55
.652
3.75 MAX
.148 MAX
2.00±0.05
.079±.002
2 PLCS
LOCATE HOLES
0.13 [.005] DIA
POSITION DIMENSIONS
ARE BASIC
2
EDGE OF PCB
0.56
.022
10.00
.394
COMPONENT SIDE OF BOARD
3.20±0.08
.126±.003
2 PLCS
R1.30
.051
TYP
1.53
.060
3

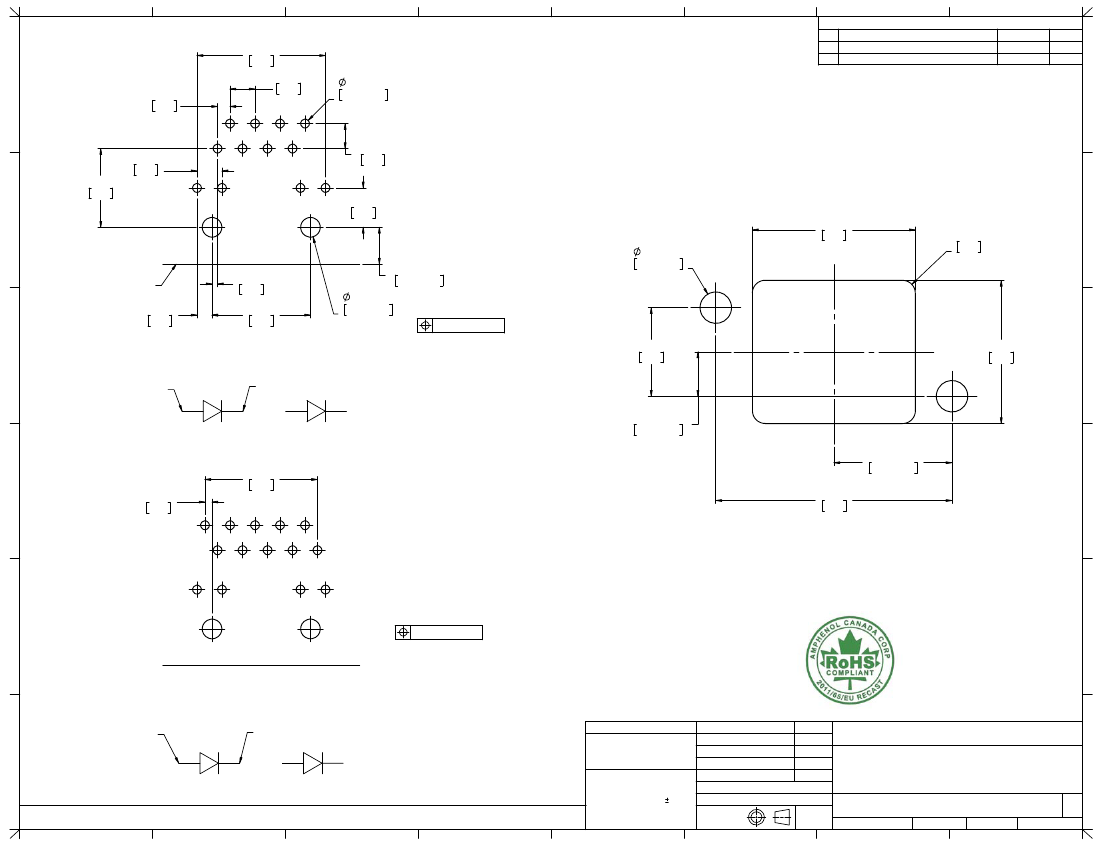

RECOMMENDED PCB LAYOUT FOR 8 POSITION
9.00
.354
14.55
.573
3
ANODE (+)
12
LEFT LED
11
CATHODE (-)
8 POSITION LED SCHEMATIC
10
9
RIGHT LED
(GREEN OR YELLOW)
4.50±0.08
.177±.003
12.00±0.08
.472±.003
24.00
.945
4
4
11.43
.450
0.72
.028
1
3
2
5
4
7
6
9
8
10
RECOMMENDED PANEL CUTOUT
OUTSIDE PANEL VIEW
14
5
13
12
11
LOCATE HOLES
0.13 [.005] DIA
POSITION DIMENSIONS
ARE BASIC
5
RECOMMENDED PCB LAYOUT FOR 10 POSITION
COMPONENT SIDE OF BOARD
ANODE (+)
6
CATHODE (-)
UNLESS SPECIFIED OTHERWISE
PRIMARY UNITS
DRAWN
10 POSITION LED SCHEMATIC
14
LEFT LED
13
12
11
RIGHT LED
(GREEN OR YELLOW)
SECONDARY
MILLIMETERS
CHECKED
INCHES
M.E. APP'D
Q.A. APP'D
DWG APPR.
ENG. REL. NO.
G.LI
K.LAMBIE
JAN18/08
JAN18/08
Amphenol Canada Corp.
www.amphenolcanada.com
REFERENCE IN PARENTHESES
GENERAL TOLERANCES
1 DECIMAL PLACE
2 DECIMAL PLACES
EAR 13217
MRJ SERIES RUGGED MODULAR JACK,
EMI FILTERED, 8 & 10 POSITION RIGHT
ANGLE, WITH LED, TAIL LENGTH &
THREAD OPTIONS, RoHS COMPLIANT
DWG. NO.
REV
6
0.15
REF.
THIRD
ANGLE
PROJECTION
THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION AND SUCH INFORMATION MAY NOT BE DISCLOSED TO OTHERS FOR ANY PURPOSE
OR USED FOR MANUFACTURING PURPOSES WITHOUT WRITTEN PERMISSION FROM AMPHENOL CANADA CORP.
A
B
C
D
3 DECIMAL PLACES
ANGULAR DEGREES
DO NOT
SCALE
DRAWING CODE ID NO.
P-MRJ-63XX-X1
03554
DWG SIZE:
X
G
SCALE:
C
SHEET
2
OF
2
5:1
H
E
F
