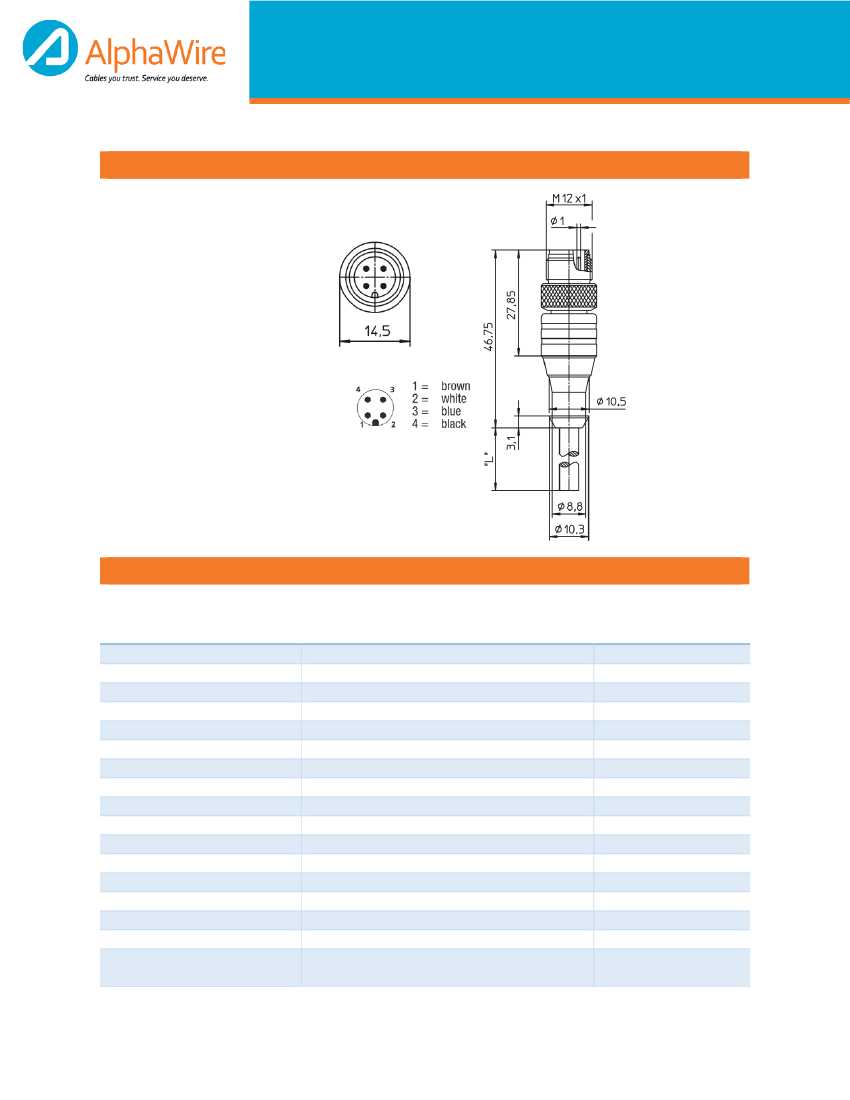

Customer Specification
PART NO: DR0400101
M12-A Male
Drawings
Issue: 1 Issue Date: 7/29/2016 Effective Date: 7/29/2016
Technical Data
Cordage Construction
Cordage Part Number
Component 1
a) Conductor
b) Insulation
Insulation Colors
Jacket
a) Color(s)
Cord Configuration
End 1
End 2
Insert
Mold Color
Contact
Coupling Nut
O-Ring
Available Lengths
Applicable Specifications-
Cable
Diameters (In)
101
4 COND
22 (26/36) AWG Bare Copper
0.010” Wall, Nom. mPPE
Black, White, Brown & Blue
0.040” Wall, Nom. PUR, Zero Halogen
SLATE
M12-A Male
Cut End
Black TPU
Black TPU
Copper Alloy, Gold plated
Copper Alloy, Nickel plated
FKM
0.6, 1, 3, 5, 10, 15, 20 Meters
0.027
0.047
0.200
•••••••••••••••••••••••••••••••••••••••
Alpha Wire | 711 Lidgerwood Ave, Elizabeth, NJ 07207
www.alphawire.com | 1-800-52 ALPHA
1
Customer Specification
PART NO: DR0400101
M12-A Male
UL
CSA International
Applicable Specifications-
Cord Set
UL
CSA
AWM/STYLE 20549
AWM/STYLE 21959
C(RU) AWM I/II A/B FT1
ANSI/UL 2238, Cable Assembly Extension
RU, UL File Number E485156
CSA-C22.2 No. 182.3, Special Use
Attachment Plugs, Receptacles and
Connectors
cRU, UL File Number E485156
240 V
250 V
IP67/NEMA 6P
All materials used in the manufacture of
this part meet the requirements of
European Directive 2011/65/EU regarding
the restriction of use of certain hazardous
substances in electrical and electronic
equipment. Exemption used; 6a.
This product does not contain Substances
of Very High Concern (SVHC) listed on the
European Union’s REACH candidate list in
excess of 0.1% mass of the item.
-50 to 90°C(static), -40 to 80°C (dynamic)
-25°C to +80°C
4X Cable Diameter (static), 6X Cable
Diameter (dynamic)
20.4 Lbs, Maximum
2.2 Amps @ 50°C
0.6 Meters
1.0 Meters
3.0 Meters
5.0 Meters
10.0 Meters
15.0 Meters
20.0 Meters
Each
80°C / 300 V
RMS
90°C / 600 V
RMS
90°C / 600 V
RMS
Nominal Voltage
Rated Voltage
Ingress Protection
Environmental Compliance
CE
REACH Regulation (EC
1907/2006)
Physical & Mechanical
Properties
Temperature Range, Cord
Temperature Range,
Connector
Bend Radius
Pull Tension
Current Rating
Ordering Information
DR0400101 SL355
DR0400101 SL356
DR0400101 SL357
DR0400101 SL358
DR0400101 SL359
DR0400101 SL400
DR0400101 SL401
Standard Package
