Customer Specification
PART NO: DR08AR124
M12-A Male to M12-A Female

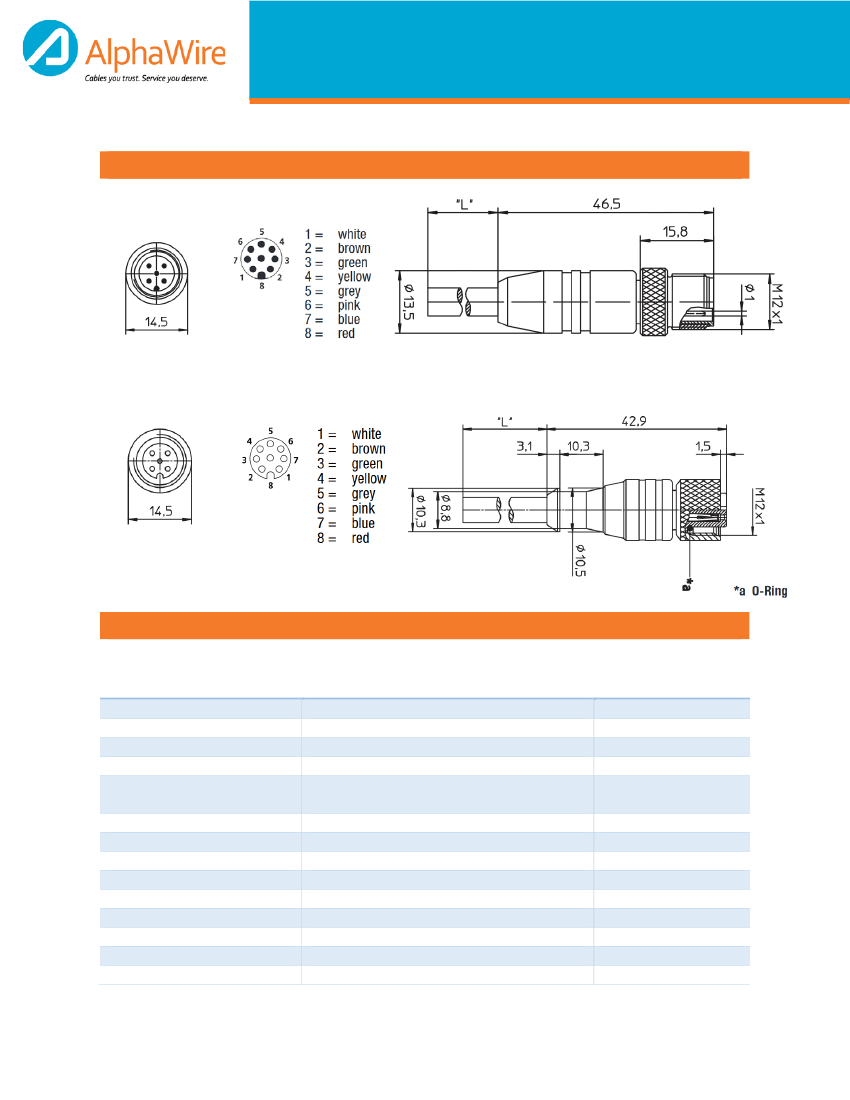

Drawings
End 1
End 2
Issue: 1 Issue Date: 7/29/2016 Effective Date: 7/29/2016
Technical Data
Cordage Construction
Cordage Part Number
Component 1
a) Conductor
b) Insulation
Insulation Colors
Shield
Jacket
a) Color(s)
Cord Configuration
End 1
End 2
Insert
Mold Color
Contact
Diameters (In)
124
8 COND
24 (19/36) AWG Bare Copper
0.010” Wall, Nom. PP
White, Brown, Green, Yellow, Grey, Pink,
Blue & Red
85% Tinned Copper Braid
0.040” Wall, Nom. PUR, Zero Halogen
SLATE
M12-A Male
M12-A Female
Black TPU
Black TPU
Copper Alloy, Gold plated
•••••••••••••••••••••••••••••••••••••••
Alpha Wire | 711 Lidgerwood Ave, Elizabeth, NJ 07207
www.alphawire.com | 1-800-52 ALPHA
0.025
0.045
0.276
1
Customer Specification
PART NO: DR08AR124
M12-A Male to M12-A Female
Coupling Nut
Shield Sleeve
O-Ring
Available Lengths
Applicable Specifications-
Cable
UL
CSA International
Applicable Specifications-
Cord Set
UL
CSA
Copper Alloy, Nickel plated
Copper Alloy, Nickel plated
FKM
0.6, 1, 3, 5, 10, 15, 20 Meters
AWM/STYLE 20549
C(RU) AWM I/II A/B FT2
ANSI/UL 2238, Cable Assembly Extension
RU, UL File Number E485156
CSA-C22.2 No. 182.3, Special Use
Attachment Plugs, Receptacles and
Connectors
cRU, UL File Number E485156
30 V
36 V
IP67/NEMA 6P
All materials used in the manufacture of
this part meet the requirements of
European Directive 2011/65/EU regarding
the restriction of use of certain hazardous
substances in electrical and electronic
equipment. Exemption used; 6a.
This product does not contain Substances
of Very High Concern (SVHC) listed on the
European Union’s REACH candidate list in
excess of 0.1% mass of the item.
-40 to 80°C(static), -25 to 60°C (dynamic)
-25°C to +80°C
5X Cable Diameter (static), 10X Cable
Diameter (dynamic)
34 Lbs, Maximum
1.1 Amps @ 50°C
0.6 Meters
1.0 Meters
3.0 Meters
5.0 Meters
10.0 Meters
80°C / 300 V
RMS
80°C / 300 V
RMS
Nominal Voltage
Rated Voltage
Ingress Protection
Environmental Compliance
CE
REACH Regulation (EC
1907/2006)
Physical & Mechanical
Properties
Temperature Range, Cord
Temperature Range,
Connector
Bend Radius
Pull Tension
Current Rating
Ordering Information
DR08AR124 SL355
DR08AR124 SL356
DR08AR124 SL357
DR08AR124 SL358
DR08AR124 SL359
•••••••••••••••••••••••••••••••••••••••
Alpha Wire | 711 Lidgerwood Ave, Elizabeth, NJ 07207
www.alphawire.com | 1-800-52 ALPHA
2
Customer Specification
PART NO: DR08AR124
M12-A Male to M12-A Female
DR08AR124 SL400
DR08AR124 SL401
Standard Package
15.0 Meters
20.0 Meters
Each
Although Alpha Wire (“Alpha”) makes every reasonable effort to ensure their accuracy at the time of this publication, information and
specifications described herein are subject to error or omission and to change without notice, and the listing of such information and
specifications does not ensure product availability. Alpha provides the information and specification herein on an “AS IS” basis, with no
representations or warranties, whether express, statutory or implied. In no event will Alpha be liable any damages (including consequential,
indirect, incidental, special, punitive, or exemplary damages) whatsoever, even if Alpha has been advised of the possibility of such damages,
whether in an action under contact, negligence or any other theory, arising out of or in connection with the use, or inability to use, the
information or specification described herein.
•••••••••••••••••••••••••••••••••••••••
Alpha Wire | 711 Lidgerwood Ave, Elizabeth, NJ 07207
www.alphawire.com | 1-800-52 ALPHA
3
