Cable kit for conga-PA3 datasheet, PDF

Datasheet> All Categories > Wire/cable> Cable package> Computer line> Cable kit for conga-PA3

Cable kit for conga-PA3: Description电脑线 The cable kit for the Pico-ITX conga-PA3 consists of cables for Audio, USB, LED & Buttons (15cm), GPIO's, RS232; Power Input, USB client, Feature connector, LCD and Backlight. This cable kit is designed for evaluation purposes only.; CategoryWire/cable Cable package Computer line; File Size2MB，4 Pages; Manufacturercongatec; Environmental Compliance

Download Datasheet Parametric Compare View All

Cable kit for conga-PA3 Overview

电脑线 The cable kit for the Pico-ITX conga-PA3 consists of cables for Audio, USB, LED & Buttons (15cm), GPIO's, RS232; Power Input, USB client, Feature connector, LCD and Backlight. This cable kit is designed for evaluation purposes only.

Cable kit for conga-PA3 Parametric

Parameter Name	Attribute value
Maker	congatec
Product Category	computer cable
Shipping restrictions	Mouser does not currently sell this product.
product	Cable Kit
type	Serial Cable
series	conga-PA3
Factory packaging quantity	1

Preview

Download Datasheet

View All

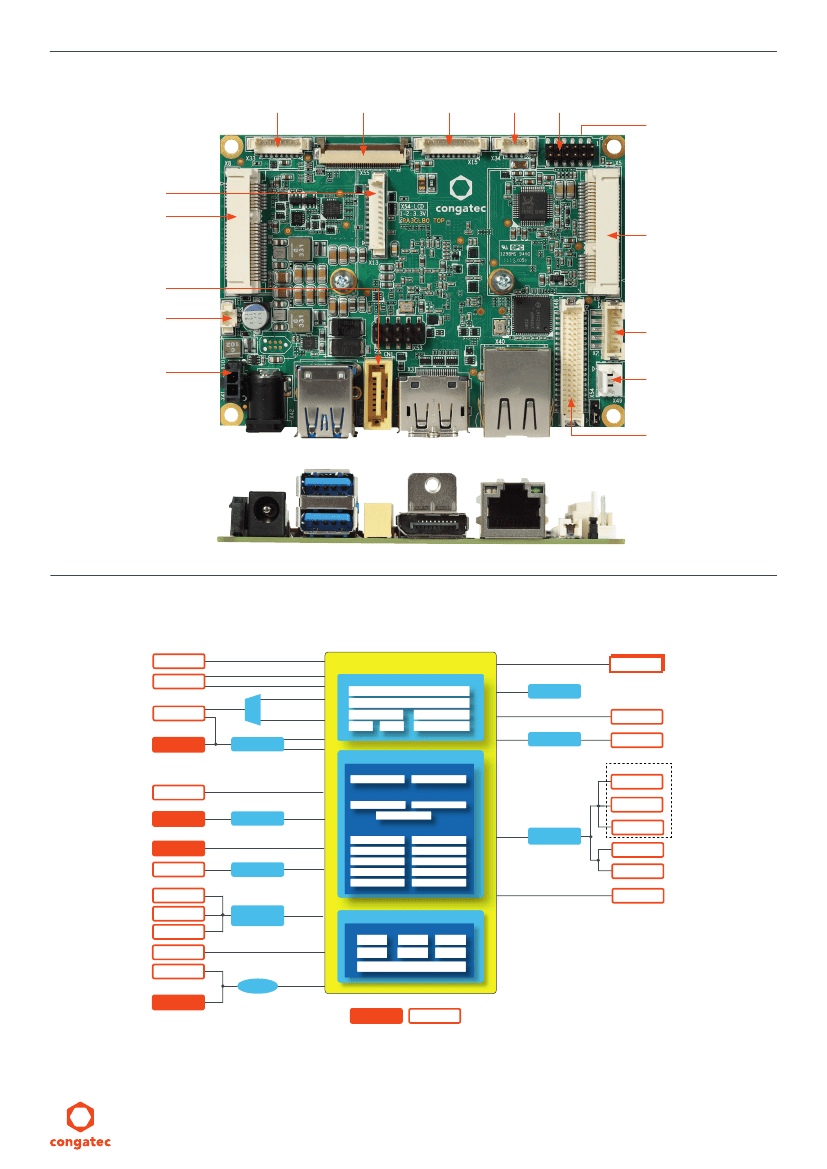

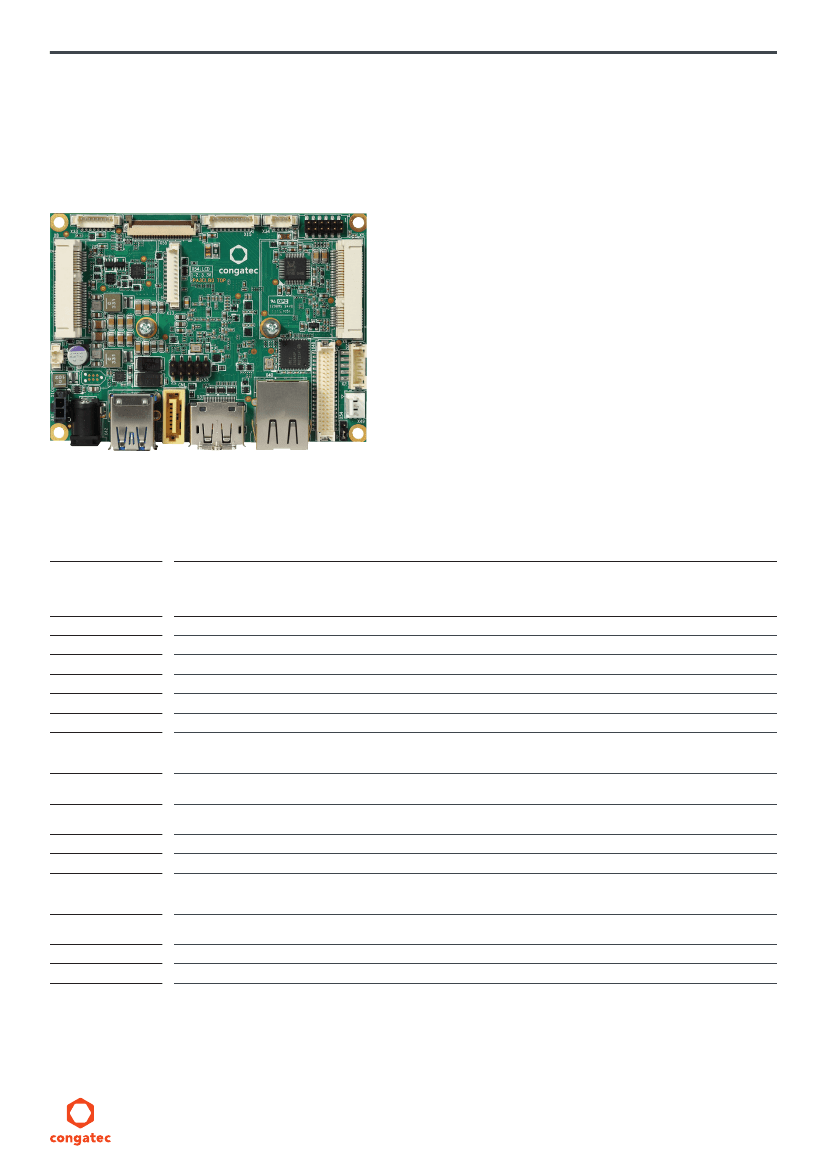

INDUSTRIAL PICO-ITX

conga-PA3

Compact and complete for small Industry 4.0

Generation Intel

Atom

™

/ Celeron

Processor

Low Power 5 to 10 Watt TDP

Enhanced Intel HD Graphics Generation 7

Long life components for 24/7 embedded use

Smallest SBC computing and connecting device

Extended Temperature

Formfactor

CPU

pico-ITX Singleboard Computer | 100x72 mm

Intel

Atom

™

E3845

Intel

Atom

™

E3826

Other Variants by request

1.91 GHz Quad Core

1.46 GHz Dual Core

2 MB L2 Cache

1 MB L2 Cache

10W TDP

7W TDP

DRAM Memory

Chipset

Ethernet

Sound

Graphics

Graphic Interfaces

Internal Connectors

Single Channel up to 4GB onboard DDR3L with 1333 MHz

Integrated in SoC

LAN Gbit / 100 Mbit / 10 Mbit | Intel Gigabit Ethernet i211 controller (i210 for industrial temperature)

High Definition Audio Interface* | Realtek ALC 888S-VD | 7.1-channel

Next Generation Intel

HD Graphics

1x 24-bit Dual Channel LVDS Interface (via eDP to LVDS converter PTN3460) | 1x DisplayPort DP++ | resolution up 1920x1200 with 60Hz

1x mPCIe Half Size | 1x mPCIe Half Size shared with mSATA | 1x SATA (3G) (no SATA power) | 2x USB 2.0

1x COM (RS-232) | 1x Fan Connector | 1x Feature Connector | micro SD Card | MIPI-CSI 2.0

1x DisplayPort DP++ | 1x LAN RJ45 | 2x USB 3.0 | 1x DC-In (external input)*

Multi-Stage Watchdog | non-volatile User Data Storage | Manufacturing and Board Information | Board Statistics | BIOS Setup Data Backup

I²C bus (fast mode | 400 kHz | multi-master) | Power Loss Control

AMI Aptio

2.X (UEFI) BIOS; SM-BIOS | BIOS Update | Logo Boot | Quiet Boot | HDD Password

Power Supply 12V | 1 x FAN | RTC battery*

Microsoft

Windows 10 |Microsoft

Windows 10 IoT Enterprise | Microsoft

Windows 10 IoT Core | Microsoft

Windows 8 | Microsoft

Windows 7

Linux | Microsoft

Windows

7/8 embedded Standard |

Android | Yocto | MoonIsland / WindRiver IDP

Commercial: 0 .. +60°C

Industrial: -40* + 85°C

Operating: 10 - 90% r. H. non cond.

100 x 72 mm (3.9” x 2,8”)

External Connectors

(Frontpanel)

congatec embedded

Controller

Embedded BIOS

Power Specification

Operating Systems

Operating Temperature:

Humidity Operating:

Size

* see User-Manual for detailed informations

www.congatec.com

conga-PA3

| Order Information

Article

conga-PA3/E3845-4G

conga-PA3/E3826-2G

conga-PA3/i-E3845-4G

conga-PA3/i-E3826-2G

047700

047701

047720

047721

Description

pico-ITX board based on Intel® Atom™ E3845 quad core processor with 1.91GHz, 2MB L2 cache and 4GB 1333MT/s onboard memory.

pico-ITX board based on Intel® Atom™ E3826 dual core processor with 1.46GHz, 1MB L2 cache and 2GB 1066MT/s onboard memory.

pico-ITX board based on Intel® Atom™ E3845 quad core processor with 1.91GHz, 2MB L2 cache and 4GB 1333MT/s onboard memory.

Extended temperature version -40°C to 85°C without audio functionality.

pico-ITX board based on Intel® Atom™ E3826 dual core processor with 1.46GHz, 1MB L2 cache and 2GB 1066MT/s onboard memory.

Extended temperature version -40°C to 85°C without audio functionality.

Accessories

conga-PA3/HSP

conga-PA3/CSP

17’’ LVDS Panel G170EG01 V

kab-LCD-Backlight-PA3

PA3 - LVDS data cable

Lithium Coin Battery

047750

047753

10000132

14000130

14000167

46500015

Description

Heatspreader solution conga-PA3. All standoffs are with 2.7 bore hole.

Passive cooling solution for conga-PA3. Includes conga-PA3/HSP heatspreader and heat sink with 12mm fins.

All standoffs are with 2.7mm bore hole.

Backlight Cable from PA3 baseboard to LCD panel (+12V LCD) with harddrive Molex outbound connection for +12V/+5V volt devices.

LVDS data cable only conga-PA3.

Coin type Lithium battery for high temperature | Includes wires and connector, 3M VHB tape, battery is covered

by PVC heat shrink tube | nominal capacity: 255 mAh | temperature range: -40 to +85 °C

Cables

conga-PA3 Cable Kit

14000162

Description

Cable Kit for conga-PA3 containing cab-Pico-ITX-USB2.0-Twin | cab-Pico-ITX-Audio Cable Adapter | cab-Pico-ITX-Buttons-LED

cab-Pico-ITX-GPIO | cab-Pico-ITX-RS232 | cab-Pico-ITX-External-Power | cab-Pico-ITX-Feature

cab-Pico-ITX-SATA-Power

RS422 cable adapter for Pico-ITX, DSUB9 Male, 15 cm

RS485 cable adapter for Pico-ITX, DSUB9 Male, 15 cm

LVDS data cable for Pico-ITX to connect LCD panel AUO G170EG01 V.1 (Item# 10000132; Item name 17’’ LVDS Panel G170EG01 V.1)

Internal power cable for industrial versions of Pico-ITX, 15 cm

Backlight power cable for Pico-ITX to connect LCD panel AUO G170EG01 V.1 (Item# 10000132; Item name 17’’ LVDS Panel G170EG01 V.1)

cab-Pico-ITX-RS422

cab-Pico-ITX-RS485

cab-Pico-ITX-LVDS

cab-Pico-ITX-Power

cab-Pico-ITX-Backlight

14000153

14000154

14000167

14000172

14000130

All data is for information purposes only. Although all the information contained within this document is carefully checked, no

guarantee of correctness is implied or expressed. Product names, logos, brands, and other trademarks featured or referred are the

property of their respective trademark holders. These trademark holders are not affiliated with congatec AG. Rev. Jan 08, 2018 JK

www.congatec.com

Cable kit for conga-PA3 Related Products

	Cable kit for conga-PA3	conga-PA3/i-E3826-2G	cab-Pico-ITX-LVDS	conga-PA3/i-E3845-4G	conga-PA3/HSP-B
Description	电脑线 The cable kit for the Pico-ITX conga-PA3 consists of cables for Audio, USB, LED & Buttons (15cm), GPIO's, RS232; Power Input, USB client, Feature connector, LCD and Backlight. This cable kit is designed for evaluation purposes only.	单板计算机 pico-ITX board based on Intel Atom E3826 dual core processor with 1.46GHz, 1MB L2 cache and 2GB 1066MT/s onboard memory. Extended temperature version -40 C to 85 C without audio functionality.	Computer cable LVDS data cable for Pico-ITX to connect LCD panel AUO G170EG01 V.1 (Item# 10000132; Item name 17'' LVDS Panel G170EG01 V.1)	单板计算机 pico-ITX board based on Intel Atom E3845 quad core processor with 1.91GHz, 2MB L2 cache and 4GB 1333MT/s onboard memory. Extended temperature version -40 C to 85 C without audio functionality.	Heatspreader solution for conga-PA3 pico-ITX.
Maker	congatec	congatec	congatec	congatec	congatec
Product Category	computer cable	single board computer	computer cable	single board computer	heat sink
Shipping restrictions	Mouser does not currently sell this product.	Mouser does not currently sell this product.	Mouser does not currently sell this product in your area.	Mouser does not currently sell this product in your area.	Mouser does not currently sell this product in your area.
series	conga-PA3	conga-PA3	conga-PA3	conga-PA3	conga-PA3
Factory packaging quantity	1	1	1	1	1
