RMCJ1U00R05FS: DescriptionCurrent Sensing Resistor - Through Hole 0.05Ohms 1W 1% Radial; CategoryPassive components The resistor The current sensing resistor The current sensing resistor - through hole; File Size97KB，3 Pages; ManufacturerJohanson Dielectrics; Environmental Compliance

Download Datasheet Parametric Compare View All

RMCJ1U00R05FS Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	RMCJ1U00R05FS	-	-	View	Buy Now

RMCJ1U00R05FS Overview

Current Sensing Resistor - Through Hole 0.05Ohms 1W 1% Radial

RMCJ1U00R05FS Parametric

Parameter Name	Attribute value
Maker	Johanson Dielectrics
Product Category	Current Sensing Resistor - Through Hole
series	RMC
resistance	50 mOhms
Power rating	1 W
Tolerance	1 %
Temperature Coefficient	20 PPM / C
length	11.43 mm
width	1.65 mm
high	5.08 mm
Termination type	Radial
Encapsulation	Bulk
application	Current Sense
Features	-
product	Metal Element Current Sensing Resistors
type	Resistor Metal Element Current Sense
Installation style	PCB Mount
Lead diameter	1.02 mm
Factory packaging quantity	500

Preview

Download Datasheet

View All

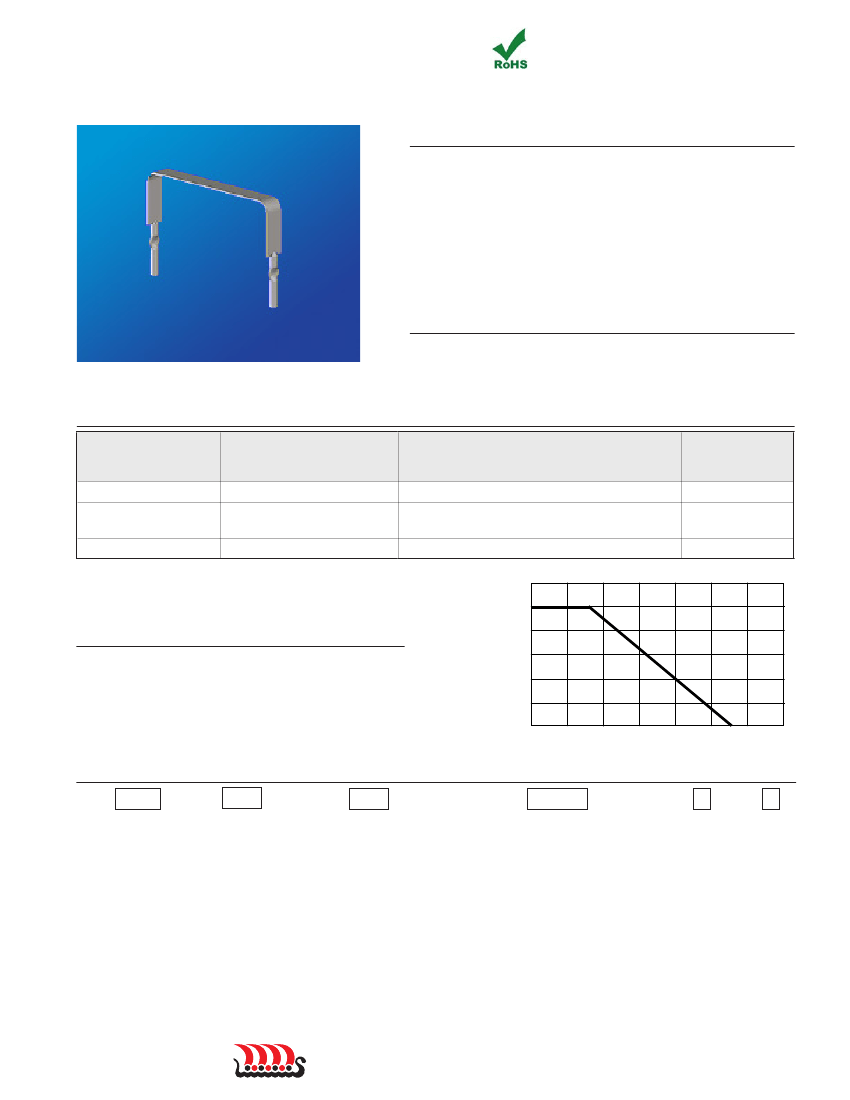

esIsTor

eTal

lemenT

urrenT

ense

rmc s

erIes

eatureS

• Resistances from 0.005 to 0.100 Ohms

• Low Inductance (<10nH)

• Tolerances to ± 1%

• Resistance Wire TCR: ± 20ppm/ºC

• For Current Sensing and Shunt Applications

• All Welded Construction

• Economical Bare Metal Element

pplicationS

• Base Station

• Power Inverters

• Current Sensing

• Lightning Pulse Survival

roduct

ummary

PRODUCT SERIES

(RMC)

POWER RATING @ 85ºC

(W)

RESISTANCE (Ω)

0.005, 0.01, 0.02, 0.025, 0.03, 0.04, 0.05, 0.1

0.005, 0.01, 0.015, 0.02, 0.025, 0.03, 0.04,

0.05, 0.1

0.005, 0.01, 0.015, 0.02, 0.025, 0.03, 0.05, 0.1

120

100

150

200

TOLERANCES

± 1% / ± 5%

Contact Factory for other resistances

Power Derating Curve

Vailable

ptionS

(Consult Factory)

•

Special Testing Requirements

Rated Power ( % )

250

300

350

Ambient Temperature (°C)

ow to

rder

RMC

RESISTOR METAL

ELEMENT CURRENT

SENSE

PACKAGE

CODE, WATTS

J1, 1.0W

J2, 3.0W

J3, 5.0W

TEMPERATURE COEFFICIENT

OF RESISTANCE (TCR)

U = ± 20ppm/ºC

0R005

RESISTANCE

TOLERANCE

PACKING

0R005 = 0.005Ω (5mΩ)

0R025 = 0.025Ω (25mΩ)

00R05 = 0.05Ω (50mΩ)

000R1 = 0.1Ω (100mΩ)

Letter denotes decimal place.

R = decimal., “K” 10

, “M” 10

Remaining 4 digits are significant or placeholders.

F = ± 1.0%

J = ± 5.0%

S = Bulk

For Tin/Lead coated leads, add "- Pb" to part number.

Standard Termination Finish: Matte Tin (Sn)

Example P/N: RMCJ2U0R005FS is Resistor Metal Element Current Sense, 3.0W, ±20ppm/ºC, 0.005Ω, ±1.0%, bulk

www.johanson dielectrics.com
