DF23C-60DS-0.5V(51) datasheet, PDF

Datasheet> All Categories > The connector> The connector> DF23C-60DS-0.5V(51)

DF23C-60DS-0.5V(51): DescriptionBoard to Board & Mezzanine Connector REC 60 POS DUAL .5MM SMT; CategoryThe connector The connector; File Size143KB，8 Pages; ManufacturerHirose; Websitehttp://www.hirose-connectors.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

DF23C-60DS-0.5V(51) Overview

Board to Board & Mezzanine Connector REC 60 POS DUAL .5MM SMT

DF23C-60DS-0.5V(51) Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
Other features	LOW PROFILE
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN
Contact completed and terminated	Tin (Sn)
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	60 mΩ
Contact style	BELLOWED TYPE
DIN compliance	NO
Dielectric withstand voltage	150VAC V
Durability	50 Cycles
Filter function	NO
IEC compliance	NO
Insulation resistance	500000000 Ω
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.019 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-35 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.953 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	0.3 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.5 mm
Termination type	SURFACE MOUNT
Total number of contacts	60
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

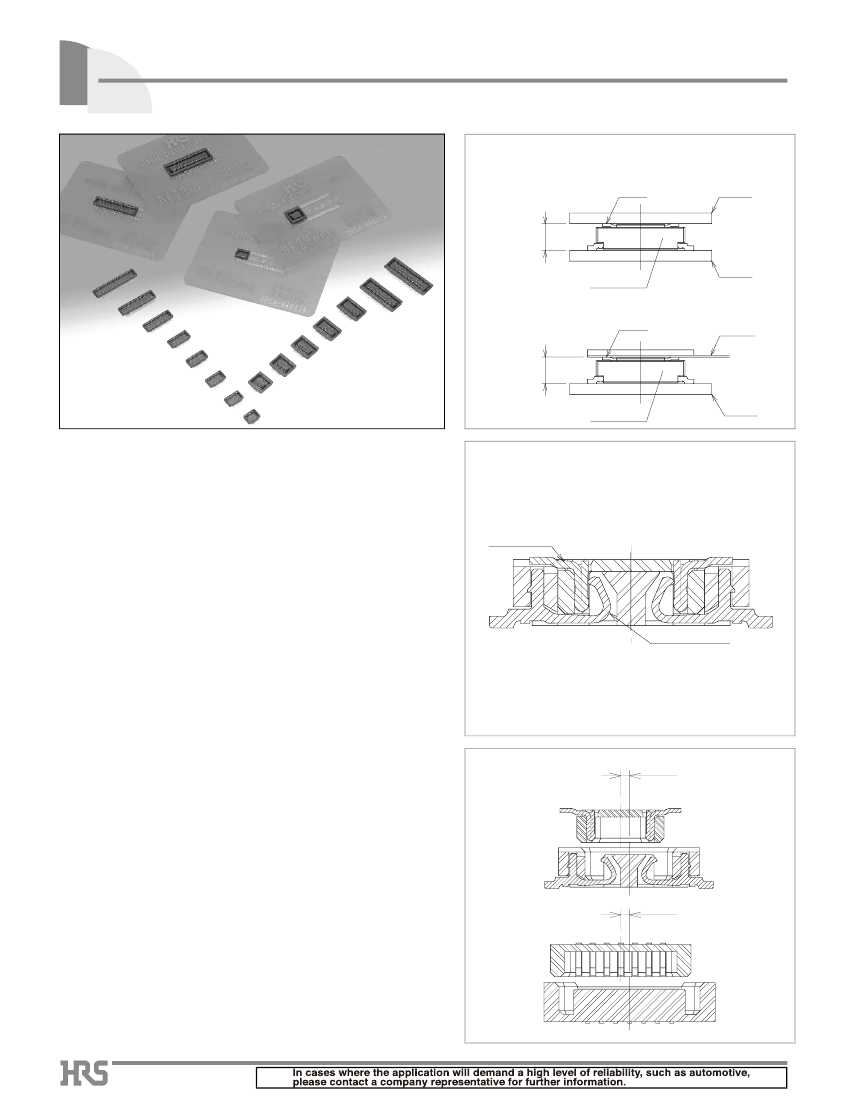

0.5mm Pitch Low-Profile Board-to-Board/Board-to-FPC Connectors

DF23 Series

Low profile - 1.5 mm board-to-board distance

●

Board-to-Board Application

Plug

Board

1.5

+0.2

- 0.1

Board

Receptacle

●

Board-to-FPC Application

Plug

FPC

1.5

+0.2

- 0.1

Receptacle

Board

■

Features

High Contact Reliability

1. Low profile

The 1.5 mm board-to-board distance makes these

connectors ideal for limited space applications.

2. Large variety of number of contacts

Available with 10, 12, 14, 16, 18, 20, 30, 40, 50, and 60

contacts.

Connectors with 10 to 20 contacts are ideal for use in

small LCD connections in cellular phones, PDA’s, video

equipment, photo cameras and miniature of other

devices requiring reliable connections in a small spaces.

Male contact

Female contact

3. Click sensation

Positive click sensation when completely mated confirms

correct insertion and connection of all contacts.

4. High contact reliability

Although connectors are low profile, the female contacts

maintain reliable spring force assuring secure electrical

contact.

Large Self-alignment

0.3

5. Large self-alignment

The large range of alignment of 0.3 mm allows for

smooth insertion.

6. Board placement with automatic equipment

Flat surfaces allows placement of embossed tape

packaged connectors with vacuum nozzles.

■

Applications

Mobile phones, PDA’s, notebook PC’s, digital cameras and

other miniature devices.

0.3

A238

DF23C-60DS-0.5V(51) Related Products

	DF23C-60DS-0.5V(51)	DF23C-30DP-0.5V(92)	DF23C-14DS-0.5V(51)	DF23C-50DP-0.5V(92)	DF23C-18DS-0.5V(53)	DF23C-40DP-0.5V(92)	DF23C-30DS-0.5V(51)	DF23C-10DS-0.5V(53)	DF23C-14DP-0.5V(92)
Description	Board to Board & Mezzanine Connector REC 60 POS DUAL .5MM SMT	Board to Board and Mezzanine Connector PLUG 30P DUAL 0.5MM SMT	Board to Board & Mezzanine Connector 14P DR RECEP SRT SMT NO MTL FT NO LOC BOS	Board-to-Board & Mezzanine Connectors PLUG 50P DUAL 0.5MM SMT	Board to Board and Mezzanine Connectors 18P F DR RECP SR SMT NO METL FIT/LOC BOSS	Board to Board and Mezzanine Connector PLUG 40P DUAL 0.5MM SMT	Board to Board & Mezzanine Connector REC 30POS DUAL 0.5MM SMT	Board to Board and Mezzanine Connectors 10P F DR RECP SR SMT NO METL FIT/LOC BOSS	Board-to-board and mezzanine connector PLUG 14P DUAL 0.5MM SMT
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	compliant	unknown	unknown	unknown
Other features	LOW PROFILE	LOW PROFILE	LOW PROFILE	LOW PROFILE	LOW PROFILE	LOW PROFILE	LOW PROFILE	LOW PROFILE	LOW PROFILE
Body/casing type	RECEPTACLE	PLUG	RECEPTACLE	PLUG	RECEPTACLE	PLUG	RECEPTACLE	RECEPTACLE	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	TIN	TIN	TIN	TIN	TIN	TIN	TIN	TIN	NOT SPECIFIED
Contact completed and terminated	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)
Contact point gender	FEMALE	MALE	FEMALE	MALE	FEMALE	MALE	FEMALE	FEMALE	MALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	NOT SPECIFIED
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	60 mΩ	60 mΩ	60 mΩ	60 mΩ	60 mΩ	60 mΩ	60 mΩ	60 mΩ	60 mΩ
Contact style	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Dielectric withstand voltage	150VAC V	150VAC V	150VAC V	150VAC V	150VAC V	150VAC V	150VAC V	150VAC V	150VAC V
Durability	50 Cycles	50 Cycles	50 Cycles	50 Cycles	50 Cycles	50 Cycles	50 Cycles	50 Cycles	50 Cycles
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Insulation resistance	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω
Insulator color	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e3	e3	e3	e3	e3	e3	e3	e3	e3
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Plug contact pitch	0.019 inch	0.019 inch	0.019 inch	0.019 inch	0.019 inch	0.019 inch	0.019 inch	0.019 inch	0.019 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO	NO
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	2	2	2	2	2	2	2	2	2
Number of rows loaded	2	2	2	2	2	2	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-35 °C	-35 °C	-35 °C	-35 °C	-35 °C	-35 °C	-35 °C	-35 °C	-35 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	4.953 mm	3.4036 mm	4.953 mm	3.4036 mm	4.953 mm	3.4036 mm	4.953 mm	4.953 mm	3.4036 mm
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	0.3 A	0.3 A	0.3 A	0.3 A	0.3 A	0.3 A	0.3 A	0.3 A	0.3 A
Guideline	UL	UL	UL	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	0.5 mm	0.5 mm	0.5 mm	0.5 mm	0.5 mm	0.5 mm	0.5 mm	0.5 mm	0.5 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	60	30	14	50	18	40	30	10	14
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Maker	-	Hirose	Hirose	Hirose	Hirose	Hirose	Hirose	-	Hirose
ECCN code	-	-	EAR99	-	EAR99	EAR99	-	EAR99	EAR99
