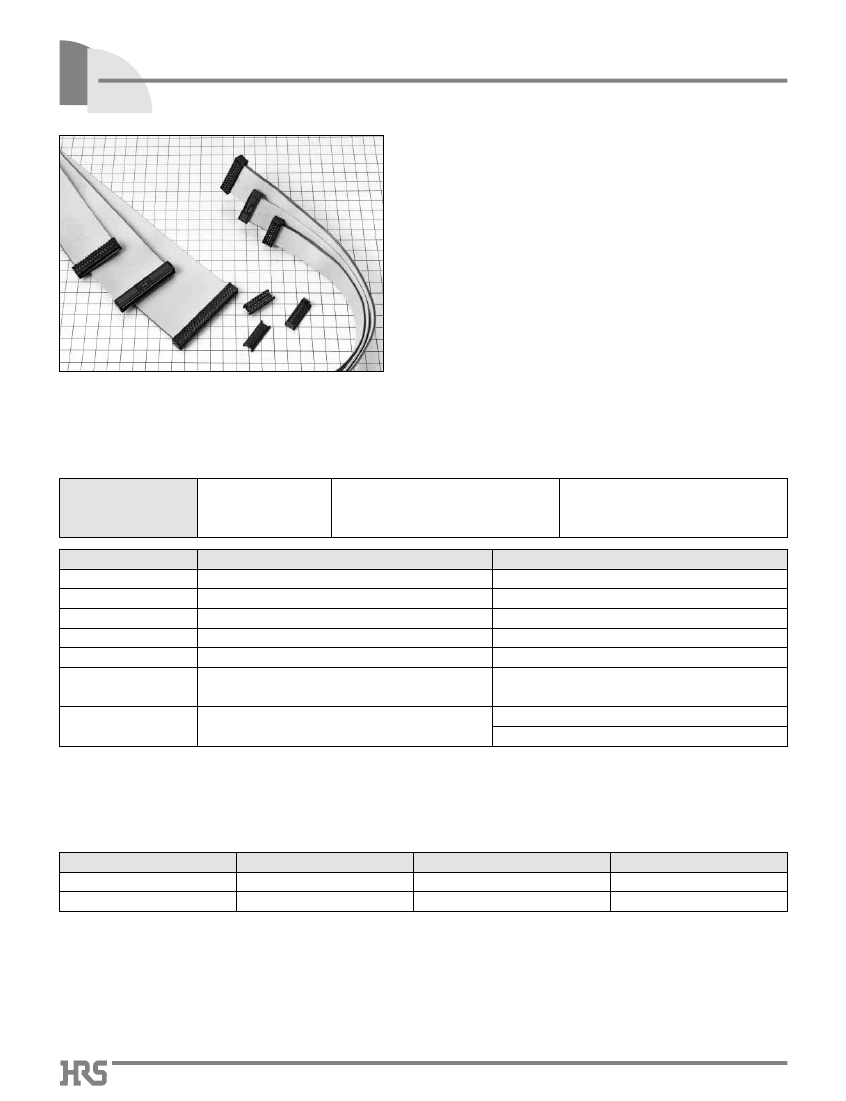

1.27mm Pitch Connector Directly Mounted on Board
HIF12 Series
■Features
1. Directly Mounted on Board
This connector, which is directly mounted on the board, can
insulate and displace the 1.27mm pitch flat cable at a time.
2. Broad Connection
Using the 1.27mm pitch flat cable, this connector can be
combined with HIF2E, HIF3B, HIF5, and HIF6.
3. Applicable Cable
The applicable cable is UL2651 AWG#28 flat cable (7
cores./0.127mm, jacket dia. :0.8 to 1.0mm).
■Applications
Computers, terminal equipment, various kinds of business machines.
■Product
Specifications
Rating
Current rating: 0.5A
Voltage rating: 125V AC
Operating Temperature Range: -55 to +85ç(Note
1)
Operating Moisture Range:
-40
to 80%
Storage Temperature Range:-10 to +60ç (Note 2)
Storage Humidity Range:-40 to 70% (Note 2)
Item
1. Insulation Resistance
2. Withstanding voltage
3. Contact Resistance
4. Vibration
1000M
ohms
min.
Specification
250V DC
300V AC/1 minute
0.1A
Condition
No flashover or insulation breakdown.
30m
ohms
max.
No electrical discontinuity of 1μs or more
Frequency: 10 to 55 Hz, single amplitude of 0.75 mm, 2 hours in each of the 3 directions.
96 hours at temperature of 40ç and humidity of 90% to 95%
(-55ç:
30 minutes
/15
to
35ç: 5 minutes max.
(085ç:
30 minutes
/
15 to 35ç: 5 minutes max.) 5 cycles
5.
Humidity (Steady state)
Insulation resistance: 1000M
ohms
min.
6. Temperature Cycle
No damage, cracks, or parts looseness.
7. Resistance to Soldering heat
No deformation of components affecting performance.
Solder Bath: 260ç for 10 seconds
Manual soldering: 360ç for 5 seconds
Note 1: Includes temperature rise caused by current flow.
Note 2: The term "storage" refers to products stored for long period of time prior to mounting and use. Operating Temperature Range and
Humidity range covers non conducting condition of installed connectors in storage, shipment or during transportation.
Note 3: Information contained in this catalog represents general requirements for this Series.Contact us for the drawings and specifications for
a specific part number shown.
■Material
Part
Insulator
Contact
Material
PBT
Beryllium copper
Finish
Black
Gold plated
Remarks
UL94V-0
–––––––
B96
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
HIF12 Series●1.27mm Pitch Connector Directly Mounted on Board
■Ordering
Information
HIF12
q
q
Series Name
-
*
DT - 1.27 R
w
: HIF 12
e
r
t
w
Number of contacts : 34, 40, 50, 52, 60, 68, 80, 100
e
Contact alignment : 4-row staggered
r
Contact Pitch : 1.27mm
t
R : Ribbon-cable
B
Combination Pattern
Unit: mm
Number of Contacts
A
B
34
26.06
20.32
40
29.87
24.13
50
36.22
30.48
52
37.49
31.75
60
42.57
36.83
68
47.65
41.91
80
55.27
49.53
100
67.97
62.23
B97
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will
Connector Directly Mounted on Board
on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
HIF12 Series●1.27mm Pitch
be discontinued soon. Please check the products status

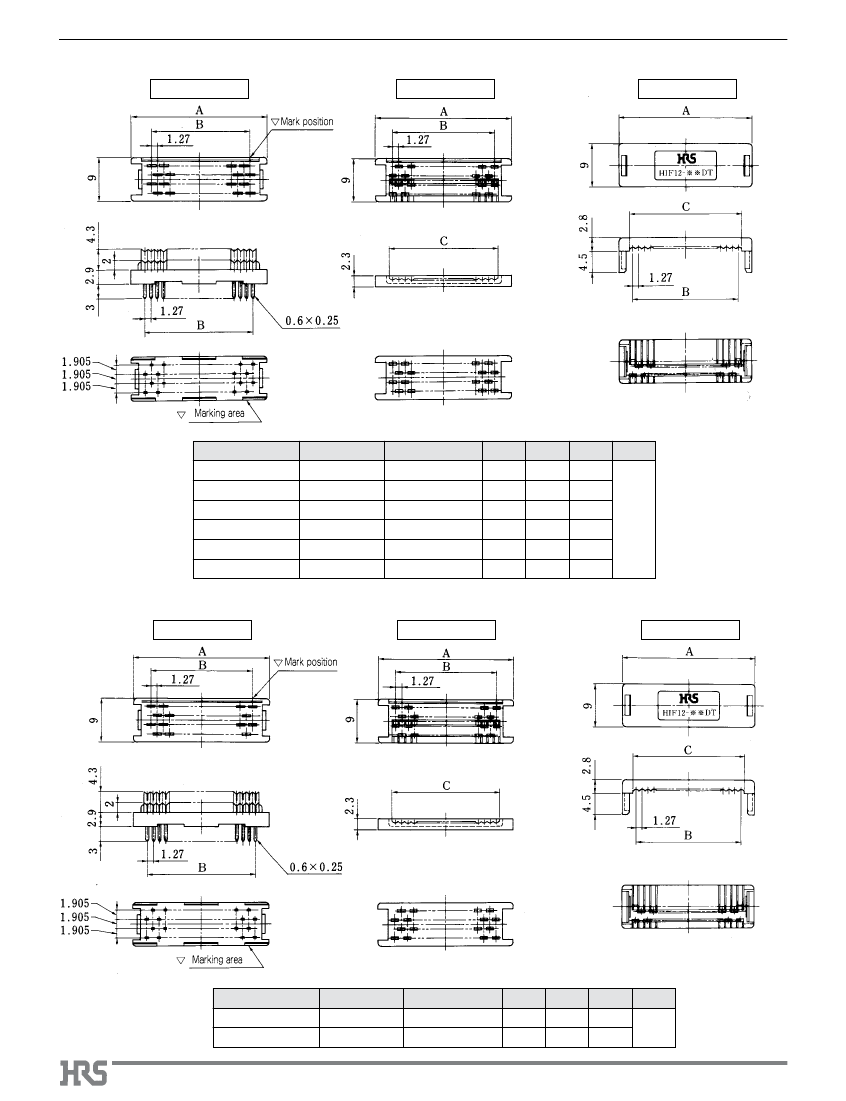

■40,
52, 60, 68, 80, 100 contacts
Body
Protector (A)
Protector (B)
Unit: mm
Part Number
CL No.
Number of Contacts
A
B
C
RoHS
HIF12-040DT-1.27R(71) 660-0005-7-71
HIF12-052DT-1.27R(71) 660-0007-2-71
HIF12-060DT-1.27R(71) 660-0008-5-71
HIF12-068DT-1.27R(71) 660-0009-8-71
HIF12-080DT-1.27R(71) 660-0010-7-71
HIF12-100DT-1.27R(71) 660-0011-0-71
40
52
60
68
80
100
29.87
37.49
42.57
47.65
55.27
67.97
24.13
31.75
36.83
41.91
49.53
62.23
25.55
33.17
38.25
43.33
50.95
63.65
YES
■34,
50 contacts
Body
Protector (A)
Protector (B)
Unit: mm
Part Number
HIF12-34DT-1.27R(71)
HIF12-50DT-1.27R(71)
CL No.
660-0004-4-71
660-0006-0-71
Number of Contacts
34
50
A
26.06
36.22
B
20.32
30.48
C
21.74
31.90
RoHS
YES
B98
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
HIF12 Series●1.27mm Pitch Connector Directly Mounted on Board
BHIF12-HIF12

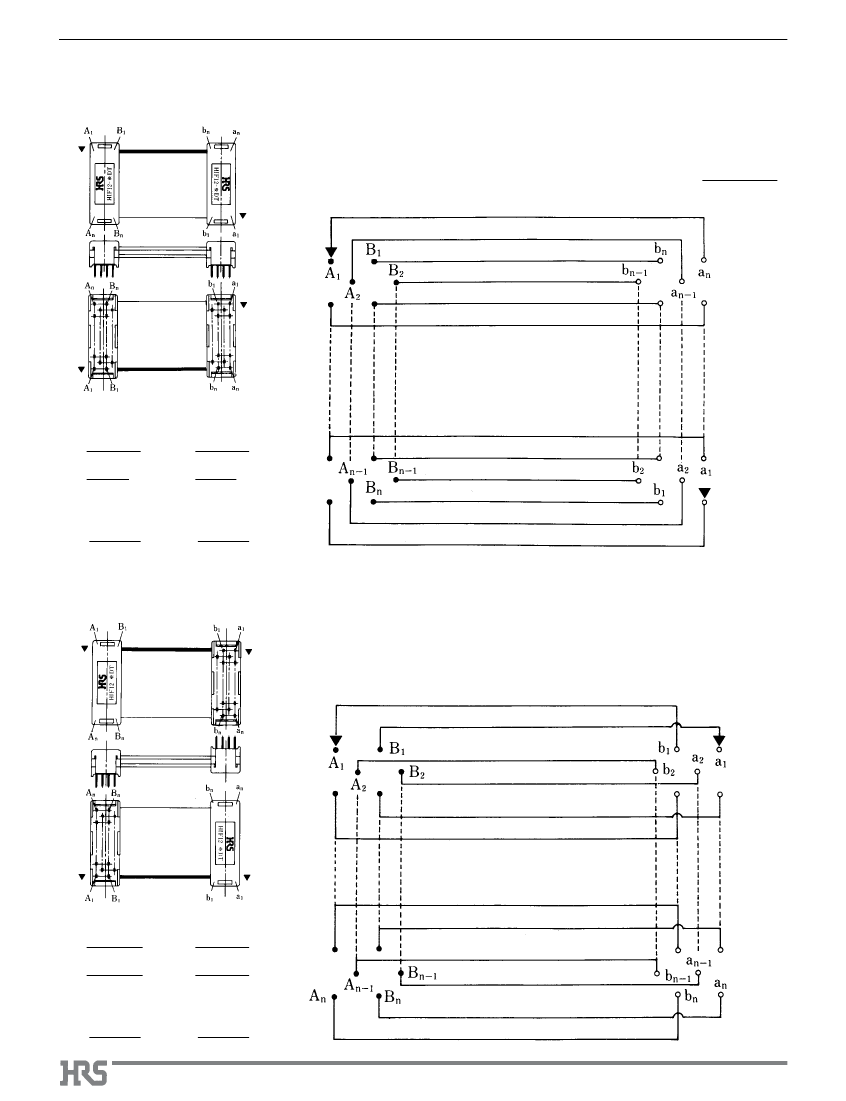

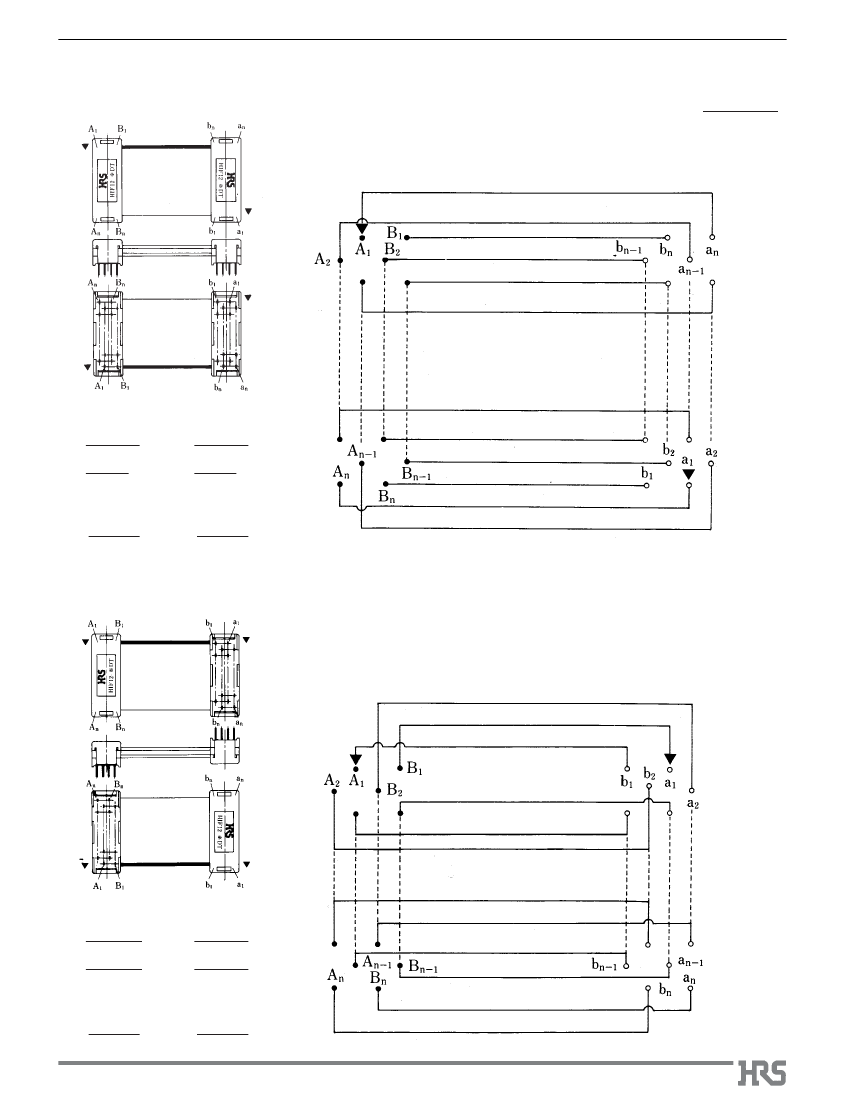

Connection Circuit Diagram
●
Type A, B
40, 52, 60, 68, 80, 100 contacts
n=
number of contacts
2
Note: In the connection circuit diagram as shown, don't connect to
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will
Connector Directly Mounted on Board
on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
HIF12 Series●1.27mm Pitch
be discontinued soon. Please check the products status
