5RCC-7R0M-00 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> Inductor, choke coil and coil> Fixed inductance> 5RCC-7R0M-00

Preview

5RCC-7R0M-00: DescriptionFixed Inductor 7uH 20% TOL Rod Core Choke; CategoryPassive components Inductor, choke coil and coil Fixed inductance; File Size230KB，1 Pages; ManufacturerFastron; Environmental Compliance

Download Datasheet Parametric View All

5RCC-7R0M-00 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5RCC-7R0M-00	-	-	View	Buy Now

5RCC-7R0M-00 Overview

Fixed Inductor 7uH 20% TOL Rod Core Choke

5RCC-7R0M-00 Parametric

Parameter Name	Attribute value
Maker	Fastron
Product Category	fixed inductor
Termination type	Radial
shield	Unshielded
inductance	7 uH
Tolerance	20 %
Maximum DC current	3 A
Maximum DC resistance	17 mOhms
Test frequency	1 kHz
terminal	-
length	20 mm
diameter	5 mm
application	RF
series	5RCC
Encapsulation	Bulk
Core material	Ferrite
product	Fixed Inductors
type	Rod Core Chokes, Inductors
Factory packaging quantity	800

Preview

Download Datasheet

View All

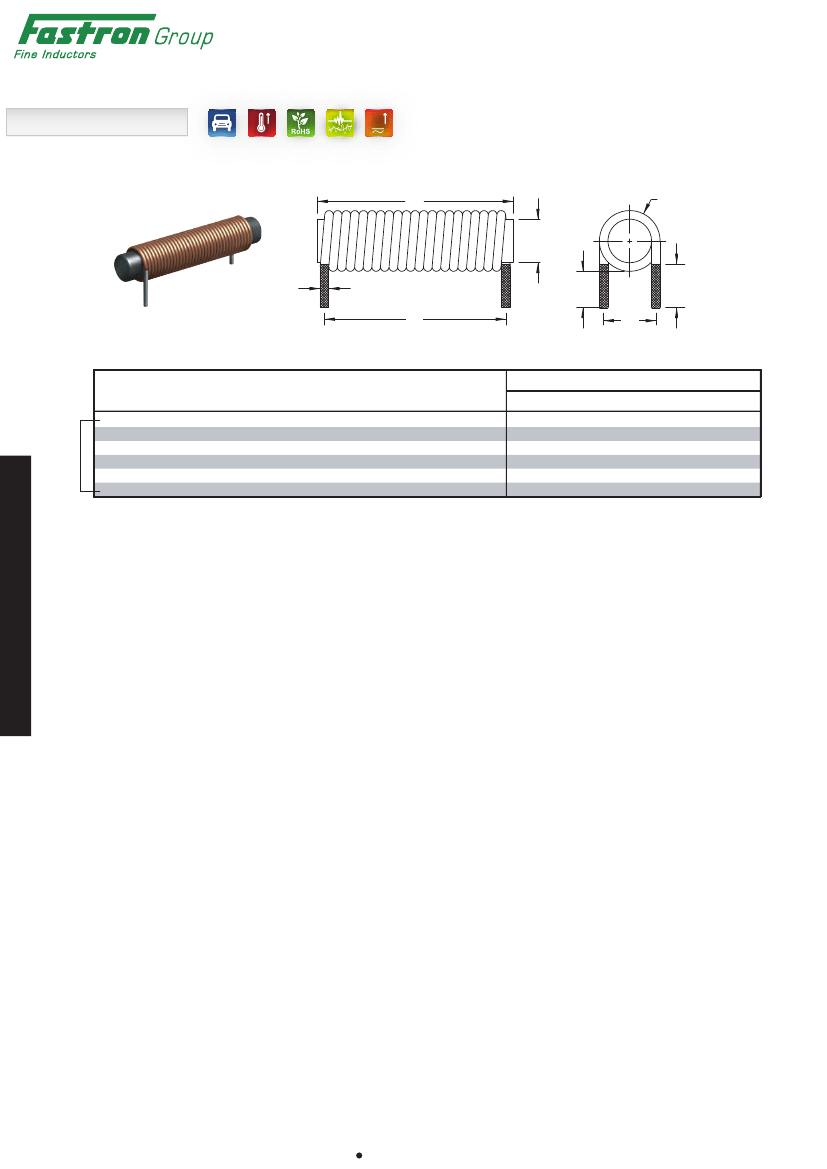

www.fastrongroup.com

5RCC

A

Ø D max

Ø D1

Ød

F

5

F1

6 min

Inductance

Part No

L (µH)

5RCC-2R5M-00

5RCC-4R7M-00

5RCC-7R0M-00

5RCC-100M-00

5RCC-120M-00

5RCC-250M-00

2.5

4.7

7.0

10.0

12.0

25.0

f

L

(MHz)

1

0.1

Tol

± (%)

20

DCR

(Ω)

0.005

0.008

0.017

0.027

0.024

0.038

Temp.

rise

∆

(°C)

< 15

Rated DC

Current (A)

I

sat

6.0

5.0

3.0

2.0

2.5

1.0

18.0

13.0

11.0

9.0

8.5

5.0

Dimensions

Ød

1.00

0.95

0.71

0.63

Ø D1

5.0

A

20

25

20

25

30

Ø D max

7.3

7.2

6.7

6.5

F

11.0

14.5

15.3

16.2

14.9

22.8

F1

6.1

6.0

5.7

Rod Core Chokes (RCC)

Single layer

Core Material :

Ferrite-Rod bar

SPQ :

Loose / Box 2400 [-00]

Remarks :

Customized versions available on request.

Revision date : 04 Jul 2019

•

All dimensions in mm
