MCU Cards
™
for
LV32MX v6
development system
All Mikroelektronika’s development systems feature a large number of peripheral
modules expanding microcontroller’s range of application and making the
process of program testing easier. In addition to these modules, it is also
possible to use numerous additional modules linked to the development system
through the I/O port connectors. Some of these additional modules can operate
as stand-alone devices without being connected to the microcontroller.
Manual
Additional Board
2
MCU Cards for LV32MX v6 Development System
The
LV32MX v6
development system is supported by empty 64- and 100-pin MCU cards. Schematics provided herein show these
MCU cards with soldered microcontrollers. Instead of microcontrollers used in these examples, you can choose and solder another
ones. Prior to soldering, check which microcontrollers can be placed on the respective MCU card just to be sure that they are
compatible. MCU cards are also provided with pads that enables you to access microcontroller pins when the MCU card is not
connected to the development system.
Supported microcontrollers:
64-pin MCU cards support the following microcontrollers: PIC32MX3XXH, PIC32MX4XXH, PIC32MX575F256H, PIC32MX575F512H,
PIC32MX675F512H, PIC32MX695F512H and PIC32MX795F512H
100-pin MCU cards support the following microcontrollers: PIC32MX3XXL, PIC32MX4XXL, PIC32MX575F256L, PIC32MX575F512L,
PIC32MX675F512L, PIC32MX695F512L and PIC32MX795F512L.

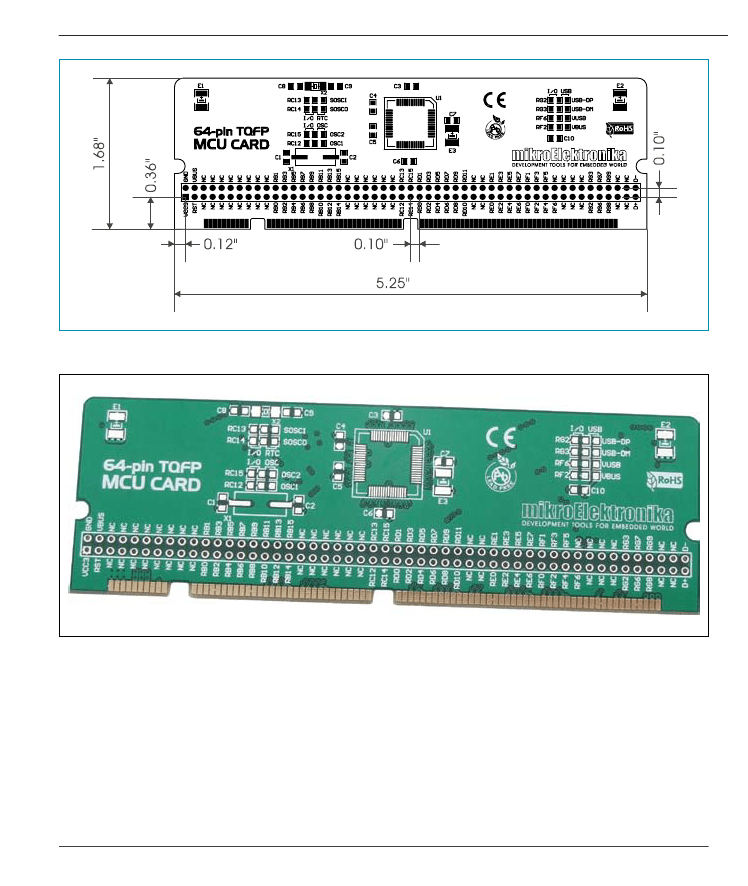

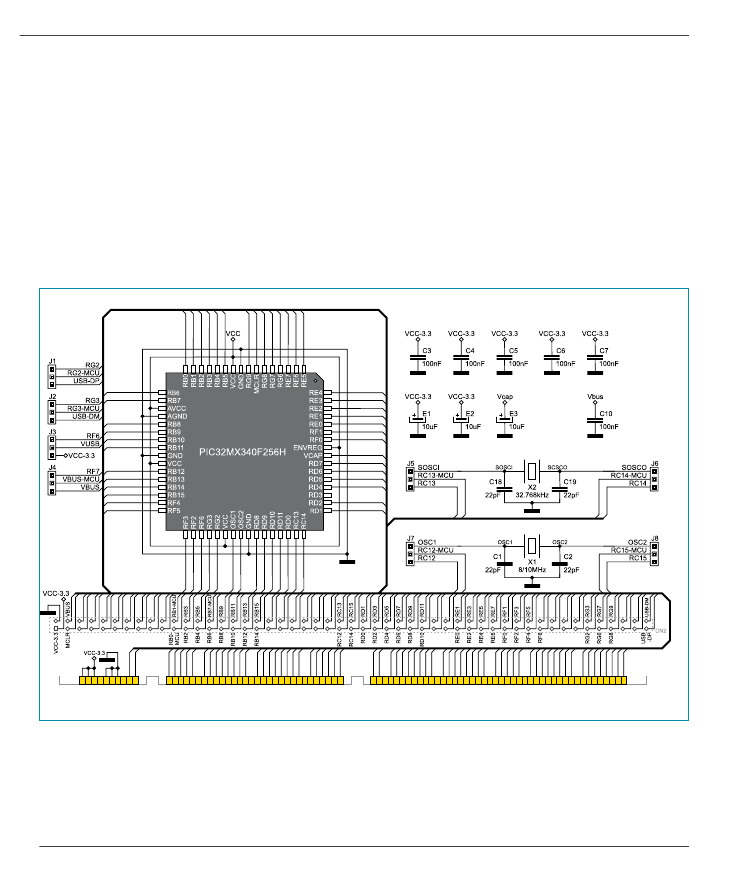

Figure 1:
64-pin MCU card and microcontroller connection schematic
MikroElektronika
4

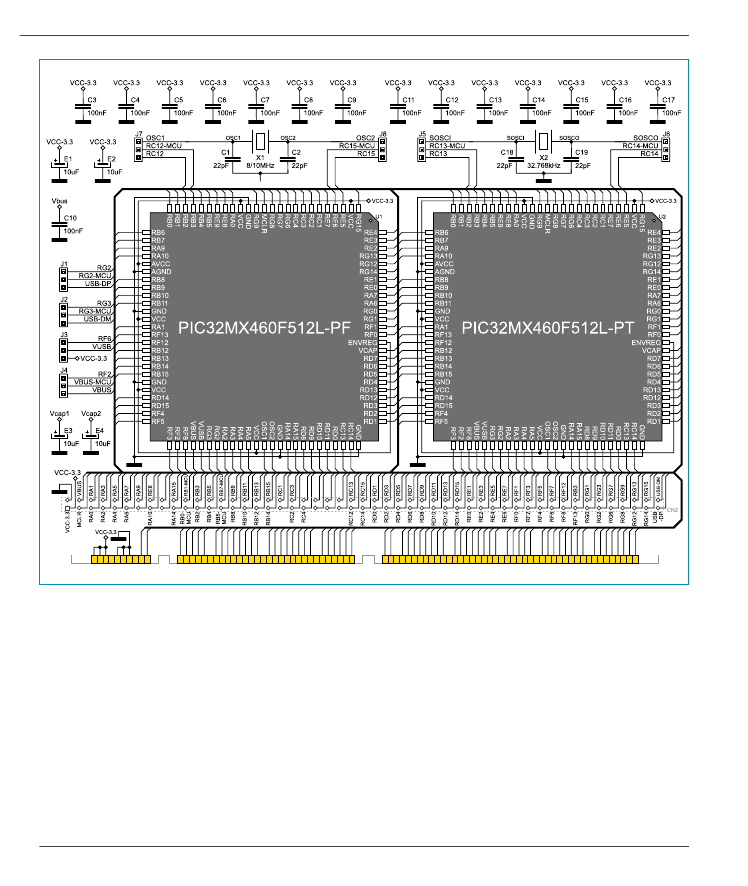

Figure 4:
100-pin MCU card and microcontroller connection schematic

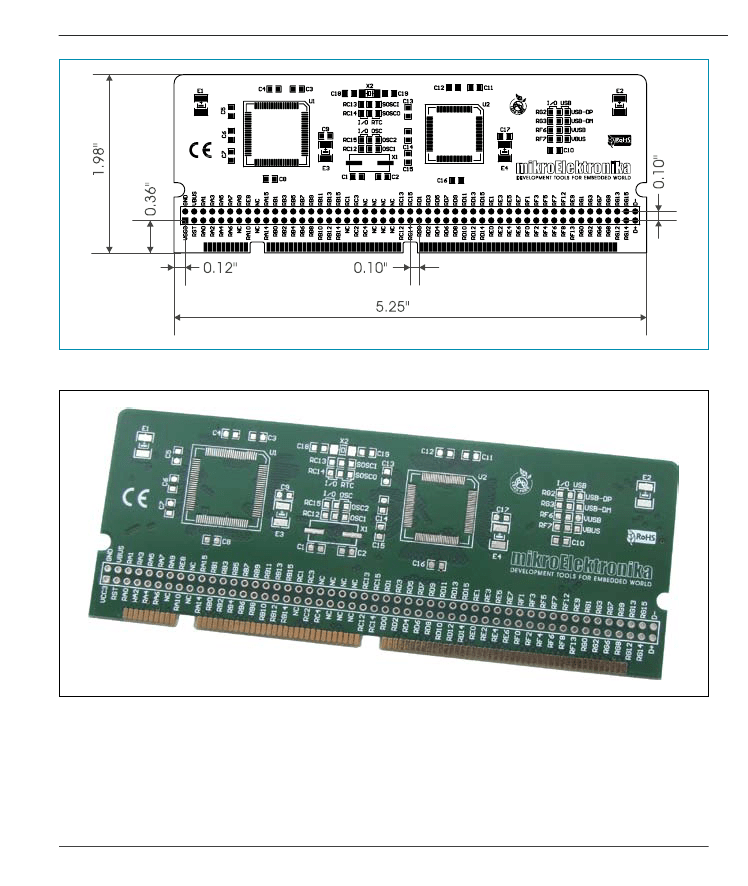

The microcontrollers in PT or PF package can be placed on the 100-pin MCU card. The microcontrollers feature the same lables, but
those related to their package dimension.
NOTE:
Only one microcontroller may be soldered on the MCU card at the same time.
