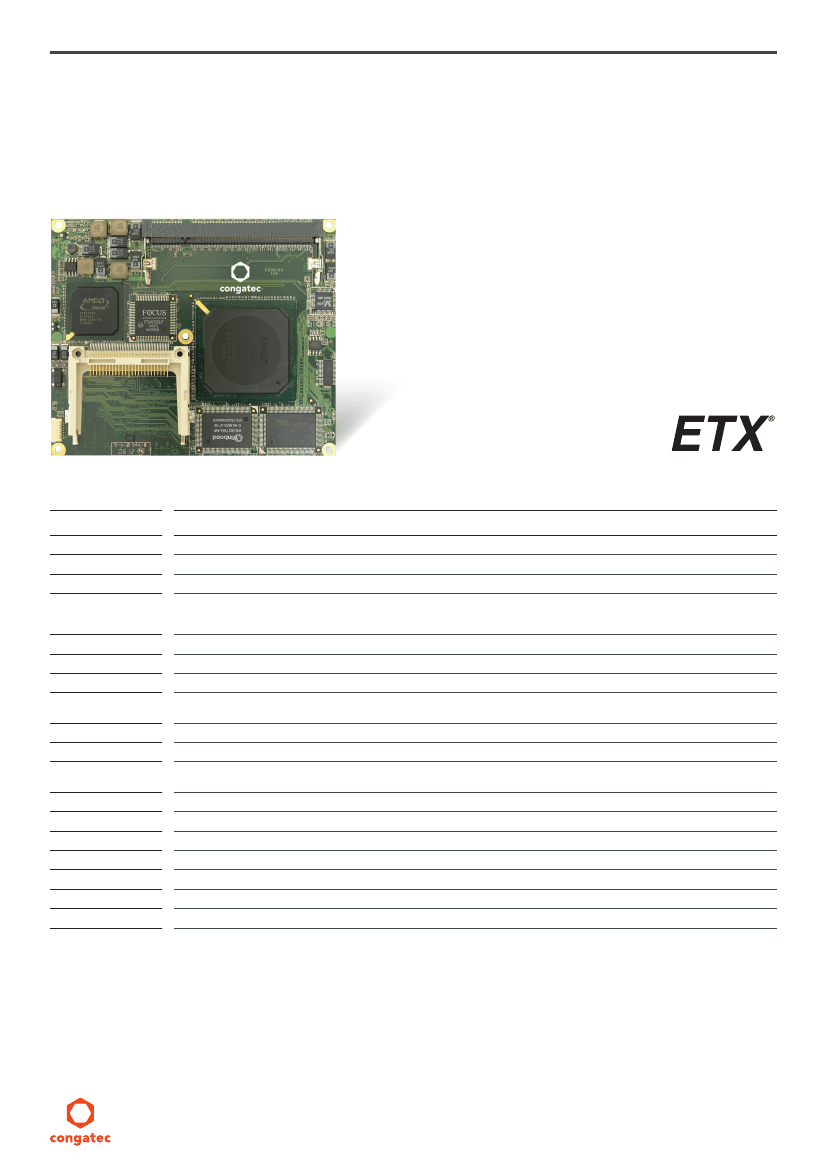

ECO MODEL
conga-ELX
-
Low power consumption
-
Featuring AMD
®
Geode
®
LX800
-
Up to 1 GByte DRAM
Formfactor
CPU
DRAM
Chipset
Ethernet
I/O Interfaces
ETX
®
Spec 2.7
MD Geode
™
LX 800 Processor
SO-DIMM PC2700 up to 1 GByte
Companion Device: AMD Geode
™
CS5536 | Ethernet: Davicom DM9102D | I/O Controller: Winbond 83627HG | Audio Codec: ALC203
IEEE 802.3u 100Base-Tx | Fast Ethernet compatible
1x EIDE (UDMA-66/100) | primary | 1x IDE (PIO mode only) | secondary 1x CompactFlash Socket onboard | 4x USB 2.0 (EHCI) | PCI Bus Rev. 2.1
ISA Bus | I²C (Fast Mode / 400 kHz / Multi Master) | Floppy (Shared with LPT) | LPT (EPP/ECP / Shared with Floppy) | 2x COM Ports TTL Level
1x IrDA Port | PS/2 Keyboard | Mouse
AC‘97 Rev.2.2 compatible | Line In | Line Out | Mic In
Integrated in chipset up to 254 MByte graphic memory (UMA)
H/W Up- and Downscaling | High Definition digital video support | alpha blending and color keying
68 MHz LVDS Transmitter Automatic Panel Detection via EPI Embedded Panel Interface based on VESA EDID
™
1.3 1x18 Bit TFT resolutions 320x240 up
to 1024x768 optional direct TTL interface
350 MHz RAMDAC Resolutions up to 1920x1440x32bpp @ 85 Hz 1600x1200x32bpp @ 100 Hz
Optional onboard TV encoder supports HDTV (420p / 720p / 1080i) supports component- and s-video signals on ETX X3 connector
Multi Stage Watchdog | Non-volatile User Data Storage | Manufacturing and Board information | Board Statistics | BIOS Setup Data Backup
I²C (Fast Mode / 400 kHz / Multi Master) | Power Loss Contro
OEM Logo | OEM CMOS Defaults | LCD Control (Auto Detection / Backlight Control) | Flash Update | Based on Insyde XpressROMt
APM 1.2
Microsoft
®
Windows CE 6.0 | Microsoft
®
Windows XP | Microsoft
®
Windows
®
embedded Standard | Linux
Typ. application 5W @ 5V | see manual for full details | CMOS Battery Backup
Operating: 0 .. +60°C | Storage: -20 .. +80°C
Operating: 10 - 90% r. H. non cond. | Storage: 5 - 95% r. H. non cond.
95 x 114 mm (3.7” x 4.5”).
400 MT/s memory bus speed
128 kByte L2 Cache
Sound
Graphics
Motion Video Support
Flat panel Interface
CRT Interface
TV Out
congatec Board Controller
Embedded BIOS Features
Power Management
Operating Systems
Power Consumption
Temperature
Humidity
Size
www.congatec.com
conga-ELX

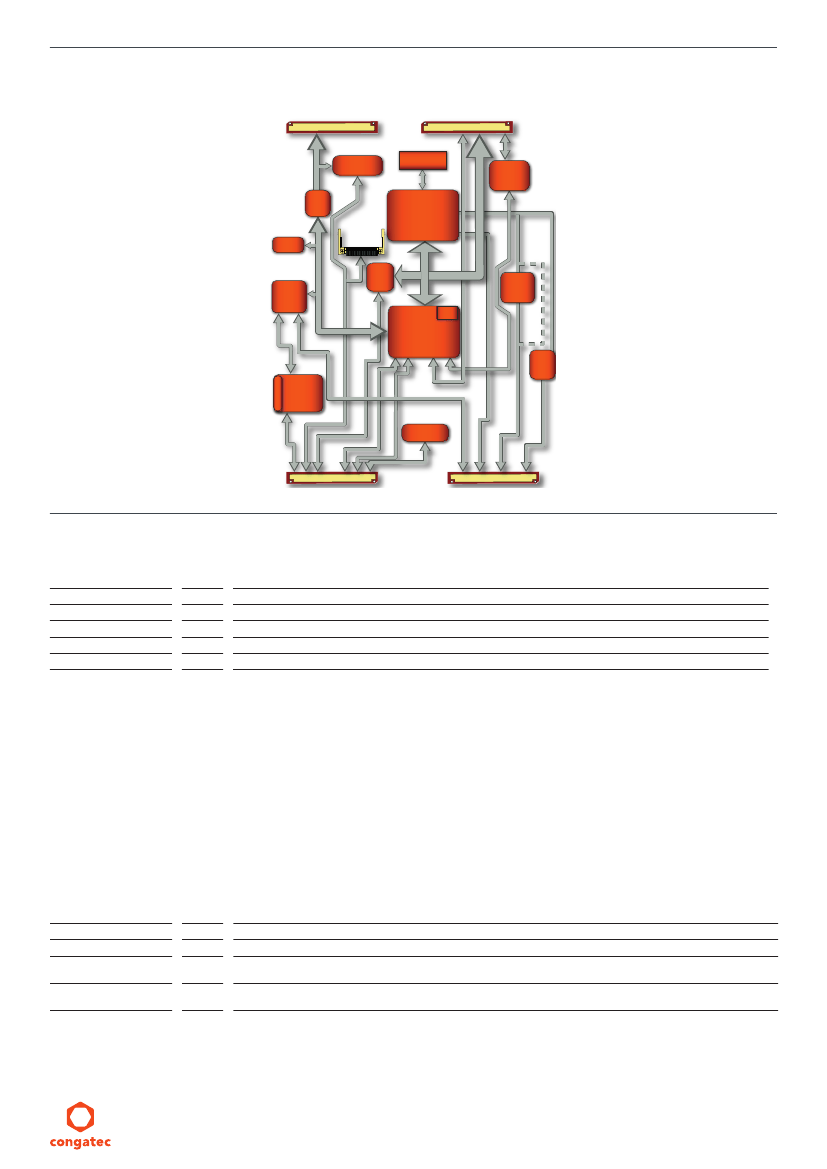

| Block diagram
x2
I
S
A
B
u
s
Secondary IDE
Channel Decoder
x1
DDR-SODIMM
Socket
Data Rate
(333 MT/s)
P
C
I
B
u
s
Mic
LineIn
LineOut
Audio
Codec
Realtek ALC203
Fintek
F85226F
CPU
Onboard CompactFlash
Socket
(Secondary Master)
FWH
(BIOS)
AMD GEODE™ LX800
500MHz
128kbyte L2 cache
L
P
C
B
u
s
Davicom
DM9102D
PCI Bus
LVDS
National Semi.
DS90C363
Super I/O
Windbond
W83627HG
RTC
LVDS
LPC Bus
SPI
AMD GEODE™
Companion Device
USB
Ports 0..3
COM 1/2, IrDA, LPT/Floppy
PS/2 Mouse & Keyboard
AC’97
CS5536
transceiver
by-passed
on TTL
option
TV
Focus
FS453
Watchdog
Board Controller
Atmel
ATmega88
(Secondary
PIO mode only)
IDE
CRT
LAN
SM Bus
(Primary)
I2C
Power Control &
Management
LCD I/F
(TTL or LVDS)
IDE
(optional)
TV-Out
x4
x3
conga-ELX
| Order Information
Article
conga-ELX/800-LVDS
conga-ELX/800-TTL
conga-ELX/DD-HSP-B
conga-ELX/DD-HSP-T
DDR1-SODIMM-333 (256MB)
PN
024477
064987
045458
066558
068721
Description
ETX Module with AMD Geode LX800 and AMD companion chip CS5536 Processor 500MHz | LVDS graphics-interface
ETX Module with AMD Geode LX800 and AMD companion chip CS5536 Processor 500MHz | TTL graphics-interface
Heatspreader (Deep drawn stamped) for conga-ELX and ELXeco with 2.7mm bore hole
Heatspreader (Deep drawn stamped) for conga-ELX and ELXeco with 2.5mm thread
DDR1 SODIMM memory module with 333MT/s and 256MB RAM
Accessories
conga-EEVAL
conga-FPA2
XTX/ETX-carrierboard-
socket-3
XTX/ETX-carrierboard-
socket-9.5
033269
047250
400006
400009
Evaluation carrier board for ETX-modules
Flatpanel prototype adapter to develop your own flatpanel adapter Including cables set.
Connector for ETX and XTX carrier boards | height 3.0 mm | packing unit 8 pieces
Connector for ETX and XTX carrier boards | height 9.5 mm | packing unit 8 pieces
© 2017 congatec AG. All rights reserved.
All data is for information purposes only. Although all the information contained within this document is carefully checked, no guarantee
of correctness is implied or expressed. Product names, logos, brands, and other trademarks featured or referred are the property of their
respective trademark holders. These trademark holders are not affiliated with congatec AG. Rev. December 01, 2017 JK
www.congatec.com
