CPU-161-18
Rugged Intel Xeon D-15xx
COM Express Compact Type 6
•
•
•
•
•
•
•
HPEC and Microserver Ready
Intel
®
Xeon
®
D-15xx
Hybrid RAM Architecture
Compact Size with PCIe x16 Port
Rugged and Fanless
Customizable
Professional Services
F EATU RE S
HPeC and Microserver Ready
- Combines computational
power with a rugged design to enable High Performance
applications even in-the-field
Powerful
- Supports the latest generation of embedded Intel
Pentium
®
and Xeon D-15xx CPUs to deliver a server-class module
Hybrid RAM Architecture
- Innovates by offering the reliability
of soldered-down RAM and the expandability of SO-DIMMs
Compact Size with PCIe x16 Port
- Complies with COM
Express
®
Type 6 Rev 2.1, including support for a PCIe x16 port
Rugged and Fanless
- Allows robust, fanless designs thanks
to 100% soldered-down components and with a range of energy
efficient CPUs
Customizable
- Comes with optional personalization and full
customization services, ranging from factory options to deep
HW/SW configuration changes
Professional Services
- Provides the foundation for Eurotech
Professional Services that span from carrier board development
to complete system design, certification and manufacturing

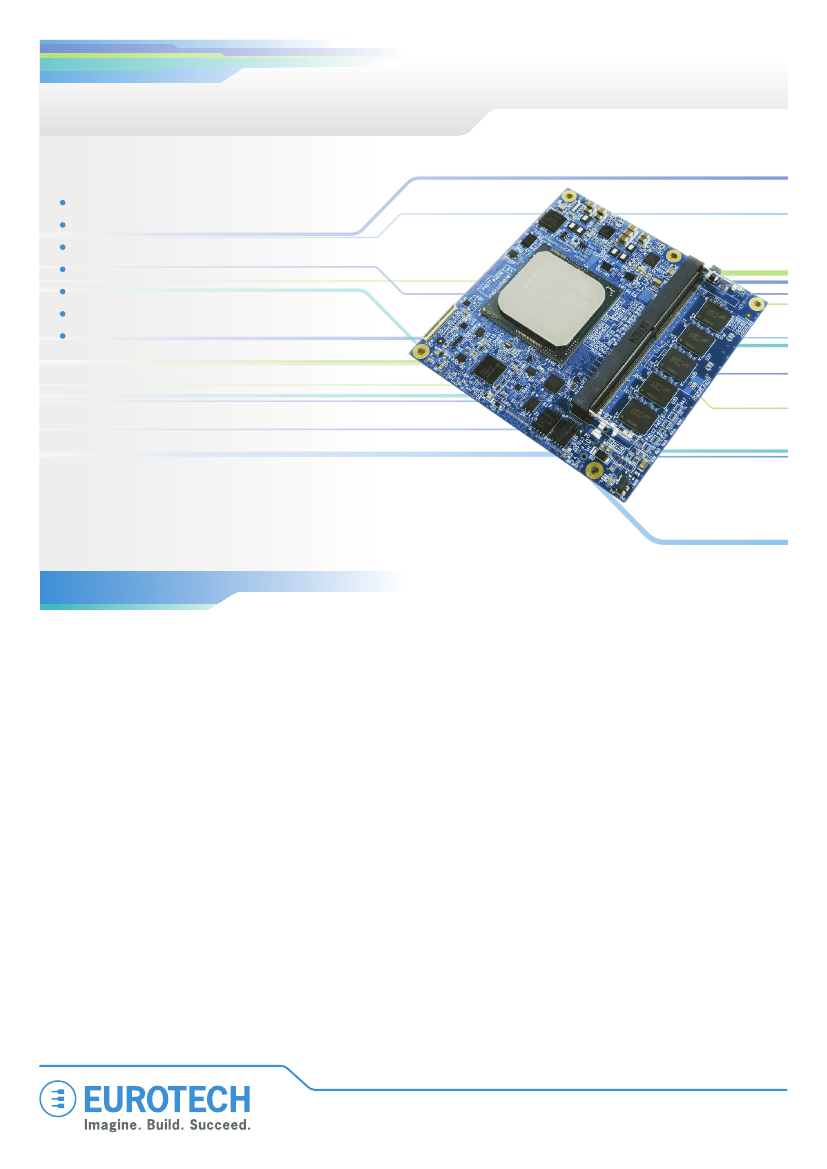

The CPU-161-18 combines a high performance and truly embedded CPU with
an innovative hybrid RAM architecture that offers the ruggedness of soldered
memory and the expandability of SO-DIMMs. The standard configuration
provides 8GB of memory soldered directly on the PCB and supports up to
24GB DDR4 RAM with ECC error correction through a SO-DIMM slot, targeting
use cases where extreme ruggedness is required, and those that need a large
memory.
The CPU-161-18 can be configured with any member of the Xeon/Pentium D
15xx family; standard versions support extended temperature CPUs, such as
the Pentium D-1519 and the Xeon D-1559, closing the gap between traditional
embedded applications and servers.
Compatible with existing Type 6 carrier boards, the CPU-161-18 is a headless
unit that provides a fast upgrade path to existing projects and that allows the
creation of new high-performance ones: a notable feature of this Compact size
module is the availability of a x16 PCIe Gen 3 port in addition to the x8 one,
a characteristic that is more commonly found only on larger modules; other
features include: Gigabit Ethernet, 4x SATA 3.0 ports, 4x USB 3.0 and 7x USB
2.0 interfaces.
Supported operating systems include Yocto Linux and CentOS; moreover, the
CPU-161-18 supports Everyware Software Framework (ESF), a commercial,
enterprise-ready edition of Eclipse Kura, the open source Java/OSGi
middleware for IoT gateways.
Professional Services are available for the CPU-161-18, starting from BIOS
personalization and including carrier board design, system development and
production. Deep module customization, such as feature changes are also
available.
CPU-161-1 8
Specifications
Ordering code: CPU-161-18-XX
XX
PROCESSOR
CPU
On-board
On-socket
Embedded
STORAGE
SATA
RAID
Ethernet
USB
Serial
Digital I/O
I/O
INTERFACES
PCI Express
1x PCIe x16 (Gen 3)
4x PCIe x1 (Gen 2)
1x PCIe x4 (Gen 2)
Non-transparent bridge
or Transparent bridge
(Switchable)
4x USB 3.0
7x USB 2.0
(EHCI supported)
4x SATA 3.0 (up to
6Gb/s)
- 05
Pentium D-1519
1.50GHz, 4 Cores
- 06
Xeon D-1529
1.30GHz, 4 Cores
(IEC 61508 Safety
Integrity Compliant)
Rugged Intel Xeon D-15xx
COM Express Compact Type 6
Note: The information in this document is subject to change without notice and should not be construed as a commitment by EUROTECH. While reasonable precautions have been taken, EUROTECH assumes no responsibility for any error that may appear in this
document. All trademarks or registered trademarks are the properties of their respective companies.
- 07
Xeon D-1539
1.60GHz, 8 Cores
- 08
Xeon D-1559
1.50GHz, 12 Cores
MEMORY
8GB DDR4 ECC Memory Down (2133-2400MT/s)
1x DDR4 ECC SODIMM up to 16GB
2x SPI-Flash (16MB + 32MB)
1x EEPROM (8kB)
2x SATA 3.0 (up to
6Gb/s)
Factory Option
1x 10/100/1000Mbps
7x USB 2.0
(EHCI supported)
2x UART (TX/RX)
1x 8bit Digital I/O
1x PCIe x16 (Gen 2)
Non-transparent bridge
or Transparent bridge
(Switchable)
Yes
Yes
Yes
Yes
Yes
Intel AES-NI
Intel Secure Key
Temperature Sensor
12V, 5VSBY, 3V_RTC
25W (CPU TDP)
20W (CPU TDP)
35W (CPU TDP)
45W (CPU TDP)
- 40 to +85°C
- 40 to +85°C
35% to 85%
RoHS (2011/65/EU)
PICMG COM Express R2.1, Type 6
95x95mm (LxW) - COM Express Compact
1x PCIe x16 (Gen 3)
4x PCIe x1 (Gen 2)
1x PCIe x4 (Gen 2)
Non-transparent bridge or Transparent bridge
(Switchable)
4x USB 3.0
7x USB 2.0 (EHCI supported)
4x SATA 3.0 (up to 6Gb/s)
LPC
I2C
SMBus
RTC
Watchdog
OTHER
Security
Sensors
POWER
Input
Consumption
Operating Temp
ENVIRONMENT
Storage Temp
Humidity
CERTIFICATIONS
MECHANICAL
Environmental
Compliance
Dimensions
SUPPORTED SOFTWARE
OS
IoT Framework
Yocto Linux, CentOS 7 (Professional Services: Windows 10 IoT Enterprise, Fedora, Other Linux and RTOS)
Everyware Software Framework (Java/OSGi)
