GRF2710
High Gain, X-Band LNA
Tuning Range: 8.0 to 13.0 GHz
Product Description
GRF2710 is a high gain, low noise, linear amplifier de-
signed for high performance 8.0 to 13.0 GHz X-band ap-
plications. Over this frequency range, it exhibits excellent
gain and compression point.
The device is operated from a single positive supply of
3.0 to 8.0 V with a typical bias condition of 5.0 V and 25
mA. GRF2710 is pre-matched to 50
Ω
at the input and
output ports requiring simple external matching to opti-
mize for a particular frequency band.
Consult with the GRF applications engineering team for
custom tuning/evaluation board data and device s-
parameters.
Features
Reference: 5.0V/25mA/11.0 GHz
•
•
•
•
•
•
•
Gain: 13.9 dB
EVB NF: 2.1 dB
OP1dB: 13.0 dBm
OIP3: 21.0 dBm
Flexible Bias Voltage and Current
Pre-matched to
50 Ω
Process: GaAs pHEMT
Applications
•
•
•
•
•
X-Band LNA
RFID
Motion Detectors
Microwave Backhaul
Terrestrial Broadband
1.5 x 1.5 mm DFN-6
Guerrilla RF Proprietary Information. Guerrilla RF
TM
and the composite logo of Guerrilla RF
TM
are trademarks of Guerrilla RF, Inc. ©2014 Guerrilla RF, Inc. All rights reserved.
Revision Date: 02/27/18
Please contact Guerrilla RF at (+1) 336-510-7840 or
sales@guerrilla-rf.com
1
Preliminary
GRF2710
High Gain, X-Band LNA
Tuning Range: 8.0 to 13.0 GHz
Absolute Ratings:
Parameter
Supply Voltage
RF Input Power: (Load VSWR < 2:1; V
D
: 5.0 volts)
Operating Temperature (Package Heat Sink)
Maximum Channel Temperature
(MTTF > 10^6 Hours)
Maximum Dissipated Power
Electrostatic Discharge:
Charged Device Model:
Human Body Model:
Storage:
Storage Temperature
Moisture Sensitivity Level
T
STG
MSL
-65
150
1
°C
--
CDM
HBM
1500
250
V
V
Symbol
V
DD
P
IN MAX
T
AMB
T
MAX
P
DISS MAX
Min.
0
Max.
9.0
15
Unit
V
dBm
°C
°C
mW
-40
105
170
300
Caution!
ESD Sensitive Device
Exceeding Absolute Maximum Rating conditions may cause permanent damage to the device.
Note: For package dimensions and manufacturing information, see the Guerrilla-RF.com website
for the following document located on the GRF2710 landing page: Manufacturing Note—MN-
001 Product Tape and Reel, Solderability and Package Outline Specification.
Link to manufacturing note:
Guerrilla RF Proprietary Information. Guerrilla RF
TM
and the composite logo of Guerrilla RF
TM
are trademarks of Guerrilla RF, Inc. ©2014 Guerrilla RF, Inc. All rights reserved.
Revision Date: 02/27/18
Please contact Guerrilla RF at (+1) 336-510-7840 or
sales@guerrilla-rf.com
2
Preliminary
GRF2710
High Gain, X-Band LNA
Tuning Range: 8.0 to 13.0 GHz

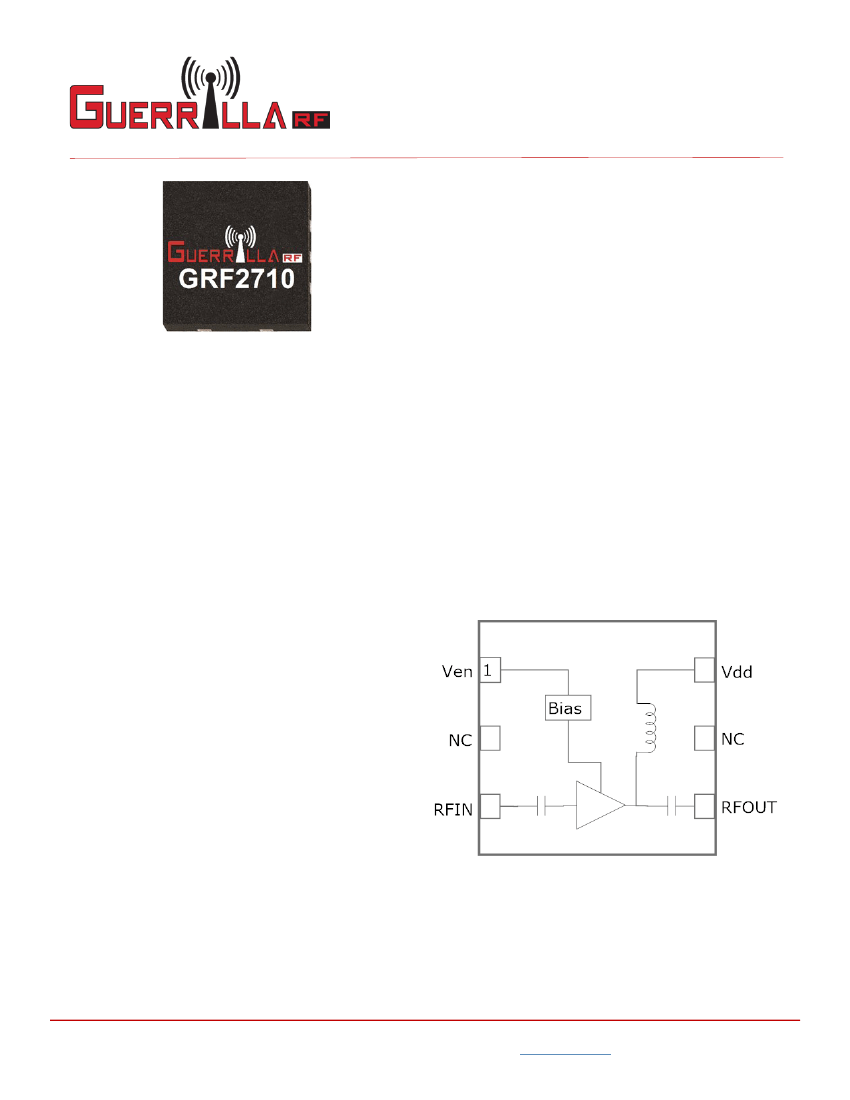

Pin Out (Top View)
Pin Assignments:
Pin
1
2
3
4
5
Name
V
ENABLE
NC
RF_In
RF_Out
NC
Description
LNA Enable Input
No Connect or Ground
LNA RF input
LNA RF output
No Connect or Ground
Supply Voltage for the LNA
Ground
Note
V
ENABLE
and series resistor set I
DDQ
. V
ENABLE
< =0.2 volts disables device. On-
die pull-down resistor will turn the part off if this node is allowed to float.
No internal connection to die
Internally pre-matched
to 50 Ω. These ports may be DC connected to
ground externally but no DC > 0.2 volts should be applied to these ports.
No internal connection to die
Requires bypass capacitance as close as possible to pin on PCB
Provides DC and RF ground for LNA, as well as thermal heat sink. Recom-
mend multiple 8 mil vias beneath the package for optimal RF and thermal
performance. Refer to evaluation board top layer graphic on schematic
page.
6
PKG BASE
V
DD
GND
V
ENABLE
Truth Table:
V
DD
High
High
V
ENABLE
>=1.8 V
<0.1 V
Mode
LNA On
LNA Off
Guerrilla RF Proprietary Information. Guerrilla RF
TM
and the composite logo of Guerrilla RF
TM
are trademarks of Guerrilla RF, Inc. ©2014 Guerrilla RF, Inc. All rights reserved.
Revision Date: 02/27/18
Please contact Guerrilla RF at (+1) 336-510-7840 or
sales@guerrilla-rf.com
3
Preliminary
GRF2710
High Gain, X-Band LNA
Tuning Range: 8.0 to 13.0 GHz
Nominal Operating Parameters:
Parameter
High Gain Mode
Test Frequency
Gain
Evaluation Board Noise Figure
Output 3rd Order Intercept Point
Output 1dB Compression
Supply Current (Quiescent)
Enable Current
F
TEST
S21
NF
OIP3
OP1dB
I
DD
I
ENABLE
11.0
13.9
2.1
21.0
13.0
25.0
1.5
GHz
dB
dB
dBm
dBm
mA
mA
V
DD
= 5.0 V, V
ENABLE
= 0.0V
I
DD
200
A
Symbol
Specification
Min.
Typ.
Max.
Unit
Condition
V
DD
= 5.0V, T
A
= 25°C
Disabled Mode
Supply Current (Leakage)
Thermal Data
Thermal Resistance (Infra-Red Scan)
Channel Temperature @ +85 C refer-
ence (Package heat sink)
jc
T
CHANNEL
141
103
ᵒC/W
ᵒC
V
DD
: 5.0V; I
DDQ
: 25 mA; No RF
P
DISS:
125 mA
Guerrilla RF Proprietary Information. Guerrilla RF
TM
and the composite logo of Guerrilla RF
TM
are trademarks of Guerrilla RF, Inc. ©2014 Guerrilla RF, Inc. All rights reserved.
Revision Date: 02/27/18
Please contact Guerrilla RF at (+1) 336-510-7840 or
sales@guerrilla-rf.com
4
Preliminary
GRF2710
High Gain, X-Band LNA
Tuning Range: 8.0 to 13.0 GHz

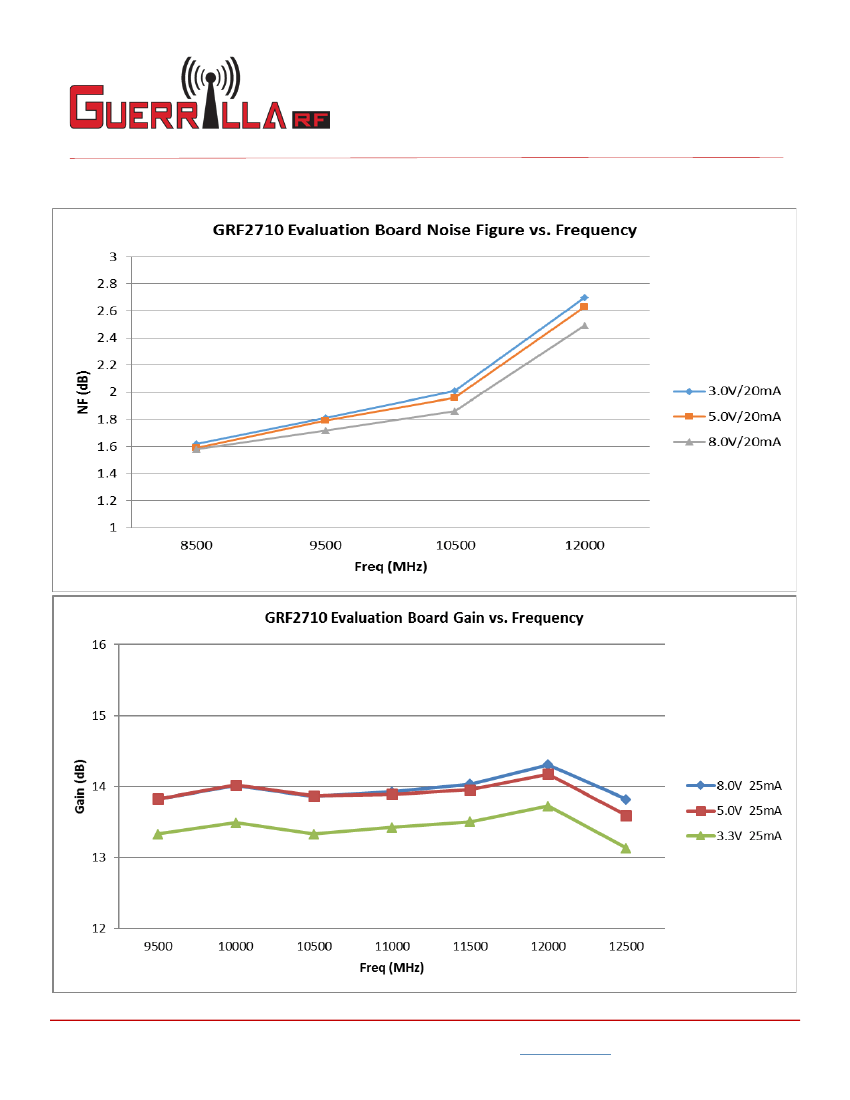

GRF2710 Evaluation Board Data:
