TANK-101B-
D525
N455
Fanless Embedded Controller with Dual-
Core Intel® Atom™ D525 Processor
Features
Dual-core Intel® Atom™ D525 processor inside
Wide range 9 V~36 V DC power input
Isolation protected COM and CAN communication
Extended temperature fanless design supports -20°C ~ 70°C (N455)
Fanless
-20°C~70°C
SATA
Mini DON

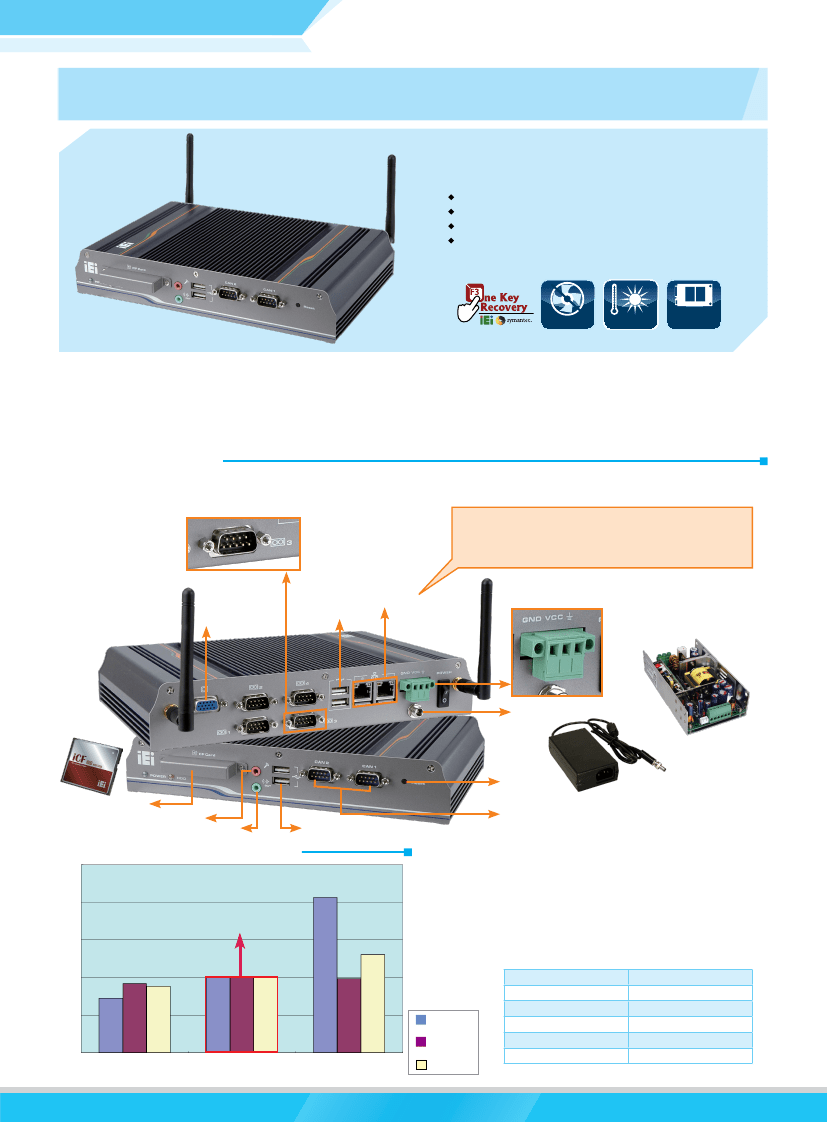

The TANK-101B is designed with all the functions and protections compliant with targeting transport market. It not only provides dual-core computing power delivered
by the Intel® Atom™ D525, its onboard memory with CompactFlash®/SATA DOM solid-state storage can withstand severe operating environments on board. With
typical voltage at 24 V DC, the TANK-101B can take wide range DC input from 9 V to 36 V as power source. It also has COM port and CANBus with isolation
protection for device control, dual Realtek GbE LAN and 802.11b/g/n for high speed communication. The TANK-101B supports all these versatile functions in a
compact enclosure in addition to fanless operation.
Isolation Protection
An integrated circuit (IC) connected to external ports is susceptible to damaging electrostatic discharge (ESD) pulses form the operating environment and
peripherals. Additional protection can violate stringent signaling requirements, leaving design engineers with the need to balance performance and reliability.
COM3 :
RS-422/485
Default RS-422 with isolation
1. On-board 15KV ESD Protection
2. Isolated 3000 V DC Protection
Alert Standard Format (ASF 2.0) is also supported to provide system
manageability in OS-absent environments. The ASF defines remote control
and alerting interface that serve managed PCs in OS-absent states. The
ASF capability can minimize on-site IT maintenance, improve system
availability, and allow remote control of power management.
LAN1 with ASF 2.0 support
VGA
Dual USB 2.0
Wide Range Power
Input:
9 V~36 V DC
Power Jack
12 V/24 V DC power supply
Reset
CompactFlash®
Mic-in
SPK-Out
Isolated CAN :
Dual USB 2.0
Power adapter
Dual-core Intel® Atom™ D525
2.50
Performance Comparison Chart
2.00
1.50
N455 compared to N270, CPU performance
is over 30% up. Graphic 10% up.
The Control Area Network (CAN) is a serial bus system originally
developed by Bosch for use in automobiles, and is now increasingly
used in industrial automation.
IEI TANK-101B has built-in on-board CAN controllers. The IEI
CAN provides bus arbitration and error detection with an automatic
transmission repeat function.
This drastically reduces the chance of data loss, ensures system
reliability and is suitable for networking intelligent I/O devices such
as sensors or actuator of machines or plants. On-board optical
isolators along with additional protection design protect your system
and equipment against damage from ground loops and electrostatic
discharge (ESD), which increases system reliability in harsh
environments.
CAN Controller
CAN Transceiver
Signal Support
Speed (bps)
Connectors
Isolated Protection
Philips SJA1000T
TI ISO1050DUBR
CAN_H, CAN_L
1Mbps
Two DB-9 Connectors
2500Vrms on CAN side
1.00
0.50
CPU
Memory
Intel® Atom™ N270
1.60 GHz 512K/L2 Cache
Intel® Atom™ N455
1.66 GHz 512K/L2 Cache
Intel® Atom™ D525
1.8 GHz 1MB/L2 Cache
3D
0.00
TANK-101B-D525/N455-2014-V10
Embedded System
w w w.ieiworld.com

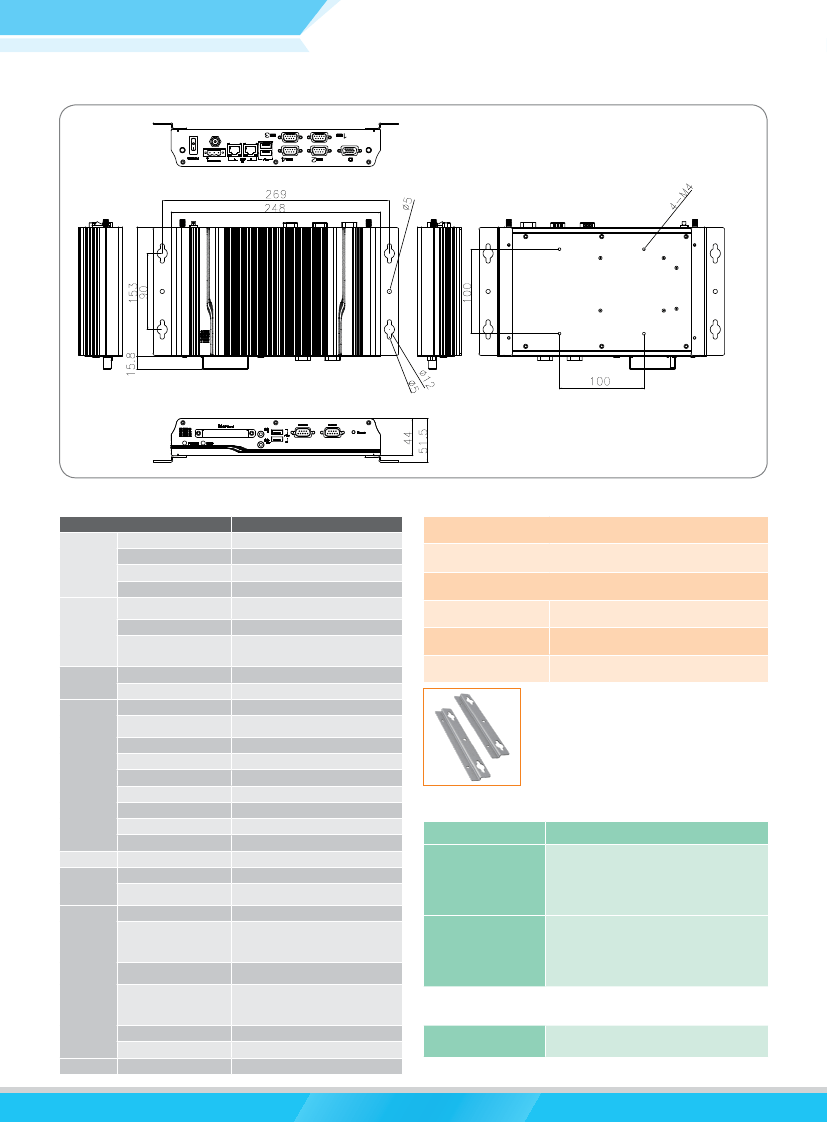

Dimensions
(Unit: mm)
TANK-101B
Specifications
Model Name
Color
Chassis
Dimensions (WxDxH) (mm)
System Fan
Chassis Construction
Processor CPU
Motherboard
Chipset
System Memory
Storage
Hard Drive
CF Card/CFast
USB 2.0
Ethernet
RS-232
System
Function
RS-422/485
CAN Bus
Display
Resolution
Audio
Wireless
Expansions
Power
PCIe Mini
Power Input
Power Consumption
Mounting
Operating Temperature
Operating Shock
Operating Vibration
Weight (Net/Gross)
Safety/EMC
OS
Supported OS
Packing list
TANK-101B
Cool Gray+Blue
248 x 138 x 44
Fanless
Aluminum alloys with heavy duty metal
Intel® Atom™ D525 1.8 GHz
Intel® Atom™ N455 1.66 GHz
Intel® ICH8M
On-board DDR3 1 GB memory
1 x 204-pin DDR3 SDRAM SO-DIMM
(system max: 3 GB)
1 x 2.5'' SATA 3Gb/s HDD/SSD bay
1 x CF Type II
4
2 x RJ-45
PCIe GbE by Realtek 8111E
3 x DB-9
1 x DB-9 Default RS-422 with isolation
2 x DB-9 CAN with isolation
1 x VGA
VGA: Up to 2048 x 1536@60Hz
1 x Line-out, 1 x Mic-in
1 x 802.11b/g/n (optional)
1 x Full size (reserved for Wi-Fi module)
DC Jack: 9 V~36 V DC
12 V@1.85 A
(Intel® Atom™ D525 with DDR3 1 GB)
Din-rail, wall mount
-20°C~60°C (D525 with air flow CF/SSD),
5% ~ 95%, non-condensing
-20°C~70°C (N455 with air flow CF/SSD),
5% ~ 95%, non-condensing
Half-sine wave shock 3G, 11ms,
3 shocks per axis
MIL-STD-810F 514.5C-1
with SATA HDD
MIL-STD-810F 514.5C-2
with CompactFlash®/SSD
2.1 kg/3.9 kg
CE/FCC
Microsoft® Windows® XP Embedded
Extended tempeture fanless embedded system with Intel®
Atom™ Processor N455 1.66 GHz CPU with two isolated
CAN, one isolated serial port, 1 GB DDR3 memory
onboard, 9 V~36 V DC in, Pantone 287C + Cool Gray 2C,
-20°C ~ 70°C, RoHS
TANK-101B-R11/D525/1GB
Wall mount Bracket
1 x SATA HDD drive cable (Part No.: 32801-004900-100-RS)
1 x 60W 12 V power adapter (Meet PSE & ErP)
(Part No.: 63040-010060-120-RS)
2 x Wireless antenna (For wireless model only)
1 x Power cord
2 x Wall mount brackets
1 x Screw set
1 x One Key Recovery CD
1 x Driver CD
1 x QIG
Ordering information
Part No.
Description
Extended tempeture fanless embedded system with dual-
core Intel® Atom™ Processor D525 1.8 GHz CPU with
two isolated CAN, one isolated serial port, 1 GB DDR3
memory onboard, 9 V~36 V DC in, Pantone 287C + Cool
Gray 2C, -20°C ~ 60°C, RoHS
TANK-101B-R11/N455/1GB
Reliability
Embedded OS support
TANKCF-101B-XPE-1GB
Windows® XP Embedded OS image, for TANK-101B, with
1 GB CompactFlash® memory card, RoHS
* For other CompactFlash® capacity, please contact IEI for customization options.
TANK-101B-D525/N455-2014-V12
