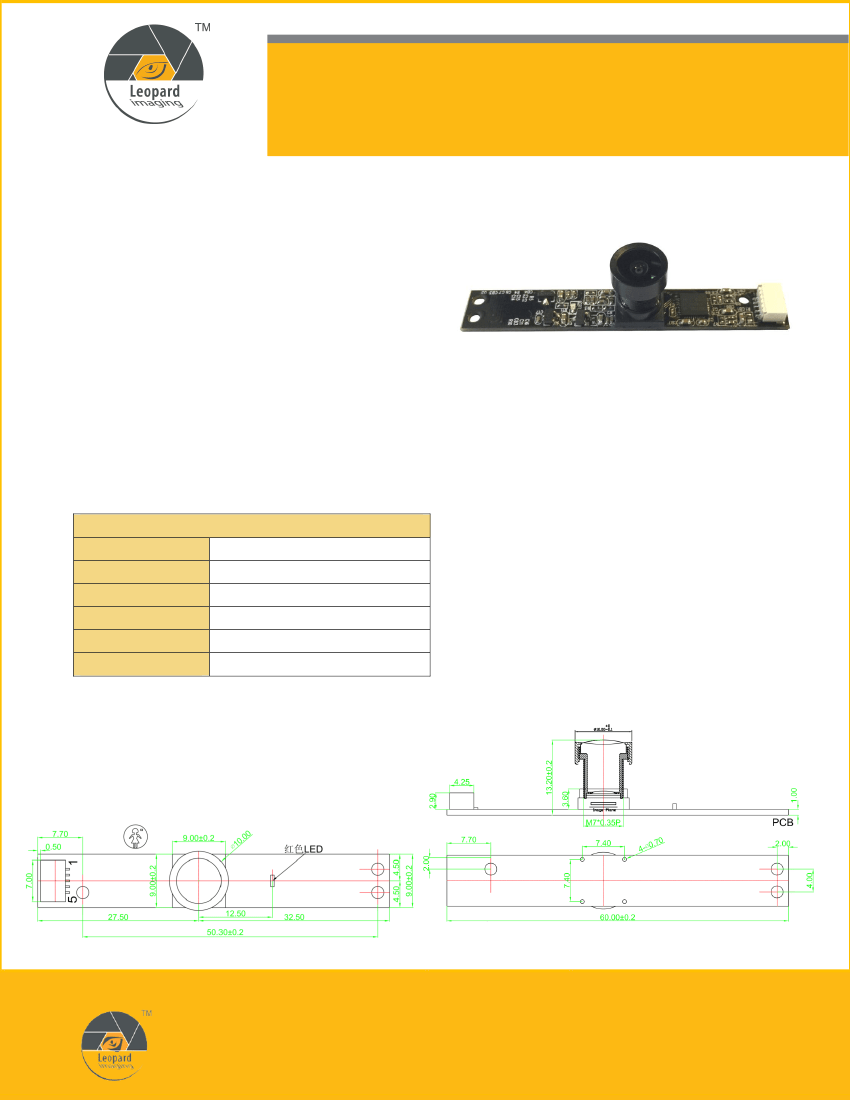

LEOPARD IMAGING INC
LI-OV2640-USB-M7
Data Sheet
Key Features
Support 2M video streaming
MJPEG compression
USB 2.0 compliance
Size: 60mmx9mm
Low cost with high quality
Customized based on customer's specs
Lens Specification
Interface (SM05B-SRSS-TB)
5 Pin USB Connector (SM05B-SRSS-TB)
Pin No.
Name
1
USB_5V
2
USB_DM
3
USB_DP
4
GND
5
Shield_Ground
Focusing Range: 23cm to infinity
Focal Length: 2.0 mm
F Number: 2.5
Fov (H): 100°
TV Distortion: <-88%
Sensor: OV2640
Dimensions
Leopard Imaging Inc.
1130 Cadillac Ct., Milpitas, CA 95035,USA
Phone: +1-408-263-0988
Fax: +1-408-217-1960
Email:sales@leopardimaging.com
Website: www.leopardimaging.com
www.leopard-security.com
Specification
General Behavior
Video Resolution @ Frame rate
Adjustment
Interface (Optical)
Sensor specification
Shutter
Format
Resolution
Pixel size
Sensitivity
S/N Ratio
Dynamic Range
Dark Current
Lens
Interface (Electrical)
Interface
Supply voltage
Current consumption
Interface (Mechanical)
Dimensions
Mass
Environmental
Max. temperature (stable image)
Max. temperature (operation)
Max. temperature (storage)
Max. humidity (operation)
Max. humidity (storage)
1600 x 1200
1280 x 1024
800 x 600
640 x 480
352 x 288
320 x 240
TBD
MJPEG @ 15 fps
MJPEG @ 7 fps
MJPEG @ 30 fps
MJPEG @ 30 fps
MJPEG @ 30 fps
MJPEG @ 30 fps
OmniVision OV2640 CMOS UXGA sensor
Rolling
1/4”
H:1600, V:1200
H:2.2 um, V: 2.2 um
0.6 V/Lux-sec
40 dB
50 dB
15 mV/s at 60 °C
M7 lens
USB 2.0
USB 2.0 +5 VDC power source
Approx. 150 mA at 5 VDC
L: 60 mm, W: 9 mm, H: 13.2 mm
2g
0 °C ~ 50 °C (32 °F~ 122 °F)
-10 °C ~ 60 °C (14 °F~ 140 °F)
-20 °C ~ 80 °C (-4 °F~176 °F)
20 % ~ 80 %, relative, non-condensing
20 % ~ 80 %, relative, non-condensing
