1SD536F2
Description and Application Manual
for 1SD536F2 SCALE Plug-and-Play IGBT
Drivers
Plug-and-play ultra-compact, high-performance, single-channel
drivers for 2-level, 3-level and multilevel converters
Abstract
The intelligent gate drivers of the 1SD536F2 SCALE plug-and-play series are
advanced,
ultra-compact,
high-performance,
single-channel
drive
components. They were designed specifically for the precise and reliable
driving and perfect protection of high-power and high-voltage IGBT modules.
Product Highlights
Applications
[
Perfect driver solution for high-power IGBTs
[
For 2-level, 3-level and multilevel topologies
[
Protects the IGBTs against short circuit
[
Advanced active clamping function
[
di/dt feedback to reduce high di/dt at turn-off
[
Reliable, long service life
[
High gate current of
±36A
[
Monitoring of power supply and self-monitoring
[
Duty cycle: 0... 100%
[
Fiber-optic links make long drive cables possible
[
Complete with integrated DC/DC converter
[
Shortens development time
IGBT-Driver.com
[
Inverters
[
Traction
[
Railroad power supplies
[
Medium-voltage converters
[
High-power applications
[
Motor drive technology
[
Wind-power converters
[
Power engineering
[
Switch-mode power supplies
[
Radiology technology
[
Laser power supplies
[
Power engineering / Research
Page 1
1SD536F2
Description and Application Manual
Contents
Important Note on Technical Information....................................................... 4
SCALE Plug-and-Play Drivers – the Easiest Way to Build Megawatt Converters
......................................................................................................................... 5
Seven Steps to Success.................................................................................... 5
1.
2.
3.
4.
5.
6.
7.
Calculate the power dissipation of the IGBT Modules .......................................................5
Choose a suitable SCALE plug-and-play driver .................................................................5
Design the power stack..................................................................................................5
Attach the drivers to the IGBT modules...........................................................................6
Select the operating mode .............................................................................................7
Perform the functional tests of the drivers.......................................................................7
Set up and test the power stack .....................................................................................7
What is a “SCALE Plug-and-Play” Driver?........................................................ 8
Your Benefit: The Application Advantages of SCALE Drivers ........................... 8
Reliable operation..............................................................................................................8
Electrical insulation ............................................................................................................8
Status feedback.................................................................................................................9
How Do 1SD536F2 SCALE Drivers Work in Detail? .......................................... 9
Overview ..........................................................................................................................9
Power supply and electrical insulation .................................................................................9
Undervoltage protection.....................................................................................................9
V
ce
monitoring / short-circuit protection ............................................................................ 10
Dynamic behavior of IGBTs .............................................................................................. 12
Turn-on of the IGBT / commutation of diode current ......................................................... 12
Turn-off of the IGBT ........................................................................................................ 12
Active clamping ............................................................................................................... 13
di/dt feedback ................................................................................................................. 15
Low-inductance layout ..................................................................................................... 15
Fiber optic interfaces / Standard and optional versions ...................................................... 15
Operating mode .............................................................................................................. 17
Status feedback & edge acknowledge ............................................................................... 18
Suggested application-level circuitry for fiber-optic links..................................................... 19
Page 2
CT-Concept.com
1SD536F2
Description and Application Manual
Higher requirements for traction applications or similar...................................................... 21
Bibliography................................................................................................... 22
The Information Source: SCALE Driver Data Sheets...................................... 23
Quite Special: Customized SCALE Drivers...................................................... 23
Evaluation Systems........................................................................................ 23
Customer-Specific Systems ........................................................................... 23
Consulting and Training................................................................................. 24
Technical Support .......................................................................................... 24
Quality ........................................................................................................... 24
Disclaimer ...................................................................................................... 24
Ordering Information .................................................................................... 25
Manufacturer ................................................................................................. 25
IGBT-Driver.com
Page 3
1SD536F2
Description and Application Manual

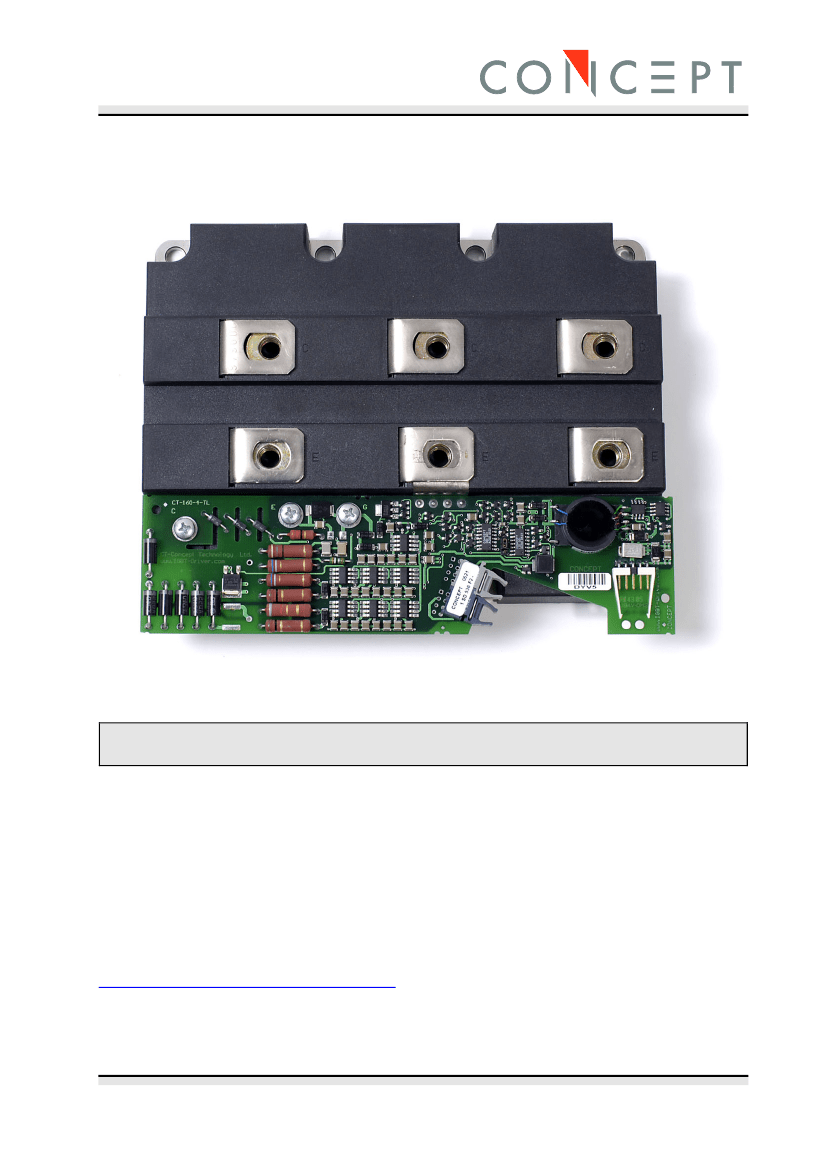

Fig. 1 SCALE plug-and-play driver 1SD536F2 screwed onto a 3600A/1700V IGBT
Important Note on Technical Information
1SD536F2 SCALE plug-and-play drivers are available in several versions in order to
satisfy the specific requirements of different IGBT technologies from various
manufacturers.
This brief paper covers the general functionality of 1SD536F2 SCALE plug-and-play
drivers. For detailed technical data of a specific driver, please refer to the corresponding
data sheet.
A list of available SCALE plug-and-play drivers, detailed technical data and
application notes can be found on the Internet at:
www.IGBT-Driver.com/go/plug-and-play
Page 4
CT-Concept.com
1SD536F2
Description and Application Manual
SCALE Plug-and-Play Drivers – the Easiest Way to Build
Megawatt Converters
The following abstract points out the easy way to design megawatt
converters by using superior SCALE plug-and-play technology.
Furthermore, from page 9 you will gain greater insight into SCALE plug-and-
play drivers and will find must-read application notes.
Seven Steps to Success
Guide to designing a reliable megawatt converter:
1. Calculate the power dissipation of the IGBT Modules
First choose the IGBT module suited for your application and determine its particular
on-state and switching losses. These are used to approximate the size of heat sink
required.
Since high-power and high-voltage IGBTs have relatively high switching losses, the
switching frequency should be limited as much as possible.
2. Choose a suitable SCALE plug-and-play driver
When applying SCALE plug-and-play drivers, please note that these drivers are
specifically adapted to a particular type of IGBT module.
Therefore, the type designation of SCALE plug-and-play drivers includes the type
designation of the corresponding IGBT module.
These drivers are not valid for
IGBT modules other than those specified. Incorrect use may cause failure.
3. Design the power stack
When designing a power stack with high-current (high-voltage) IGBT modules, the total
DC link inductance should not exceed about 20nH...50nH (50nH…100nH).
SCALE plug-and-play drivers are specified and optimized to operate under such
conditions, resulting in superior dynamic behavior of the IGBTs.
IGBT-Driver.com
Page 5
