SQR-SD3N-8G1K6HNEC Overview

Memory module 204pin SODIMM D3L 1600 8GB 512x8 (0-85)

SQR-SD3N-8G1K6HNEC Parametric

Parameter Name	Attribute value
Maker	Advantech
Product Category	memory module
product	SO-DIMM
storage	8 GB
storage type	DDR3L
speed	1600 MT/s
Maximum operating temperature	+ 85 C
Number of pins	204 Pin
series	SQR-SD3N
Minimum operating temperature	0 C
Factory packaging quantity	1

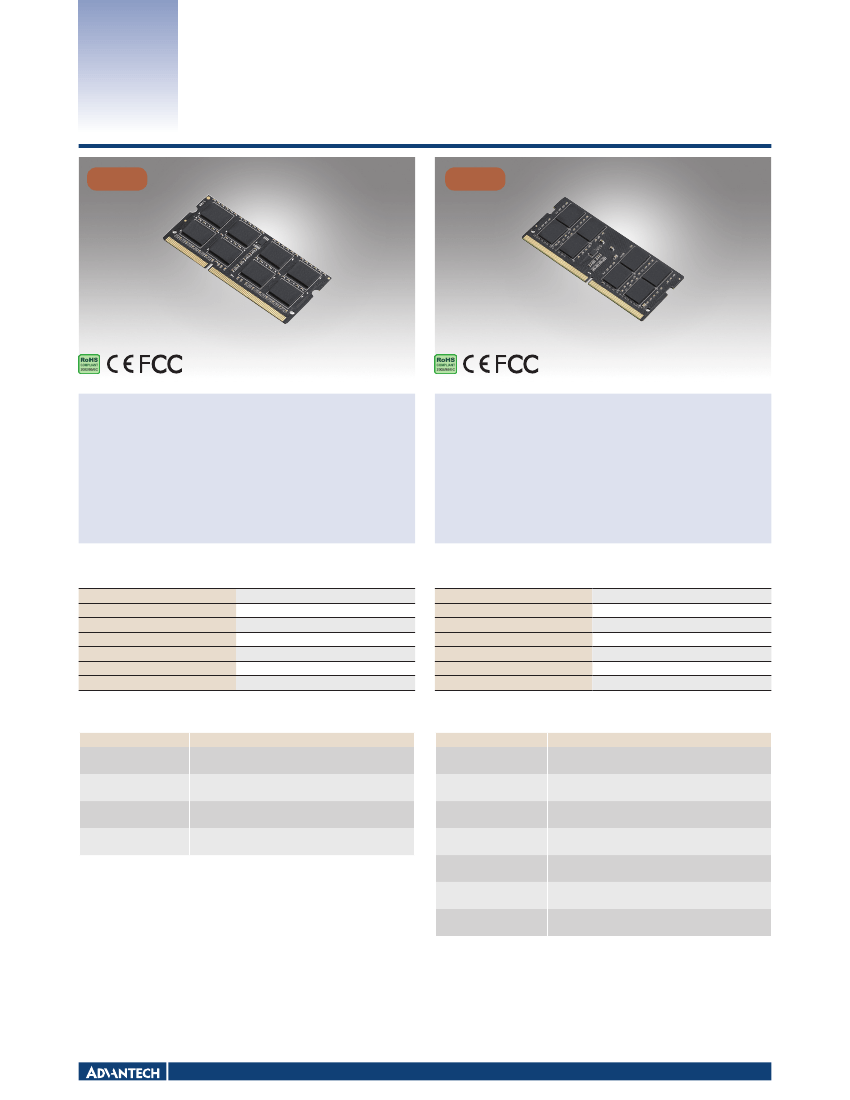

Preview

Download Datasheet

View All

SQR-SD3N

SODIMM DDR3L

NEW

SQR-SD4N

SODIMM DDR4

NEW

Features

Low voltage 1.35V is backward compatible with 1.5V

JEDEC Standard 204-pin Small Outline Dual In-Line Memory Module

Operating Temperature: 0 ~ 85 °C

Original Hynix Memory IC chip

30u" Gold Finger

Features

JEDEC standard 1.2V (1.26V~1.14V) power supply

JEDEC Standard 260-pin Small Outline Dual In-Line Memory Module

Operating Temperature: 0 ~ 85 °C

Original IC chip: Hynix / Samsung

30u" Gold Finger

Specifications

DDR Type

Data Transfer Rate

Voltage

Pins/DIMM

Gold Plating on PCB Gold Fingers

Operating Temperature

Dimensions(mm)

DDR3L

1600 MT/s

1.35V/1.5V

204-pin SODIMM

30u"

0 °C to +85 °C

67.6 x 30 ± 0.15

Specifications

DDR Type

Data Transfer Rate

Voltage

Pins/DIMM

Gold Plating on PCB Gold Fingers

Operating Temperature

Dimensions(mm)

DDR4

2133/2400 MT/s

1.2V

260-pin SODIMM

30u"

0°C to +85°C

69.6 x 30 ± 0.13

Ordering Information

Part No.

SQR-SD3N-2G1K6HNXC

SQR-SD3N-4G1K6HNEC

SQR-SD3N-4G1K6HNCC

SQR-SD3N-8G1K6HNEC

Product Description

204pin SODIMM D3L 1600 2GB 256Mx16

(0 ~ 85 °C) Hynix

204pin SODIMM D3L 1600 4GB 512Mx8 (0 ~ 85 °C)

Hynix

204pin SODIMM DDR3L 1600 4GB 256Mx16

(0 ~ 85 °C) Hynix

204pin SODIMM D3L 1600 8GB 512Mx8 (0 ~ 85 °C)

Hynix

Ordering Information

Part No.

SQR-SD4N-4G2K1HEC

SQR-SD4N-8G2K1HEC

SQR-SD4N-8G2K4HBC

SQR-SD4N-16G2K4HBC

SQR-SD4N4G2K4SNEEB

SQR-SD4N8G2K4SNBBB

SQR-SD4N16G2K4SNBB

Product Description

260pin SODIMM DDR4 2133 4GB 512Mx8

(0 ~ 85 °C) Hynix

260pin SODIMM DDR4 2133 8GB 512Mx8

(0 ~ 85 °C) Hynix

260pin SODIMM DDR4 2400 8GB 1Gx8 (0 ~ 85 °C)

Hynix

260pin SODIMM DDR4 2400 16GB 1Gx8 (0 ~ 85 °C)

Hynix

260pin SODIMM DDR4 2400 4GB 512Mx8

(0 ~ 85 °C)SAM

260pin SODIMM DDR4 2400 8GB 1Gx8 (0 ~ 85 °C)

SAM

260pin SODIMM DDR4 2400 16GB 1Gx8 (0 ~ 85 °C)

SAM

Industrial Memory Modules

All product specifications are subject to change without notice

Last updated: 25-Jul-2018

SQR-SD3N-8G1K6HNEC Related Products

	SQR-SD3N-8G1K6HNEC	SQR-SD3N-4G1K6HNCC	SQR-SD3N-4G1K6HNEC	SQR-SD4N8G2K4SNBBB	SQR-SD4N4G2K4SNEEB	SQR-SD4N16G2K4SNBB	SQR-SD4N-8G2K4HBC
Description	Memory module 204pin SODIMM D3L 1600 8GB 512x8 (0-85)	Memory module 204pin SODIMM D3L 1600 4GB 256x16 (0-85)	Memory module 204pin SODIMM D3L 1600 4GB 512x8 (0-85)	Memory module 260pin SODIMM DDR4 2400 8GB 1.2v 1Gx8(0-85)	Memory module 260pin SODIMM DDR4 2400 4GB 1.2v 512x8(0-85)	Memory module 260pin SODIMM DDR4 2400 16GB 1.2v 1Gx8(0-85)	Memory module 260pin SODIMM D4 2400 8GB 1Gx8 (0-85)
Maker	Advantech	Advantech	Advantech	Advantech	Advantech	Advantech	Advantech
Product Category	memory module	memory module	memory module	memory module	memory module	memory module	memory module
product	SO-DIMM	SODIMM	SO-DIMM	SO-DIMM	SO-DIMM	SO-DIMM	SO-DIMM
storage	8 GB	4 GB	4 GB	8 GB	4 GB	16 GB	8 GB
storage type	DDR3L	DDR3L	DDR3L	DDR4	DDR4	DDR4	DDR4
Maximum operating temperature	+ 85 C	+ 85 C	+ 85 C	+ 85 C	+ 85 C	+ 85 C	+ 85 C
Number of pins	204 Pin	204 Pin	204 Pin	260 Pin	260 Pin	260 Pin	260 Pin
series	SQR-SD3N	SQR-SD3N	SQR-SD3N	SQR-SD4N	SQR-SD4N	SQR-SD4N	SQR-SD4N
Minimum operating temperature	0 C	0 C	0 C	0 C	0 C	0 C	0 C
Factory packaging quantity	1	1	1	1	1	1	1
speed	1600 MT/s	1600 MT/s	1600 MT/s	2400 MT/s	-	-	2400 MT/s
Working power voltage	-	1.35 V, 1.5 V	-	1.2 V	1.2 V	1.2 V	-
size	-	67.6 mm x 30 mm	-	69.6 mm x 30 mm	69.6 mm x 30 mm	69.6 mm x 30 mm	-
