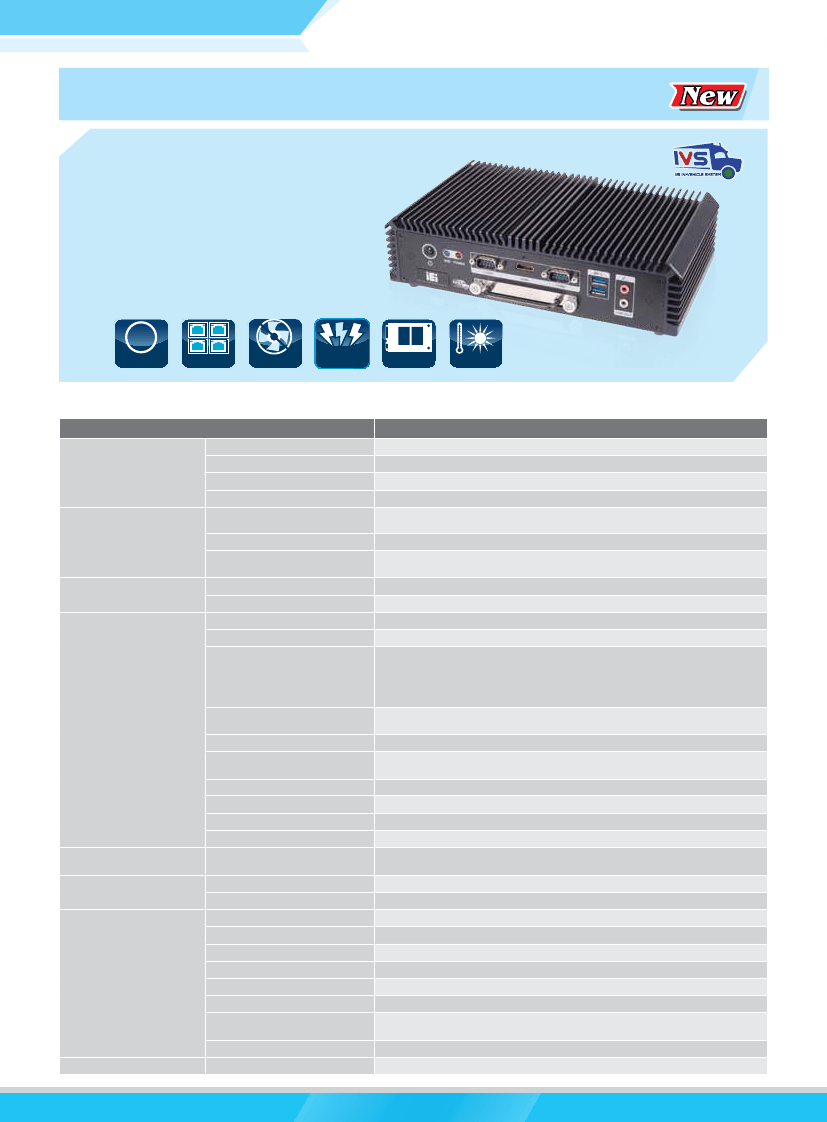

IVS-200-ULT2

Features

●

Intel® i5-5350U dual-core 1.8 GHz CPU or

Intel® Celeron® 3755U dual-core 1.7 GHz CPU

●

Four Intel® GbE LAN ports

●

9 V~36 V DC input

●

Two RS-232/422/485

● E-Mark certification

Vehicle Surveillance System

E-Mark

Four LAN

Fanless

9~36V

DV Input

mSATA

-20°C~60°C

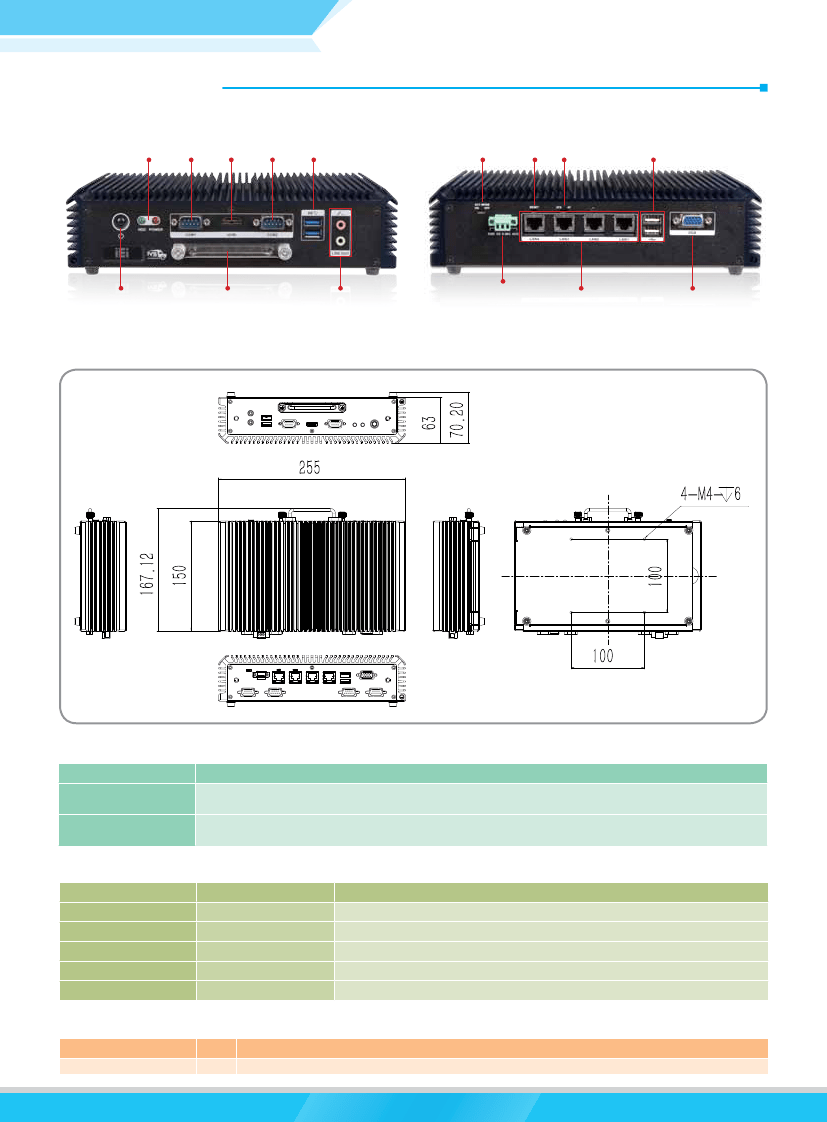

Specifications

Model Name

Color

Chassis

Dimensions (WxHxD) (mm)

System Fan

Chassis Construction

CPU

Motherboard

Chipset

System Memory

Storage

Hard Drive

mSATA

USB 3.0

USB 2.0

IVS-200-ULT2

Blue C

255 x 63 x 150

Fanless

Extruded aluminum alloy

Intel® Core i5-5350U (dual-core, 1.8 GHz, 15W TDP) or

Intel® Celeron® 3765U (dual-core, 1.9 GHz, 15W TDP)

SoC

2 x 204-pin DDR3 SO-DIMM slot (system max. 16 GB)

Pre-installed one 4 GB DDR3 SO-DIMM

1 x 2.5’’ SATA 6Gb/s SSD removable drive bay

1 x mSATA (SATA 6Gb/s)

4 x RJ-45 connector

LAN1: PCIe GbE by Intel® I218

LAN2: PCIe GbE by Intel® I211

LAN3: PCIe GbE by Intel® I211

LAN4: PCIe GbE by Intel® I211

2 x DB-9 RS-232/422/485

4 x DB-9 RS-232 (optional)

1 x VGA, 1 x HDMI

VGA: up to 2560 x 1600 @ 60 Hz

HDMI: up to 3840 x 2160 @ 60 Hz

8 bit digital I/O (4-bit input, 4-bit output) (optional)

1 on board internal SIM slot

4 reserved

1 x Line out, 1 x Mic in

1 x Full size (co-lay mSATA)

1 x Half size

DC jack: 9 V~36 V (+/- 0.3) DC

12 V @ 2.1 A (Intel® i5-5350U with 4 GB DDR3 memory)

VESA 100

-20°C ~ 60°C with air flow (SSD)

-30°C ~ 70°C

5% ~ 95%, non-condensing

Half-sine wave shock 5G, 11ms, 3 shocks per axis

MIL-STD-810F 514.5C-2 (with SSD)

2.2 kg/3 kg

CE/FCC/E-Mark

Microsoft® Windows® Embedded 8, Microsoft® Windows® Embedded Standard 7 E

Ethernet

I/O Interfaces

COM Port

Display

Resolution

DIO

SIM

Antenna

Audio

Expansions

Power

PCIe Mini

Power Input

Consumption

Mounting

Operating Temperature

Storage Temperature

Humidity

Reliability

Operating Shock

Operating Vibration

Weight

(Net/Gross)

Safety/EMC

Supported OS

IVS-200-ULT2-2016-V11
