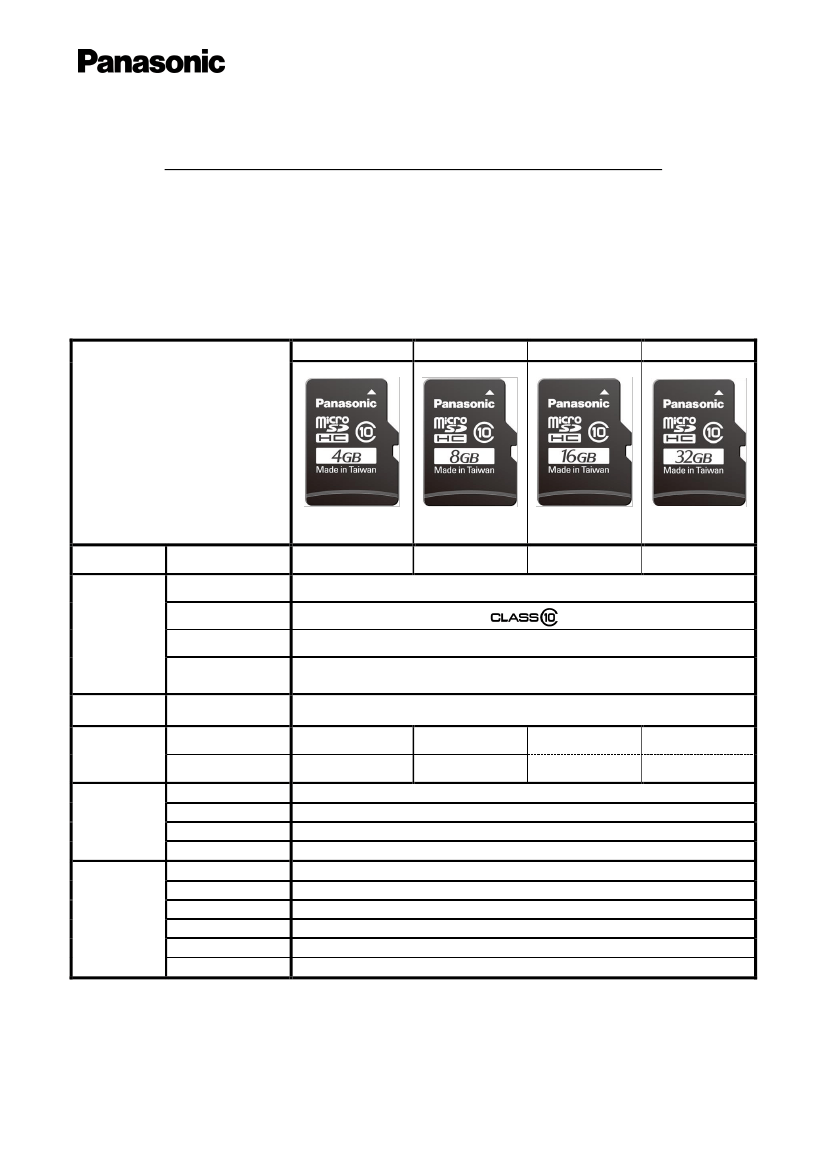

RP-SMLExxDA1
LE Series
microSDHC Memory Card, Consumer Plus MLC Model
■ Product Outline
LE series are microSDHC memory cards adopting built-in consumer type MLC NAND flash
memory. They are formatted complying with SD card specification.
■ Product Specification
（specifications
and appearances may be changed without notice.）
4GB
8GB
16GB
32GB
Appearance
Part Number
Capacity
Available user data
area capacity *1)
SD Physical
Specification
SD speed class
UHS speed grade
Speed mode
RP-SMLE04DA1
3,971,973,120
byte
RP-SMLE08DA1
7,960,756,224
byte
RP-SMLE16DA1
16,001,236,992
b
yte
RP-SMLE32DA1
32,073,809,920
byte
Ver. 3.01
Compliant
Specification
---
Default Speed mode, High Speed mode,
---
22MB/s
(High Speed)
Backside
mark
Read/Write
Performance
(up to)
Absolute
Maximum
Ratings
Control Code
Read
Write
Supply Voltage
Input Voltage
Output Voltage
Output Current
Operating Temperature
Storage Temperature
22MB/s
(High Speed)
22MB/s
(High Speed)
22MB/s
(High Speed)
12MB/s
(High Speed)
12MB/s
(High Speed)
12MB/s
(High Speed)
12MB/s
(High Speed)
Min : -0.3 V ; Max : +4.6 V
Min : -0.3 V ; Max : VDD +0.3 V
Min : -0.3 V ; Max : VDD +0.3 V
Min : -24 mA ; Max : +24 mA
-25 degree C to +85 degree C
-40 degree C to +85 degree C
5 % RH to 95 % RH
15 Gp-p
1,000 G
10,000 cycles
Environmental
Humidity
Vibration
Shock
Mating Cycles
Specification
*1) Free user area capacity after formatted.
Absolute Maximum Ratings are the values of limitation, which do not damage the card. So those
values do not define the operational range.
Products comply with EU RoHS directives.
Page 1 of 2
(2014.11.14)
RP-SMLExxDA1
■Marking Specification (example; 4GB)
“4GB”
“MADE IN TAIWAN”
Card Capacity
Country of origin
“00YM0000000”
Y
M
“000000000”,
“0000000000000”
■ System Reliability
a. Error detect and corrective function
b. Static wear leveling
c. Bad block management
Serial Number
Last digit of Manufacture year
Manufacture month
(January->A, February->B, )
Internal control code
Internal control code
■ Notice and Caution
If you think about the usage for which special quality or reliability of the products is needed
and failure or malfunction of the products may directly threaten life or injury for the special
usage (aeronautic or cosmic usage, military usage, combustion machine, life support
applications or safety applications), please counsel with our contacts in advance.
Write frequency and storage temperature will affect data retention time. Please make a
backup for important data.
■ Warranty
If the product cannot be used because of failure which is determined as defect in design or in
production of the product, it is replaced by same product or equivalent one within 12 months
from the delivery date of product.
Page 2 of 2
(2014.11.14)
