conga-TCG/GX-420CA-4GECC datasheet, PDF

Datasheet> All Categories > Embedded solution> To calculate> Modular computer - COM> conga-TCG/GX-420CA-4GECC

conga-TCG/GX-420CA-4GECC: Description模块化计算机 - COM COM Express Type 6 Compact module based on AMD Embedded G-Series GX-420CA quad core processor with 2.0GHz, 2MB L2 cache and 4GB 1600MT/s ECC DDR3L onboard memory. Features AMD Radeon HD 8400E Graphics with 600MHz GPU frequency.; CategoryEmbedded solution To calculate Modular computer - COM; File Size946KB，3 Pages; Manufacturercongatec; Environmental Compliance

Download Datasheet Parametric Compare View All

conga-TCG/GX-420CA-4GECC Overview

模块化计算机 - COM COM Express Type 6 Compact module based on AMD Embedded G-Series GX-420CA quad core processor with 2.0GHz, 2MB L2 cache and 4GB 1600MT/s ECC DDR3L onboard memory. Features AMD Radeon HD 8400E Graphics with 600MHz GPU frequency.

conga-TCG/GX-420CA-4GECC Parametric

Parameter Name	Attribute value
Maker	congatec
Product Category	Modular Computer - COM
Shipping restrictions	Mouser does not currently sell this product in your area.
physical dimension	COM Express Type 6
Processor brand	AMD
Processor type	AMD GX-420CA
chipset	Integrated in SoC
frequency	2 GHz
cache memory	2 MB
Interface Type	Audio, Ethernet, HDMI, I2C, LPC, PCIe, SATA, SMBus, SPI, USB
Minimum operating temperature	0 C
Maximum operating temperature	+ 60 C
size	95 mm x 95 mm
storage	4 GB
storage type	DDR3L
Power consumption	25 W
series	conga-TCG
Factory packaging quantity	1

Preview

Download Datasheet

View All

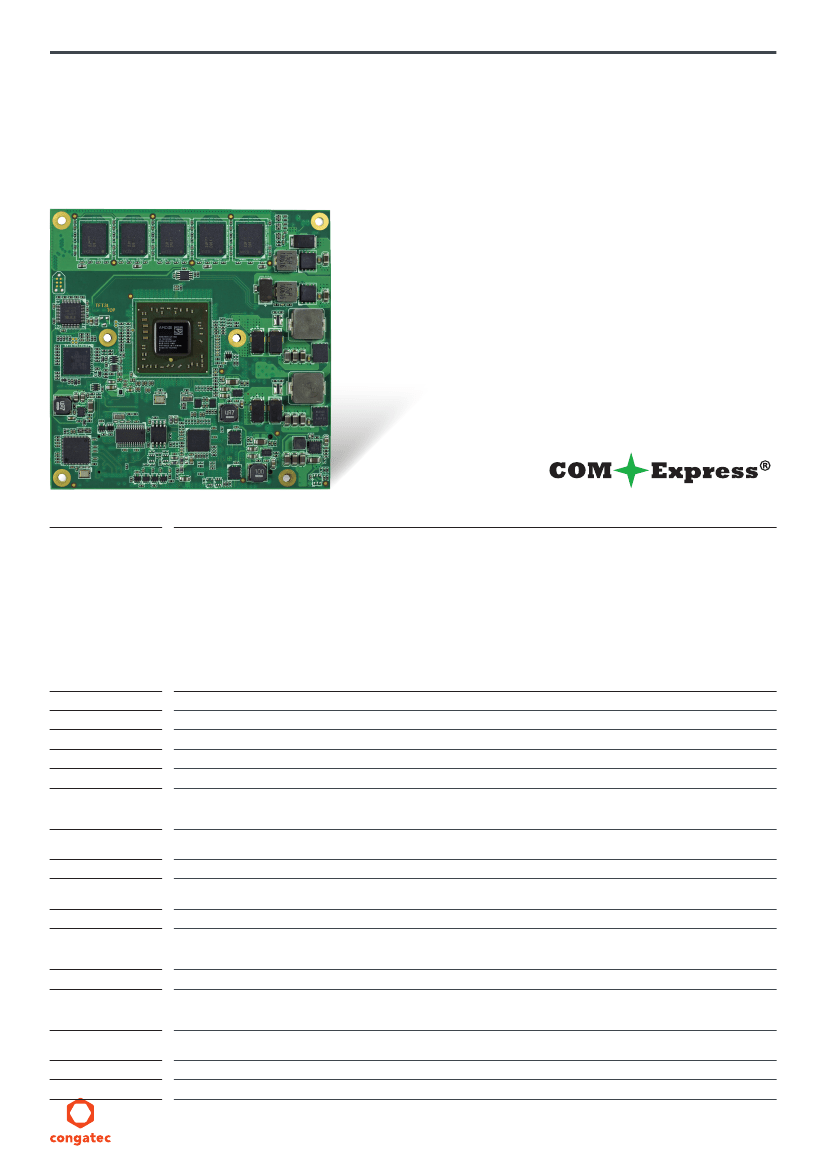

ERROR PROTECTED RAM

conga-TCG

AMD Embedded G-Series SOC APU

Power saving „Steppe Eagle“ processors

ECC protected memory up to 8 GByte

High performance integrated graphics

Extended longevity, min. 10 years

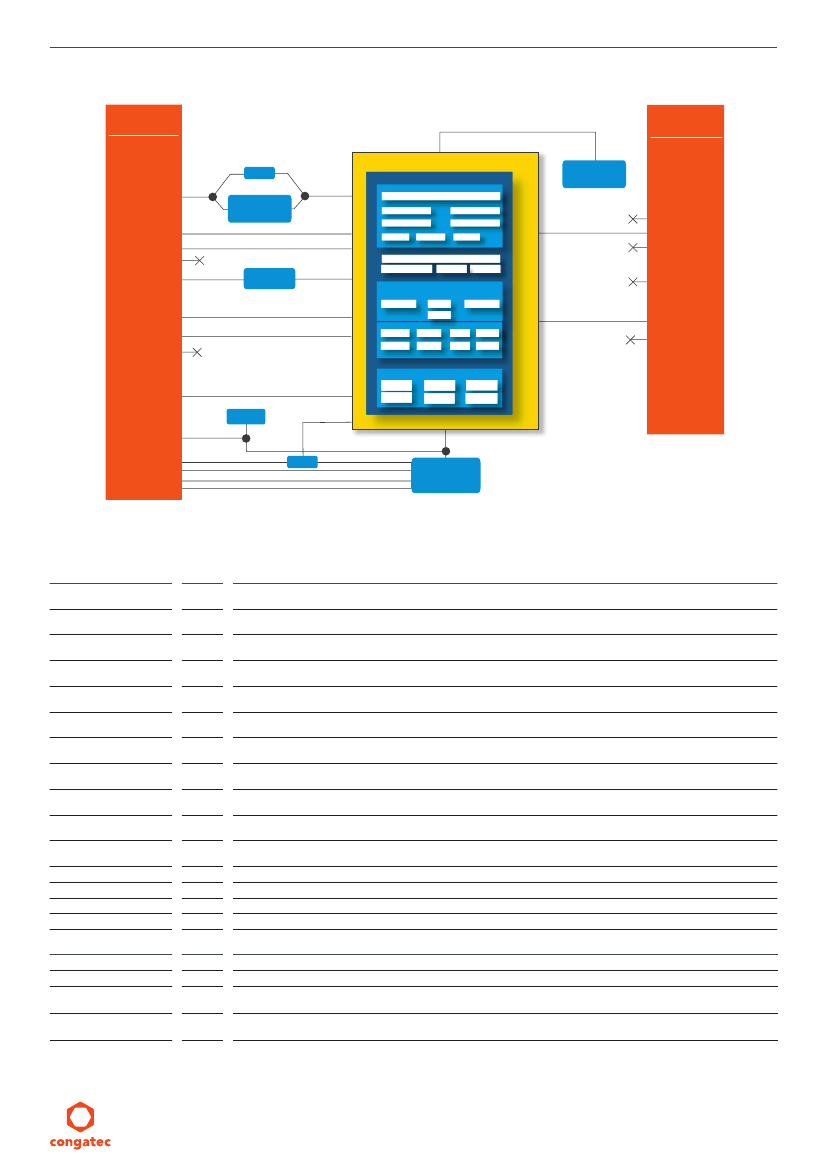

Formfactor

CPU

COM Express

Compact | (95 x 95 mm) | Type 6 Connector Layout

AMD Embedded G-Series SOC

AMD Embedded GX-420CA

AMD Embedded GX-415GA

AMD Embedded GX-217GA

AMD Embedded GX-209HA*

AMD Embedded GX-210HA

AMD Embedded GX-424CC

AMD Embedded GX-411GA*

AMD Embedded GX-412HC

AMD Embedded GX-212JC

AMD Embedded GX-222GC

*Industrial Temperature Version

2.0 GHz

1.5 GHz

1.65 GHz

1.0 GHz

2.4 GHz

1.1 GHz

1.2 GHz | 1.6 GHz (Boost)

1.2 GHz | 1.4 GHz (Boost)

2.2 GHz | 2.4 GHz (Boost)

Quad Core

Dual Core

Quad Core

Dual Core

L2 cache 2MB shared

L2 cache 1MB shared

L2 cache 2MB shared

L2 cache 1MB shared

25W TDP

15W TDP

9W TDP

25W TDP

15W TDP

7W TDP

6W TDP

15W TDP

DRAM

Chipset

Ethernet

I/O Interfaces

Sound

Graphics

Up to 8 GByte DDR3L-1600 with ECC protection

Integrated in SOC (single-chip)

Gigabit Ethernet

4x PCI Express

™

2.0 lanes | 2x SATA

High Definition Audio Interface

Integraded AMD Radeon

™

HD 8000E Graphics supports DirectX 11.1 | OpenGL 4.2 and OpenCL

™

1.2; up to two simultaneous displays | Unified

Video Decoder 4.2 (H.264, MPEG-2, VC-1, MPEG4 and WMV) | Video Compresion Engine 2.0 (Video conferencing, wireless display, H.264, SVC).

Security Asset Management Unit 2.1 (DRM offloaded from CPU, HDCP2) | VGA

18/24-bit Single/Dual Channel LVDS Interface | Resolutions up to 1920X1200@60Hz | VESA standard or JEIDA data mapping | Automatic Panel

Detection via EDID/EPI

One DisplayPort 1.2 / HDMI 1.4a

Multi Stage Watchdog | non-volatile User Data Storage | Manufacturing and Board Information | Board Statistics | BIOS Setup Data Backup

I²C bus (fast mode, 400 kHz, multi-master) | Power Loss Control | Backlight

AMI Aptio

UEFI 2.x firmware | 8 MByte serial SPI firmware flash

The conga-TCG can be optionally equipped with a discrete ”Trusted Platform Module” (TPM). It is capable of calculating efficient hash and

RSA algorithms with key lengths up to 2,048 bits and includes a real random number generator. Security sensitive applications such as gaming and

e-commerce will benefit also with improved authentication, integrity and confidence levels.

ACPI 3.0 with battery support

Microsoft

Windows 10 | Microsoft

Windows 10 IoT Enterprise | Microsoft

Windows 8 | Microsoft

Windows 7 | Linux | Microsoft

Windows

7/8

Embedded Standard | Microsoft

Windows

7 Embedded

Compact

Commercial : Operating: 0 to +60°C | Storage: -20 to +80°C

Industrial :

Operating: -40 to +85°C | Storage: -45 to +85°C

Operating: 10 - 90% r. H. non cond. | Storage: 5 - 95% r. H. non cond.

95 x 95 mm (3.74” x 3.74”)

LVDS

Digital Display Interface

congatec Board Controller

Embedded BIOS Features

Security

Power Management

Operating Systems

Temperature

Humidity

Size

www.congatec.com

conga-TCG/GX-420CA-4GECC Related Products

	conga-TCG/GX-420CA-4GECC	conga-TCG/212JC-2GECC	conga-TCG/222GC-4GECC	conga-TCG/412HC-4GECC	conga-TCG/424CC-4GECC	conga-TCG/GX-420CA-2GECC	conga-TCG/GX-210HA-2GECC
Description	模块化计算机 - COM COM Express Type 6 Compact module based on AMD Embedded G-Series GX-420CA quad core processor with 2.0GHz, 2MB L2 cache and 4GB 1600MT/s ECC DDR3L onboard memory. Features AMD Radeon HD 8400E Graphics with 600MHz GPU frequency.	模块化计算机 - COM COM Express Type 6 Compact module based on AMD Embedded GX-212JC SOC with AMD Radeon Graphics HD8000E (Dual-core, 6W TDP, CPU freq. 1.2/1.4GHz, GPU freq. 300MHz) and 2GB ECC DDR3L-1333 onboard memory.	Modular Computer- COM COM Express Type 6 Compact module based on AMD Embedded GX-212JC SOC with AMD Radeon Graphics HD8000E (Dual-core, 6W TDP, CPU freq. 1.2/1.4GHz, GPU freq. 300MHz) and 2GB ECC DDR3L- 1333 onboard memory.	Computer-on-Modules - COM COM Express Type 6 Compact module based AMD Embedded GX-412HC SOC with AMD Radeon Graphics HD8000E (Quad-core, 7W TDP, CPU freq. 1.2/1.6GHz, GPU freq. 300MHz) and 4GB ECC DDR3L-1333 onboard memory.	模块化计算机 - COM COM Express Type 6 Compact module based on AMD Embedded G-Series GX-424CC SOC with AMD Radeon Graphics HD8000E (Quad-core, 25W TDP, CPU freq. 2.4 GHz, GPU freq. 497MHz) 2 MB L2 cache and 4GB ECC DDR3L-1600 onboard memory.	Modular Computer - COM COM Express Type 6 compact module based on AMD Embedded GX-420CA SOC with AMD Radeon HD 8400E Graphics (Quad-core, 25W TDP, CPU freq. 2.0GHz, GPU freq. 600MHz) with onboard memory 2GB ECC DDR3L -1600.	模块化计算机 - COM COM Express Type 6 Compact Module based on AMD Embedded GX-210HA SOC with AMD Radeon HD 8210E Graphics (Dual-core, 9W TDP, CPU freq. 1.0GHz, GPU freq. 300MHz) with onboard memory 2GB ECC DDR3L-1333.
Maker	congatec	congatec	congatec	congatec	congatec	congatec	congatec
Product Category	Modular Computer - COM	Modular Computer - COM	Modular Computer - COM	Modular Computer - COM	Modular Computer - COM	Modular Computer - COM	Modular Computer - COM
Shipping restrictions	Mouser does not currently sell this product in your area.	Mouser does not currently sell this product in your area.	Mouser does not currently sell this product in your area.	Mouser does not currently sell this product in your area.	Mouser does not currently sell this product in your area.	Mouser does not currently sell this product in your area.	Mouser does not currently sell this product in your area.
series	conga-TCG	conga-TCG	conga-TCG	conga-TCG	conga-TCG	conga-TCG	conga-TCG
Factory packaging quantity	1	1	1	1	1	1	1
physical dimension	COM Express Type 6	COM Express Type 6	COM Express Type 6	COM Express Type 6	COM Express Type 6	-	-
Processor brand	AMD	-	AMD	AMD	AMD	-	-
Processor type	AMD GX-420CA	AMD GX-212JC	AMD GX-222GC	AMD GX-412HC	AMD GX-424CC	-	-
chipset	Integrated in SoC	Integrated in SoC	Integrated in SoC	Integrated in SoC	Integrated in SoC	-	-
frequency	2 GHz	1.2 GHz	2.2 GHz	1.2 GHz	2.4 GHz	-	-
cache memory	2 MB	1 MB	1 MB	2 MB	2 MB	-	-
Interface Type	Audio, Ethernet, HDMI, I2C, LPC, PCIe, SATA, SMBus, SPI, USB	Audio, Ethernet, HDMI, I2C, LPC, PCIe, SATA, SMBus, SPI, USB	Audio, Ethernet, HDMI, I2C, LPC, PCIe, SATA, SMBus, SPI, USB	Audio, Ethernet, I2C, PCIe, SATA, SD, SMBus, SD, USB	Audio, Ethernet, HDMI, I2C, LPC, PCIe, SATA, SMBus, SPI, USB	-	-
Minimum operating temperature	0 C	0 C	0 C	0 C	0 C	-	-
Maximum operating temperature	+ 60 C	+ 60 C	+ 60 C	+ 60 C	+ 60 C	-	-
size	95 mm x 95 mm	95 mm x 95 mm	95 mm x 95 mm	95 mm x 95 mm	95 mm x 95 mm	-	-
storage	4 GB	2 GB	4 GB	4 GB	4 GB	-	-
storage type	DDR3L	DDR3L	DDR3L	DDR3L	DDR3L	-	-
Power consumption	25 W	6 W	15 W	7 W	25 W	-	-
