IB916F-7100: DescriptionSingle Board Computer Intel 7th Generation Core i3-7100U Processor 3.5in SBC; CategoryEmbedded solution To calculate Single board computer; File Size1MB，2 Pages; ManufacturerIBASE; Environmental Compliance

Download Datasheet Parametric Compare View All

IB916F-7100 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	IB916F-7100	-	-	View	Buy Now

IB916F-7100 Overview

Single Board Computer Intel 7th Generation Core i3-7100U Processor 3.5in SBC

IB916F-7100 Parametric

Parameter Name	Attribute value
Maker	IBASE
Product Category	single board computer
series	IB916
physical dimension	3.5 in
Processor brand	Intel
Processor type	Intel Core i3-7100U
frequency	2.4 GHz
Working power voltage	9 V to 24 V
Interface Type	Audio, HDMI, LAN, PCIe, RS-232/422/485, USB
Minimum operating temperature	0 C
Maximum operating temperature	+ 60 C
size	102 mm x 147 mm
storage	32 GB
storage type	DDR4-2133
chipset	7 th Generation Intel
core	Intel Core i3-7100U
Factory packaging quantity	1

Preview

Download Datasheet

View All

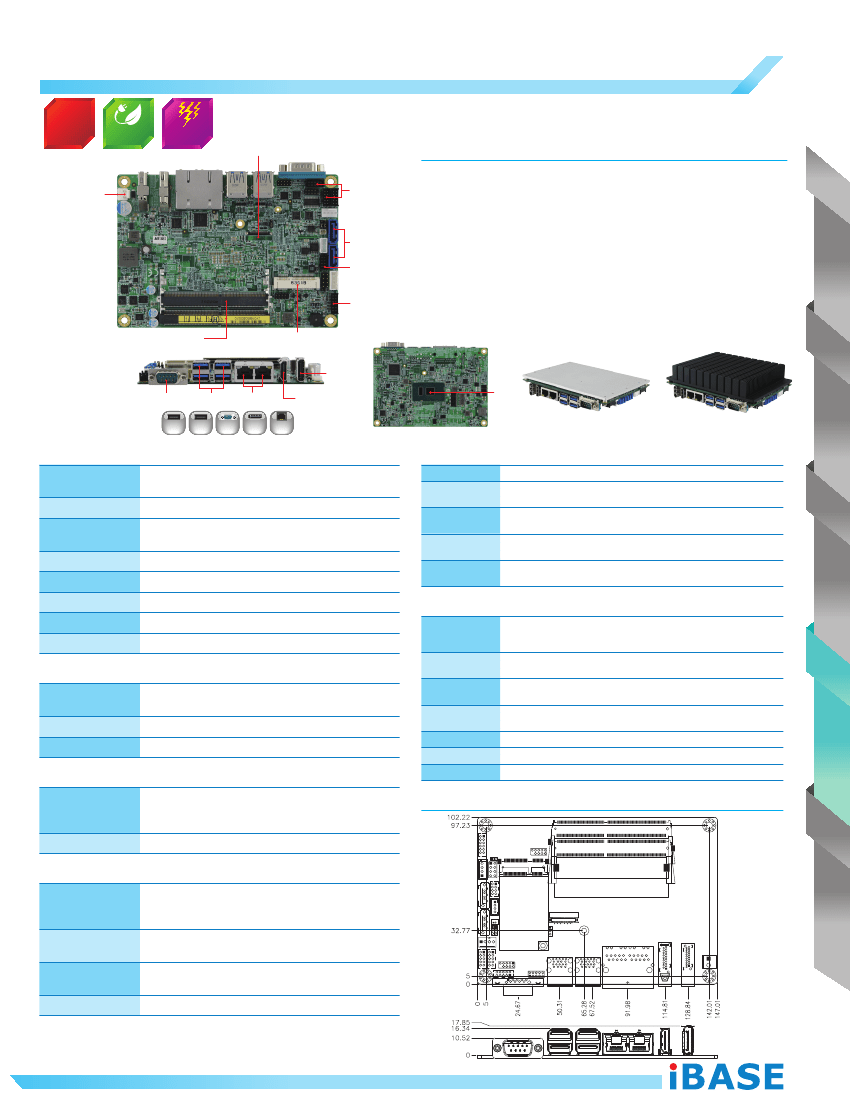

IB916

NEW

DC In

(9~24V)

3.5" Disk-Size SBC

7th Generation Intel

®

Core™ U-series Processor 3.5-inch Disk Size SBC

iSMART

Wide-range

power input

eDP

Features

●

Onboard 7th Generation Intel

®

Core™ U-series processor

COM

01

● 2x DDR4-2133 SO-DIMM, Max 32GB, Non-ECC

● Supports eDP, DisplayPort and HDMI 1.4

● 2x Intel

®

PCI-E GbE LAN

● Watchdog timer, Digital I/O, mSATA, iSMART, TPM(2.0)

● 2x USB 2.0, 4x USB 3.0, 4x COM, 2x SATA III

● 1x Mini PCI-E slot

Embedded

Systems

SATA III

USB 2.0

Audio

DDR4 SO-DIMM

Socket

Mini PCI-E / mSATA

02

DisplayPort

CPU Modules

COM

USB 3.0

Dual GbE LAN

HDMI

CPU

4

2

USB(3.0) USB(2.0)

4

COM

2

SATA III Gbe LAN

IB916 with Heat spreader

IB916 with Heatsink

System

CPU

System Memory

System Chipset

BIOS

Watchdog Timer

SSD

H/W Monitor

Expansion Slots

BGA1356 for 7th Generation Intel

®

Core™ U-series

i7 / i5 / i3 / Celeron

®

DC processors, up to 3.4GHz

2x DDR4-2133 SO-DIMM, Max 32GB (Non-ECC)

Integrated in 7th Generation Intel

®

Core™

U-series processor

AMI

256 levels

1x mSATA

Yes

1x Mini PCI-E (Full-sized)

Mechanical and Environmental

Dimensions

Max. Power

Requirement

Operating

Temperature

Storage

Temperature

Relative

Humidity

102mm x 147mm (4“ x 5.8“)

TBD

03

0°C~60°C ( 32°F~140°F)

-20°C~80°C ( -4°F~176°F)

90% (non-condensing @60°C)

Motherboards

Ordering Information

IB916AF-7600

IB916AF-7300

3.5”, Intel

®

Core™ i7-7600U(2.8GHz/3.9GHz), dual PCI-E

GbE LAN, eDP, DP & HDMI, TPM(2.0), iSMART, mSATA,

iAMT(11.6)

3.5”, Intel

®

Core™ i5-7300U(2.6GHz/3.5GHz), dual PCI-E

GbE LAN, eDP, DP & HDMI, TPM(2.0), mSATA, iSMART

3.5”, Intel

®

Core™ i3-7100U(2.4GHz), dual PCI-E GbE LAN,

eDP, DP & HDMI, TPM(2.0), mSATA, iSMART

3.5”, Intel

®

Celeron

®

3965U(2.2GHz), dual PCI-E GbE LAN,

eDP, DP & HDMI, TPM(2.0), mSATA, iSMART

Heatsink for IB916/IB917

Heat spreader for IB916/IB917

Cable Kit w/ USB, COM, Power cable, SATA+Power cable

Graphics

VGA Controller

VGA Memory

Display Interface

7th Generation Intel

®

Core™ U-series processor

integrated graphics

Shared memory

Supports eDP, DisplayPort and HDMI

04

IB916F-7100

IB916F-3965

(MOQ)

HSIB916-A

HSIB916-1

IB76A

Disk-Size

SBCs

LAN

Controller

Connector

IB916AF series: Intel

®

I219LM LAN PHY

IB916F series : Intel

®

I219V LAN PHY

Intel

®

I211AT PCI-E Gigabit LAN(as 2nd LAN)

2x RJ-45 on board

Dimensions and Drawing

05

Multi I/O

I/O Chipset

USB

Audio

Others

Fintek F81846AD-I

1x RS232/422/485(jumperless selection),

3x RS232, 2x SATA III

4 ports USB3.0 on board

2 ports USB2.0 on via pin header

7th Generation Intel

®

Core™

U-series processor built-in

HD Audio controller + Realtek ALC662 codec

Digital I/O,

+9V~ +24V DC-in,

iSMART, TPM(2.0)

CPU Cards

Remarks: 1.

Specifications are subject to change without prior notice.

2.

ODM/OEM is available.

3.

For user’s manual & datasheet download, visit www.ibase.com.tw.

4-7

IB916F-7100 Related Products

	IB916F-7100	IB916AF-7600	IB916F-3965
Description	Single Board Computer Intel 7th Generation Core i3-7100U Processor 3.5in SBC	Single Board Computer Intel 7th Generation Core i7-7600U Processor 3.5in SBC	Single Board Computer Intel Celeron Processor 3965U 3.5in SBC
Maker	IBASE	IBASE	IBASE
Product Category	single board computer	single board computer	single board computer
series	IB916	IB916	IB916
physical dimension	3.5 in	3.5 in	3.5 in
Processor brand	Intel	Intel	Intel
Processor type	Intel Core i3-7100U	Intel Core i7-7600U	Intel Celeron 3965U
frequency	2.4 GHz	2.8 GHz/3.9 GHz	2.2 GHz
Working power voltage	9 V to 24 V	9 V to 24 V	9 V to 24 V
Interface Type	Audio, HDMI, LAN, PCIe, RS-232/422/485, USB	Audio, HDMI, LAN, PCIe, RS-232/422/485, USB	HDMI, LAN, PCIe, RS-232/422/485, USB
Minimum operating temperature	0 C	0 C	0 C
Maximum operating temperature	+ 60 C	+ 60 C	+ 60 C
size	102 mm x 147 mm	102 mm x 147 mm	102 mm x 147 mm
storage	32 GB	32 GB	32 GB
storage type	DDR4-2133	DDR4-2133	DDR4-2133
chipset	7 th Generation Intel	7 th Generation Intel	7 th Generation Intel
core	Intel Core i3-7100U	Intel Core i7-7600U	Intel Celeron 3965U
Factory packaging quantity	1	1	100

Recommended Resources

Telephone number sending circuit diagram

Single pulse signal generating circuit d

Varactor diode direct frequency modulation circuit

Current pouring power amplifier circuit

Car battery charger circuit diagram

A circuit that adjusts the current of a light-emitting diode according to the surrounding brightness
