SCALE™-2 2SD300C17
SCALE™-2 2SD300C17
Description & Application Manual
Dual Channel High-quality and Low-cost SCALE™-2 Driver Core
Abstract
The SCALE™-2 dual-driver core 2SD300C17 is a second source to Infineon's 2ED300C17-S and 2ED300C17-ST. The
driver is fully pin and function-compatible to the 2ED300C17-S/2ED300C17-ST and was designed for applications in
which high reliability is expected.
The use of Power Integrations' highly integrated SCALE-2 chipset allows 63% of the components to be dispensed
with compared to the 2ED300C17-S/2ED300C17-ST. This advantage is impressively reflected in increased reliability
(function and MTBF) with simultaneously lower costs.

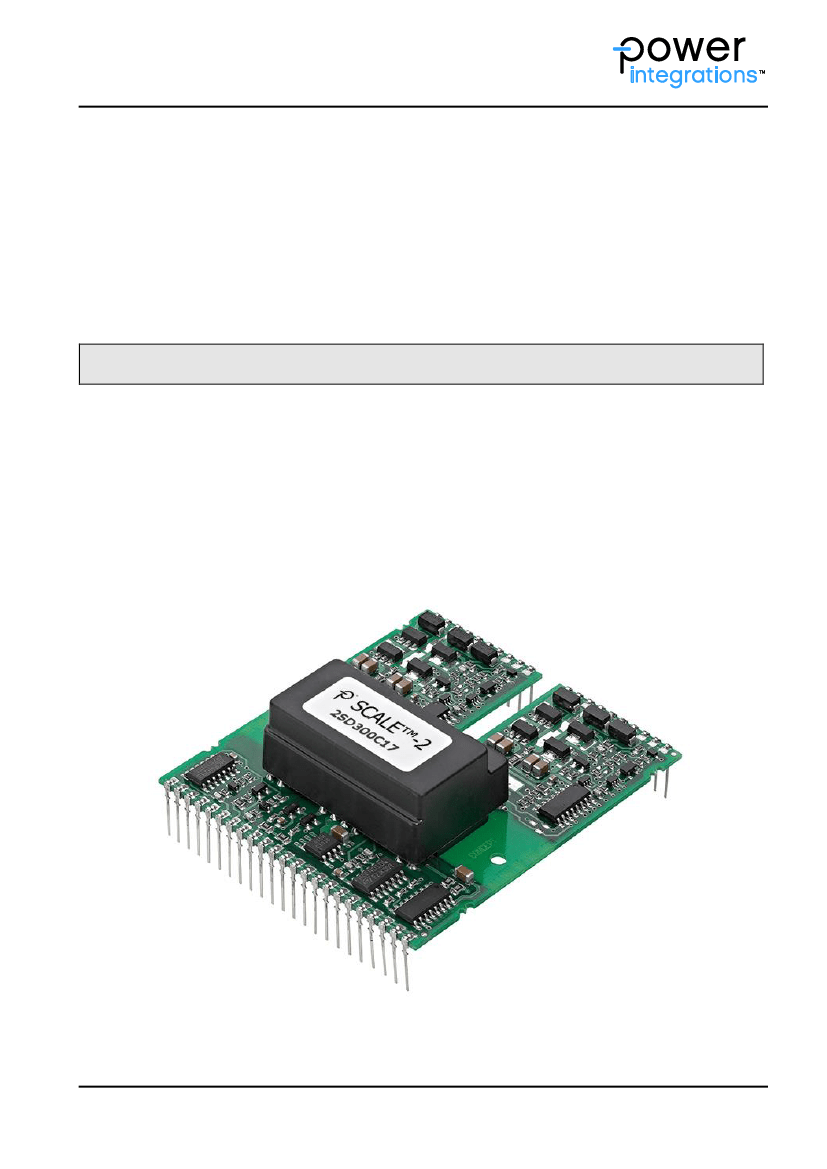

Fig. 1 2SD300C17 driver core
www.power.com/igbt-driver
Page 1
SCALE™-2 2SD300C17
Preliminary Description & Application Manual
Contents
Driver Overview ............................................................................................................................. 3
Recommended Interface Circuitry for the Primary Side Connector .............................................. 7
Description of Primary Side Interface ........................................................................................... 8
General ............................................................................................................................... 8
VDC terminal ....................................................................................................................... 8
VDD terminal....................................................................................................................... 8
Mod (mode selection) .......................................................................................................... 8
INA, INB (channel drive inputs, e.g. PWM)............................................................................. 9
SOA, SOB (status outputs) ................................................................................................... 9
CA and CB (input for adjusting the dead time in half-bridge mode) ........................................ 10
Recommended Interface Circuitry for the Secondary Side Connector ........................................ 11
Description of Secondary Side Interface ..................................................................................... 11
General ............................................................................................................................. 11
DC/DC output (Vx+, Vx-) and COM x terminals .................................................................... 12
Reference terminal (RC x) .................................................................................................. 12
Collector sense (VCE x) ...................................................................................................... 12
Gate terminals Gate x ........................................................................................................ 13
Sense input (Sense x) ........................................................................................................ 13
External fault input E.x ....................................................................................................... 13
How Do 2SD300C17 SCALE-2 Drivers Work in Detail? ................................................................ 14
Power supply and electrical isolation ................................................................................... 14
Power-supply monitoring .................................................................................................... 14
Vce monitoring / short-circuit protection .............................................................................. 15
Blocking time .................................................................................................................... 15
Bibliography ................................................................................................................................. 15
The Information Source: SCALE-2 Driver Data Sheets ................................................................ 16
Quite Special: Customized SCALE-2 Drivers ................................................................................ 16
Technical Support ........................................................................................................................ 16
Quality .......................................................................................................................................... 16
Legal Disclaimer ........................................................................................................................... 16
Ordering Information ................................................................................................................... 17
Information about Other Products .............................................................................................. 17
Power Integrations Sales Offices ................................................................................................. 18
www.power.com/igbt-driver
Page 2
SCALE™-2 2SD300C17
Preliminary Description & Application Manual
Driver Overview
The 2SD300C17 is a driver core equipped with Power Integrations' latest SCALE-2 chipset /1/. The SCALE-2
chipset is a set of application-specific integrated circuits (ASICs) that cover the main range of functions
needed to design intelligent gate drivers. The SCALE-2 driver chipset is a further development of the proven
SCALE technology /2/.
The 2SD300C17 targets medium- and high-power IGBT applications such as windmill and solar converters,
general purpose drives, as well as traction including parallel gate driving of IGBT modules. The 2SD300C17
comprises a complete dual-channel IGBT driver core, fully equipped with an isolated DC/DC converter, short-
circuit protection, active clamping, soft turn-off and supply-voltage monitoring.

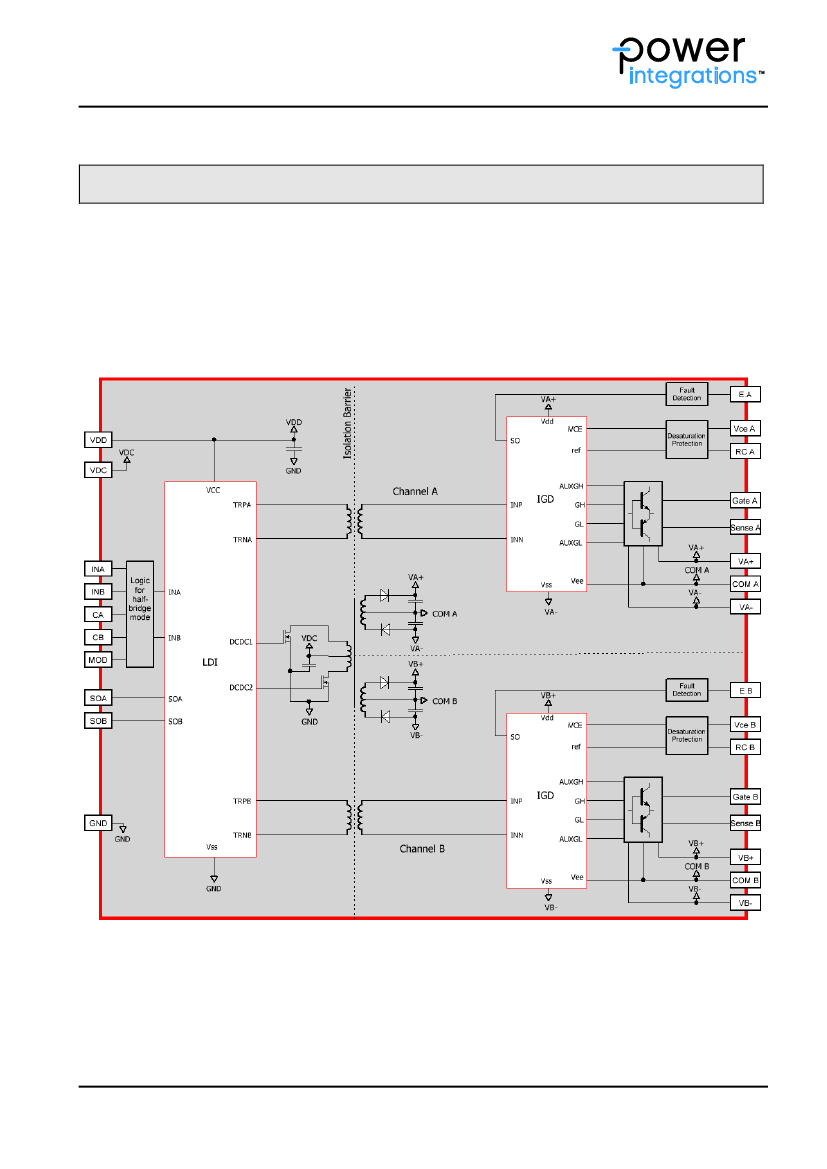

Fig. 2 Block diagram of the driver core 2SD300C17
www.power.com/igbt-driver
Page 3

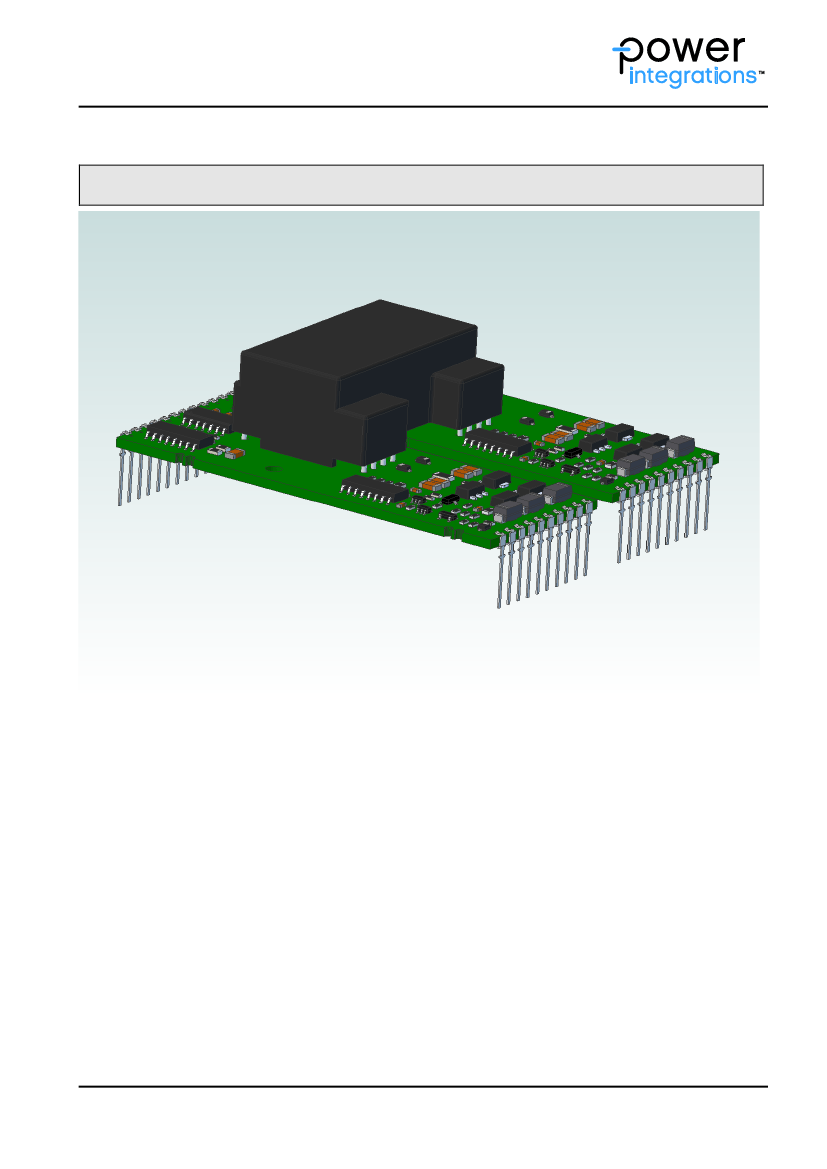

SCALE™-2 2SD300C17
Preliminary Description & Application Manual

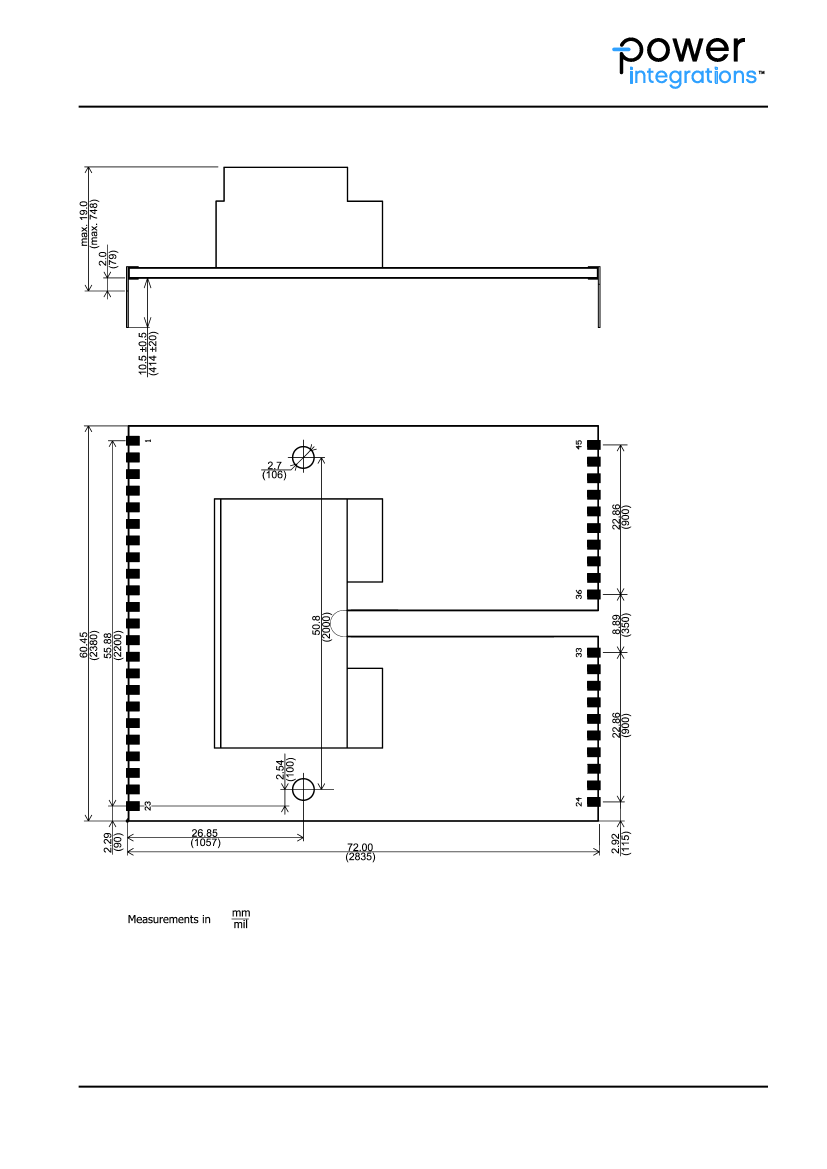

Fig. 4 Mechanical drawing (top view)
The primary side and secondary side pin grid is 2.54mm (100mil).
Total outline dimensions of the board are 60.5mm x 72mm. The total height of the driver is max. 19mm
measured from the top layer of the host PCB to the top of the populated PCB on the driver.
Recommended diameter of solder pads: Ø 2mm (79mil)
Recommended diameter of drill holes: Ø 1mm (39mil)
www.power.com/igbt-driver
Page 5
