SQF-SMSM1-16G-SBE datasheet, PDF

Datasheet> All Categories > Embedded solution> Memory and data memory> memory> Solid-state drives - SSD> SQF-SMSM1-16G-SBE

Preview

SQF-SMSM1-16G-SBE: DescriptionSolid State Drive - SSD SQF mSATA 640 16G MLC (-40~85 C); CategoryEmbedded solution Memory and data memory memory Solid-state drives - SSD; File Size702KB，2 Pages; ManufacturerAdvantech; Websitehttp://www.advantech.com/

Download Datasheet Parametric View All

SQF-SMSM1-16G-SBE Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SQF-SMSM1-16G-SBE	-	-	View	Buy Now

SQF-SMSM1-16G-SBE Overview

Solid State Drive - SSD SQF mSATA 640 16G MLC (-40~85 C)

SQF-SMSM1-16G-SBE Parametric

Parameter Name	Attribute value
Maker	Advantech
Product Category	Solid State Drive – SSD
storage	16 GB
product	SATA Flash Drive
physical dimension	mSATA
Configuration	MLC
Minimum operating temperature	- 40 C
Maximum operating temperature	+ 85 C
size	50.8 mm x 30 mm x 4.2 mm
continuous write	495 MB/s
continuous reading	560 MB/s
Connector type	52-pin PCIe
Interface Type	SATA
Factory packaging quantity	1

Preview

Download Datasheet

View All

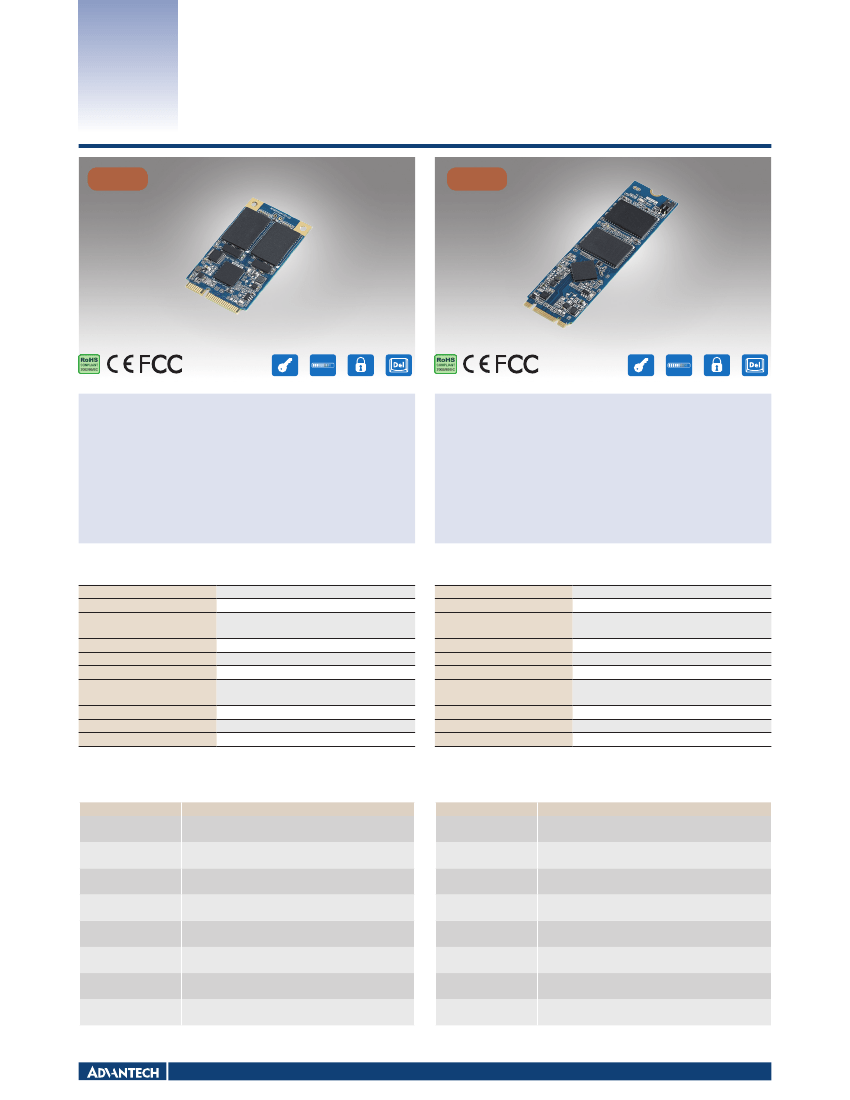

SQF-SMS 640

SATA III (6.0Gb) mSATA

SQF-SM8 640

SATA III (6.0Gb) M.2 2280

NEW

Flash

Life

Flash Lock Emergency

Security ID Monitoring

Erase

Flash

Life

Flash Lock Emergency

Security ID Monitoring

Erase

Features

MO-300 mSATA Module

Compliant with SATA III and SATA v3.2 standard

Support LDPC of ECC correct

Shock resistance, anti-vibration and low power consumption

GUI management tool & software API package

Features

NGFF M.2 2280 SSD

Interface: SATA III (6.0 Gbps)

Support LDPC of ECC correct

Shock resistance, anti-vibration and low power consumption

GUI management tool & software API package

Support hardware write protect

Specifications

Connect Type

Flash type

Capacity

Transfer Mode

Max. Power Consumption

Sustained R/W Performance (*)

Operating Temperature

Shock Resistance

Vibration Resistance

Dimensions (mm)

Mini PCIe 52pin connector with SATA pin-out

Ultra MLC / MLC

Ultra MLC: 8 to 512GB

MLC: 16 to 512GB, 1TB

SATA III (6.0 Gbps)

Read: 520 mA, Write: 800 mA

Ultra MLC and MLC up to 560/495 MB/sec

Commercial grade: 0 to +70° C

Industrial grade: -40 to +85° C

1,500 G, peak / 0.5 ms

20 G, peak / 80 ~ 2000 Hz

50.8 x 30 x 4.2

Specifications

Connect Type

Flash type

Capacity

Transfer Mode

Max. Power Consumption

Sustained R/W Performance (*)

Operating Temperature

Shock Resistance

Vibration Resistance

Dimensions (mm)

NGFF B+M key

Ultra MLC / MLC

Ultra MLC: 8 to 512GB

MLC: 16 to 512GB, 1TB

SATA III (6.0 Gbps)

Read: 520 mA, Write: 800 mA

Ultra MLC and MLC up to 560/495 MB/sec

Commercial grade: 0 to +70° C

Industrial grade: -40 to +85° C

1,500 G, peak / 0.5 ms

20 G, peak / 80 ~ 2000 Hz

80.0 x 22.0 x 3.8

(*) These values are for reference only; they may change according to the flash memory used.

Ordering Information

SQF-SMSM2-XXG-SBC

SQF-SMSM2-XXG-SBE

SQF-SMSM4-XX-SBC

SQF-SMSM4-XX-SBE

SQF-SMSU2-XXG-SBC

SQF-SMSU2-XXG-SBE

SQF-SMSU4-XX-SBC

SQF-SMSU4-XX-SBE

Description

SQFlash 640 series mSATA MLC 16/32/64 GB, 2-CH

(0 ~ 70° C)

SQFlash 640 series mSATA MLC 16/32/64 GB, 2-CH

(-40 ~ 85° C)

SQFlash 640 series mSATA MLC 128/256/512 GB, 1TB

, 4-CH (0 ~ 70° C)

SQFlash 640 series mSATA MLC 128/256/512 GB, 1TB

, 4-CH (-40 ~ 85° C)

SQFlash 640 series mSATA Ultra MLC 8/16/32 GB, 2-CH

(0 ~ 70° C)

SQFlash 640 series mSATA Ultra MLC 8/16/32 GB, 2-CH

(-40 ~ 85° C)

SQFlash 640 series mSATA Ultra MLC 64/128/256/512

GB, 4-CH (0 ~ 70° C)

SQFlash 640 series mSATA Ultra MLC 64/128/256/512

GB, 4-CH (-40 ~ 85° C)

Ordering Information

Description

SQFlash 640 series M.2 2280 16/32/64 GB MLC, 2-CH

SQF-SM8M2-XXG-SBC

(0 ~ 70° C)

SQFlash 640 series M.2 2280 16/32/64 GB MLC, 2-CH

SQF-SM8M2-XXG-SBE

(-40 ~ 85° C)

SQFlash 640 series M.2 2280 128/256/512 GB, 1TB

SQF-SM8M4-XX-SBC

MLC, 4-CH (0 ~ 70° C)

SQFlash 640 series M.2 2280 128/256/512 GB , 1TB

SQF-SM8M4-XX-SBE

MLC, 4-CH (-40 ~ 85° C)

SQFlash 640 series M.2 2280 8/16/32 GB Ultra MLC,

SQF-SM8U2-XXG-SBC

2-CH (0 ~ 70° C)

SQFlash 640 series M.2 2280 8/16/32 GB Ultra MLC,

SQF-SM8U2-XXG-SBE

2-CH (-40 ~ 85° C)

SQFlash 640 series M.2 2280 64/128/256/512 GB Ultra

SQF-SM8U4-XX-SBC

MLC, 4-CH (0 ~ 70° C)

SQFlash 640 series M.2 2280 64/128/256/512 GB Ultra

SQF-SM8U4-XX-SBE

MLC, 4-CH (-40 ~ 85° C)

Note: X stands for different capacities

Embedded M2M/IoT Modules

All product specifications are subject to change without notice

Last updated : 5-Apr-2017
