Warning:
Some customers may want Linx radio frequency (“RF”)
products to control machinery or devices remotely, including machinery
or devices that can cause death, bodily injuries, and/or property
damage if improperly or inadvertently triggered, particularly in industrial
settings or other applications implicating life-safety concerns (“Life and
Property Safety Situations”).
NO OEM LINX REMOTE CONTROL OR FUNCTION MODULE
SHOULD EVER BE USED IN LIFE AND PROPERTY SAFETY
SITUATIONS.
No OEM Linx Remote Control or Function Module
should be modified for Life and Property Safety Situations. Such
modification cannot provide sufficient safety and will void the product’s
regulatory certification and warranty.
Customers may use our (non-Function) Modules, Antenna and
Connectors as part of other systems in Life Safety Situations, but
only with necessary and industry appropriate redundancies and
in compliance with applicable safety standards, including without
limitation, ANSI and NFPA standards. It is solely the responsibility
of any Linx customer who uses one or more of these products to
incorporate appropriate redundancies and safety standards for the Life
and Property Safety Situation application.
Do not use this or any Linx product to trigger an action directly
from the data line or RSSI lines without a protocol or encoder/
decoder to validate the data.
Without validation, any signal from
another unrelated transmitter in the environment received by the module
could inadvertently trigger the action.
All RF products are susceptible to RF interference that can prevent
communication.
RF products without frequency agility or hopping
implemented are more subject to interference. This module does have
a frequency hopping protocol built in, but the developer should still be
aware of the risk of interference.
Do not use any Linx product over the limits in this data guide.
Excessive voltage or extended operation at the maximum voltage could
cause product failure. Exceeding the reflow temperature profile could
cause product failure which is not immediately evident.
Do not make any physical or electrical modifications to any Linx
product.
This will void the warranty and regulatory and UL certifications
and may cause product failure which is not immediately evident.
!
Table of Contents
1
Introduction
2
Ordering Information
2
HumPRO
TM
Series Transceiver Carrier Board
2
HumPRO
TM
Series Transceiver Carrier Board Objects
3
HumPRO
TM
Series Carrier Board Pin Assignments
3
Programming Dock
3
Programming Dock Objects
4
Prototype Board
4
Prototype Board Objects
5
Initial Setup
6
Using the Prototype Board
8
Using the Programming Dock
10
The Development Kit Demonstration Software
20
Development Kit Demonstration Software Example
24
Carrier Board Schematic
25
Programming Dock Board Schematic
29
Prototype Board Schematic
HumPRO
TM
Master Development System
User's Guide
Figure 1: HumPRO
TM
Series Master Development System
Introduction
The Linx HumPRO
TM
Series data transceiver modules offer a simple, efficient
and cost-effective method of adding wireless capabilities to any product. The
Master Development System provides a designer with all the tools necessary
to correctly and legally incorporate the module into an end product. The
boards serve several important functions:
•
Rapid Module Evaluation: The boards allow the performance of the
Linx HumPRO™ Series modules to be evaluated quickly in a user’s
environment. The development boards can be used to evaluate the range
performance of the modules.
•
Application Development: A prototyping board allows the development
of custom circuits directly on the board. All signal lines are available on
headers for easy access.
•
Software Development: A programming dock with a PC interface allows
development and testing of custom software applications for control of
the module.
•
Design Benchmark: The boards provide a known benchmark against
which the performance of a custom design may be judged.

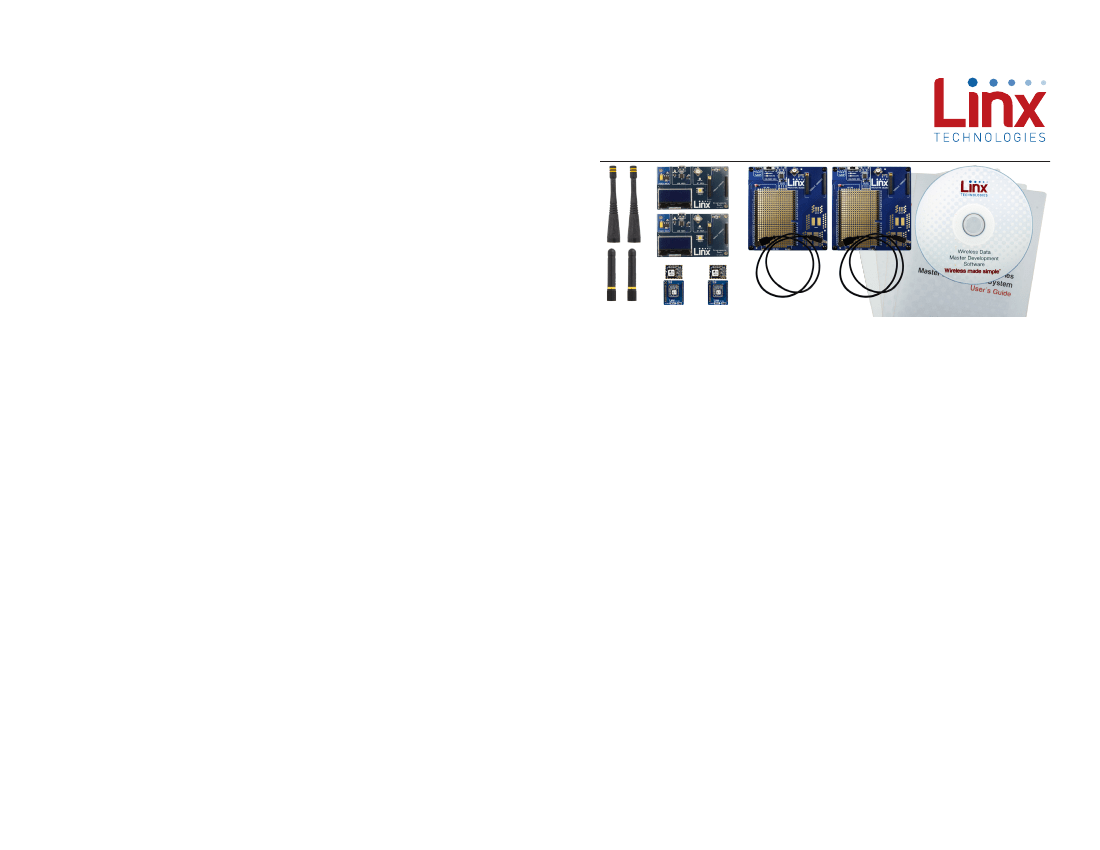

The Master Development System includes 2 Carrier Boards, 2 Programming
Dock Boards, 2 Prototype Boards, 4 regular or amplified HumPRO
TM
Series
transceivers*, antennas, batteries and full documentation.
* One part is soldered to each Carrier Board
–
1
–
Revised 9/28/2017
Ordering Information
Ordering Information
Part Number
MDEV-***-PRO
MDEV-A-900-PRO
HUM-***-PRO
HUM-***-PRO-CAS
HUM-***-PRO-UFL
HUM-A-900-PRO-CAS
HUM-A-900-PRO-UFL
EVM-***-PRO
EVM-A-900-PRO-CAS
EVM-A-900-PRO-UFL
MDEV-PGDOCK
MDEV-PROTO
CON-SOC-EVM
Description
HumPRO
TM
Series Master Development System
Amplified HumPRO
TM
Series Master Development System
HumPRO
TM
Series Data Transceiver
HumPRO Series Data Transceiver with Castellation
Connection
TM
HumPRO
TM
Series Transceiver Carrier Board
2
3
1
4
HumPRO
TM
Series Data Transceiver with U.FL Connector
Amplified HumPRO
TM
Series
High Power Data Transceiver with
Castellation Connection
Amplified HumPRO
TM
Series
High Power Data Transceiver with
U.FL Connector
HumPRO
TM
Series Carrier Board
Amplified HumPRO
TM
Series Carrier Board, Castellation
Connection with an edge-mount RP-SMA connector
Amplified HumPRO
TM
Series Carrier Board, U.FL Connector
Development System Programming Dock
Development System Prototype Board
EVM Module Socket Kit
Figure 3: HumPRO
TM
Series Transceiver Carrier Board
HumPRO
TM
Series Transceiver Carrier Board Objects
1.
2.
3.
4.
HumPRO
TM
Series Transceiver
MMCX RF Connector
Dual Row Header
Single Row Header
*** = Frequency; 868, 900MHz
Figure 2: Ordering Information
–
2
–
–
