FWSF-M/D-1310/CWDM-LC datasheet, PDF

Datasheet> All Categories > Wireless rf/communication> Optical fiber> FWSF-M/D-1310/CWDM-LC

FWSF-M/D-1310/CWDM-LC: DescriptionOptical fiber development tools CWDM, LF, PLUGIN, MU X/DEMUX, 1310/CWDM,; CategoryWireless rf/communication Optical fiber; File Size322KB，3 Pages; ManufacturerFINISAR; Websitehttp://www.finisar.com/home.php; Environmental Compliance

Download Datasheet Parametric View All

FWSF-M/D-1310/CWDM-LC Overview

Optical fiber development tools CWDM, LF, PLUGIN, MU X/DEMUX, 1310/CWDM,

FWSF-M/D-1310/CWDM-LC Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	FINISAR
Reach Compliance Code	unknown
body width	210.82 mm
body height	43.18 mm
Body length or diameter	264.16 mm
Communication standards	SDH, SONET
Connection Type	LC/PC CONNECTOR
Fiber optic equipment types	WAVELENGTH DIVISION MUX/DEMUX
Maximum insertion loss	1.1 dB
Minimum isolation	45 dB
Maximum operating temperature	70 °C
Minimum operating temperature
Maximum operating wavelength	1360 nm
Minimum operating wavelength	1260 nm
Nominal operating wavelength	1310 nm

Preview

Download Datasheet

View All

Features:



Low optical

insertion loss

Cost-effective

WDM technology

Terminates 1310

and CWDM

wavelengths

SC connectors

(LC version

available)

Compatible with

CWDM MUX/DEMUX

family

Reliable passive

WDM technology

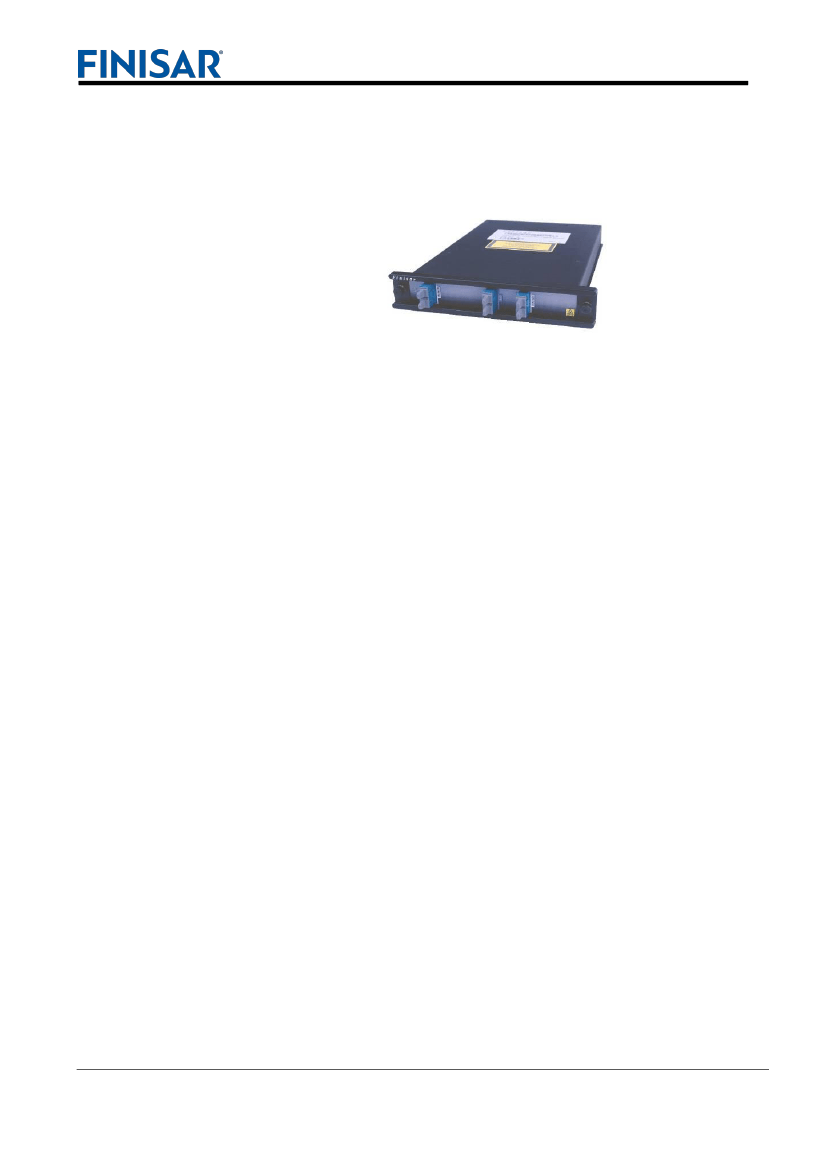

1310/CWDM MUX/DEMUX

Plug-in Module



1310/CWDM plug-in module is a passive optical multiplexer/demultiplexer designed to

add CWDM wavelengths to an existing 1310nm backbone ring. The module

multiplexes and demultiplexes a single 1310nm wavelength and the complete CWDM

wavelength grid from a two-fiber ring network.

This MUX/DEMUX module plugs into one half of a 1RU, 19" rack mount chassis for

simple installation and modularity. This Chassis based system offers network

equipment manufacturers a more scalable and higher-density solution to add CWDM

capability to their existing and new networks with simple pluggable interface.

Finisar’s CWDM product delivers dramatic cost savings to network equipment

manufacturers, enabling them to develop metro access systems that are lower in cost,

easier to provision and simpler to operate.

Ring or point-to-point

applications

Low-profile

modular design

Fits in 1RU 19”

rack mount chassis

RoHS compliant

1310/CWDM MUX/DEMUX Plug-in Module

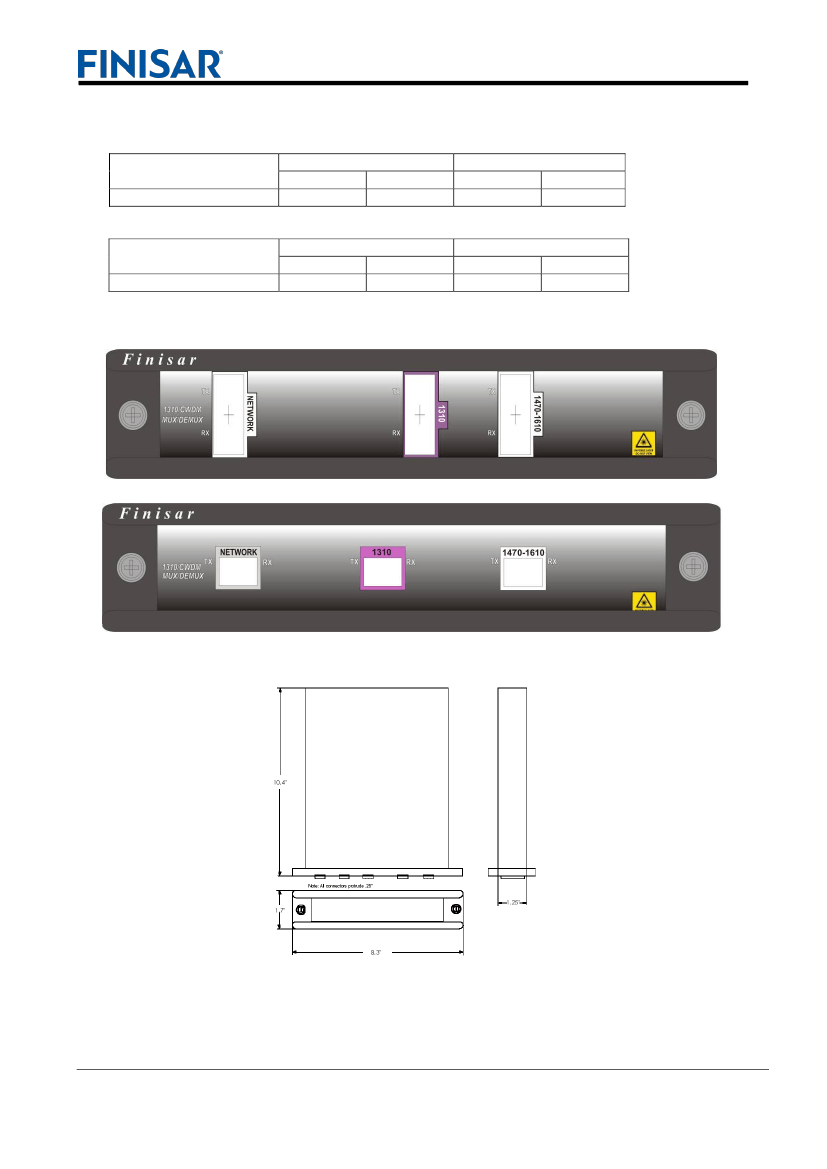

Specifications

Mechanical

Dimensions:

8.3” x 1.7” x 10.4”,

210mm x 43mm x 264mm,

plug-in for 1RU rack-mount

Optical

Wavelengths Ports:

MUX/DEMUX-1310/CWDM

Plug-in

Directivity:

≥

55dB

Return Loss:

≥

45dB

• 1310nm

• 1464.5nm to 1617.5 nm

PDL:

≤

0.15dB

PMD:

≤

0.2ps

Environmental:

•

Operating 0 to 70 C

•

Relative humidity:

10 to 85%, non-condensing

• Storage - 40 to 85 C

Connectors:

• Network side: 1 dual SC/PC

or LC/PC

• Equipment side: 2 dual SC/PC

or LC/PC

Finisar WuXi Inc.

Lot Z3-1, Wuxi Export Processing Zone, Wuxi New District, WuXi,

Jiangsu Province, China 214028

Main: +86-510-68007800 Fax: +86-510-68007900

Finisar Corporation

1308 Moffett Park Drive, Sunnyvale, CA 94089-1133, USA

Main: (408) 548-1000 Fax: (408)543-0083

Email:

sales@finisar.com

Website:

www.finisar.com

Mar.15 Rev.E
