RFFM4554
Wi-Fi Integrated Front End Module
4.9GHz to 5.925GHz
The RFFM4554 is a front end module (FEM) designed for 802.11a/n/ac
applications. The integrated single-pole double throw switch and low
noise amplifier with bypass greatly reduces the layout area, bill of
materials and manufacturability cost in the customer application. The
RFFM4554 has a unique structure where the switch to LNA path has pins
so filtering can be added in the ideal path for current Wi-Fi circuit
applications. The device is provided in a 2.3mm x 2.3mm x 0.45mm 16-
pin QFN package that meets or exceeds the power requirements of
IEEE802.11a/n/ac Wi-Fi RF systems
.
RFFM4554
Package: QFN, 16-pin,
2.3mm x 2.3mm x 0.45mm
Features
■
■
■
■
■
■
■
■
13.5dB LNA Gain
5dB Bypass Loss
1.7dB Noise Figure
TX to ANT path loss of 0.5dB
Max Power at TX Input of 30dBm
2.4GHz Rejection
Input and Output Matched to 50Ω
Break out path between switch and
LNA for optimal filter placement
Applications
■
■
■
■
■
■
Customer Premise Equipment
(CPE)
Wireless Access Points, Gateways
Routers
Set-Top Box Applications
Picocell/Femtocell
Internet of Things
Functional Block Diagram
Ordering Information
RFFM4554SB
RFFM4554SQ
RFFM4554SR
RFFM4554TR7
RFFM4554PCK401
Revision DS20160930
© 2016 RF Micro Devices, Inc.
Standard 5-piece Sample Bag
Standard 25-piece Sample Bag
Standard 100-piece Reel
Standard 2500-piece Reel
Fully Assembled Evaluation Board
1 of 7
Disclaimer: Subject to change without notice
www.rfmd.com
/
www.qorvo.com
RFMD + TriQuint = Qorvo
Absolute Maximum Ratings
Parameter
DC Supply Voltage (No RF applied)
DC Supply Current
Operating Case Temperature
Storage Temperature
Maximum TX Input Power into 50Ω Load for 11a/n/ac (No Damage)
Maximum RX Input Power (No Damage)
Bypass Mode Maximum RX Input Power (No Damage)
Moisture Sensitivity Level (260°C JEDEC J-STD-020)
Rating
-0.5 to +5.5
50
-40 to +85
-40 to +150
+34
+20
+30
MSL2
Unit
V
DC
mA
ºC
ºC
dBm
dBm
dBm
Caution!
ESD sensitive device.
RFMD Green: RoHS status based on EU
Directive 2011/65/EU (at time of this
document revision), halogen free per IEC
61249-2-21, < 1000ppm each of
antimony trioxide in polymeric materials
and red phosphorus as a flame retardant,
and <2% antimony in solder.
Exceeding any one or a combination of the Absolute
Maximum Rating conditions may cause permanent
damage to the device. Extended application of Absolute
Maximum Rating conditions to the device may reduce
device reliability. Specified typical performance or
functional operation of the device under Absolute
Maximum Rating conditions is not implied.
Nominal Operating Parameters
Specification
Parameter
Min
Compliance
Operating Frequency
Extended Operating Frequency
Operating Temperature
Power Supply V
CC
Control Voltage - High
Control Voltage – Low
5.180
4.900
-40
3.0
2.5
+25
3.3
3.3
0
5.925
5.925
+85
5.25
V
CC
0.2
GHz
GHz
ºC
V
V
V
Unit
Typ
Max
Condition
IEEE802.11a/n/ac
Functional with reduced performance
C0 and C1 should not exceed V
CC
C0 and C1
Transmit Performance
(TX-ANT)
Insertion Loss
Linear output Power
11ac 80MHz Dynamic EVM
22
0.5
24
-45
0.6
TX Port Return Loss
ANT Port Return Loss
2
nd
Harmonics
3 Harmonics
Input P
0.1dB
ANT-LNAOUT Isolation
TX-LNAOUT Isolation
rd
T=+25ºC, V
CC
=3.3-5V, C0=Low, C1=High, Only Through Path
from RX to LNA_IN, CW Signal; Unless otherwise noted
0.95
-40
1
dB
dBm
dB
%
dB
dB
-40
-40
x
dBm/MHz
dBm/MHz
dBm
dB
dB
P
OUT
= 24dBm 802.11a 6MBps
P
OUT
= 24dBm 802.11a 6MBps
TX Mode: TX enabled and maximum power
TX Mode: TX enabled and maximum power
10
10
20
20
-50
-50
32
45
40
30
40
30
Receive Performance
(ANT-RX) – LNA On
Gain
Small Signal Gain at 2500 MHz
Noise Figure
RX Port Return Loss
Revision DS20160930
© 2016 RF Micro Devices, Inc.
10
11
13.5
-29
1.7
15
-25
2.2
dB
dB
dB
dB
T=+25ºC, V
CC
=3.3-5V, C0=High, C1=Low, Only Through Path
from RX to LNA_IN, CW Signal; Unless otherwise noted
2 of 7
Disclaimer: Subject to change without notice
www.rfmd.com
/
www.qorvo.com
RFFM4554
RFMD + TriQuint = Qorvo
Specification
Parameter
Min
ANT Port Return Loss
Input P1dB
IIP3
Current Consumption
7
8
Unit
Typ
12
-2
10
19
28
Condition
Max
dB
dBm
dBm
mA
Receive Performance
(ANT-RX) – Bypass Mode
Insertion Loss
RX Port Return Loss
ANT Port Return Loss
Input P1dB
9.5
9.5
5
12
12
25
dB
dB
dB
dBm
T=+25ºC, V
CC
=3.3-5V, C0=High, C1=High, 50Ohm Trace from
RX to LNA_IN, CW Signal; Unless otherwise noted
General Specifications
ANT-LNAOUT Isolation – Standby
Mode
Leakage Current
LNA Turn On Time
Switch Control Current – High
Switch Control Current - Low
Switch Speed
ESD – Human Body Model
ESD – Charge Device Model
500
750
30
10
180
15
0.1
100
50
1
500
25
dB
μA
nS
μA
μA
nS
V
V
T=+25ºC, V
CC
=3.3-5V, Unless otherwise noted
90% Steady State RF from 50% of V
CONTROL
= 2.8V to 0V
Each line
Each line
EIA/JESD22-114A; All pins
JESD22-C101C; All pins
Control Logic Truth Table
Operating Mode
Standby
802.11a/n/ac TX Mode
802.11a/n/ac RX Gain
802.11a/n/ac RX Bypass
Note: High = 2.5 to V
CC
. Low = 0V to 0.2V.
C0
Low
Low
High
High
C1
Low
High
Low
High
Revision DS20160930
© 2015 RF Micro Devices, Inc.
3 of 7
Disclaimer: Subject to change without notice
www.rfmd.com
/
www.qorvo.com
RFFM4554
RFMD + TriQuint = Qorvo

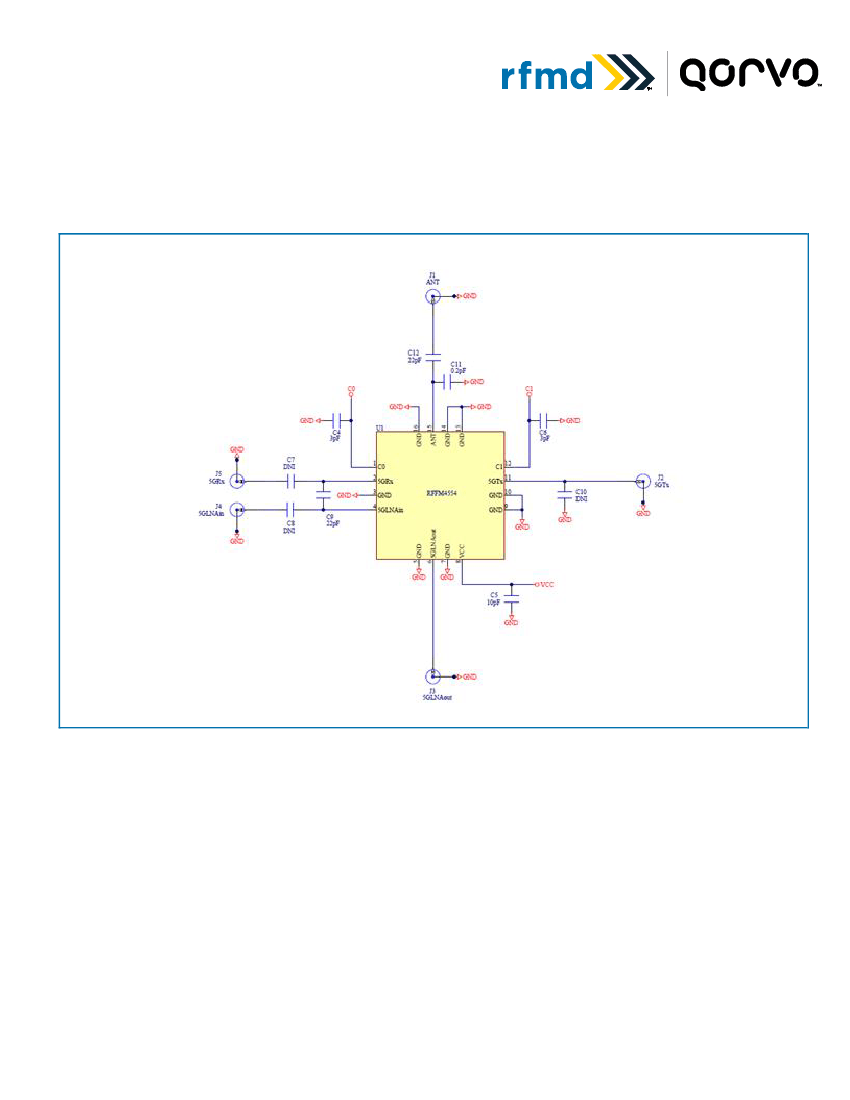

Applications Schematic
Note: The Qorvo evaluation board trace loss from 5 to 6GHz is 0.5dB on TX port, 0.6dB on ANT port, and 0.5dB on LNA_OUT port
Revision DS20160930
© 2015 RF Micro Devices, Inc.
4 of 7
Disclaimer: Subject to change without notice
www.rfmd.com
/
www.qorvo.com
RFFM4554
RFMD + TriQuint = Qorvo

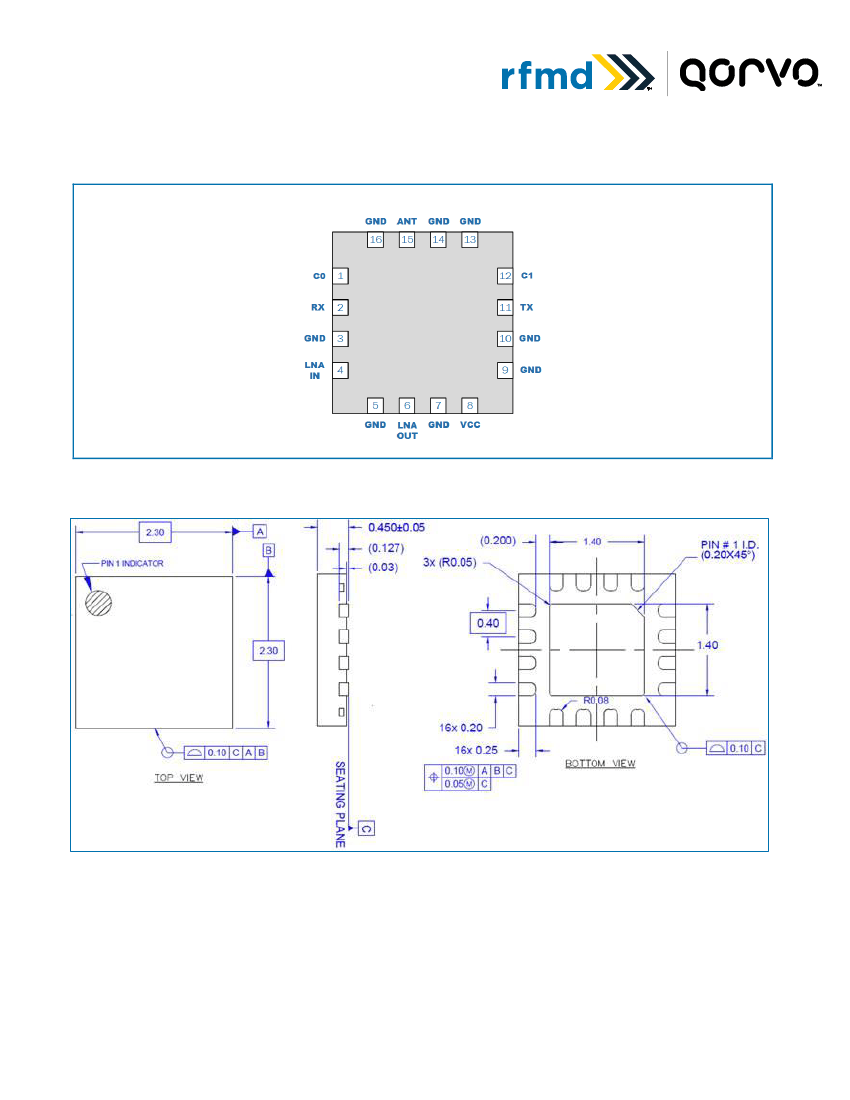

Pin Out
Package Drawing
Revision DS20160930
© 2015 RF Micro Devices, Inc.
5 of 7
Disclaimer: Subject to change without notice
www.rfmd.com
/
www.qorvo.com
