HARSH ENVIRONMENT
PC, DVI, HDMI, VIDEO INTERFACE CONTROLLER
FOR TFT PANEL
Model: HX-1920v3
Part number : 41748012X/3X-3 or up
INSTRUCTIONS
CONTENTS
Page:
2. Introduction, How to Proceed, Usage Note, Disclaimer
3. System design
– Diagram of a suggested system
4. Assembly notes
– Important information about system elements
7. Connection & Operation
– How to use the controller
14. Connectors, pinouts & jumpers
– Essential connection information
26. Controller dimensions
27. Application notes
29. Troubleshooting
30. Specifications
31. Appendix I –
Supported graphics modes table
34. Appendix II –
RS-232 control protocols
47. Appendix III –
Mapping definition
51. Appendix IV –
Auto Color Gain
52. Appendix V –
DV remote control unit work for HX-1920v3
53. Appendix VI -
PIP mix table
56. Appendix VII -
Network connection
57. Appendix VIII -
HD-1000/ HD-2000 / HD-3000S connection
60. Appendix IX –
Procedure for showing how to select the baud rate
62. Warranty, Caution & Limitation of Liability, Trademarks
63. Contact details
64. Revision History
It is essential that these instructions are read and understood before connecting or
powering up this controller.
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 3.0: 15 October, 2015 (HX-1920v3_manual.doc)
Page
1
of 64
Introduction
HX-1920v3 is the harsh Environment version of the SVX-1920v3. Provides full SVX-1920v3 feature set, plus wide range
operating temperature and voltage range; shock and vibration tolerance and conformal coating for extreme
environment applications.
TFT (active matrix) LCD panels of 1920x1200, 1920x1080, 1920x480, 1680x1050, 1600x1200, 1600x900, 1440x900,
1366x768, 1280x1024, 1280x800, 1280x768 1024x768, 1024x600, 800x600, 800x480 and 640x480 resolutions.
Computer video signals of VGA, SVGA, XGA, SXGA, WXGA, UXGA, WUXGA standard.
Support true 10 bits panel
Support HDMI, DVI, VGA, Component Video input
Low mass tantalum capacitors for maximum vibration and shock tolerance, conformal coating, operating
temperature range from -40
o
C to +80
o
C plus calculated MTBF in excess of 100K hours.
Overall suitability for usage in critical applications must be independently tested and verified by the user.
Ordering information :
Controller
HX-1920v3
Part number
P/N 41748012X-3 or
P/N 41748013X-3
Ordering part number
P/N 4174801XX-3
HOW TO PROCEED
Ensure you have all parts & that they are correct, refer to:
•
Connection diagram
Controller Solution Generator
Full web resource matching controllers & panels with
connection diagrams
for download.
See at :
http://www.digitalview.com/controllers/csg.php
•
Connector reference (in following section)
•
Assembly notes
Check controller switch & jumper settings (errors may damage the panel)
Prepare the PC
Connect the parts
Understand the operation & functions
IMPORTANT USAGE NOTE
This equipment is for use by developers and integrators, the manufacturer accepts no liability for damage or injury
caused by the use of this product. It is the responsibility of the developer, integrators or other user of this product to:
•
Ensure that all necessary and appropriate safety measures are taken.
•
Obtain suitable regulatory approvals as may be required.
•
Check power settings to all component parts before connection.
DISCLAIMER
There is no implied or expressed warranty regarding this material.
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 3.0: 15 October, 2015 (HX-1920v3_manual.doc)
Page
2
of 64

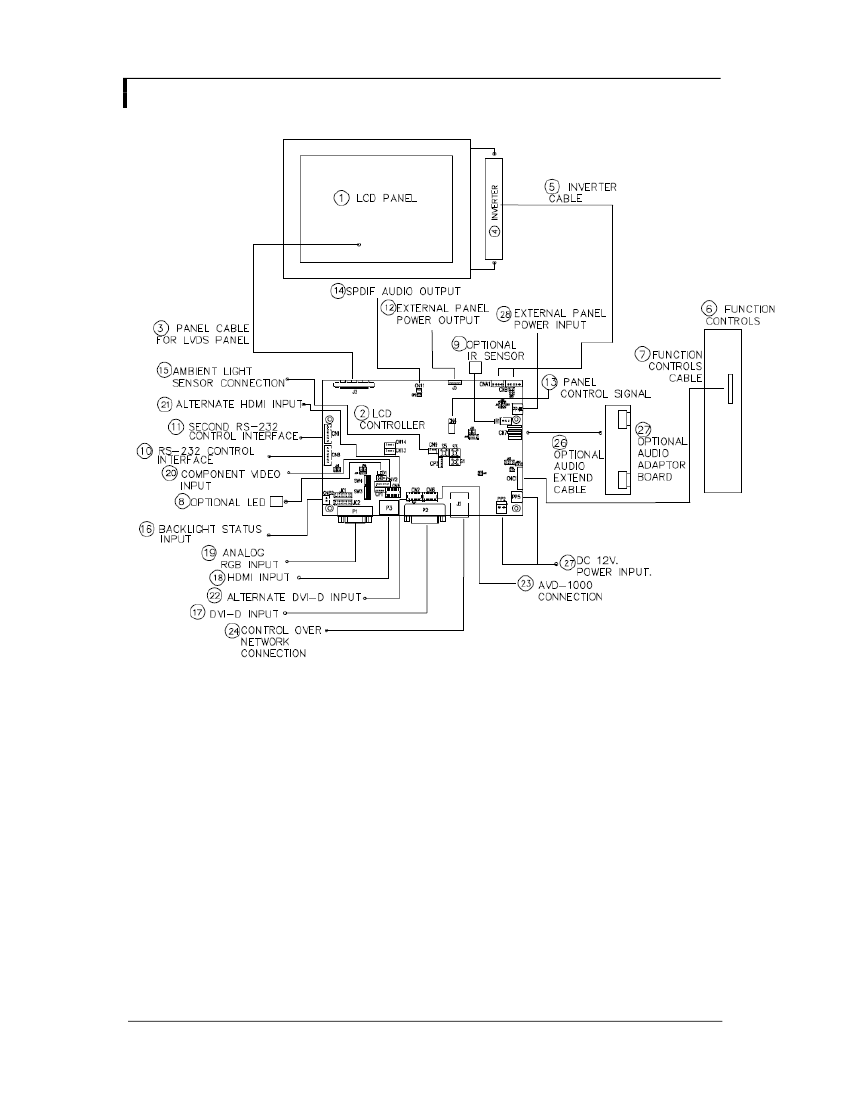

SYSTEM DESIGN
A typical LCD based display system utilizing this controller is likely to comprise the following:
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 3.0: 15 October, 2015 (HX-1920v3_manual.doc)
Page
3
of 64
ASSEMBLY NOTES
This controller is designed for monitor and custom display projects using 1920x1200 or 1920x1080 or 1600x1200 or
1680x1050 or 1440x900 or 1366x768 or 1280 x 1024 or 1024 x 768 or 800x600 or 640x480 resolution TFT panels with a VGA,
SVGA, WXGA, XGA, SXGA, UXGA or WUXGA signal input. The following provides some guidelines for installation and
preparation of a finished display solution.
Preparation:
Before proceeding it is important to familiarize yourself with the parts making up the system and the various
connectors, mounting holes and general layout of the controller. As much as possible connectors have been labeled. Guides
to connectors and mounting holes are shown in the following relevant sections.
1.
LCD Panel:
This controller is designed for typical LVDS interfaced panels with panel voltage 3.3V, 5V, 12V or 18V,
External for 12V~18V interface. Due to the variation between manufacturers of panels signal timing and other panel
characteristics, factory setup and confirmation should be obtained before connecting to a panel.
(NOTE: Check panel
power jumper settings before connection)
Controller:
Handle the controller with care as static charge may damage electronic components. Make sure correct
jumper and dip switches settings to match the target LCD panel.
LCD signal cable (LVDS panel):
In order to provide a clean signal it is recommended that LVDS signal cables are no
longer than 46cm (18 inches). If those wire cabling is utilized these can be made into a harness with cable ties. Care
should be taken when placing the cables to avoid signal interference. Additionally it may be necessary in some systems
to add ferrite cores to the cable to minimize signal noise.
Inverter:
This will be required for the backlight of an LCD, some LCD panels have an inverter built in. As LCD panels
may have 1 or more backlight tubes and the power requirements for different panel backlights may vary it is important to
match the inverter in order to obtain optimum performance. See Application notes page 27 for more information on
connection.
Inverter Cables:
Different inverter models require different cables and different pin assignment. Make sure correct cable
pin out to match inverter. Using wrong cable pin out may damage the inverter.
Function Controls:
The following section discusses the controls required and the section on connectors provides the
detail. The controls are minimal: On/Off, Backlight Brightness (depends on inverter), OSD (5 momentary buttons) analog
VR type or (8 momentary buttons) digital type.
Function controls cable:
The cables to the function switches should be of suitable quality and length so that impedance
does not affect performance. Generally lengths up to 1 meter (3 feet) should be acceptable.
Status LED:
The pin direction of the LED should be corrected for right color indication. Red color stands for standby.
Green colors stands for signal on. The status LED is an optional part only, can be unconnected.
IR sensor:
It is an optional part only, can be unconnected if not using IR remote control. See Appendix V in details.
2.
3.
4.
5.
6.
7.
8.
9.
10. RS-232 control interface :
Firmware upgrade and serial control via this interface port.
11. Second RS-232 control interface :
This interface support controlled under “Programming mode” .

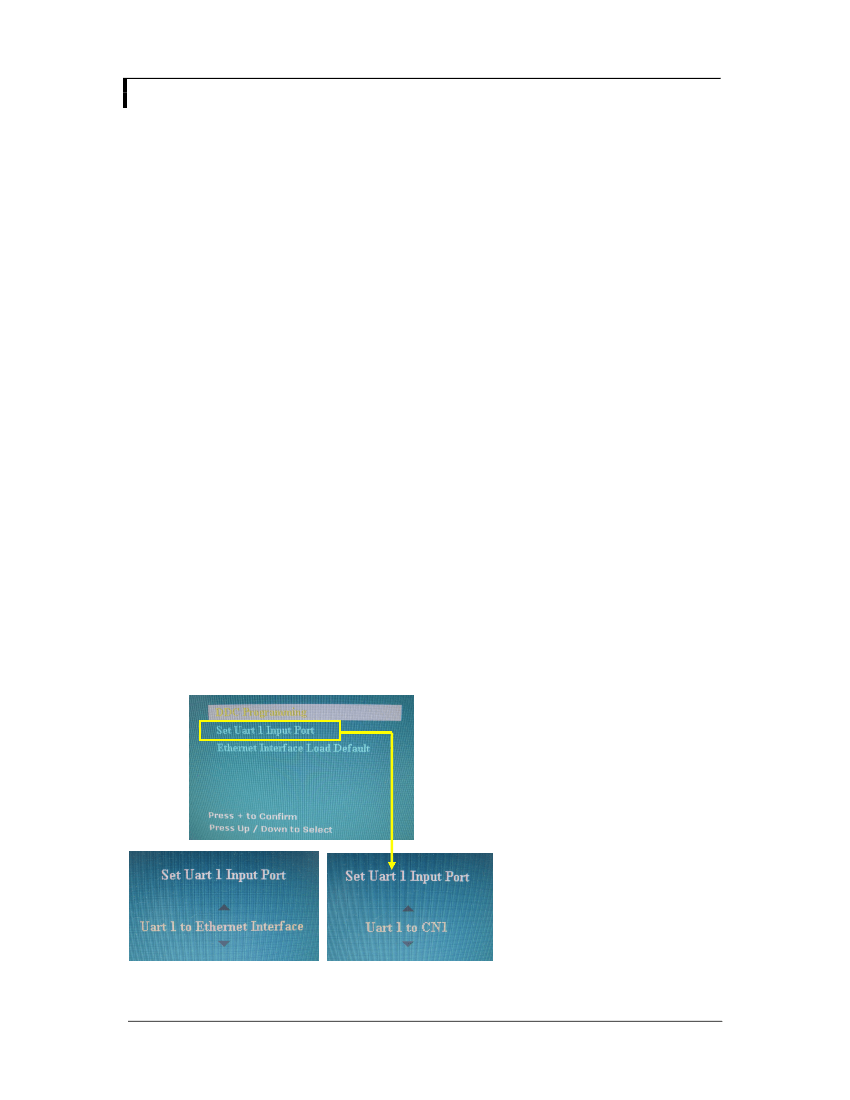

Press and hold “MENU” button on the OSD switch mount and turn on the controller to enter the “Programming mode”.
Choose “Set Uart 1 to CN1" Input Port shown below :
Set “Uart 1 to Ethernet Interface : Enable Ethernet network (J1) support and disable second RS-232 serial control (CN1)
support
Set “Uart 1 to CN1 : Enable second RS-232 serial control (CN1) support. Disable Ethernet network (J1) support
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 3.0: 15 October, 2015 (HX-1920v3_manual.doc)
Page
4
of 64
12. External panel power output
: User for specific panel model.
13. Panel control signal :
Use for specific panel model.
14. SPDIF Audio output :
This port support SPDIF audio output from the HDMI audio source inputted. (This port function is
not implemented yet)
15. Ambient light sensor connection :
3 ways connector provides interface for ambient light sensor connection by using Kit
70220-3.
16. Backlight status input :
2 ways connector provides interface for connection with the specific panel type which support the
panel with backlight status monitoring function.
17. DVI-D input cable :
Plug the DVI cable to the connector P2 on the controller board. This port is not supported when CN2
is connected.
18. HDMI input :
Plug the HDMI cable to the connector P3 on the controller board. This port is not supported when CN5 is
connected.
19. Analog RGB Input
: As this may affect regulatory emission test results and the quality of the signal to the controller a
suitably shielded cable should be utilized.
20. Component video input
: Plug the component video input cable P/N 426000600-3 on CNV2 connector
21. Alternate HDMI input :
This port gives alternate HDMI input support. This port is not support when P3 connector is
connected. It allows to connect HD-1000 / HD-2000 / HD-3000S for SDI input, see Appendix VIII for the connection setup.
22. Alternate DVI-D input :
This port gives alternate DVI-D input support. This port is not supported when P2 connector is
connected. It allows to connect HD-1000 / HD-2000 / HD-3000S for SDI input, see Appendix VIII for the connection setup.
23. AVD-1000 connection :
This port is for AVD-1000 video add on board connection. (Implemented start from V1.16.00.00
(U3) firmware or later version). See Appendix VIII for the connection setup.
24. Control over network connection :
This is a network device that allow to control RS-232 enable devices over a TCP/IP
based Ethernet and the Internet using a web browser. Please refer to Appendix VII in details.
25. Audio add-on board P/N 416940020-3:
The audio add-on board gives the audio input and output signal connection. It is
an optional part only, can be unconnected if not using audio. (This port function is not implemented yet)
CAUTION : The Audio Add-on Board P/N 416940020-3 can only operate with 12VDC power input environment.
26. Audio extend cable :
The audio extend cable P/N 426009700-3 designs for connection between audio add on board P/N
416940020-3 and the controller. It is an optional part only, can be unconnected if not using audio.
27. Power Input:
12VDC is required, this should be a regulated supply. The power rating is depending on the panel and
inverter used. Normally, power supply with 3.5Amp current output should enough for most of 4x CCFT panels. Although
the controller provides power regulation for the LCD power this does not relate to the power supplied to the backlight
inverter. If an unregulated power supply is provided to an inverter any fluctuations in power may affect operation,
performance and lifetime of the inverter and or backlight tubes.
28. External panel power input
: Allow to supply external power to the panel separately for max 3.3V (7A) or 5V (7A) or 12V
(5A) or 18V (3.5A) via PP4 power input connector. Corresponding jumper setting of JA3, JA5 & JA6 are required for each
panel power input by referring to page 17.
•
Power output:
Note the controller has an overall 3Amp current limit and the current available from the auxiliary power
output will be dependent on the power input and other system requirements.
Power Safety:
Note that although only 12VDC is required as ‘power-in’ a backlight inverter for panel backlighting
produces significantly higher voltages (the inverter does not connect to the ground plane). We strongly advise
appropriate insulation for all circuitry.
EMI:
Shielding will be required for passing certain regulatory emissions tests. Also the choice of external Controller to PC
signal cable can affect the result.
Ground:
The various PCB mounting holes are connected to the ground plane.
Servicing:
The board is not user serviceable or repairable. Warranty does not cover user error in connecting up to the
controller and is invalidated by unauthorized modification or repairs.
•
•
•
•
•
Controller Mounting:
It is recommended that a clearance of at least 10mm is provided above and 5mm below the
controller when mounted. Additionally consideration should be given to:
•
Electrical insulation.
•
Grounding.
•
EMI shielding.
•
Cable management. Note: It is important to keep panel signal cables apart from the inverter & backlight cables to
prevent signal interference.
Specifications subject to change without notice
© Digital View Ltd – Doc Ver 3.0: 15 October, 2015 (HX-1920v3_manual.doc)
Page
5
of 64
