BGU7053
SiGe:C Low Noise High Linearity Amplifier
Rev. 2 — 21 February 2012
Product data sheet
1. Product profile
1.1 General description
The BGU7053 is a low noise high linearity amplifier for wireless infrastructure
applications.The LNA has a high input and output return loss and is designed to operate
between 2.3 GHz and 2.8 GHz. It is housed in a 3 mm
3 mm
0.85 mm 10-terminal
plastic thin small outline package. The LNA is ESD protected on all terminals.
1.2 Features and benefits
Low Noise Figure (NF) = 0.85 dB at 2500 MHz
High linearity performance, IP3
O
= 36 dBm at 2500 MHz
High input and output return loss
Unconditionally stable
110 GHz transit frequency - SiGe:C technology
Supply voltage 3.3 V
Small 10-terminal leadless package 3 mm
3 mm
0.85 mm
ESD protection on all terminals
Moisture sensitivity level 1
1.3 Applications
LNA for wireless infrastructure applications (2.3 GHz to 2.8 GHz)
Low noise applications
1.4 Quick reference data
Table 1.
Quick reference data
f = 2500 MHz; V
CC
= 3.3 V; T
amb
= 25
C; input and output 50
; unless otherwise specified.
Symbol
V
CC
I
CC
G
ass
NF
P
L(1dB)
IP3
O
Parameter
supply voltage
supply current
associated gain
noise figure
output power at 1 dB gain compression
output third-order intercept point
Conditions
Min
3.0
70
17
-
33
Typ
-
90
18.5
0.85
36
Max
3.6
110
20
1.1
-
-
Unit
V
mA
dB
dB
dBm
dBm
11.5 13.5
NXP Semiconductors
BGU7053
SiGe:C Low Noise High Linearity Amplifier
2. Pinning information
2.1 Pinning
terminal 1
index area
n.c.
V
CC1
GND
RF_IN
GND
1
2
3
4
5
10 n.c.
9
V
CC2
GND
RF_OUT
GND
BGU7053
8
7
6
aaa-002193
Transparent top view
Fig 1.
Pin configuration
2.2 Pin description
Table 2.
Symbol
n.c.
V
CC1
GND
RF_IN
RF_OUT
V
CC2
Pin description
Pin
1, 10
2
3, 5, 6, 8
4
7
9
Description
not connected
supply voltage
ground
RF input
RF output
supply voltage
3. Ordering information
Table 3.
Ordering information
Name
BGU7053
Description
Version
SOT650-1
Type number Package
HVSON10 plastic thermal enhanced very thin small outline
package; no leads; 10 terminals; body 3 x 3 x 0.85 mm
4. Limiting values
Table 4.
Limiting values
In accordance with the Absolute Maximum Rating System (IEC 60134).
Symbol
V
CC
P
i(RF)CW
T
stg
BGU7053
Parameter
supply voltage
continuous waveform RF input power
storage temperature
Conditions
V
CC
= 3.3 V
Min
0
-
65
Max
5
20
+150
Unit
V
dBm
C
All information provided in this document is subject to legal disclaimers.
© NXP B.V. 2012. All rights reserved.
Product data sheet
Rev. 2 — 21 February 2012
2 of 12
NXP Semiconductors
BGU7053
SiGe:C Low Noise High Linearity Amplifier
Table 4.
Limiting values
…continued
In accordance with the Absolute Maximum Rating System (IEC 60134).
Symbol
T
j
T
amb
V
ESD
Parameter
junction temperature
ambient temperature
electrostatic discharge voltage
Human Body Model (HBM);
According JEDEC standard 22-A114E
Charged Device Model (CDM);
According JEDEC standard 22-C101B
Conditions
Min
-
40
-
-
Max
150
+85
4
2
Unit
C
C
kV
kV
5. Thermal characteristics
Table 5.
Symbol
R
th(j-sp)
Thermal characteristics
Parameter
thermal resistance from junction to solder point
Conditions
Typ
26
Unit
K/W
6. Characteristics
Table 6.
Characteristics
V
CC
= 3.3 V; T
amb
= 25
C; input and output 50
; unless otherwise specified. All RF parameters are
measured at the device RF in and RF output terminals.
Symbol Parameter
V
CC
I
CC
G
ass
NF
P
L(1dB)
IP3
O
RL
in
RL
out
ISL
K
supply voltage
supply current
associated gain
noise figure
output power at 1 dB gain compression
output third-order intercept point
input return loss
output return loss
isolation
Rollett stability factor
f = 2500 MHz
f = 2700 MHz
f = 2500 MHz
f = 2700 MHz
f = 2500 MHz
f = 2700 MHz
f = 2500 MHz
f = 2700 MHz
f = 2500 MHz
f = 2700 MHz
f = 2500 MHz
f = 2700 MHz
f = 2500 MHz
f = 2700 MHz
0 GHz
f
25 GHz
Conditions
Min Typ
3.0
70
17
-
-
-
-
33
-
-
-
-
-
-
-
1
-
90
Max Unit
3.6
110
V
mA
dB
dB
dB
dB
dBm
dBm
dBm
dBm
dB
dB
dB
dB
dB
dB
18.5 20
17.5 -
0.85 1.1
0.90 -
13
36
36
23
26
-
-
-
-
-
11.5 13.5 -
19.5 -
22.7 -
25.5 -
23.5 -
-
-
BGU7053
All information provided in this document is subject to legal disclaimers.
© NXP B.V. 2012. All rights reserved.
Product data sheet
Rev. 2 — 21 February 2012
3 of 12
NXP Semiconductors
BGU7053
SiGe:C Low Noise High Linearity Amplifier

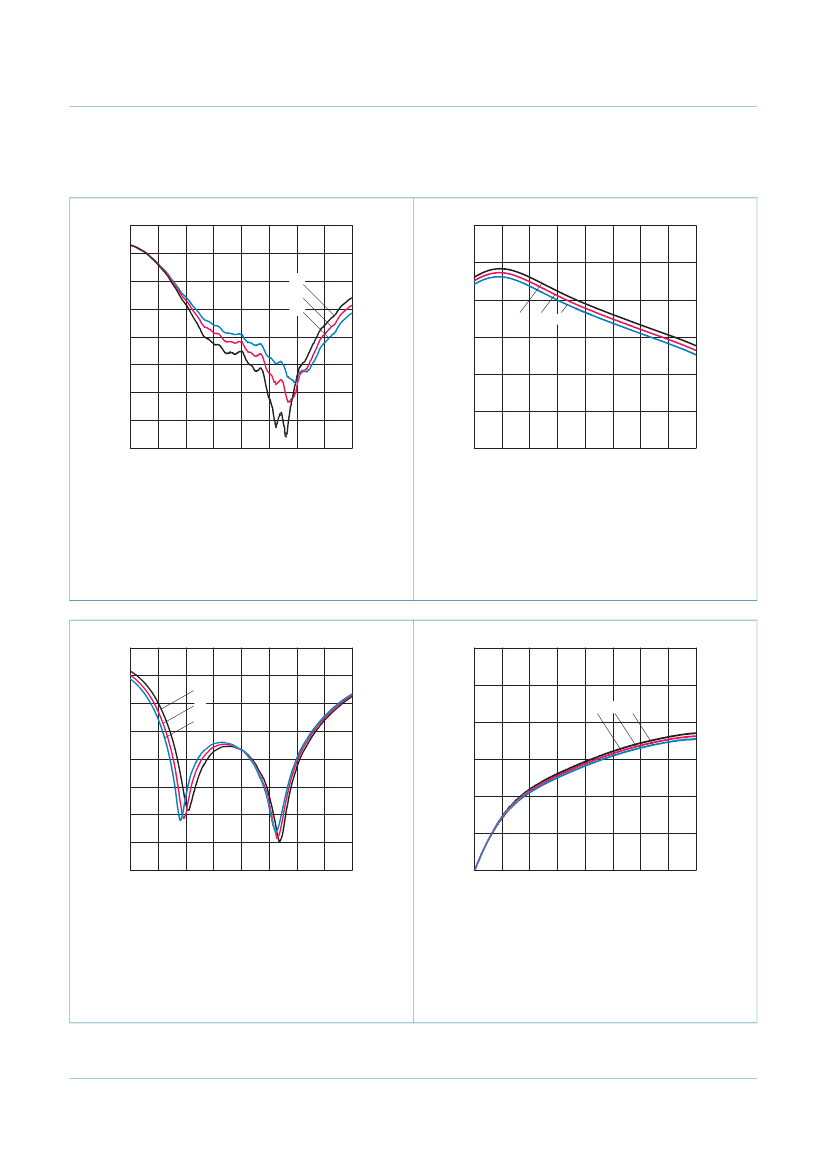

6.1 Performance curves
0
S
11
(dB)
-10
(1)
(2)
(3)
(1)
(2)
(3)
aaa-002037
30
S
21
(dB)
20
aaa-002038
-20
10
-30
-40
1500
2000
2500
3000
f (MHz)
3500
0
1500
2000
2500
3000
f (MHz)
3500
V
CC
= 3.3 V.
(1) T
j
=
40 C
(2) T
j
= 25
C
(3) T
j
= 85
C
V
CC
= 3.3 V.
(1) T
j
=
40 C
(2) T
j
= 25
C
(3) T
j
= 85
C
Fig 2.
Input reflection coefficient as a function of
frequency
Fig 3.
Forward transmission coefficient as a function
of frequency
0
S
22
(dB)
-10
aaa-002039
-10
S
12
(dB)
(1) (2) (3)
aaa-002040
(1)
(2)
(3)
-20
-20
-30
-30
-40
1500
2000
2500
3000
f (MHz)
3500
-40
1500
2000
2500
3000
f (MHz)
3500
V
CC
= 3.3 V.
(1) T
j
=
40 C
(2) T
j
= 25
C
(3) T
j
= 85
C
V
CC
= 3.3 V.
(1) T
j
=
40 C
(2) T
j
= 25
C
(3) T
j
= 85
C
Fig 4.
Output reflection coefficient as a function of
frequency
Fig 5.
Reverse transmission coefficient as a function
of frequency
BGU7053
All information provided in this document is subject to legal disclaimers.
© NXP B.V. 2012. All rights reserved.
Product data sheet
Rev. 2 — 21 February 2012
4 of 12
NXP Semiconductors
BGU7053
SiGe:C Low Noise High Linearity Amplifier
40
S
11
, S
21
S
22
, S
12
(dB)
20
aaa-002041
25
K
20
aaa-002042
S
21
15
0
S
22
10
S
11
-20
S
12
5
(1)
(2)
(3)
-40
0
1000
2000
3000
4000
5000
f (MHz)
0
0
5
10
15
20
f (GHz)
25
V
CC
= 3.3 V; T
amb
= 25
C.
V
CC
= 3.3 V.
(1) T
j
=
40 C
(2) T
j
= 25
C
(3) T
j
= 85
C
Fig 6.
Wideband s-parameters as a function of
frequency
Fig 7.
Stability K-factor as a function of frequency

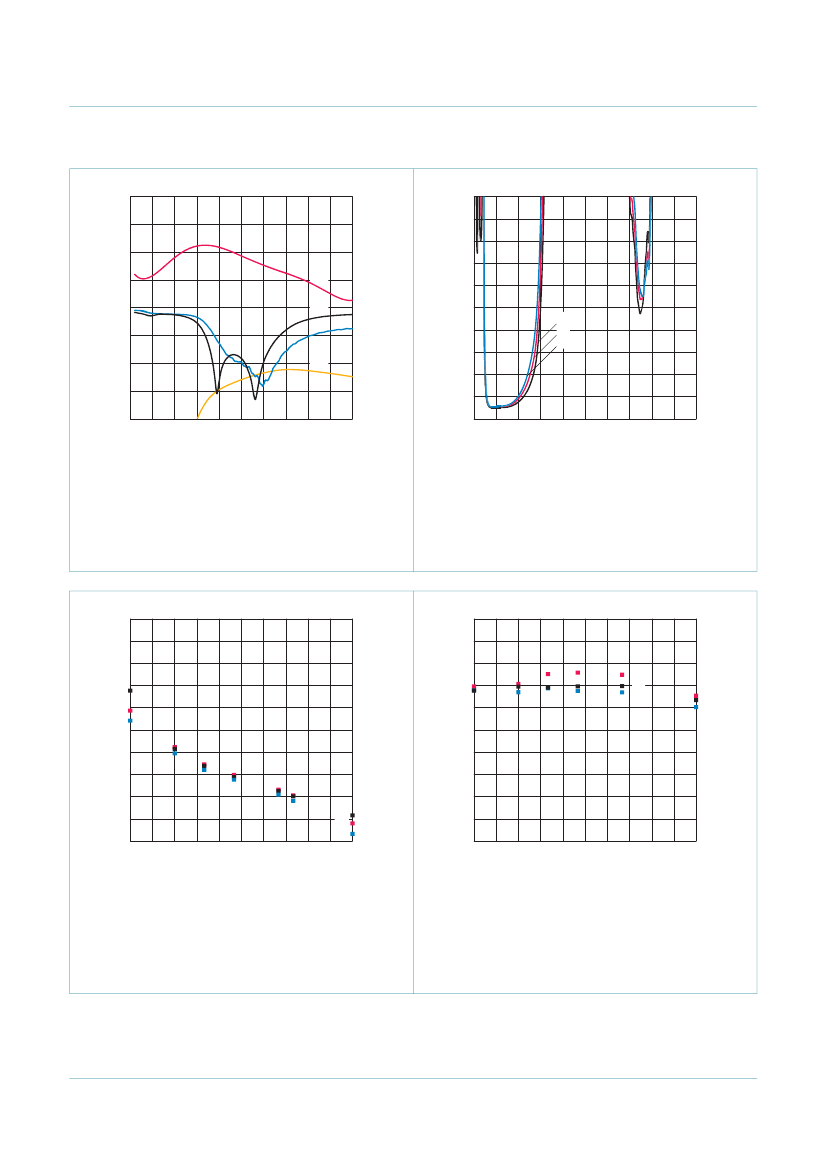

20
P
L(1dB)
(dBm)
18
aaa-002192
50
IP3
O
(dBm)
40
(2)
(1)
(3)
aaa-002044
16
30
14
20
12
(1)
(2)
(3)
10
10
2000
2300
2600
2900
3200
3500
f (MHz)
0
2000
2300
2600
2900
3200
3500
f (MHz)
V
CC
= 3.3 V.
(1) T
j
=
40 C
(2) T
j
= 25
C
(3) T
j
= 85
C
V
CC
= 3.3 V.
(1) T
j
=
40 C
(2) T
j
= 25
C
(3) T
j
= 85
C
Fig 8.
Output power at 1 dB gain compression as a
function of frequency
Fig 9.
Output third-order intercept point as a function
of frequency
BGU7053
All information provided in this document is subject to legal disclaimers.
© NXP B.V. 2012. All rights reserved.
Product data sheet
Rev. 2 — 21 February 2012
5 of 12
