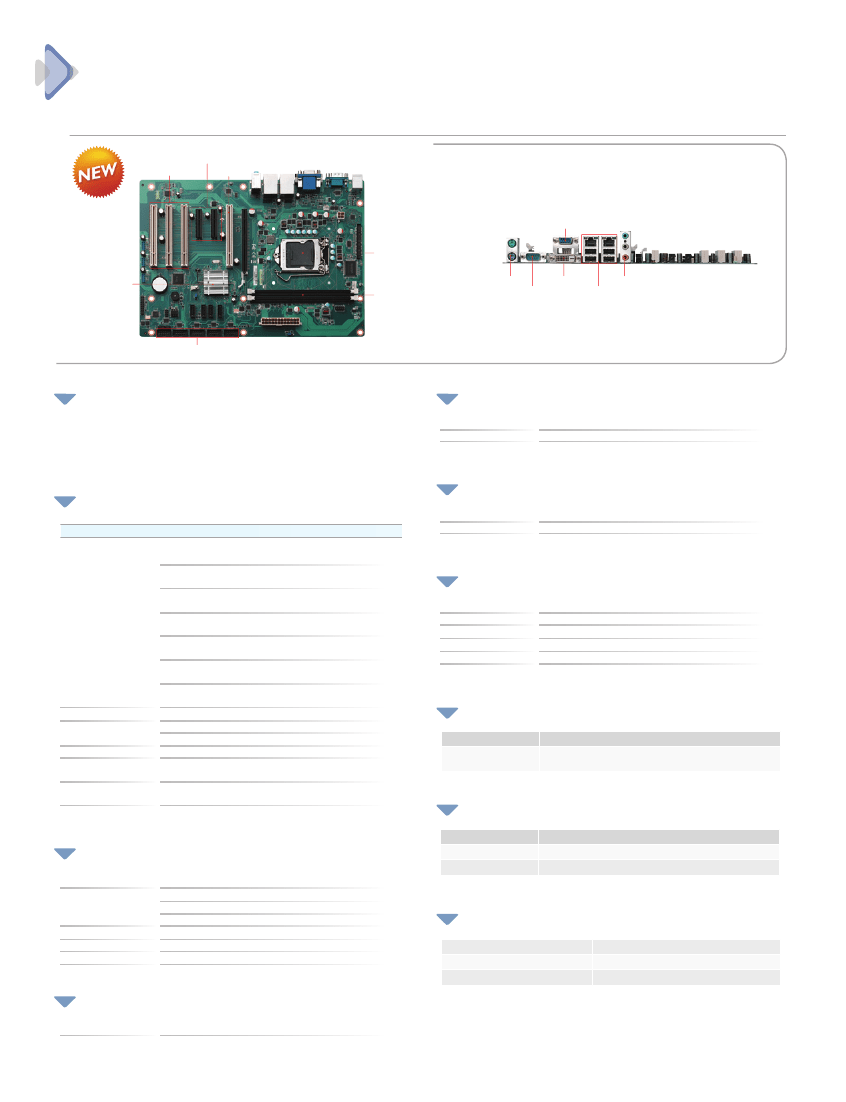

IMB-M40H
ATX Intel
®
Core™ i7/i5/i3/Pentium/Celeron Industrial Motherboard
PCIe x 4 slots
(PCIe x 1 signal)
PCI
PCI
VGA
LGA1155
Socket
Intel
®
H61
chipset
PS/2 KB/MS
DVI-D
Audio
COM1
RJ-45 + USB
Dual Channel
DDR3 Slots
COM2-COM6
Features
■
■
■
■
■
Display
Graphics
VGA
DVI
Intel
®
HD Graphics integrated in processor
Resolutions up to 2048 x 1536 @ 75 Hz
DVI-D, resolution up to 1920 x 1200 @ 60 Hz
3rd Gen Intel
®
Core™ processor family
Intel
®
H61 Express Chipset supports
6x COM ports (including 1x RS-232/422/485)
1x PCIe x16, 2x PCIe x1 signal (PCIe x4 slot) and 4x PCI slots
16+16 DIO ports
Specifications
Processor & System
CPU
Intel
®
Core™ i7-3770, 3.40 GHz, 8M Cache, 22nm, 77W TDP
,
LGA1155 (4C)
,
Intel
®
Core™ i5-3550S, 3.0 GHz, 6M Cache, 22nm, 65W TDP
LGA1155 (4C)
,
Intel
®
Core™ i3-3220, 3.30 GHz, 3M Cache, 22nm, 55W TDP
LGA1155 (2C)
,
Intel
®
Pentium
®
G2120, 3.10 GHz, 3M Cache, 22nm, 55W TDP
LGA1155 (2C)
,
Intel
®
Celeron
®
G1620, 2.7 GHz, 2M Cache, 22nm, 55W TDP
LGA1155 (2C)
,
Intel
®
Celeron
®
G540, 2.5 GHz, 2M Cache, 32nm, 65W TDP
LGA1155 (2C)
Intel
®
Pentium
®
Dual Core G850, 2.9 GHz, 3M Cache, 32nm,
65W TDP LGA1155 (2C)
,
®
Intel H61 Express Chipset
2x 240-pin DIMM sockets
Dual-Channel DDR3 1333/1600 MHz, up to 16 GB
AMIBIOS 32Mb SPI BIOS
1-255 sec or 1-255 min software programmable, can generate
system reset
CPU/System temperature, CPU fan speed and onboard DC
voltages
Windows
®
XP/7, 32/64-bit, Fedora 17, Red Hat Enterprise
Linux 6.2
Ethernet
Controller
Interface
Wake On LAN
Dual Realtek
®
RTL8111E Gigabit Ethernet Controller
PCIe x1 Bus
Supptort on LAN1
Mechanical and Environmental
Form Factor
Dimensions
Operating Temp.
Storage Temp.
Certifications
Relative Humidity
ATX
305 mm x 218 mm (W x L)
0˚C to 60˚C
-20˚C to 80˚C
CE, FCC Class A
10% to 90%, non-condensing
Chipset
Memory
BIOS
Watchdog Timer
Hardware Monitor
Operation Systems
Ordering Information
Model Number
IMB-M40H
Description/Configuration
ATX Intel
®
Core™ i7/i5/i3/Pentium/Celeron Industrial
Motherboard
Optional Accessories
Model Number
Description/Configuration
LGA1156 2U Thermal Module
LGA1156 3U Thermal Module
2U CPU cooler
3U CPU Cooler
I/O Interfaces
Serial ATA
Expansion Slot
4x Serial ATA ports with 3 Gb/s data transfer rate
1x PCIe x16 (support PCIe Gen2)
2x PCIe x1 (PCIe x1 signal via PCIe x4 slot, support PCIe Gen2)
4x PCI slots
10x USB 2.0 ports (4x faceplate, 6x onboard pin headers)
2x Mini-DIN for PS/2 keyboard/mouse
16 in+16 out
5x RS-232, 1x RS-232/422/485
USB
KB/MS
DIO
Serial Port
Packing List
IMB-M40H
2x SATA data cables
Quick Reference Guide
1x I/O shield
Driver CD
Audio
Audio Codec
Interface
Realtek
®
ALC892
Line-in, Line-out, Mic-in
*Updated January 24, 2014. ©2014 ADLINK Technology, Inc. All Rights Reserved. All specifications are subject to change without further notice.
