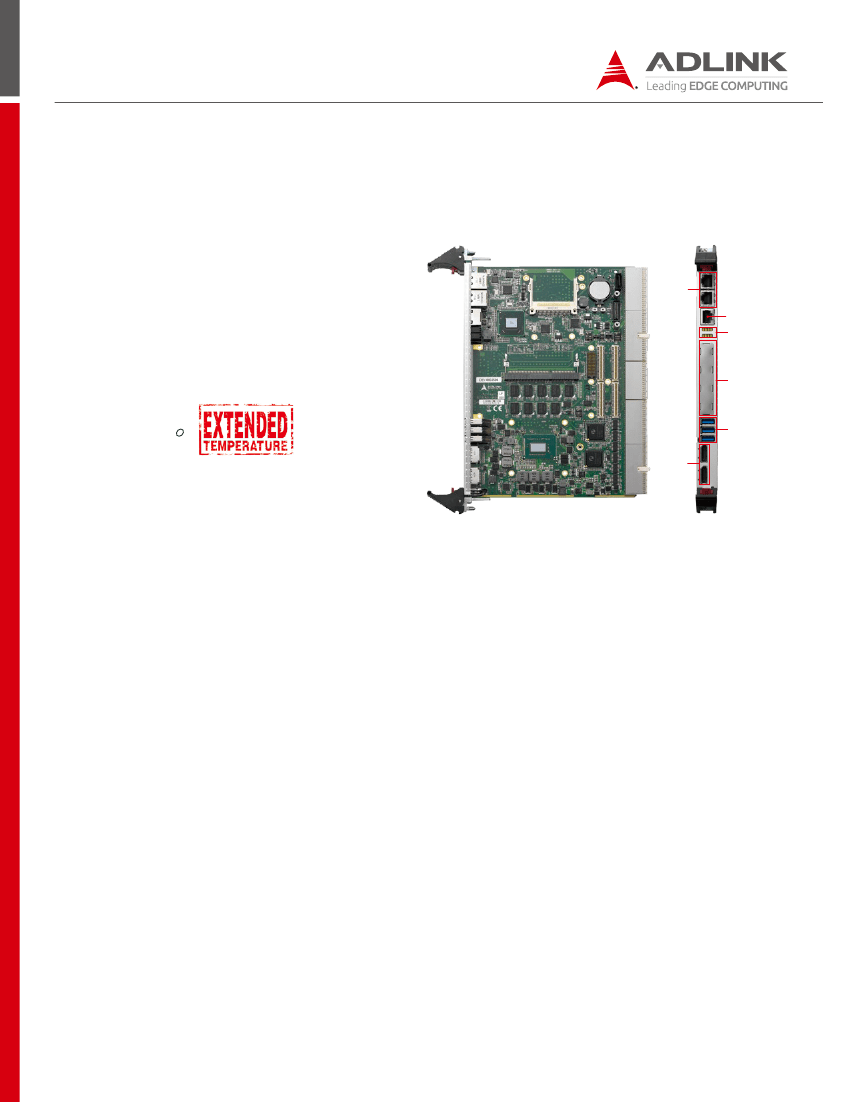

One PCI 32/64-bit, 33/66/133MHz PMC site or PCI-Express x8 XMC site with
rear I/O
Ethernet
Three Intel
®
82574IT GbE and one Intel
®
82579LM PHY controllers for two
10/100/1000BASE-T ports on front panel and two 10/100/1000BASE-T ports
to J3 for PICMG 2.16
Two additional 10/100/1000BASE-T ports from Intel
®
82576EB on RTM
(cPCI-R6100 or cPCI-R6110)
Chipset
Intel
®
QM77 PCH
Graphics
Integrated in Intel
®
processor
Two dual mode DisplayPorts on front panel with optional DVI/VGA/HDMI
support by adapter cable
DVI, eDP and VGA routed to rear
Supports three independent displays by 2x DP or 2x VGA on front panel and
one DVI/VGA/eDP in rear
Memory
Dual channel DDR3-1333/1600 SDRAM with ECC, up to 16GB
One channel in SO-CDIMM socket up to 8GB; one channel soldered onboard
up to 8GB (dependent on availability of
memory modules and chips)
BIOS
AMI
®
EFI BIOS, 64Mbit SPI flash memory
USB
Three USB 3.0 ports on front panel
Six USB 2.0 ports routed to rear
CompactPCI Bus
PCI 32/64-bit, 33/66MHz, 3.3V or 5V universal V(I/O)
Supports operation in system slot as master or in peripheral slot as stand-
alone blade without connectivity to CompactPCI® bus (Satellite mode)
PS/2
PS/2 keyboard/mouse port to rear
Serial Port
Up to three 16C550 compatible serial ports
One RJ-45 RS-232/422/485 port on front panel
Two serial ports routed to rear
PICMG Standards
PICMG 2.0 CompactPCI R3.0
PICMG 2.1 Hot Swap R2.0
PICMG 2.9 System Management R1.0
PICMG 2.16 Packet Switch Backplane R1.0
Audio
High Definition Audio signals routed to rear
Specifications
●
Storage
SBC
One SATA 6 Gb/s direct connector for 2.5” onboard drive (removable)
Optional CFast socket (shares space with SATA direct connector)
CompactFlash socket onboard
●
Mechanical & Environmental
Form Factor
6U 4HP (single slot) CompactPCI
233.33mm x 160mm (LxW)
Equipped with J1, J2, J3, J5 connectors
RTM*
Up to three SATA ports
CF (x1) and SD (x1) sockets
Eight SAS ports supporting hardware RAID via two mini-SAS x4 connectors
(LSISAS1068E)
*Available interfaces dependent on RTM model selected
Operating Temperature
0°C to +60°C standard
-20°C to +70°C extended temperature (cPCI-ET6520)
Storage Temperature
-40°C to 85°C extreme temperature (cPCI-EX6520 with Core™ i7 3555LE and
Core™ i7 3517UE CPU)
●
Operating System
OS
Microsoft Windows Server 2008, XP, 7
Red Hat Enterprise Linux 6.2
Fedora 16
Wind River VxWorks 6.9
(Please contact ADLINK for other OS support)
RH Humidity
95% non-condensing
Shock
15G peak-to-peak, 11ms duration, non-operating
Vibration
2 Grms random vibration, 5-500Hz, each axis, operating
3.23A @3.3V, 9.68A @5V, total 59W for Core i7-3612QE
3.37A @3.3V, 12.12A @5V, total 71.7W for Core i7-3615QE
●
Miscellaneous
LED
Power, WDT, Hard Disk, Hot Swap and Port 80
Power Consumption
Battery
Coin cell lithium battery onboard for RTC CMOS RAM
Weight
Net weight 791g with heatsink
TPM
Atmel AT97SC3204 (optional, support upon request)
EMI/EMC
EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3
Watchdog Timer
System Reset and NMI, with programmable interval, 1-65535 seconds or
minutes
Hardware Monitor
Monitors CPU temperature, system temperature, Vcore and DC voltages
I/O Table
GbE
cPCI-6520
cPCI-R6100
cPCI-R6110
cPCI-R6200
Faceplate
Onboard
Faceplate
Onboard
Faceplate
Onboard
Faceplate
Onboard
2
4
2
2
4
4
5
1 (5-pin)
1 (DB-9)
1
(2)
(10-pin)
2 (DVI-I +DVI-D)
2
(10-pin)
1
1
(Tx/Rx)
2
3
(7-pin)
1
(10-pin)
3
(5)
(7-pin)
1
(10-pin)
1
(10-pin)
1
USB 2.0
USB
3.0
3
COM
1 (RJ-45)
1 (RJ-45)
1
1
2
(7-pin)
1
3
(3)
1 (DVI-I)
3
(3)
1
(optional)
(3)
1
(4)
1
1
1
1
1
1
4 (SFF-
8088)
4 (SFF-
8087)
DVI
VGA
DP
2
1
1
(1)
1
1
1
PMC/
XMC
SATA
CFast
CF
Mic-in Line-
out
PS/2
KB/MS
SD
SAS
cPCI-R6500D
Faceplate
Onboard
2
1
1
(10-pin)
cPCI-R65N0
Faceplate
Onboard
2
1
1
(1) Removable adapter design. SATA adapter by default, can be replaced with CFast adapter.
(2) Tx, Rx signals only.
(3) Two 7-pin signal connectors onboard for external HDDs and one direct connector for onboard 2.5” SATA drive. SATA direct connector can be replaced with CompactFlash
adapter (DB-6920CF).
(4) Converted from USB.
(5) Space is reserved onboard for one 2.5” SATA drive.
Ordering Information
Processor Blades
●
Accessories
●
cPCI-6520/3612Q/M4-0
4HP cPCI-6520 with Intel
®
Core™ i7-3612QE processor and
4GB DDR3-1333 ECC soldered memory with 2 xGbE, 3 xUSB3.0,
COM, 2 xDP, SATA, CF and PMC/XMC
cPCI-6520/3555L/M0-4
4HP cPCI-6520 with Intel
®
Core™ i7-3555LE processor and 4GB
DDR3-1333 ECC SODIMM module with 2 xGbE, 3 xUSB3.0, COM,
2 xDP, SATA, CF and PMC/XMC
cPCI-6520/3612Q/M4-4
4HP cPCI-6520 with Intel
®
Core™ i7-3612QE processor and 4GB
DDR3-1333 ECC soldered memory and 4GB SODIMM module
with 2 xGbE, 3 xUSB3.0, COM, 2 xDP, SATA, CF and PMC/XMC
DB-CFast
CFast socket adapter board with screws
DP-DVI cable
DisplayPort to DVI adapter cable
DP-VGA cable
DisplayPort to VGA adapter cable
DP-HDMI cable
DisplayPort to HDMI adapter cable
Contact your ADLINK representative for different CPU, memory
and storage combinations.
See 6U RTM selection guide for more options.
●
●
●
●
●

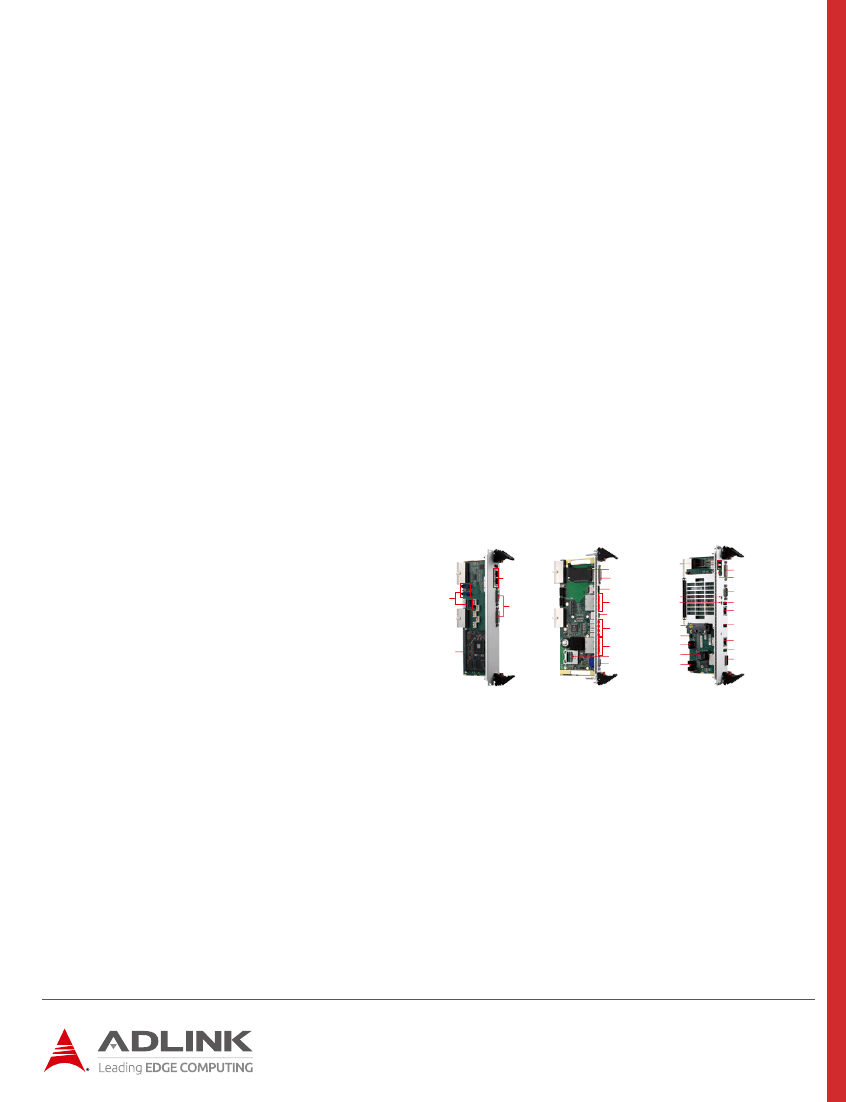

Rear Transition Modules
●
cPCI-R6002
4HP Rear I/O module with GbE x2, COM x2, USB x3, SATA x2,
DVI-I
cPCI-R6100
4HP Rear I/O module with GbE x2, USB x4, SATA x3, VGA, PS/2,
CF, SD socket
cPCI-R6110
4HP Rear I/O module with GbE x2, COM, USB x4, SATA x3, VGA,
PS/2, CF, SD socket
cPCI-R6200
8HP Rear I/O module with GbE x2, USB x6, DVI-I, SATA x3,
Mic-in, Line-out, PS/2 KB/MS, SAS x8
cPCI-R6500D
8HP Rear I/O module with AMD Radeon E6760 MXM module,
