MBH7BLZ01A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Embedded solution> Wireless rf module with> The bluetooth module (802.15.1)> MBH7BLZ01A

MBH7BLZ01A: DescriptionBluetooth module (802.15.1) BLE 4.1 Cent/Periph noAnt SingleMode; CategoryEmbedded solution Wireless rf module with The bluetooth module (802.15.1); File Size181KB，3 Pages; ManufacturerFUJITSU; Websitehttp://edevice.fujitsu.com/fmd/en/index.html; Environmental Compliance

Download Datasheet Parametric Compare View All

MBH7BLZ01A Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MBH7BLZ01A	-	-	View	Buy Now

MBH7BLZ01A Overview

Bluetooth module (802.15.1) BLE 4.1 Cent/Periph noAnt SingleMode

MBH7BLZ01A Parametric

Parameter Name	Attribute value
Maker	FUJITSU
Product Category	Bluetooth module (802.15.1)
Shipping restrictions	Mouser does not currently sell this product.
kind	Class 2
Working power voltage	1.9 V to 3.6 V
Output Power	4 dBm
Minimum operating temperature	- 25 C
Maximum operating temperature	+ 85 C
Sensitivity	- 88 dBm
Interface Type	UART
series	MBH7BLZ
frequency	2.4 GHz
high	1.6 mm
length	10.5 mm
product	Bluetooth Modules
width	9.2 mm
Installation style	SMD/SMT
Factory packaging quantity	1000
Receive supply current	16.5 mA
Transmit supply current	12 mA
model	Bluetooth 4.1

Preview

Download Datasheet

View All

Data Sheet

FUJITSU Component Wireless Modules

MBH7BLZ01A, MBH7BLZ02A

FUJITSU Component Wireless Modules

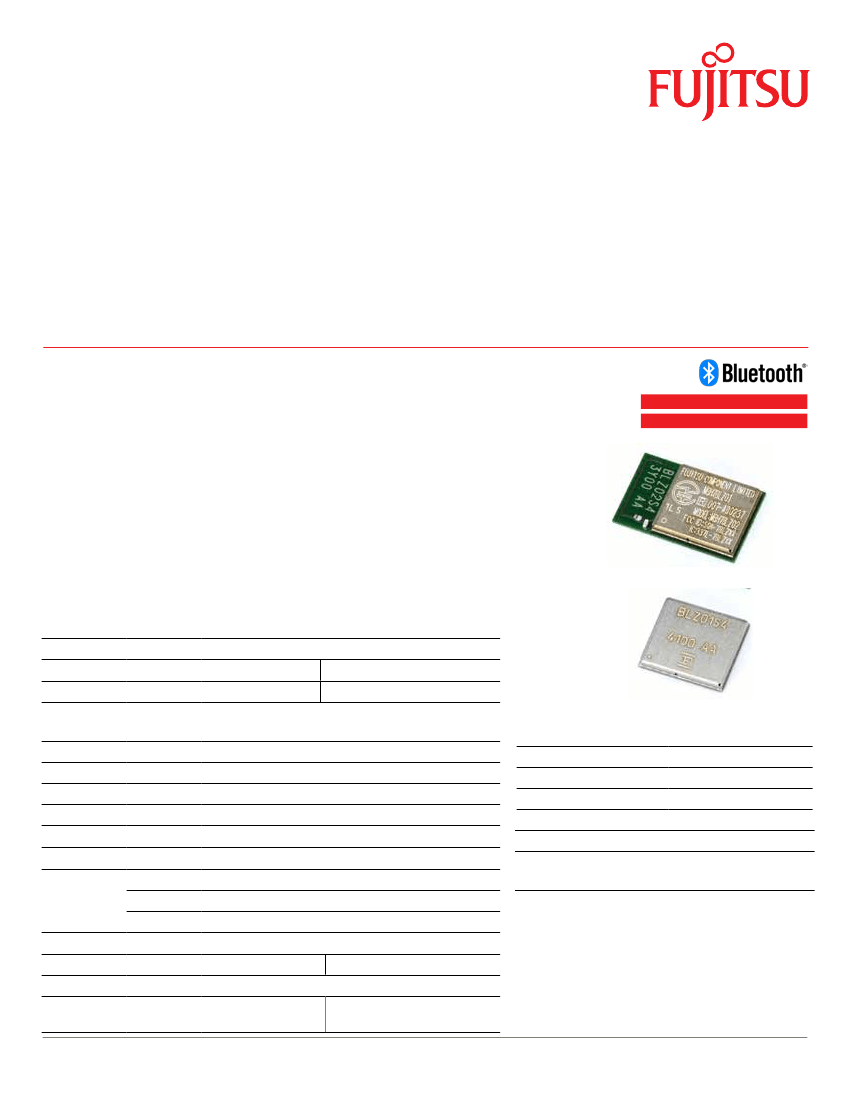

Bluetooth®

Ver.4.1 Modules (Software Embedded)

(Central/Peripheral)

MBH7BLZ01A, MBH7BLZ02A

Bluetooth

Core Specification Version 4.1 (Bluetooth low energy)

Overview

Bluetooth

Core Specification Version 4.1 (Bluetooth low energy) conforming software

embedded modules with Central/Peripheral function available.

Modules embedded with Fujitsu Components’ Data Communication (FDC) profile

It can communicate with up to 8 peripherals at the same time by “GATT Direct Access

Function”. The function also makes it possible to communicate with other manufacurers

Bluetooth modules.

FDC is a unique data transmission profile developed by Fujitsu Components. FDC allows

data to transmit with host system by simple text command (via UART). With more than 60

commands and continuous additions, FDC allows for quick product to market and reduction

of development resources. For easy connectivity, the FDC embedded central module is

designed to pair with the FDC peripheral module.

FDC is a SPP-like profile ideally suited for sensing, monitoring, and wearble applications.

Based on Nordic Semiconductor nRF51822 SoC Rev.3

Item

Part number

Antenna

Bluetooth

technology

RAM

Transmit power

Receiver sensitivity

Host interface

Crystal oscillator

Power supply

Power

consumption

(current)

Sleep mode

Tx mode

Rx mode

MBH7BLZ01A

None

Specifications

MBH7BLZ02A

Patterned antenna

MBH7BLZ01A

RoHS compliant

Software embedded module

MBH7BLZ02A

Conforms to

Bluetooth

Core Specification Version 4.1

(single mode low energy radio)

32KB

+4 dBm max.

-88 dBm typical

UART

Embedded

1.9 V to 3.6 V (LDO)

5µA typical

12mA typical (at 0dBm)

16.5mA typical

-250C to +850C (no condensation)

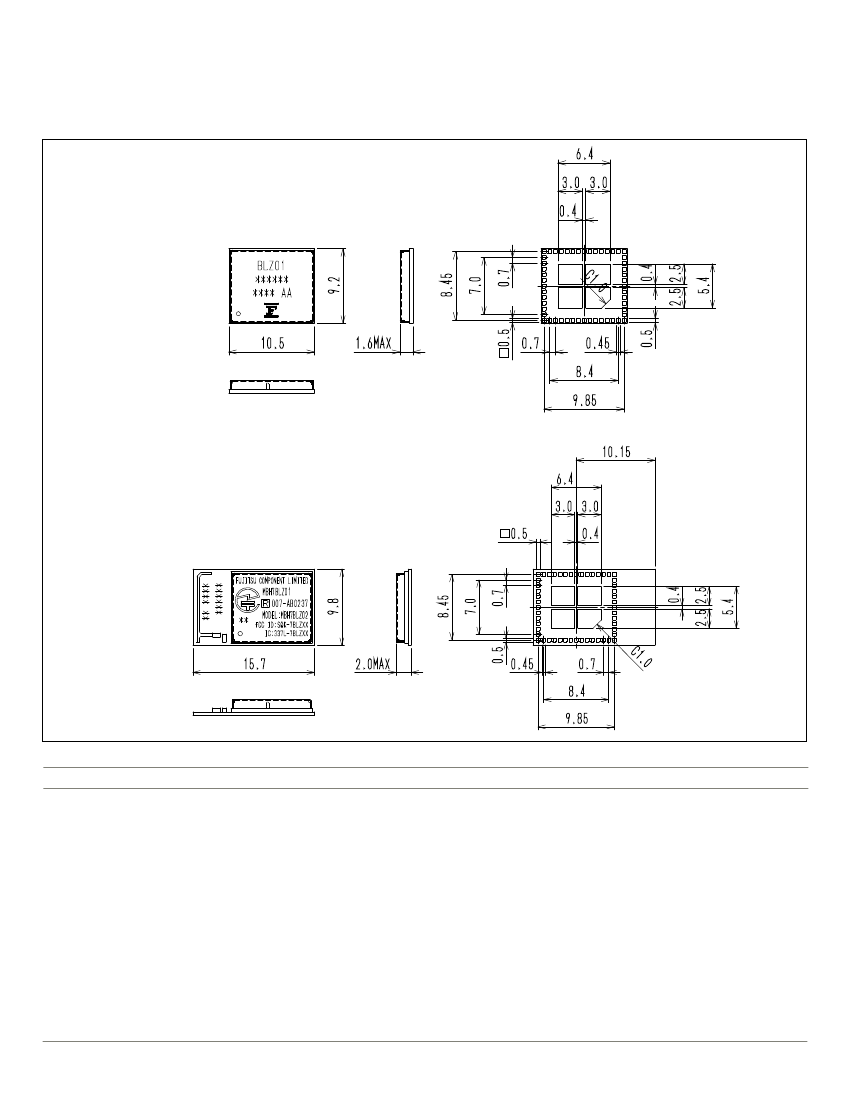

10.5 x 9.2 x 1.6 mm

Radio Act (Japan )/

QDID

15.7 x 9.8 x 2.0 mm

SMD

FCC / IC / CE / Radio Act (Japan)/

QDID

EMEA: www.fujitsu.com/uk/components

Evaluation kit

Part number

MBH7BLZ02A-EF1-KIT-2

Details

Evaluation kit

MOQ

1 set

Embedded software & application development tool

Please request firmware specs and sample programs

from one of Fujitsu Components’ sales offices.

Note:

Bluetooth

SIG registration is required to use this

module’s QDID.

Operating temperature

Dimensions

Mounting method

Certifications

Page 1 of 2

ASIA PACIFIC: www.fujitsu.com/sg/products/devices/components

AMERICAS: http://us.fujitsu.com/components

MBH7BLZ01A Related Products

	MBH7BLZ01A	MBH7BLZ02A
Description	Bluetooth module (802.15.1) BLE 4.1 Cent/Periph noAnt SingleMode	Bluetooth module (802.15.1) BLE 4.1 Cent/Periph w/Ant SingleMode
Maker	FUJITSU	FUJITSU
Product Category	Bluetooth module (802.15.1)	Bluetooth module (802.15.1)
Shipping restrictions	Mouser does not currently sell this product.	Mouser does not currently sell this product.
kind	Class 2	Class 2
Working power voltage	1.9 V to 3.6 V	1.9 V to 3.6 V
Output Power	4 dBm	4 dBm
Minimum operating temperature	- 25 C	- 25 C
Maximum operating temperature	+ 85 C	+ 85 C
Sensitivity	- 88 dBm	- 88 dBm
Interface Type	UART	UART
series	MBH7BLZ	MBH7BLZ
frequency	2.4 GHz	2.4 GHz
high	1.6 mm	2 mm
length	10.5 mm	15.7 mm
product	Bluetooth Modules	Bluetooth Modules
width	9.2 mm	9.8 mm
Installation style	SMD/SMT	SMD/SMT
Factory packaging quantity	1000	1000
Receive supply current	16.5 mA	16.5 mA
Transmit supply current	12 mA	12 mA
model	Bluetooth 4.1	Bluetooth 4.1
