Micro Crystal
Development Board
RV-4162-C7
RV-4162-C7
The RV-4162-C7 is soldered onto the Development Board.
Every pin is either accessible at test pins 1 – 8 or at the test vias situated around the device.
The following passive components are already soldered on the Board:
C1
10 nF
Decoupling capacitor between V
SS
and V
DD
R1
330 Ώ
current limiting resistor for LED
LED green
Supply, current consumption of the LED has to be considered
R2
10 kΏ
Pull-up resistor SDA to V
DD
R3
10 kΏ
Pull-up resistor INT to V
DD
R4
10 kΏ
Pull-up resistor SCL to V
DD
DEVELOPMENT BOARD
2/3
Micro Crystal
Development Board

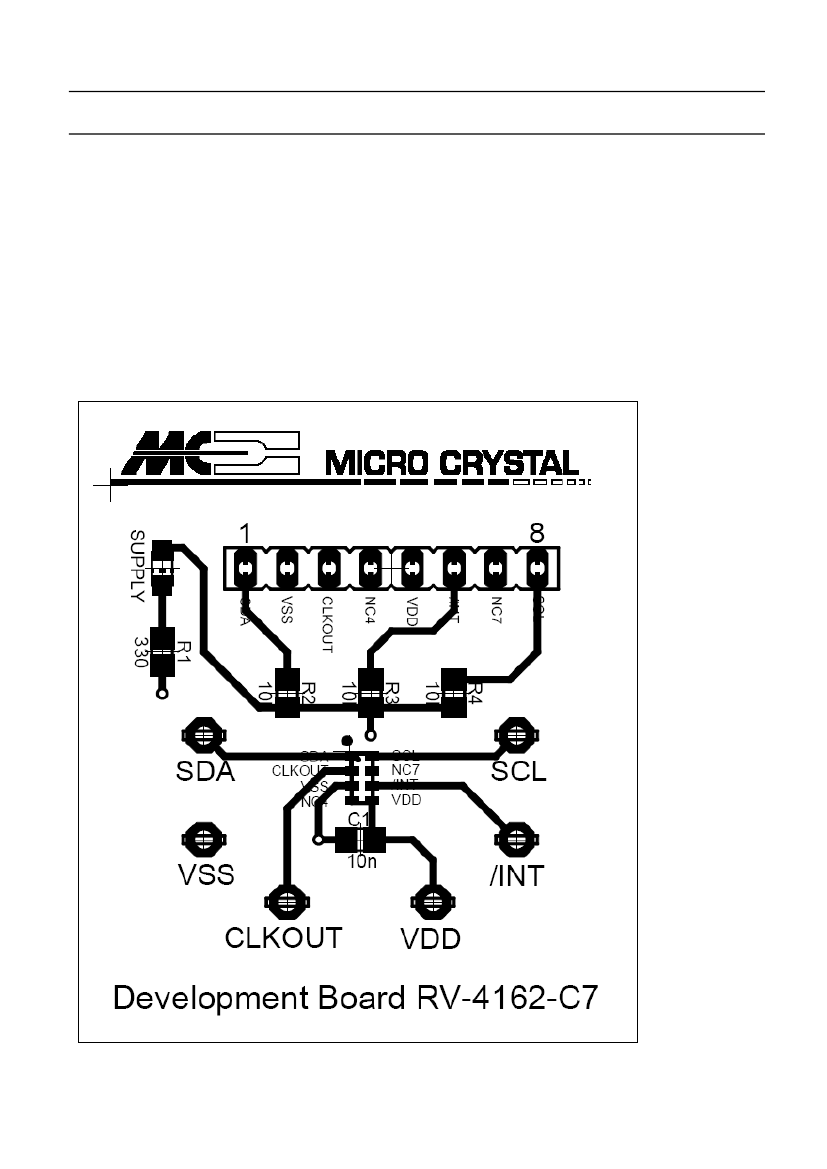

SCHEMATICS
RV-4162-C7
PINOUT RV-4162-C7
Top view
#8
#5
# 1
# 2
# 3
# 4
SDA
CLKOUT
V
SS
.
N.C.
# 8
# 7
# 6
# 5
SCL
N.C.
INT
V
DD
b
#1
PIN DESCRIPTION
Symbol
SDA
CLKOUT
V
SS
NC
V
DD
INT
NC
SCL
1
2
3
4
5
6
7
8
Pin #
#4
Description
Serial Data Input-Output pin; open-drain; requires pull-up resistor.
Clock Output pin; push-pull output; at power-up by default 32.768kHz
Ground
Not Connected
Positive supply voltage;
recommend 10 nF decoupling capacitor close to device
Interrupt Output pin; open-drain; active LOW
Not Connected
Serial Clock Input pin; requires pull-up resistor
Datasheet and Application-Manual are available for download under: www.microcrystal.com
