ACHILLES
Arria 10 SoC SoM IDK
Instant-DevKit
Target markets:
Automotive
Video Broadcast
Machine and Intelligent Vision
Industrial
Military
Test & Measurement
Medical
Achilles
Instant-Development Kit
provides to
developers the best Out-Of-The box experience,
combining the Best-In Class compact hardware
platform and the most efficient intuitive software
environment.
DevKitInvasion
ATTILA
Arria 10 FPGA FMC IDK
ALARIC
Arria 10 SoC FMC IDK
ACHILLES
Arria 10 SoC SoM IDK
Contact us :
ReFLEX CES Europe
Phone : +33(0) 169 870 255
email : sales@reflexces.com
www.reflexces.com
© ReFLEX CES 2016-All Rights Reserved– Oct./Rev2.4
ReFLEX CES North America / AsiaPac / Japan
Phone : +1 (408) 887 5981
email : salesusa@reflexces.com
ACHILLES
Instant-DevKit
C
ustom
E
mbedded
S
ystems
Arria 10 SoC SoM IDK

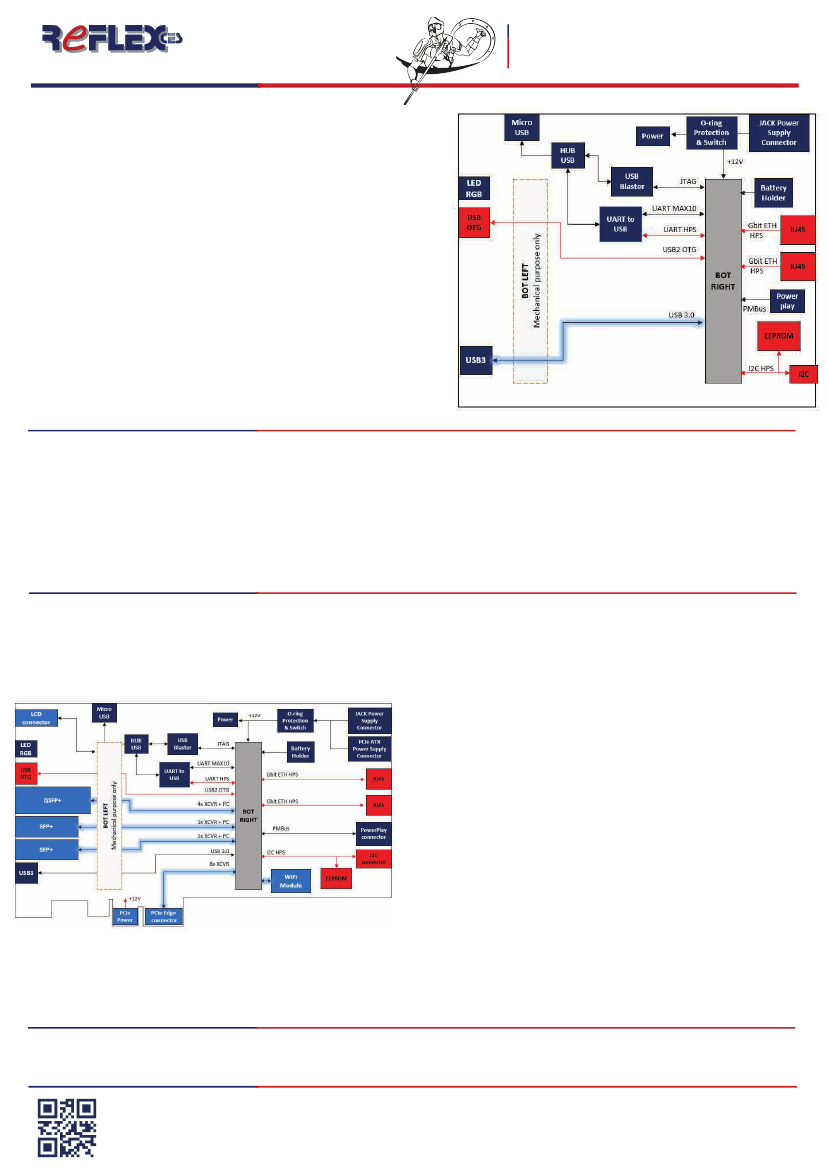

Starter board
Configuration & Monitoring
■
Onboard USB Blaster JTAG configuration circuitry to enable FPGA configuration
over USB connector.
■
One µUSB connector allows interfacing UART bus and communicate with the MAX
10 and the HPS FPGA.
■
One connector for connecting a Linear Powerplay DC1613A USB cable
■
PMBus interface : Digital Power System management is ready, configure and
interrogate the PSM Devices with LTpowerPlay
Communication Interfaces
■
2x Ethernet 10/100/1000 Base-T (HPS)
■
1x I²C (HPS)
■
1x USB3.0 Micro B (FPGA)
■
1x USB OTG Mini AB (HPS)
Board size =
100mm (3.94 inches) x 140 mm (5.51 inches) / Fan on top for SoM A10
Power =
Evaluation mode on desk with AC power supply
Standards and compliance
■
RoHS/REACH compliant
■
ISO9001 Facility
■
UL certified
■
Operating Range : 0°C to 70°C
Kit Ordering information
Version
■
Development Kit (Starter board + Module)
Part number
RXCA10S066PF34-IDK0SA
Optional feature
In addition to the Instant-DevKit, you can order the PCIe Carrier Board
Kit content
■
Power cable (US, UK, EU, JP), cables (USB, Ethernet)
■
Starter board A10 SoC SoM
■
Arria 10 SoC SoM "Ultra" version
■
Starter Guide, Reference Manual
■
ReFLEX CES innovative software interface (GUI)
■
Test Designs (Quartus II Projects), Mechanical drawings
■
Schematics (pdf), assembly files (pdf), Base board guidelines
PCIe Carrier Board
Board size
■
Standard height ( 111.15 mm / 4.376 inches) x Half length
( 167.65 mm / 6.600 inches) / Fan on top for SoMA10
PCIe Carrier Board Ordering information
Part number =
RXCA10S0000F34-FHP0SA
Contact us :
ReFLEX CES Europe
Phone : +33(0) 169 870 255
email : sales@reflexces.com
Configuration & Monitoring
■
Onboard USB Blaster JTAG configuration circuitry to enable FPGA configura-
tion over USB connector.
■
One µUSB connector allows interfacing UART bus and communicate with the
MAX 10 and the HPS FPGA.
■
One connector for connecting a Linear Powerplay DC1613A USB cable
■
PMBus interface : Digital Power System management is ready, configure and
interrogate the PSM Devices with LTpowerPlay
Communication Interfaces
■
PCI Express x8 Gen 1/ 2/ 3 on PCI Express edge connector
■
1x QSFP+ quad optical cage (4 XCVR:10.3125 Gb/s per link)
■
2x SFP+ single optical cage (2 XCVR : 10.3125 Gb/s per link)
■
2x Ethernet 10/100/1000 Base-T (HPS)
■
1x USB3.0 Micro B (FPGA)
■
1x USB OTG Mini AB (HPS)
■
Atmel Wifi 802.11 b/g/n IoT (Internet of Things) module which is specifically
optimized for low power IoT applications. Module provides SPI and SDIO to
interface to host controller.
■
One 1x10pts connector for connecting an LCD
Power
■
Evaluation mode on desk with AC power supply or can be inserted into a PCIe
slot and used as a PCIe card
Standards and compliance
■
RoHS/REACH compliant
■
ISO9001 Facility
■
UL certified
■
Operating Range : 0°C to 70°C
© ReFLEX CES 2016 -All Rights Reserved– Oct./Rev2.4
www.reflexces.com
ReFLEX CES North America / AsiaPac / Japan
Phone : +1 (408) 887 5981
email : salesusa@reflexces.com
