Product Brief
9380-4i4e
High Performance 12Gb/s PCI Express
SATA+SAS RAID Controller
Outstanding RAID Performance for Next-Generation
Servers and Storage
The explosive growth of data in cloud and enterprise data centers is
driving the need for a higher performance storage interface to speed the
ability of critical applications to access data. Broadcom first-to-market
12Gb/s SAS solutions are designed to deliver the performance and data
protection capabilities required for the most demanding next-generation
server and storage platforms. Offering up to double the data transfer
rate of 6Gb/s SAS solutions, 12Gb/s SAS allows the SAS infrastructure
to deliver bandwidth that can fully utilize that of PCI Express 3.0 with a
single controller card. The MegaRAID® SAS 9380-4i4e, with four internal
and four external ports, delivers two 1.2GHz PowerPC processor cores
and a 72-bit DDRIII interface that drives 1GB cache memory. Powered by
the LSISAS3108 dual-core ROC, the 9380-4i4e controller includes the
latest PCI Express 3.0 and 12Gb/s SAS technology and is designed for
configuring both internal storage and external JBOD storage enclosures
with high-performance SAS hard drives, high-capacity SATA hard drives or
application-accelerating solid state drives (SSDs).
Key Features
• High performance 12Gb/s data
transfer rates
• Four internal / Four external 12Gb/s
SATA+SAS ports
• One mini-SAS SFF8643 internal
connector
• One mini-SAS SFF8644 external
connector
• LSISAS3108: 1.2GHz PowerPC® 476
dual core 12Gb/s ROC
• PCI Express 3.0 host interface
• 1GB DDRIII cache memory
• RAID levels 0, 1, 5, 6, 10, 50, and 60
• Support for CacheVault
™
flash
cache protection
Enterprise Data Protection
Standard support for the most popular RAID levels and accessories,
including RAID 5, RAID 6, and CacheVault flash cache protection module,
further strengthen the data protection capabilities of the MegaRAID SAS
9380-4i4e. A new enterprise feature employed by the 12Gb/s MegaRAID
SAS controllers is advanced drive diagnostic technology. In the event of a
physical drive failure, the drive is placed in shield state and the MegaRAID
controller starts drive diagnostics to determine if the drive is indeed failed
or can be restored. This saves customers time, money and lost compute
time associated with transient drive failures and unnecessary drive returns.
Key Advantages
• 12Gb/s solutions accelerate
performance for next-generation
data centers, web and cloud
• Delivers enterprise-class data
protection and security
• Preserves investment in 6Gb/s and
3Gb/s drives
• Support for Broadcom Advanced
Software options
• Connect up to 240 3Gb/s, 6Gb/s, or
12Gb/s SATA and SAS devices
Support for Advanced Software Options
The Broadcom family of 12Gb/s MegaRAID controllers are designed to
support advanced software options that provide system integrators
and VARs with enhanced performance and data protection capabilities.
These software options help enable end users to address key business
challenges while helping to deliver a higher return on their IT investments.
MegaRAID CacheCade® Pro 2.0 software (optional) and MegaRAID Fast
Path software (included) boost transactional I/O performance of solid state
disk configurations, while SafeStore™ software enables enhanced data
protection and security when used with encryption capable devices.
9380-4i4e 12 Gb/s PCI Express SATA + SAS RAID Controller
Product Brief

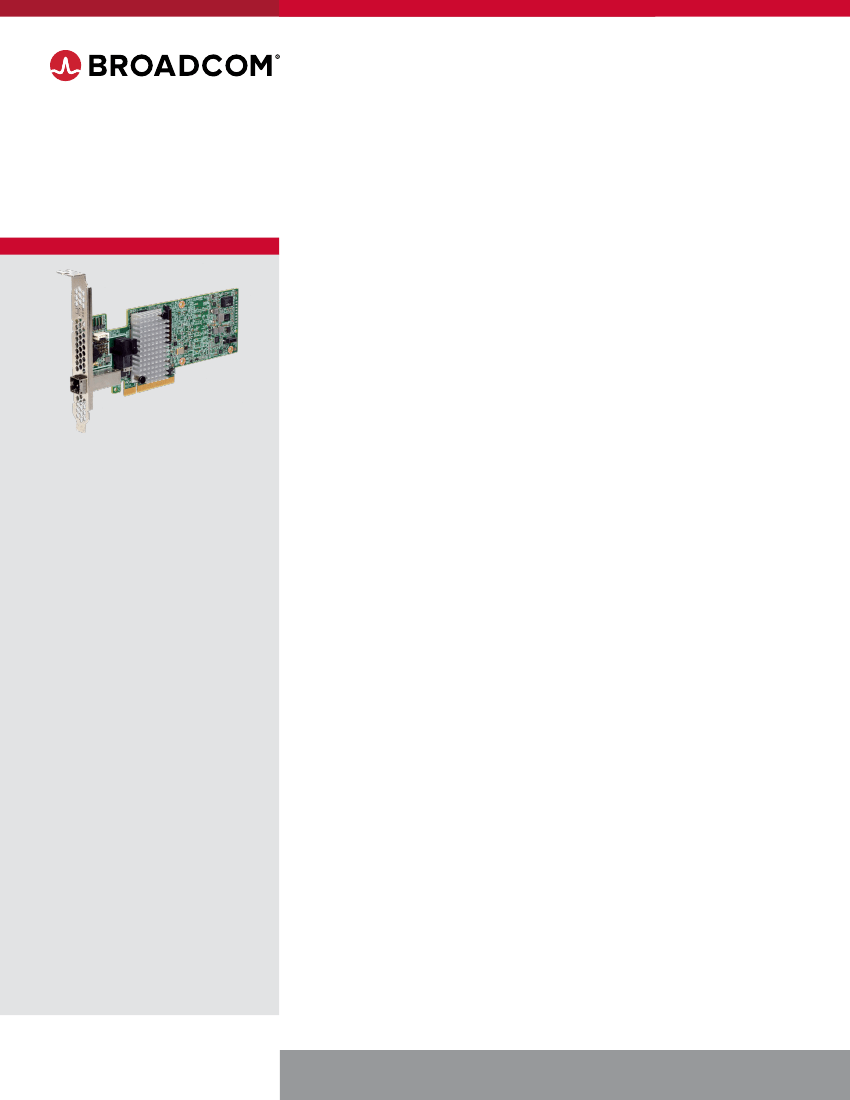

MegaRAID SAS 9380-4i4e Controller Card
Solution Provided
Physical Dimensions
Connectors
Device Support
Host Bus Type
Data Transfer Rates
Cache Memory
Cache Protection
I/O Processor/SAS Controller
Four port internal / Four port external SATA+SAS solution for internal drive storage and external JBOD expansion in a
wide variety of performance and capacity-oriented environments using up to 240 SAS or SATA devices
MD2 Low profile (6.6” X 2.536”)
One mini-SAS SFF8643 internal connector
One mini-SAS SFF8644 external connector
Up to 240 SAS and/or SATA devices
x8 lane PCI Express 3.0 compliant
Up to 12Gb/s per port
1GB 1866MHz DDRIII SDRAM
Optional CacheVault Flash Module (LSICVM02) – Includes CVFM04, CVPM02, mounting clip, and cable
LSISAS3108 dual core RAID on Chip (ROC)
• RAID levels 0, 1, 5, and 6
• RAID spans 10, 50 and 60
• Online Capacity Expansion (OCE)
• Online RAID Level Migration (RLM)
• Auto resume after loss of system power during
array rebuild or reconstruction (RLM)
• Single controller Multipathing
• Load Balancing
• Configurable stripe size up to 1MB
• Fast initialization for quick array setup
• Check Consistency for background data integrity
• SSD Support with SSD Guard™ technology
• Patrol read for media scanning and repairing
• 64 logical drive support
• DDF compliant Configuration on Disk (COD)
• S.M.A.R.T support
• Global and dedicated Hot Spare with Revertible
Hot Spare support
– Automatic rebuild
– Enclosure affinity
– Emergency SATA hot spare for SAS arrays
• Enclosure management
– SES (inband)
– SGPIO (sideband)
• Databolt bandwidth optimizer technology support
for compatible expander-based enclosures
• Shielded state drive diagnostic technology
Key RAID Data Protection
Features
Operating Temperature
Operating Voltage
MTBF (Calculated)
Hardware Warranty
MegaRAID Management
Suite
Maximum ambient: Controller Card: 55°C, with optional CacheVault accessory (LSICVM02): 55°C
+3.3V, +12V
1,230,142 hours
3 years, free 5x8 phone support, advanced replacement option
• MegaRAID Storage Manager
• StorCLI (command-line interface)
• CTRL-R (BIOS configuration utility)
• HII (UEFI Human Interface Infrastructure)
• MegaRAID CacheCade Pro 2.0 Software leverages SSDs in front of HDD volumes to create high-capacity,
high-performance controller cache pools (Optional Upgrade)
• MegaRAID Fast Path Software provides high-performance I/O acceleration for SSD arrays connected to 6Gb/s
MegaRAID SATA+SAS controllers (Included)
EN55022, EN55024, EN60950, EN 61000-3-2, EN 61000-3-3; FCC Class A, Class B; UL1950; UL; CSA C22.2; VCCI; RRL for
MIC; BSMI; C-tick
Extensive support includes Microsoft Windows Server 2012/8 & 7/2008/Vista/2003/XP, Linux, Solaris (x86), FreeBSD,
VMware and more.
* Visit the download center for the most complete list of supported operating systems: broadcom.com/support
SSD Optimization
Regulatory Certifications
OS Support
Ordering Information
MegaRAID SAS 9380-4i4e
(Single Pack)
LSICVM02 CacheVault Kit
MPN: 05-25190-02
MPN: 05-25444-00
OPN: LSI00439
OPN: LSI00418
Visit the Broadcom Server Storage website at:
www.broadcom.com/products/storage
Broadcom, the pulse logo, Connecting everything, and MegaRAID, CacheCade, SafeStore, CacheVault and SSD Guard are among
the trademarks of Broadcom.Copyright © 2018 Broadcom. All Rights Reserved. The term “Broadcom” refers to Broadcom Limited
and/or its subsidiaries. For more information, please visit
www.broadcom.com.
BC-0504EN 01.17.18
