conga-QA5/E3950-4G eMMC16 datasheet, PDF

Datasheet> All Categories > Embedded solution> To calculate> Modular computer - COM> conga-QA5/E3950-4G eMMC16

conga-QA5/E3950-4G eMMC16: Description模块化计算机 - COM Qseven module with Intel Atom E3950 quad core processor with 1.6GHz core frequency up to 2.0GHz, 2MB L2 cache, 4GB 1866MT/s DDR3L onboard memory and 16GB eMMC onboard flash.; CategoryEmbedded solution To calculate Modular computer - COM; File Size1MB，4 Pages; Manufacturercongatec; Environmental Compliance

Download Datasheet Parametric Compare View All

conga-QA5/E3950-4G eMMC16 Overview

模块化计算机 - COM Qseven module with Intel Atom E3950 quad core processor with 1.6GHz core frequency up to 2.0GHz, 2MB L2 cache, 4GB 1866MT/s DDR3L onboard memory and 16GB eMMC onboard flash.

conga-QA5/E3950-4G eMMC16 Parametric

Parameter Name	Attribute value
Maker	congatec
Product Category	Modular Computer - COM
Shipping restrictions	Mouser does not currently sell this product in your area.
physical dimension	Qseven
Processor brand	Intel
Processor type	Intel Atom x7-E3950
chipset	Integrated in SoC
frequency	1.6 GHz
cache memory	2 MB
Interface Type	Audio, CSI, DDI, I2C, PCIe, SATA, SMBus, SPI, UART, USB
Minimum operating temperature	0 C
Maximum operating temperature	+ 60 C
size	70 mm x 70 mm
flash	16 GB
storage	4 GB
storage type	DDR3L
Power consumption	12 W
series	conga-QA5
Factory packaging quantity	1

Preview

Download Datasheet

View All

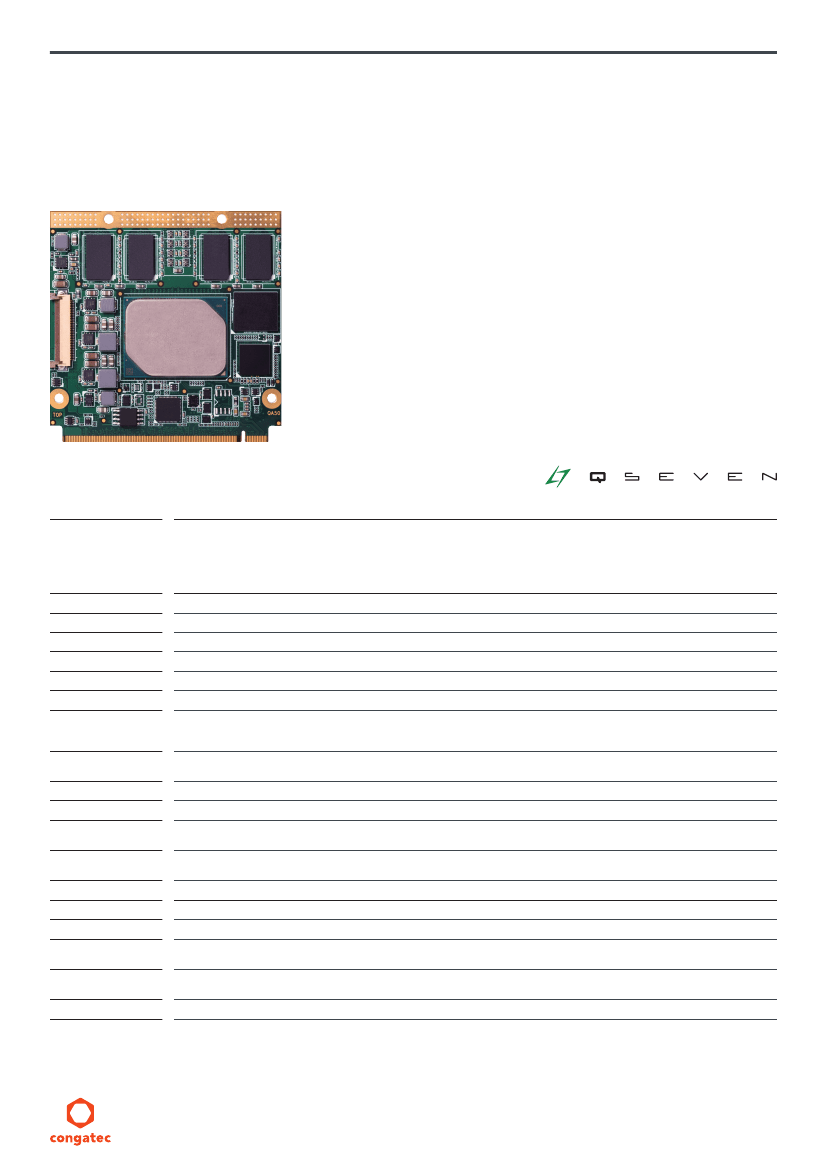

HIGHEST QSEVEN PERFORMANCE

conga-QA5

Intel

Atom

™

Quad Core processor on Qseven

Intel 9

generation (Gen 9) LP graphics

Up to 4k resolution (4096x2160@60Hz)

4K Codec Decode & Encode for HEVC, H.264, VP8

Fast I/Os: SATA3, USB 3.0 and PCIe 2.0

Formfactor

CPU

Qseven Form Factor Rev. 2.0 compliant | 70x70 mm

Intel

Atom™ x7-E3950

Intel

Atom™ x5-E3940

Intel

Atom™ x5-E3930

Intel

Pentium

N4200

Intel

Celeron

N3350

2.00 GHz (Burst)

1.6 GHz Clock

1.80 GHz (Burst)

1.6 GHz Clock

1.80 GHz (Burst)

1.3 GHz Clock

2.50 GHz (Burst)

1.1 GHz Clock

2.40 GHz (Burst)

1.1 GHz Clock

Quad Core

Dual Core

Quad Core

Dual Core

L2 cache 2MB

L2 cache 1MB

L2 cache 2MB

L2 cache 1MB

12W TDP

9W TDP

6.5W TDP

6W TDP

DRAM

Chipset

Ethernet

I/O Interfaces

Mass Storage

Sound

Graphics

Dual Channel | up to 8GB onboard DDR3L with 1867 MT/s

Integrated in SoC

Intel

I210 (Industrial) / I211 (Commercial) Gigabit Ethernet Controller

eMMC 5.0 onboard flash up to 64 GByte

Intel

High Definition Audio (Intel

HD Audio)

(wireless) | Video decode hardware acceleration including support for 4kp60 HEVC (H.265), H.264, MVC, VP8, VP9, VC-1, WMV9, JPEG/MJPEG | Video

encode hardware acceleration including support for 4kp30 HEVC (H.265), H.264, MVC, VP8, JPEG/MJPEG.

18/24-bit Single/Dual Channel LVDS Interface, resolutions up to 1920X1200@60Hz | VESA standard or JEIDA data mapping

Automatic Panel Detection via EDID/EPI | shared with eDP 1.3 supporting up to 3840x2160@60 Hz (option)

DisplayPort 1.2 up to 4096×2160@60Hz or HDMI 1.4b up to 3840×2160@30Hz

1x MIPI-CSI x4 and 1x MIPI-CSI x2

Multistage watchdog | non-volatile user data storage | manufacturing and board Information | board statistics

I²C bus (fast mode | 400 kHz | multi master) | power loss control

AMI Aptio

UEFI 2.x firmware | 8 MByte serial SPI with congatec Embedded BIOS features OEM Logo | OEM CMOS Defaults | LCD Control

Display Auto Detection | Backlight Control | Flash Update

ACPI 5 .0 compliant | Smart Battery Management

Microsoft

Windows 10 IoT Enterprise | Microsoft

Windows 10 IoT Core | Microsoft

Windows 10 | Linux | Yocto

Typ. application 6W...12W

Commercial :

Industrial:

Operating:

Storage:

Operating: 0 to +60°C

Operating: -40 to +85°C

10 to 90% r. H. non cond.

5 to 95% r. H. non cond.

Storage: -20 to +70°C

Storage: -40 to +85°C

LVDS

DisplayPort Interface (DDI)

MIPI-CSI

congatec Board controller

Embedded BIOS Features

Power Management

Operating Systems

Power Consumption

Temperature

Humidity

Size

70 x 70 mm (2¾” x 2¾”)

www.congatec.com

conga-QA5/E3950-4G eMMC16 Related Products

	conga-QA5/E3950-4G eMMC16	conga-QA5/N3350-4G eMMC16	conga-QA5/i-E3930-2G eMMC8	conga-QA5/i-E3940-4G eMMC16	conga-QA5/E3930-2G eMMC8	conga-QA5/i-E3950-8G eMMC32	conga-QA5/E3950-8G eMMC32	conga-QA5/E3940-4G eMMC16
Description	模块化计算机 - COM Qseven module with Intel Atom E3950 quad core processor with 1.6GHz core frequency up to 2.0GHz, 2MB L2 cache, 4GB 1866MT/s DDR3L onboard memory and 16GB eMMC onboard flash.	模块化计算机 - COM Qseven module with Intel Celeron N3350 dual core processor with 1.1GHz core frequency up to 2.3GHz, 2MB L2 cache, 4GB 1600MT/s DDR3L onboard memory and 16GB eMMC onboard flash.	模块化计算机 - COM Qseven module with Intel Atom E3930 dual core processor with 1.3GHz core frequency up to 1.8GHz, 2MB L2 cache, 2GB 1600MT/s DDR3L onboard memory and 8GB eMMC onboard flash. Industrial grade temperature range from -40 C to 85 C.	Modular computer - COM Qseven module with Intel Atom E3940 quad core processor with 1.6GHz core frequency up to 1.8GHz, 2MB L2 cache, 4GB 1866MT/s DDR3L onboard memory and 16GB eMMC onboard flash. Industrial grade temperature range from -40 C to 85c.	模块化计算机 - COM Qseven module with Intel Atom E3930 dual core processor with 1.3GHz core frequency up to 1.8GHz, 2MB L2 cache, 2GB 1600MT/s DDR3L onboard memory and 8GB eMMC onboard flash.	模块化计算机 - COM Qseven module with Intel Atom E3950 quad core processor with 1.6GHz core frequency up to 2.0GHz, 2MB L2 cache, 8GB 1866MT/s DDR3L onboard memory and 32GB eMMC onboard flash. Industrial grade temperature range from -40 C to 85 C.	Modular computer - COM Qseven module with Intel Atom E3950 quad core processor with 1.6GHz core frequency up to 2.0GHz, 2MB L2 cache, 8GB 1866MT/s DDR3L onboard memory and 32GB eMMC onboard flash.	Modular computer - COM Qseven module with Intel Atom E3940 quad core processor with 1.6GHz core frequency up to 1.8GHz, 2MB L2 cache, 4GB 1866MT/s DDR3L onboard memory and 16GB eMMC onboard flash.
Maker	congatec	congatec	congatec	congatec	congatec	congatec	congatec	congatec
Product Category	Modular Computer - COM	Modular Computer - COM	Modular Computer - COM	Modular Computer - COM	Modular Computer - COM	Modular Computer - COM	Modular Computer - COM	Modular Computer - COM
Shipping restrictions	Mouser does not currently sell this product in your area.	Mouser does not currently sell this product in your area.	Mouser does not currently sell this product in your area.	Mouser does not currently sell this product in your area.	Mouser does not currently sell this product in your area.	Mouser does not currently sell this product in your area.	Mouser does not currently sell this product in your area.	Mouser does not currently sell this product in your area.
physical dimension	Qseven	Qseven	Qseven	Qseven	Qseven	Qseven	Qseven	Qseven
Processor brand	Intel	Intel	Intel	Intel	Intel	Intel	Intel	Intel
Processor type	Intel Atom x7-E3950	Intel Celeron N3350	Intel Atom x5-E3930	Intel Atom x5-E3940	Intel Atom x5-E3930	Intel Atom x7-E3950	Intel Atom x7-E3950	Intel Atom x5-E3940
chipset	Integrated in SoC	Integrated in SoC	Integrated in SoC	Integrated in SoC	Integrated in SoC	Integrated in SoC	Integrated in SoC	Integrated in SoC
frequency	1.6 GHz	1.1 GHz	1.3 GHz	1.6 GHz	1.3 GHz	1.6 GHz	1.6 GHz	1.6 GHz
cache memory	2 MB	1 MB	1 MB	2 MB	1 MB	2 MB	2 MB	2 MB
Interface Type	Audio, CSI, DDI, I2C, PCIe, SATA, SMBus, SPI, UART, USB	Audio, DDI, Ethernet, I2C, PCIe, SATA, SMBus, UART, USB	Audio, CSI, DDI, I2C, PCIe, SATA, SMBus, SPI, UART, USB	Audio, CSI, DDI, I2C, PCIe, SATA, SMBus, SPI, UART, USB	Audio, CSI, DDI, I2C, PCIe, SATA, SMBus, SPI, UART, USB	Audio, CSI, DDI, I2C, PCIe, SATA, SMBus, SPI, UART	Audio, DDI, Ethernet, I2C, LPC, PCIe, SATA, SMBus, SPI, UART, USB	Audio, CSI, DDI, I2C, PCIe, SATA, SMBus, SPI, UART, USB
Minimum operating temperature	0 C	0 C	- 40 C	- 40 C	0 C	- 40 C	0 C	0 C
Maximum operating temperature	+ 60 C	+ 60 C	+ 85 C	+ 85 C	+ 60 C	+ 85 C	+ 60 C	+ 60 C
size	70 mm x 70 mm	70 mm x 70 mm	70 mm x 70 mm	70 mm x 70 mm	70 mm x 70 mm	70 mm x 70 mm	70 mm x 70 mm	70 mm x 70 mm
flash	16 GB	16 GB	8 GB	16 GB	8 GB	32 GB	32 GB	16 GB
storage	4 GB	4 GB	2 GB	4 GB	2 GB	8 GB	8 GB	4 GB
storage type	DDR3L	DDR3L	DDR3L	DDR3L	70 mm x 70 mm	DDR3L	DDR3L	DDR3L
Power consumption	12 W	6 W	6.5 W	9 W	6.5 W	12 W	12 W	9 W
series	conga-QA5	conga-QA5	conga-QA5	conga-QA5	conga-QA5	conga-QA5	conga-QA5	conga-QA5
Factory packaging quantity	1	1	1	1	1	1	1	1
