SMZJ3803A-E3/52 Overview

Zener diode 39 Volt 1.5W 10%

SMZJ3803A-E3/52 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Vishay
Parts packaging code	DO-214AA
package instruction	R-PDSO-C2
Contacts	2
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	LOW IMPEDANCE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	ZENER DIODE
Maximum dynamic impedance	45 Ω
JEDEC-95 code	DO-214AA
JESD-30 code	R-PDSO-C2
JESD-609 code	e3
Humidity sensitivity level	1
Number of components	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
polarity	UNIDIRECTIONAL
Maximum power dissipation	1.5 W
Certification status	Not Qualified
Nominal reference voltage	39 V
surface mount	YES
technology	ZENER
Terminal surface	Matte Tin (Sn)
Terminal form	C BEND
Terminal location	DUAL
Maximum time at peak reflow temperature	30
Maximum voltage tolerance	10%
Working test current	9.6 mA

Preview

Download Datasheet

View All

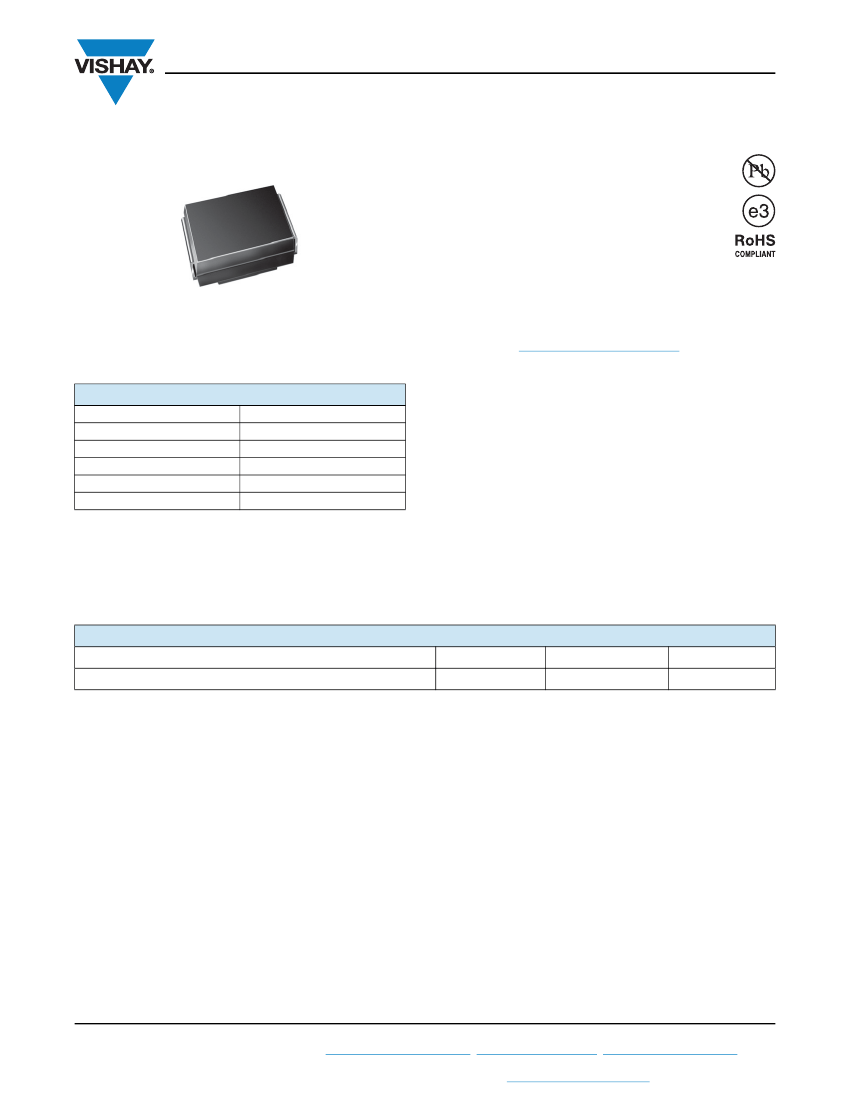

SMZJ3788B thru SMZJ3809B

www.vishay.com

Vishay General Semiconductor

Surface Mount Power Voltage-Regulating Diodes

FEATURES

• Low profile package

• Ideal for automated placement

• Glass passivated chip junction

• Low Zener impedance

• Low regulation factor

• Meets MSL level 1, per J-STD-020, LF maximum peak of

260 °C

• AEC-Q101 qualified

• Material categorization: For definitions of compliance

please see

www.vishay.com/doc?99912

DO-214AA (SMBJ)

MECHANICAL DATA

PRIMARY CHARACTERISTICS

tot



12 V)

max.

specification

Int. construction

9.1 V to 68 V

1500 mW

5.0 μA

150 °C

Pulse current

Single

Case:

DO-214AA (SMBJ)

Molding compound meets UL 94 V-0 flammability rating

Base P/N-E3 - RoHS compliant, commercial grade

Base P/NHE3 - RoHS compliant, AEC-Q101 qualified

Terminals:

Matte tin plated leads, solderable per

J-STD-002 and JESD 22-B102

E3 suffix meets JESD 201 class 1A whisker test, HE3 suffix

meets JESD 201 class 2 whisker test

Polarity:

Color band denotes cathode end

TYPICAL APPLICATIONS

For general purpose regulation and protection applications.

MAXIMUM RATINGS

= 25 °C unless otherwise noted)

PARAMETER

Operating junction and storage temperature range

SYMBOL

, T

STG

VALUE

- 55 to + 150

UNIT

°C

Revision: 25-May-12

Document Number: 88402
