MCP3914
3V Eight-Channel Analog Front End
Features:
• Eight Synchronous Sampling 24-bit Resolution
Delta-Sigma Analog-to-Digital (A/D) Converters
• 94.5 dB SINAD, -107 dBc Total Harmonic
Distortion (THD) (up to 35
th
Harmonic), 112 dBFS
SFDR for Each Channel
• Enables 0.1% Typical Active Power Measurement
Error over a 10,000:1 Dynamic Range
• Advanced Security Features:
- 16-bit Cyclic Redundancy Check (CRC)
checksum on all communications for secure
data transfers
- 16-bit CRC checksum and interrupt alert for
register map configuration
- Register map lock with 8-bit secure key
• 2.7V-3.6V AV
DD
, DV
DD
• Programmable Data Rate up to 125 ksps:
- 4 MHz Maximum Sampling Frequency
- 16 MHz Maximum Master Clock
• Oversampling Ratio up to 4096
• Ultra-Low Power Shutdown Mode with < 10 µA
• -122 dB Crosstalk between Channels
• Low Drift 1.2V Internal Voltage Reference:
9 ppm/°C
• Differential Voltage Reference Input Pins
• High Gain Programmable-Gain Amplifier (PGA)
on Each Channel (up to 32 V/V)
• Phase Delay Compensation with 1 µs Time
Resolution
• Separate Data Ready Pin for Easy Synchronization
• Individual 24-bit Digital Offset and Gain Error
Correction for Each Channel
• High-Speed 20 MHz Serial Peripheral Interface
(SPI) with Mode 0,0 and 1,1 Compatibility
• Continuous Read/Write Modes for Minimum
Communication Time with Dedicated 16/32-bit
Modes
• Available in a 40-lead UQFN Package
• Extended Temperature Range: -40°C to +125°C
Description:
The MCP3914 is a 3V eight-channel Analog Front End
(AFE), containing eight synchronous sampling delta-
sigma, Analog-to-Digital Converters (ADC), eight
PGAs, phase delay compensation block, low-drift
internal voltage reference, digital offset and gain error
calibration registers, and high-speed 20 MHz SPI-
compatible serial interface.
The MCP3914 ADCs are fully configurable, with
features such as: 16/24-bit resolution, Oversampling
Ratio (OSR) from 32 to 4096, gain from 1x to 32x,
independent Shutdown and Reset, dithering and auto-
zeroing. The communication is largely simplified with 8-
bit commands, including various continuous read/write
modes and 16/24/32-bit data formats that can be
accessed by the Direct Memory Access (DMA) of an
8/16- or 32-bit MCU, and with the separate data ready
pin that can directly be connected to an Interrupt
Request (IRQ) input of an MCU.
The MCP3914 includes advanced security features to
secure the communications and the configuration
settings, such as a CRC-16 checksum on both serial
data outputs and static register map configuration. It
also includes a register-map lock through an 8-bit
secure key to stop unwanted write commands from
processing.
The MCP3914 is capable of interfacing with a variety of
voltage and current sensors, including shunts, current
transformers, Rogowski coils and Hall-effect sensors.
Package Type
CH0+
CH1+
CH1-
CH0-
AV
DD
DV
DD
D
GND
AV
DD
A
GND
NC
RESET
30 SDI
29 SDO
28 SCK
27 CS
EP
41
26 OSC2
25 OSC1/CLKI
24 D
GND
23 NC
22 DR
21 D
GND
CH7+
REFIN+/
OUT
REFIN-
A
GND
CH6-
CH7-
NC
DV
DD
MCP3914,
5x5 UQFN*
40 39 38 37 36 35 34 33 32 31
CH2+ 1
CH2- 2
CH3- 3
CH3+ 4
NC
5
NC 6
CH4+ 7
CH4- 8
CH5- 9
CH5+ 10
11 12 13 14 15 16 17 18 19 20
CH6+
Applications:
•
•
•
•
•
•
Polyphase Energy Meters
Energy Metering and Power Measurement
Automotive
Portable Instrumentation
Medical and Power Monitoring
Audio/Voice Recognition
* Includes Exposed Thermal Pad (EP); see
Table 3-1.
2013 Microchip Technology Inc.
DS20005216A-page 1
MCP3914

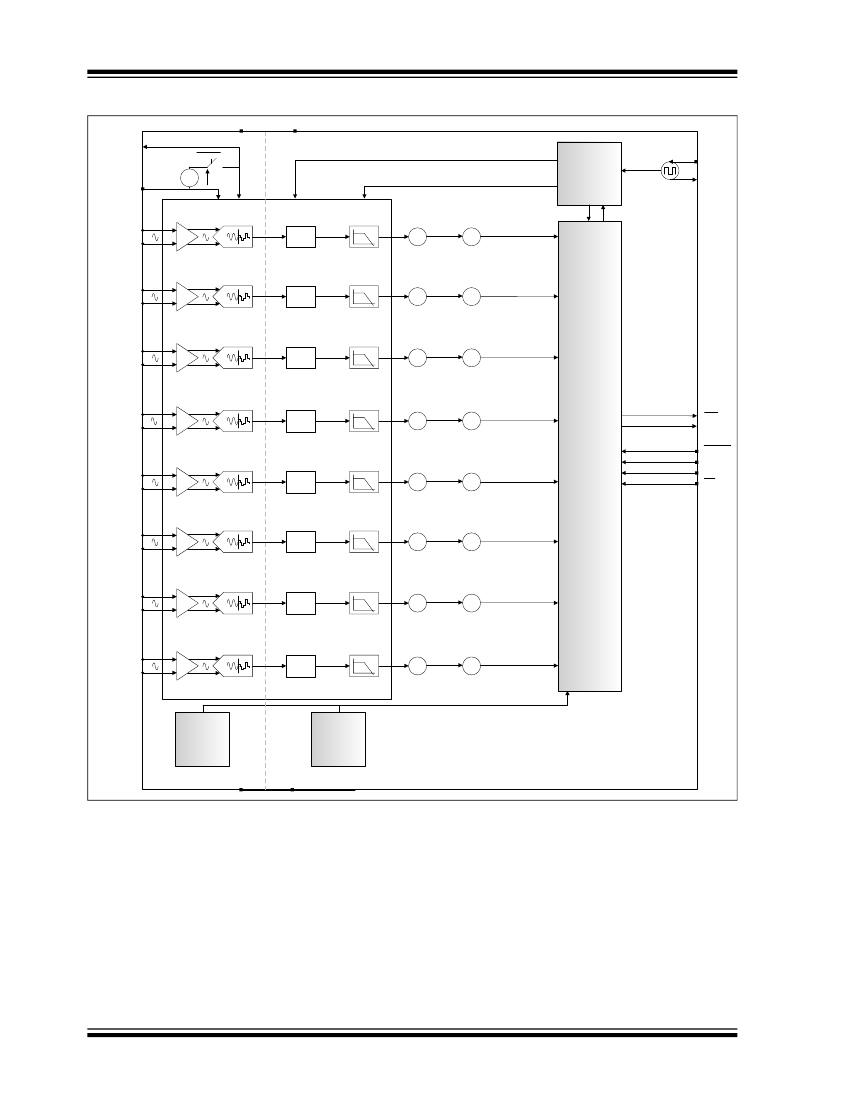

Functional Block Diagram
REFIN+/OUT
AV
DD
Voltage
Reference
+
-
Vref- Vref+
OSR/2-
PHASE1 <11:0>
OFFCAL_CH0
<23:0>
GAINCAL_CH0
<23:0>
VREFEXT
DV
DD
AMCLK
Xtal Oscillator
Clock
Generation
MCLK
OSC1
OSC2
Vref
REFIN-
DMCLK/DRCLK
DMCLK
OSR<2:0>
PRE<1:0>
CH0+
CH0-
+
-
PGA
MOD<3:0>
)
Phase
Shifter
OSR/2
+
SINC
3
+
SINC
1
Offset
Cal.
OFFCAL_CH1
<23:0>
X
Gain
Cal.
GAINCAL_CH1
<23:0>
DATA_CH0<23:0>
'6
Modulator
CH1+
CH1-
+
-
PGA
MOD<7:4>
)
Phase
Shifter
OSR/2-
PHASE1 <23:12>
+
SINC
3
+
SINC
1
Offset
Cal.
OFFCAL_CH2
<23:0>
X
Gain
Cal.
GAINCAL_CH2
<23:0>
DATA_CH1<23:0>
'6
Modulator
CH2+
CH2-
+
-
PGA
MOD<11:8>
)
Phase
Shifter
OSR/2
+
SINC +
SINC
1
3
X
Gain
Cal.
GAINCAL_CH3
<23:0>
DATA_CH2<23:0>
'6
Modulator
Offset
Cal.
OFFCAL_CH3
<23:0>
CH3+
CH3-
+
-
PGA
MOD<15:12>
)
Phase
Shifter
SINC
3
+
SINC
1
+
Offset
Cal.
OFFCAL_CH4
<23:0>
X
Gain
Cal.
GAINCAL_CH4
<23:0>
DATA_CH3<23:0>
DR
SDO
Digital SPI
Interface
'6
Modulator
OSR/2-
PHASE0<11:0>
CH4+
CH4-
+
-
PGA
MOD<19:16>
)
Phase
Shifter
OSR/2
+
SINC +
SINC
1
3
X
Gain
Cal.
GAINCAL_CH5
<23:0>
RESET
SDI
SCK
CS
DATA_CH4<23:0>
'6
Modulator
Offset
Cal.
OFFCAL_CH5
<23:0>
CH5+
CH5-
+
-
PGA
MOD<23:20>
)
Phase
Shifter
SINC +
SINC
1
3
+
Offset
Cal.
OFFCAL_CH6
<23:0>
X
Gain
Cal.
GAINCAL_CH6
<23:0>
DATA_CH5<23:0>
'6
Modulator
OSR/2-
PHASE0<23:12>
CH6+
CH6-
+
-
PGA
MOD<27:24>
)
Phase
Shifter
OSR/2
+
SINC +
SINC
1
3
X
Gain
Cal.
GAINCAL_CH7
<23:0>
DATA_CH6<23:0>
'6
Modulator
Offset
Cal.
OFFCAL_CH7
<23:0>
CH7+
CH7-
+
-
PGA
MOD<31:28>
)
Phase
Shifter
SINC +
SINC
1
3
+
Offset
Cal.
X
Gain
Cal.
DATA_CH7<23:0>
'6
Modulator
POR
AV
DD
Monitoring
ANALOG
DIGITAL
POR
DV
DD
Monitoring
A
GND
D
GND
DS20005216A-page 2
2013 Microchip Technology Inc.
MCP3914
1.0
ELECTRICAL
CHARACTERISTICS
† Notice:
Stresses above those listed under “Absolute
Maximum Ratings” may cause permanent damage to
the device. This is a stress rating only and functional
operation of the device at those or any other condi-
tions, above those indicated in the operational listings
of this specification, is not implied. Exposure to maxi-
mum rating conditions for extended periods may affect
device reliability.
Absolute Maximum Ratings †
V
DD
..................................................................... -0.3V to 4.0V
Digital inputs and outputs w.r.t. A
GND
................ --0.3V to 4.0V
Analog input w.r.t. A
GND
..................................... ....-2V to +2V
V
REF
input w.r.t. A
GND
............................... -0.6V to V
DD
+0.6V
Storage temperature .....................................-65°C to +150°C
Ambient temp. with power applied ................-65°C to +125°C
Soldering temperature of leads (10 seconds) ............. +300°C
ESD on the analog inputs (HBM,MM) ................. 1.5 kV, 300V
ESD on all other pins (HBM,MM) ...........................2 kV, 300V
1.1
Electrical Specifications
ANALOG SPECIFICATIONS
TABLE 1-1:
Electrical Specifications:
Unless otherwise indicated, all parameters apply at AV
DD
= DV
DD
= 2.7V to 3.6 V, MCLK = 4 MHz;
PRE<1:0> =
00;
OSR = 256; GAIN = 1; VREFEXT =
0,
CLKEXT =
1,
DITHER<1:0> =
11;
BOOST<1:0> =
10,
V
CM
= 0V;
T
A
= -40°C to +125°C;V
IN
= -0.5 dBFS @ 50/60 Hz on all channels.
Characteristic
ADC Performance
Resolution
(No missing codes)
Sampling Frequency
Output Data Rate
Sym
Min
24
Typ
—
1
4
Max
—
4
125
Units
bits
MHz
ksps
Conditions
OSR = 256 or greater
For maximum condition,
BOOST<1:0> =
11
For maximum condition,
BOOST<1:0> =
11,
OSR = 32
All analog input channels,
measured to A
GND
RESET<7:0> =
11111111,
MCLK running continuously
V
REF
= 1.2V,
proportional to V
REF
Note 5
Note 5
f
S
(DMCLK)
f
D
(DRCLK)
—
—
Analog Input Absolute
Voltage on CHn+/- pins,
n between 0 and 7
Analog Input
Leakage Current
Differential Input
Voltage Range
Offset Error
Offset Error Drift
Gain Error
Gain Error Drift
Note 1:
CHn+/-
-1
—
+1
V
I
IN
—
+/-1
—
0.2
0.5
—
1
—
+600/GAIN
1
—
+4
—
nA
mV
mV
µV/°C
%
ppm/°C
(CH
n+
-CH
n-
) -600/GAIN
V
OS
GE
-1
—
-4
—
Dynamic Performance specified at -0.5 dB below the maximum differential input value,
V
IN
= 1.2 V
PP
= 424 mV
RMS
@ 50/60 Hz, V
REF
= 1.2V. See
Section 4.0 “Terminology And Formulas”
for definition.
This parameter is established by characterization and not 100% tested.
For these operating currents, the following configuration bit settings apply: SHUTDOWN<7:0> =
00000000,
RESET<7:0> =
00000000,
VREFEXT =
0,
CLKEXT =
0.
For these operating currents, the following configuration bit settings apply: SHUTDOWN<7:0> =
11111111,
VREFEXT =
1,
CLKEXT =
1.
Measured on one channel versus all others channels. The average of crosstalk performance over all channels
(see
Figure 2-32
for individual channel performance).
Applies to all gains. Offset and gain errors depend on PGA gain setting, see typical performance curves for typical
performance.
Outside of this range, ADC accuracy is not specified. An extended input range of +/-2V can be applied continuously to
the part with no damage.
For proper operation and for optimizing ADC accuracy, AMCLK should be limited to the maximum frequency defined in
the
Table 5-2,
as a function of the BOOST and PGA setting chosen. MCLK can take larger values as long as the
prescaler settings (PRE<1:0>) limit AMCLK = MCLK/PRESCALE in the defined range in the
Table 5-2.
2:
3:
4:
5:
6:
7:
2013 Microchip Technology Inc.
DS20005216A-page 3
MCP3914
TABLE 1-1:
ANALOG SPECIFICATIONS
(CONTINUED)
Electrical Specifications:
Unless otherwise indicated, all parameters apply at AV
DD
= DV
DD
= 2.7V to 3.6 V, MCLK = 4 MHz;
PRE<1:0> =
00;
OSR = 256; GAIN = 1; VREFEXT =
0,
CLKEXT =
1,
DITHER<1:0> =
11;
BOOST<1:0> =
10,
V
CM
= 0V;
T
A
= -40°C to +125°C;V
IN
= -0.5 dBFS @ 50/60 Hz on all channels.
Characteristic
Integral Non-Linearity
Measurement Error
Sym
INL
ME
Min
—
—
Typ
5
0.1
Max
—
—
Units
ppm
%
Conditions
Measured with a 10,000:1
dynamic range
(from 600 mV
Peak
to 60 µV
Peak
),
AV
DD
= DV
DD
= 3V,
measurement points averaging
time: 20 seconds, measured on
each channel pair (CH0/1,
CH2/3, CH4/5 and CH6/7)
G = 1, proportional to 1/AMCLK
G = 2, proportional to 1/AMCLK
G = 4, proportional to 1/AMCLK
G = 8, proportional to 1/AMCLK
G = 16, proportional to 1/AMCLK
G = 32, proportional to 1/AMCLK
Differential Input
Impedance
Z
IN
232
142
72
38
36
33
—
—
—
—
—
—
94.5
-107
95
112
-122
-73
-73
-100
—
—
—
—
—
—
—
-103
—
—
—
—
—
—
k
k
k
k
k
k
dB
dBc
dB
dBFS
dB
dB
dB
dB
Signal-to-Noise and
Distortion Ratio
(Note
1)
Total Harmonic Distortion
(Note
1)
Signal-to-Noise Ratio
(Note
1)
Spurious Free Dynamic
Range
(Note
1)
Crosstalk (50, 60 Hz)
AC Power
Supply Rejection
DC Power
Supply Rejection
DC Common
Mode Rejection
Note 1:
SINAD
THD
SNR
SFDR
CTALK
AC PSRR
DC PSRR
DC CMRR
92
—
92
—
—
—
—
—
Includes the first 35 harmonics
Note 4
AV
DD
= DV
DD
= 3V + 0.6V
PP
50/60 Hz, 100/120 Hz
AV
DD
= DV
DD
= 2.7V to 3.6V
V
CM
from -1V to +1V
Dynamic Performance specified at -0.5 dB below the maximum differential input value,
V
IN
= 1.2 V
PP
= 424 mV
RMS
@ 50/60 Hz, V
REF
= 1.2V. See
Section 4.0 “Terminology And Formulas”
for definition.
This parameter is established by characterization and not 100% tested.
For these operating currents, the following configuration bit settings apply: SHUTDOWN<7:0> =
00000000,
RESET<7:0> =
00000000,
VREFEXT =
0,
CLKEXT =
0.
For these operating currents, the following configuration bit settings apply: SHUTDOWN<7:0> =
11111111,
VREFEXT =
1,
CLKEXT =
1.
Measured on one channel versus all others channels. The average of crosstalk performance over all channels
(see
Figure 2-32
for individual channel performance).
Applies to all gains. Offset and gain errors depend on PGA gain setting, see typical performance curves for typical
performance.
Outside of this range, ADC accuracy is not specified. An extended input range of +/-2V can be applied continuously to
the part with no damage.
For proper operation and for optimizing ADC accuracy, AMCLK should be limited to the maximum frequency defined in
the
Table 5-2,
as a function of the BOOST and PGA setting chosen. MCLK can take larger values as long as the
prescaler settings (PRE<1:0>) limit AMCLK = MCLK/PRESCALE in the defined range in the
Table 5-2.
2:
3:
4:
5:
6:
7:
DS20005216A-page 4
2013 Microchip Technology Inc.
MCP3914
TABLE 1-1:
ANALOG SPECIFICATIONS
(CONTINUED)
Electrical Specifications:
Unless otherwise indicated, all parameters apply at AV
DD
= DV
DD
= 2.7V to 3.6 V, MCLK = 4 MHz;
PRE<1:0> =
00;
OSR = 256; GAIN = 1; VREFEXT =
0,
CLKEXT =
1,
DITHER<1:0> =
11;
BOOST<1:0> =
10,
V
CM
= 0V;
T
A
= -40°C to +125°C;V
IN
= -0.5 dBFS @ 50/60 Hz on all channels.
Characteristic
Internal Voltage Reference
Tolerance
Temperature Coefficient
Sym
V
REF
TCV
REF
ZOUTV
REF
AI
DD
V
REF
Min
1.176
—
Typ
1.2
9
Max
1.224
—
Units
V
Conditions
VREFEXT =
0,
T
A
= +25°C only
ppm/°C T
A
= -40°C to +125°C,
VREFEXT =
0,
VREFCAL<7:0> = 0x50
k
µA
VREFEXT =
0
VREFEXT =
0,
SHUTDOWN<7:0> =
11111111
Output Impedance
Internal Voltage Refer-
ence Operating Current
Voltage Reference Input
Input Capacitance
Differential Input Voltage
Range (V
REF+
– V
REF-
)
Absolute Voltage on
REFIN+ pin
Absolute Voltage
REFIN- pin
Master Clock Input
Master Clock Input
Frequency Range
Crystal Oscillator Operat-
ing Frequency Range
Analog Master Clock
Crystal Oscillator
Operating Current
Power Supply
Operating Voltage, Analog
Operating Voltage, Digital
Operating Current, Analog
(Note
2)
—
—
0.6
54
—
—
—
V
REF
V
REF+
V
REF-
1.1
V
REF-
+ 1.1
-0.1
—
—
—
—
10
1.3
V
REF-
+ 1.3
+0.1
pF
V
V
V
VREFEXT =
1
VREFEXT =
1
REFIN- should be connected to
A
GND
when VREFEXT =
0
CLKEXT =
1,
(Note
7)
CLKEXT =
0,
(Note
7)
(Note
7)
CLKEXT =
0
f
MCLK
f
XTAL
AMCLK
DIDDXTAL
—
1
—
—
—
—
—
80
20
20
16
—
MHz
MHz
MHz
µA
AV
DD
DV
DD
I
DD,A
2.7
2.7
—
—
—
—
—
—
5.8
7.2
9.8
17.2
3.6
3.6
7.5
10
12.5
22
V
V
mA
mA
mA
mA
BOOST<1:0> =
00
BOOST<1:0> =
01
BOOST<1:0> =
10
BOOST<1:0> =
11
Note 1:
Dynamic Performance specified at -0.5 dB below the maximum differential input value,
V
IN
= 1.2 V
PP
= 424 mV
RMS
@ 50/60 Hz, V
REF
= 1.2V. See
Section 4.0 “Terminology And Formulas”
for definition.
This parameter is established by characterization and not 100% tested.
For these operating currents, the following configuration bit settings apply: SHUTDOWN<7:0> =
00000000,
RESET<7:0> =
00000000,
VREFEXT =
0,
CLKEXT =
0.
For these operating currents, the following configuration bit settings apply: SHUTDOWN<7:0> =
11111111,
VREFEXT =
1,
CLKEXT =
1.
Measured on one channel versus all others channels. The average of crosstalk performance over all channels
(see
Figure 2-32
for individual channel performance).
Applies to all gains. Offset and gain errors depend on PGA gain setting, see typical performance curves for typical
performance.
Outside of this range, ADC accuracy is not specified. An extended input range of +/-2V can be applied continuously to
the part with no damage.
For proper operation and for optimizing ADC accuracy, AMCLK should be limited to the maximum frequency defined in
the
Table 5-2,
as a function of the BOOST and PGA setting chosen. MCLK can take larger values as long as the
prescaler settings (PRE<1:0>) limit AMCLK = MCLK/PRESCALE in the defined range in the
Table 5-2.
2:
3:
4:
5:
6:
7:
2013 Microchip Technology Inc.
DS20005216A-page 5
京公网安备 11010802033920号
EEWORLD
