MAXM17575EVKIT#

Description
Power management IC development tool MAX17575 EV KIT
CategoryEmbedded solution    Engineering tools    Power management IC development tools
File Size851KB,10 Pages
ManufacturerMaxim
Websitehttps://www.maximintegrated.com/en.html
Environmental Compliance
Download Datasheet Parametric View All

MAXM17575EVKIT# Overview

Power management IC development tool MAX17575 EV KIT

MAXM17575EVKIT# Parametric

Parameter NameAttribute value
MakerMaxim
Product CategoryPower Management IC Development Tools
productEvaluation Kits
Tools for assessmentMAXM17575 Step-Down DC-DC Converter
Input voltage7.5 V to 60 V
The output voltage5 V
Output current1.5 A
used forMAXM17575
Factory packaging quantity1
MAXM17575 5V Output
Evaluation Kit
Evaluates: MAXM17575
5V Output Application
General Description
The MAXM17575 5V output evaluation kit (EV kit) pro-
vides a proven design to evaluate the MAXM17575 high-
voltage, high-efficiency, synchronous step-down DC-DC
power module. The EV kit is preset for 5V output at load
currents up to 1.5A and features a 900kHz switching fre-
quency for optimum efficiency and component size. The
EV kit features an adjustable input undervoltage lockout,
adjustable soft-start, open-drain
RESET
signal, and exter-
nal frequency synchronization. The MAXM17575 module
data sheet provides a complete description of the part
that should be read in conjunction with this data sheet
prior to operating the EV kit. For full features, benefits
and parameters of the MAXM17575 module, refer to the
MAXM17575 data sheet.
Quick Start
Recommended Equipment
● One 7.5V to 60V DC, 2A power supply
● 7.5W resistive load with 1.5A sink capacity
● Four digital multimeters (DMM)
● One MAXM17575 EVKIT# EV kit
Equipment Setup and Test Procedure
The EV kit is fully assembled and tested. Follow the steps
below to verify the board operation.
Caution:
Do not turn on power supply until all connec-
tions are completed.
1)
2)
Set the input power supply at a voltage between 7.5V
and 60V. Disable the power supply.
Connect the positive terminal of the power supply to
the VIN_EMI pad and the negative terminal to the
nearest PGND pad. Connect the positive terminal
of the 1.5A load to the VOUT pad and the negative
terminal to the nearest PGND pad.
Connect a DVM (DMM in Voltage measurement
mode) across the VOUT pad and the nearest PGND
pad.
Verify that shunts are not installed on jumper J1
(see
Table 1
for details).
Turn on the input power supply.
Enable the load.
Verify that the DVM displays 5V across the output
terminals.
Features
● Highly-Integrated Solution with Built-In Shielded
Inductor
● Wide 7.5V to 60V Input Range
● Programmed 5V Output, up to 1.5A Output Current

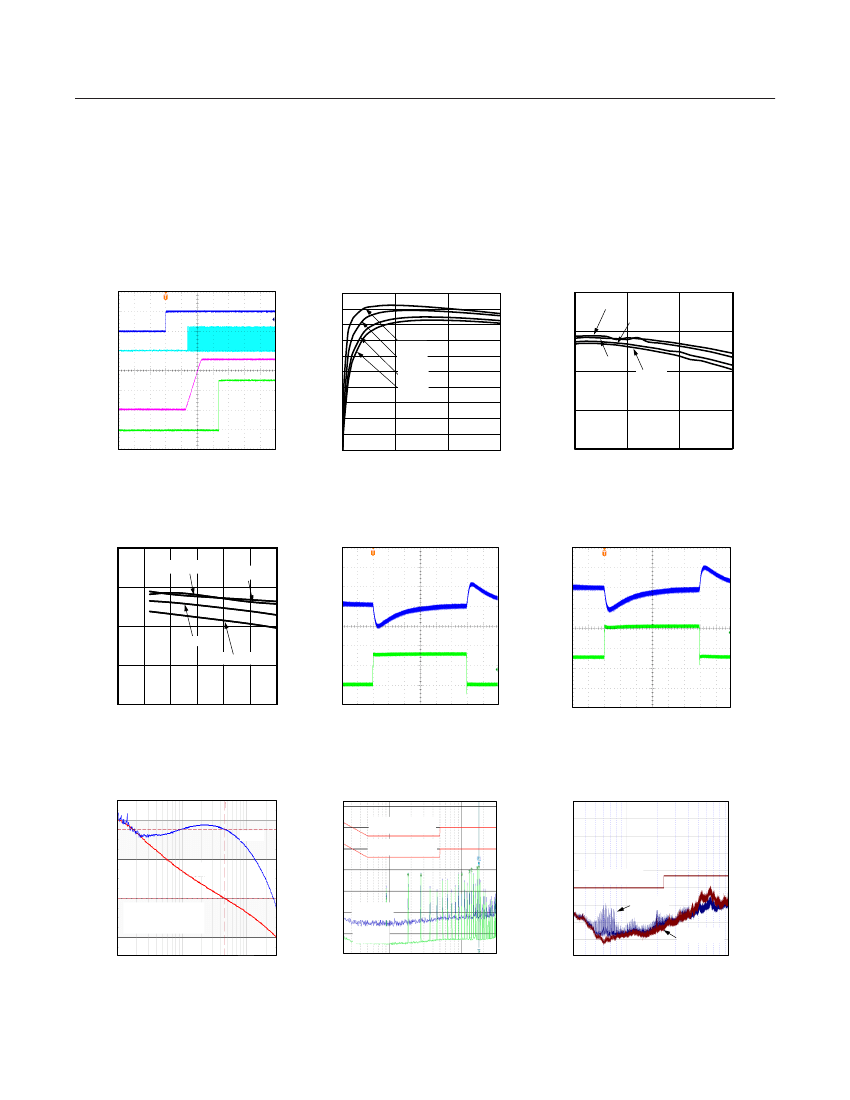

● High 92% Efficiency (VIN = 12V, VOUT = 5V at 0.5A)
● 900kHz Switching Frequency
● Enable/UVLO Input, Resistor-Programmable UVLO
Threshold
● Programmed 1ms Soft-Start Time
● PWM Mode of Operation
● Open-Drain
RESET
Output
● External Frequency Synchronization
● Overcurrent and Overtemperature Protection
● Low-Profile, Surface-Mount Components
● Proven PCB Layout
● Fully Assembled and Tested
● CISPR-22 Class B Compliant
3)
4)
5)
6)
7)
Ordering Information
appears at end of data sheet.
319-100080; Rev 0; 9/17
