EABS1D - EABS1J
Taiwan Semiconductor
CREAT BY ART

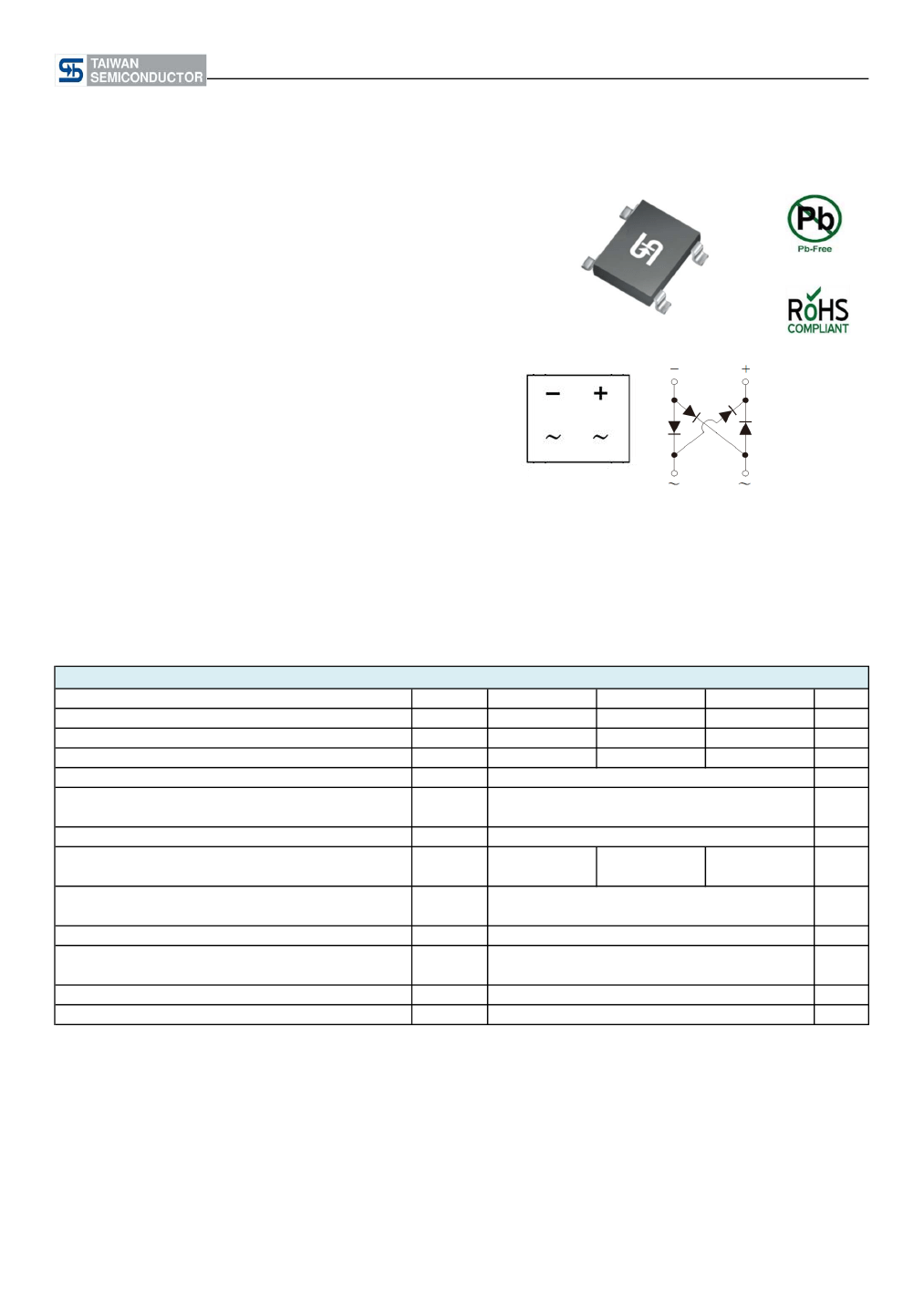

1A, 200V - 600V Miniature Ultrafast Glass Passivated Bridge Rectifiers
FEATURES
- Ideal for automated placement, for compact PCB design
- High surge current capability
- Ultrafast reverse recovery time for high frequency
- Negligible leakage current
- Compliant to RoHS Directive 2011/65/EU and
in accordance to WEEE 2002/96/EC
- Halogen-free according to IEC 61249-2-21
ABS
TYPICAL APPLICATIONS
General purpose rectification for AC/DC bridge full wave rectification for SMPS.
PFC function for LED lighting ballast. Also suitable for secondary stage of
high frequency inverters.
MECHANICAL DATA
Case:
Molded plastic body
Molding compound, UL flammability classification rating 94V-0
Moisture sensitivity level: level 1, per J-STD-020
Part no. with suffix "H" means AEC-Q101 qualified
Packing code with suffix "G" means green compound (halogen-free)
Terminal:
Matte tin plated leads, solderable per JESD22-B102
Meet JESD 201 class 2 whisker test
Polarity:
Polarity as marked on the body
Weight:
0.09 g (approximately)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(T
A
=25°C unless otherwise noted)
PARAMETER
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
Peak forward surge current, 8.3 ms single half sine-wave
superimposed on rated load
Rating for fusing (t<8.3ms)
Maximum instantaneous forward voltage (Note 1)
I
F
= 1 A
Maximum reverse current @ rated V
R
Maximum reverse recovery time (Note 2)
Typical thermal resistance
Operating junction temperature range
Storage temperature range
Note 1: Pulse test with PW=300μs, 1% duty cycle
Note 2: Reverse Recovery Test Conditions: I
F
=0.5A, I
R
=1.0A, I
rr
=0.25A
T
J
=25°C
T
J
=125°C
SYMBOL
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
I
2
t
V
F
I
R
t
rr
R
θJL
R
θJA
T
J
T
STG
0.95
EABS1D
200
140
200
EABS1G
400
280
400
1
40
6.64
1.20
1
200
35
25
80
- 55 to +150
- 55 to +150
1.70
EABS1J
600
420
600
UNIT
V
V
V
A
A
A
2
s
V
μA
ns
°C/W
°C
°C
Document Number: DS_D1403002
Version: B15
EABS1D - EABS1J
Taiwan Semiconductor
ORDERING INFORMATION
PART NO.
EABS1x
(Note 1)
PART NO.
SUFFIX
H
RE
RG
PACKING CODE
PACKING CODE
SUFFIX
G
ABS
ABS
1,000 / 7" Plastic reel
5,000 / 13" Paper reel
PACKAGE
PACKING
Note 1: "x" defines voltage from 200V (EABS1D) to 600V (EABS1J)
Note 2: Whole series with green compound
EXAMPLE
PREFERRED P/N
EABS1DHREG
PART NO.
EABS1D
PART NO.
SUFFIX
H
PACKING CODE
RE
PACKING CODE
SUFFIX
G
DESCRIPTION
AEC-Q101 qualified
Green compound

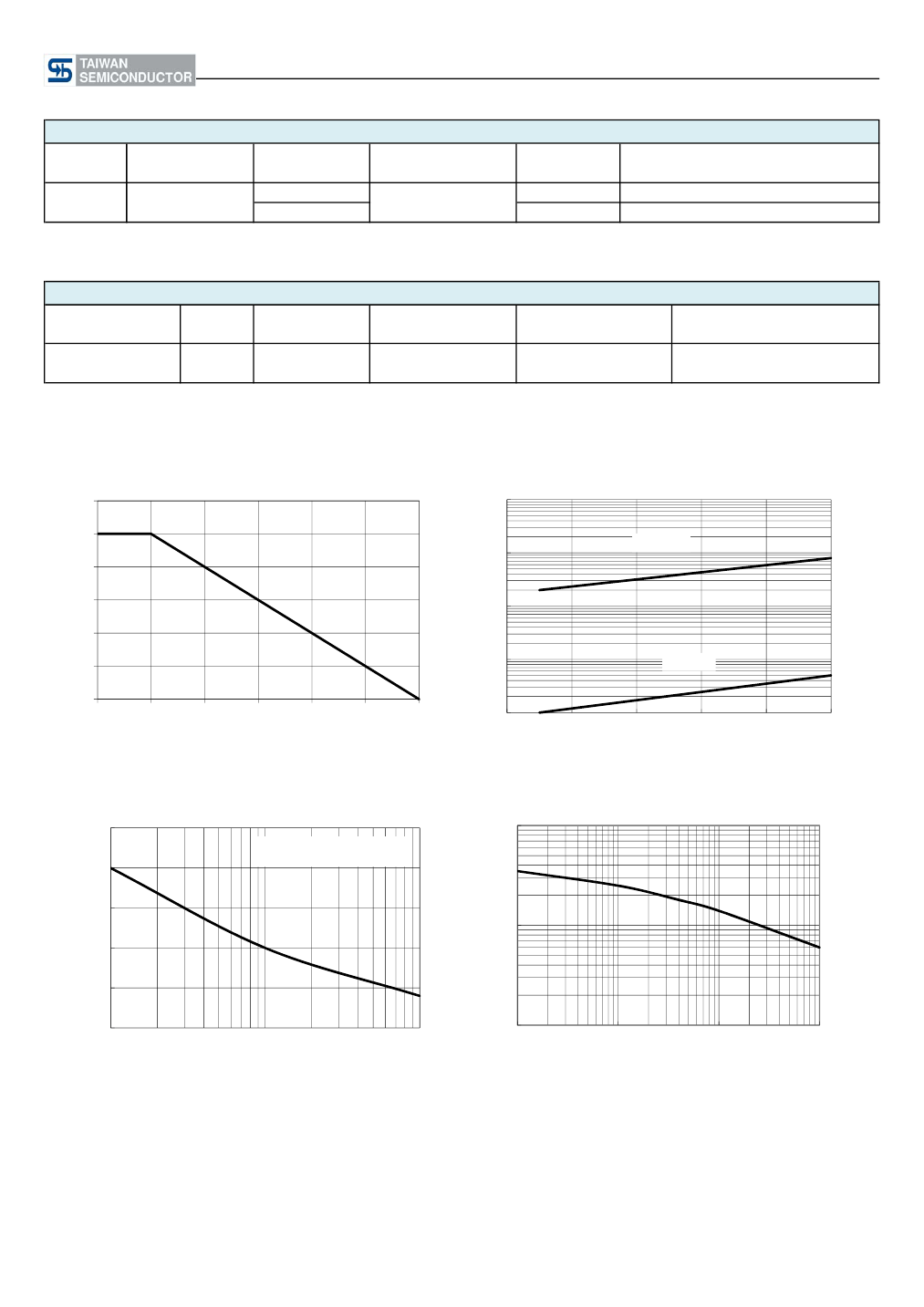

RATINGS AND CHARACTERISTICS CURVES
(T
A
=25°C unless otherwise noted)
FIG.1 MAXIMUM FORWARD CURRENT DERATING
CURVE
INSTANTANEOUS REVERSE CURRENT (μA)
FIG. 2 TYPICAL REVERSE CHARACTERISTICS
100
1.2
AVERAGE FORWARD CURRENT (A)
1
0.8
0.6
0.4
0.2
0
0
25
50
75
100
(
°
C)
10
T
J
=125°C
1
0.1
T
J
=25°C
125
150
0.01
0
20
40
60
80
100
PERCENT OF RATED PEAK REVERSE VOLTAGE(%)
AMBIENT TEMPERATURE
FIG. 3 MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT
PEAK FORWARD SURGE CURRENT (A)
50
40
30
20
10
0
1
10
NUMBER OF CYCLES AT 60 Hz
JUNCTION CAPACITANCE (pF)
a
8.3ms Single Half Sine-Wave
100
FIG. 4 TYPICAL JUNCTION CAPACITANCE
10
1
100
0.1
1
10
100
REVERSE VOLTAGE (V)
Document Number: DS_D1403002
Version: B15

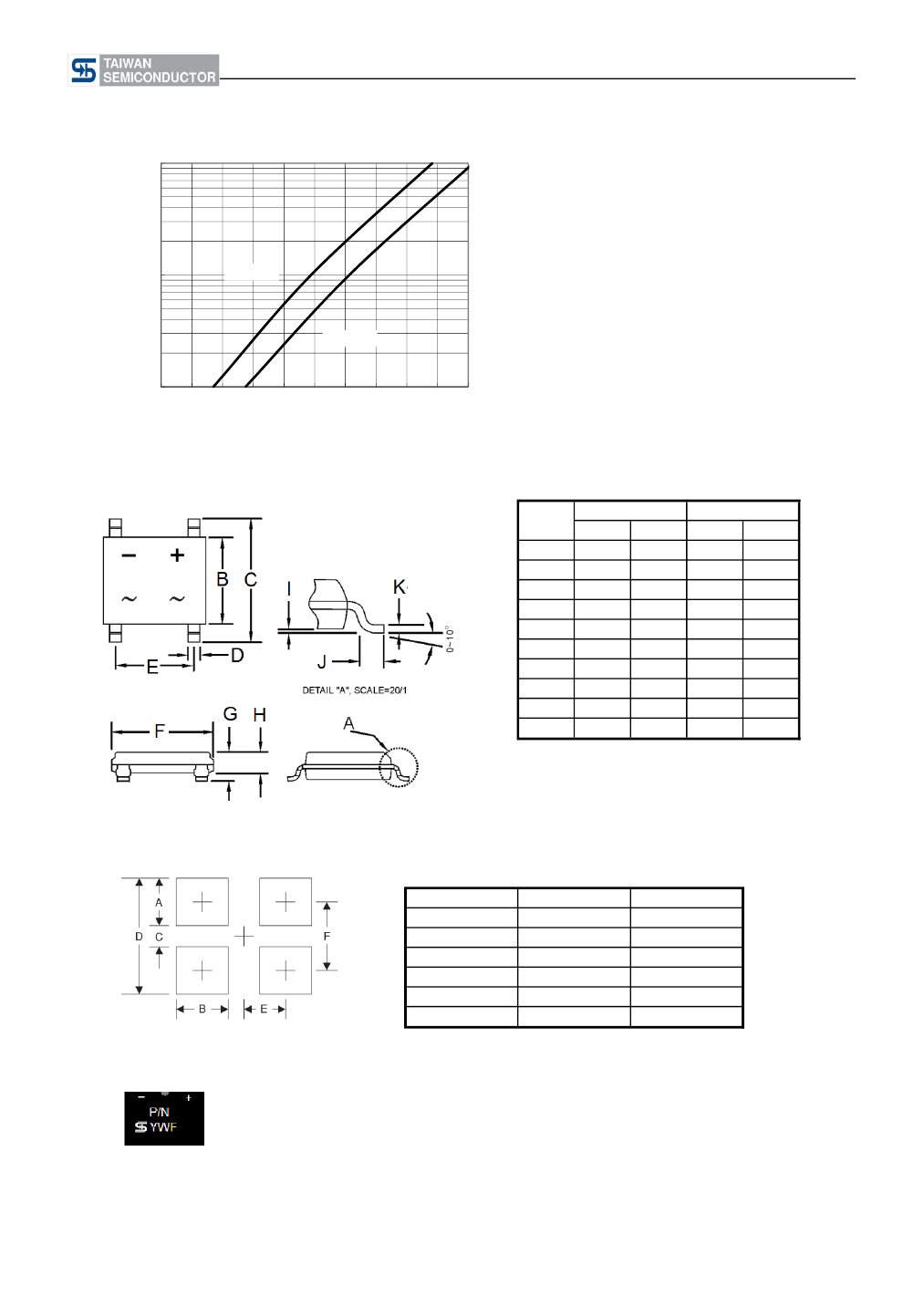

EABS1D - EABS1J
Taiwan Semiconductor
CREAT BY ART
