SVH-1920v2
Key Features :
> 10 bit color
> Updated LVDS connectors
> eDP panel support
> 18 PiP options
> Ceramic capacitors
> DVI, VGA, Video

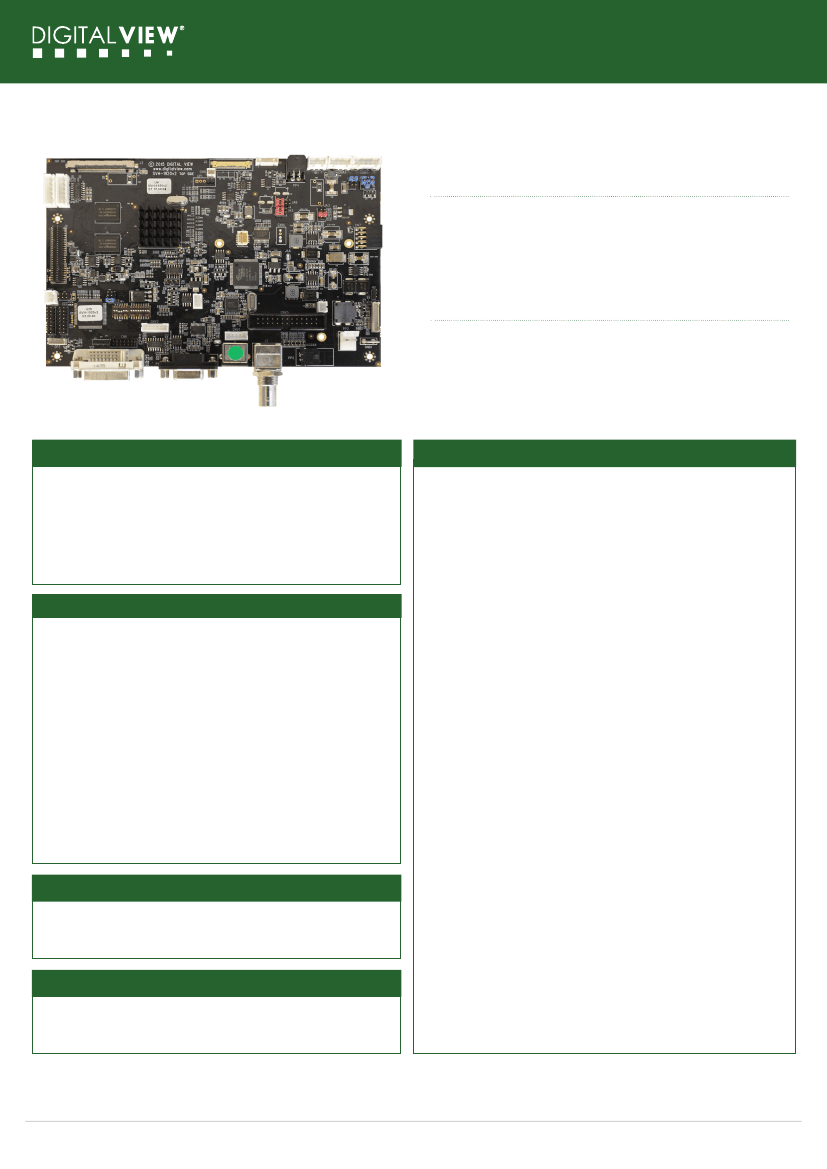

HD LCD Controller Board
The SVX-1920v2 is a fully buffered multi-sync interface controller for
providing analog and digital connection for a wide range of TFT LCD panels
up to 1920x1200 resolution. Featuring full screen image expansion of lower
resolutions, image flip and invert functions and onscreen PIP functions, the
SVH-1920v2 also supports an optional High-Definition Serial Digital Interface
( HD-SDI ) adaptor for professional and broadcast video applications.
Panel Connectivity
1920 x 1200
1920 x 1080
1680 x 1050
1600 x 1200
1440 x 900
1366 x 768
1280 x 1024
1280 x 800
1280 x 768
1024 x 768
800 x 480
800 x 600
640 x 480
Features
Colors:
Functions :
Function Controls:
Up to 10 bit per color, ie 1.06 billion colors
On Screen Display (OSD) menu
External buttons, Infra-Red controls,
Serial Port control
Image Scaling :
Up / Down scaling to fit input to panel resolution
Auto configuration, Brightness, Contrast, Clock,
Phase, Color Temperature, Image position, Hue,
Input
Analog RGB:
60Hz up to 1920x1200
75Hz up to 1280x1024
With auto detect of Digital Separate Sync, Sync-On-
Green & Composite Sync, Auto Detects VGA, WUXGA
interlaced & non-interlaced
60Hz up to 1920x1200
75Hz up to 1280x1024
NTSC / PAL / SECAM ( interlaced )
Composite Video S-video
HD / SD Component
Image Control :
Saturation, Gamma
Other Features :
System Information, OSD position, Scaling to fill screen
and fill to aspect ratio, OSD timeout, Factory Reset, OSD
menu transparency, Horizontal & Vertical image inversion,
Picture in Picture - variable position, any input
combination ( 18 sizes ), Picture by Picture, Programmable
hot keys, Serial port protocol, Ambient light sensor
Power:
Panel Power:
Panel Signal:
Inverter Support:
+12VDC / +24VDC ±5%, 10W (controller only)
Supports 3.3V, 5V, 12V & 18V panels
Dual channel LVDS support eDP
DPMS Enable pin (3.3V or 5V)
DDC 1,2/b compatible
Dual color LED support
DVI-D:
Video:
Options
HD-SDI Daughter board, IR Remote, 2W per channel stereo Audio Amplifier
Plug & Play:
Status Indicator:
Reliability
Calculated Mean Time Between Failures - In excess of 100,000 hours
Warranty: 3 years
*Specifications subject to change
© Digital View Group 2015 | www.digitalview.com
Nov 2015 v1.0
HD LCD Controller Board

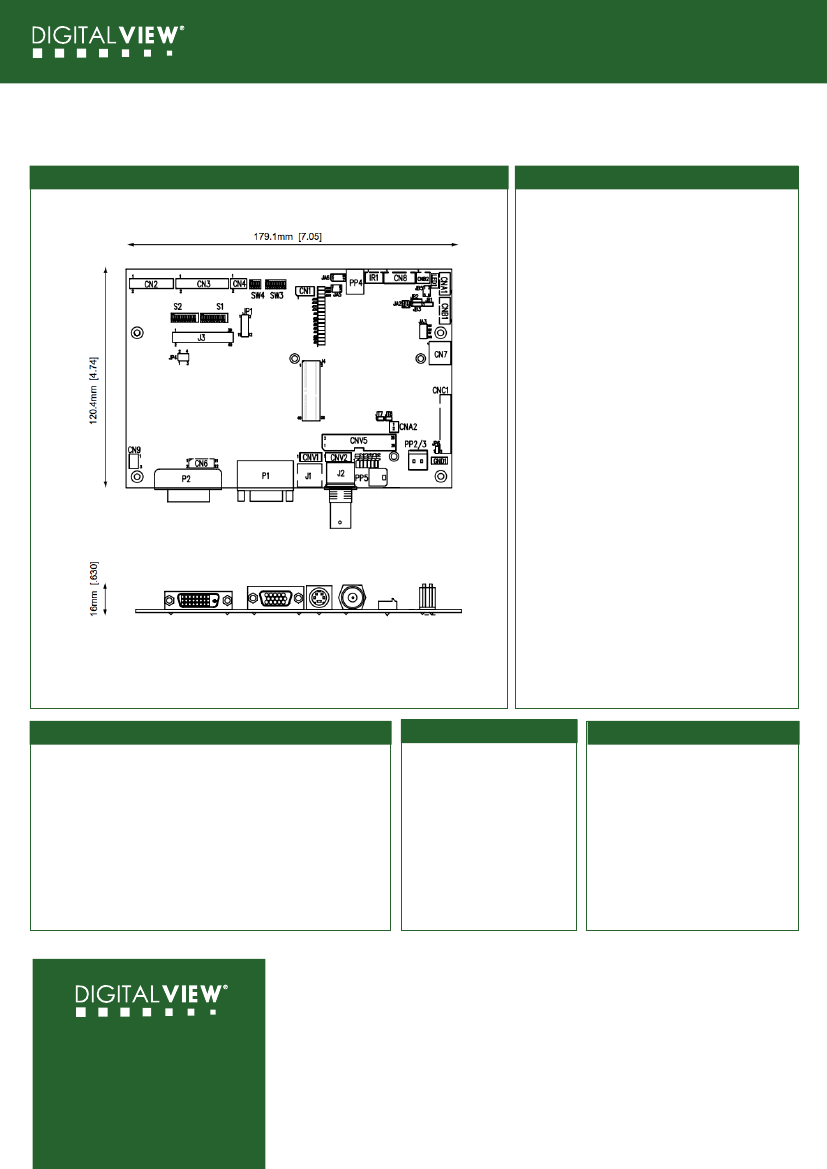

Mechanical Drawing
Connector Definitions
CN1
CN6
CN7
CN8
CN9
CN11
CNA1
CNA2
CNB1
CNB2
CNC1
CNV1
CNV2
CNV5
CP3
J1
J2
J3
J4
J5
J6
IR1
LED1
P1
P2
PP2/PP3
PP4
PP5
Second RS-232 serial control
Input connector
Audio board connector
RS-232 Serial Control
Ambient Light Sensor Connector
SPDIF Audio Output
Auxiliary Power Output
Auxiliary +5VDC
Backlight inverter
Backlight Status Input Connector
OSD Control
Alternate video in
HD/SD Component video in
Auxiliary video input S-video 1&2 composite 1&2
Reserved for internal programming
S-video 1 in
Composite video 1 in
Panel signal for LVDS panel
HD-SDI adaptor board interface connector
Display port output for panel connection
Panel power output for DisplayPort
Infra-red Sensor Connector
Dual color LED connector
VGA analog input
DVI-D or VGA 2 input
Power input
External panel power input
Power input
SVH-1920v2
SVX-1920v2
Ordering Options
SVX-1920v2
Single Channel HD-1000
Single Channel HD-2000
OSD Digital Button Board
Vertical Membrane OSD
Horizontal Membrane Kit
Inverter Interface board
Audio Amplifier IR Remote
Control
P/N 4175100xx-3
P/N 4160134xx-3
P/N 4160133xx-3
Kit 67110-3
Kit 67121-3
Kit 67134-3
P/N 416040010-3
P/N 416940020-3
P/N 559000106-3
Drawings
> Includes 2D (jpg)
> 3D (SLDPRT)
Available Resources
> Instruction Manual
> Revision Control Documentation**
> Firmware Upgrade Manual**
> Mechanical Drawing
** Available on Request
Please download at:
www.digitalview.com/
products/SVH-1920v2
Controller Solution Generator
http://www.digitalview.com/csg
