The DG201B, DG202B analog switches are highly improved
versions of the industry-standard DG201A, DG202. These
devices are fabricated in Vishay Siliconix’ proprietary silicon
gate CMOS process, resulting in lower on-resistance, lower
leakage, higher speed, and lower power consumption.
These quad single-pole single-throw switches are designed
for a wide variety of applications in telecommunications,
instrumentation, process control, computer peripherals, etc.
An improved charge injection compensation design
minimizes switching transients. The DG201B and DG202B
can handle up to ± 22 V input signals, and have an improved
continuous current rating of 30 mA. An epitaxial layer
prevents latchup.
All devices feature true bi-directional performance in the on
condition, and will block signals to the supply voltages in the
off condition.
The DG201B is a normally closed switch and the DG202B is
a normally open switch. (see Truth Table.)
FEATURES
•
•
•
•
•
•
•
•
•
± 22 V supply voltage rating
TTL and CMOS compatible logic
Low on-resistance - R
DS(on)
: 45
Low leakage - I
D(on)
: 20 pA
Single supply operation possible
Extended temperature range
Fast switching - t
ON
: 120 ns
Low glitching - Q: 1 pC
Compliant to RoHS Directive 2002/95/EC
Pb-free
Available
RoHS*
COMPLIANT
BENEFITS
•
Wide analog signal range
•
•
•
•
•
Simple logic interface
Higher accuracy
Minimum transients
Reduced power consumption
Superior to DG201A, DG202
•
Space savings (TSSOP)
APPLICATIONS
•
Industrial instrumentation
•
•
•
•
•
Test equipment
Communications systems
Disk drives
Computer peripherals
Portable instruments
•
Sample-and-hold circuits
FUNCTIONAL BLOCK DIAGRAM AND PIN CONFIGURATION
DG201B
Dual-In-Line, SOIC and TSSOP
IN
1
D
1
S
1
V-
GND
S
4
D
4
IN
4
IN
2
D
2
S
2
V+
NC
S
3
D
3
IN
3
1
2
3
4
5
6
7
8
Top View
16
15
14
13
12
11
10
9
TRUTH TABLE
Logic
0
1
Logic “0”
0.8
V
Logic “1”
2.4
V
DG201B
ON
OFF
DG202B
OFF
ON
* Pb containing terminations are not RoHS compliant, exemptions may apply
Document Number: 70037
S11-0800-Rev. J, 25-Apr-11
www.vishay.com
1
This document is subject to change without notice.
THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
DG201B, DG202B
Vishay Siliconix
ORDERING INFORMATION
Temp. Range
- 55 °C to 125 °C
Package
16-pin CerDIP
Part Number
DG201BAK
DG202BAK
DG201BDJ
DG201BDJ-E3
DG202BDJ
DG202BDJ-E3
DG201BDY
DG201BDY-E3
DG201BDY-T1
DG201BDY-T1-E3
16-pin narrow SOIC
- 40 °C to 85 °C
DG202BDY
DG202BDY-E3
DG202BDY-T1
DG202BDY-T1-E3
DG201BDQ
DG201BDQ-E3
DG201BDQ-T1
DG201BDQ-T1-E3
16-pin TSSOP
DG202BDQ
DG202BDQ-E3
DG202BDQ-T1
DG202BDQ-T1-E3
16-pin Plastic DIP
ABSOLUTE MAXIMUM RATINGS
Parameter
Voltages Referenced, V+ to V-
GND
Digital
Inputs
a
,
V
S
, V
D
Limit
44
25
(V-) - 2 to (V+) + 2
or 30 mA, whichever occurs first
30
100
- 65 to 150
- 65 to 125
470
d
Unit
V
Current (Any terminal)
Peak Current S or D (Pulsed at 1 ms, 10 % duty cycle max.)
Storage Temperature
(AK, DK suffix)
(DJ, DY, DQ suffix)
16-pin plastic DIP
c
Power Dissipation (Package)
b
16-pin narrow SOIC and TSSOP
16-pin CerDIP
LCC-20
f
e
mA
°C
640
900
750
mW
Notes:
a. Signals on S
X
, D
X
, or IN
X
exceeding V+ or V- will be clamped by internal diodes. Limit forward diode current to maximum current ratings.
b. All leads welded or soldered to PC board.
c. Derate 6.5 mW/°C above 75 °C.
d. Derate 7.6 mW/°C above 75 °C.
e. Derate 12 mW/°C above 75 °C.
f. Derate 10 mW/°C above 75 °C.
www.vishay.com
2
Document Number: 70037
S11-0800-Rev. J, 25-Apr-11
This document is subject to change without notice.
THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
DG201B, DG202B
Vishay Siliconix
SCHEMATIC DIAGRAM
(typical channel)
V+
5V
Reg
Level
Shift/
Drive
IN
X
V-
V+
S
X
D
X
GND
V-
Figure 1.
SPECIFICATIONS
a
Test Conditions
Unless Specified
V+ = 15 V, V- = - 15 V
V
IN
= 2.4 V, 0.8 V
f
A Suffix
D Suffix
- 55 °C to 125 °C - 40 °C to 85 °C
Temp.
b
Typ.
c
Full
Room
Full
Room
Room
Full
Room
Full
Room
Full
Full
Full
V
INH
or V
INL
Full
Room
Room
Full
Room
Full
Room
Room
Room
Room
Room
Room
5
120
65
1
5
5
16
90
95
dB
pF
300
200
300
200
ns
-1
Min.
d
- 15
45
2
± 0.01
± 0.01
± 0.02
Max.
d
15
85
100
0.5
20
0.5
20
0.5
40
Min.
d
- 15
Max.
d
15
85
100
0.5
5
0.5
5
0.5
10
Unit
V
Parameter
Analog Switch
Analog Signal Range
e
Drain-Source
On-Resistance
R
DS(on)
Match
Source Off Leakage
Current
Drain Off Leakage
Current
Drain On Leakage
Current
Digital Control
Input Voltage High
Input Voltage Low
Input Current
Input Capacitance
Dynamic Characteristics
Turn-On Time
Turn-Off Time
Charge Injection
Source-Off Capacitance
Drain-Off Capacitance
Channel On Capacitance
Off Isolation
Channel-to-Channel
Crosstalk
Power Supply
Positive Supply Current
Negative Supply Current
Power Supply Range for
Continuous Operation
Symbol
V
ANALOG
R
DS(on)
R
DS(on
I
S(off)
I
D(off)
I
D(on)
V
D
= ± 10 V, I
S
= 1 mA
V
S
= ± 14 V, V
D
= ± 14 V
V
D
= ± 14 V, V
S
= ± 14 V
V
S
= V
D
= ± 14 V
- 0.5
- 20
- 0.5
- 20
- 0.5
- 40
2.4
- 0.5
-5
- 0.5
-5
- 0.5
- 10
2.4
nA
V
INH
V
INL
I
INH
or I
INL
C
IN
0.8
1
-1
0.8
1
V
µA
pF
t
ON
t
OFF
Q
C
S(off)
C
D(off)
C
D(on)
OIRR
X
TALK
V
S
= 2 V
see switching time test circuit
C
L
= 1000 pF, V
g
= 0 V
R
g
= 0
V
S
= 0 V, f = 1 MHz
V
D
= V
S
= 0 V, f = 1 MHz
C
L
= 15 pF, R
L
= 50
V
S
= 1 V
RMS
, f = 100 kHz
pC
I+
V
IN
= 0 or 5 V
I-
V
OP
Room
Full
Room
Full
Full
50
100
-1
-5
± 4.5
± 22
-1
-5
± 4.5
50
100
µA
± 22
V
Document Number: 70037
S11-0800-Rev. J, 25-Apr-11
www.vishay.com
3
This document is subject to change without notice.
THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
DG201B, DG202B
Vishay Siliconix
SPECIFICATIONS
(for Single Supply)
a
Test Conditions
Unless Specified
V+ = 12 V, V- = 0 V
V
IN
= 2.4 V, 0.8 V
f
A Suffix
D Suffix
- 55 °C to 125 °C - 40 °C to 85 °C
Temp.
b
Typ.
c
Full
Room
Full
Room
Room
Room
Min.
d
0
90
Max.
d
12
160
200
300
200
Min.
d
0
Max.
d
12
160
200
300
200
Unit
V
Parameter
Symbol
Analog Switch
V
ANALOG
Analog Signal Range
e
Drain-Source
R
DS(on)
On-Resistance
Dynamic Characteristics
Turn-On Time
t
ON
Turn-Off Time
Charge Injection
Power Supply
Positive Supply Current
Negative Supply Current
Power Supply Range for
Continuous Operation
I+
t
OFF
Q
V
D
= 3 V, 8 V, I
S
= 1 mA
V
S
= 8 V
see switching time test circuit
C
L
= 1 nF, V
gen
= 6 V
R
gen
= 0
120
60
4
ns
pC
V
IN
= 0 or 5 V
I-
V
OP
Room
Full
Room
Full
Full
50
100
-1
-5
+ 4.5
+ 25
-1
-5
+ 4.5
50
100
µA
+ 25
V
Notes:
a. Refer to PROCESS OPTION FLOWCHART.
b. Room = 25 °C, Full = as determined by the operating temperature suffix.
c. Typical values are for DESIGN AID ONLY, not guaranteed nor subject to production testing.
d. The algebraic convention whereby the most negative value is a minimum and the most positive a maximum, is used in this data sheet.
e. Guaranteed by design, not subject to production test.
f. V
IN
= input voltage to perform proper function.
Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only, and functional operation
of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum
rating conditions for extended periods may affect device reliability.
www.vishay.com
4
Document Number: 70037
S11-0800-Rev. J, 25-Apr-11
This document is subject to change without notice.
THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
DG201B, DG202B
Vishay Siliconix

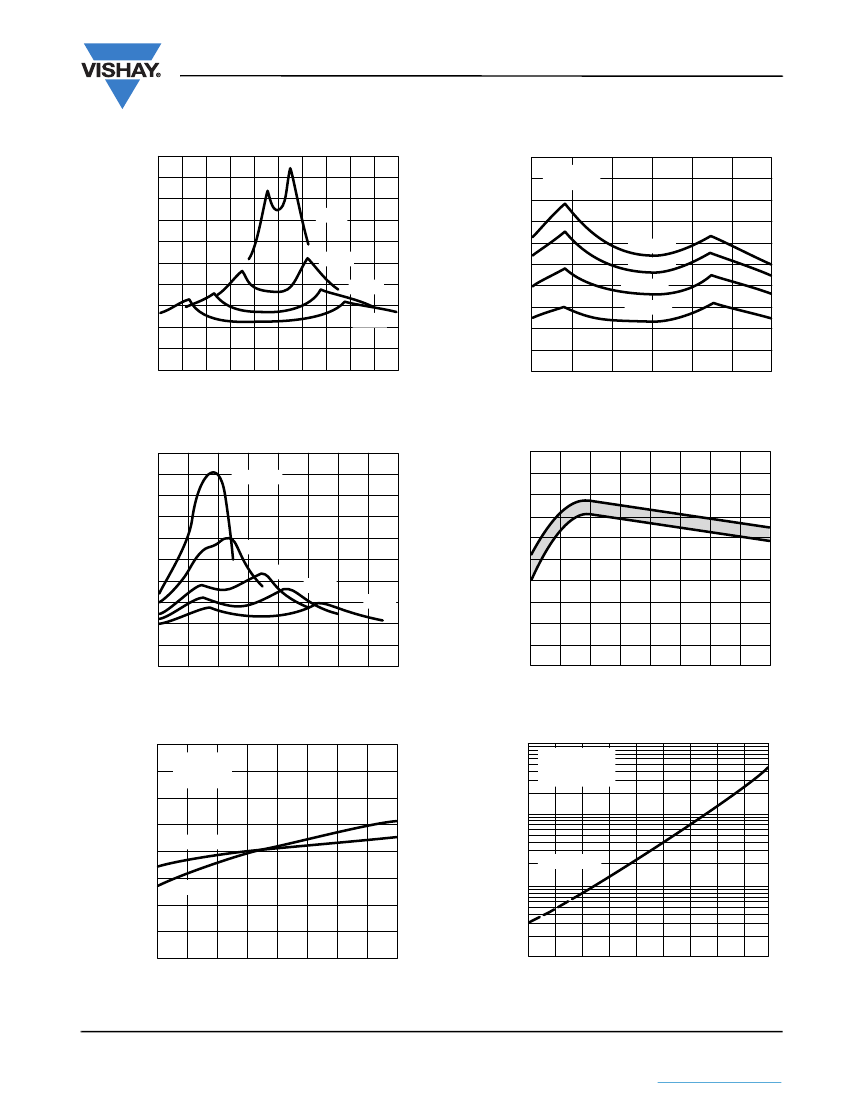

TYPICAL CHARACTERISTICS
(25 °C, unless otherwise noted)
110
100
90
80
R
DS(on)
(Ω)
70
60
50
40
30
20
10
- 20 - 16 - 12
-8
-4
0
4
8
12
16
20
V
D
- Drain Voltage (V)
± 20 V
20
10
0
- 15
± 10 V
± 15 V
±5V
R
DS(on)
(Ω)
100
90
80
70
60
50
40
30
125 °C
85 °C
25 °C
- 55 °C
V+ = 15 V
V- = - 15 V
- 10
-5
0
5
10
15
V
D
- Drain Voltage (V)
R
DS(on)
vs. V
D
and Power Supply Voltages
250
225
200
175
R
DS(on)
(Ω)
7V
10 V
100
75
50
25
0
0
2
4
6
8
10
12
14
16
V
D
- Drain Voltage (V)
0
4
6
12 V
15 V
0.5
V
TH
(V)
150
125
1.5
V+ = 5 V
2
2.5
R
DS(on)
vs. V
D
and Temperature
1
8
10
12
14
16
18
20
V+ Positive Supply (V)
R
DS(on)
vs. V
D
and Single Power Supply Voltages
80
60
40
I
S,
I
D
- Current (pA)
20
0
- 20
- 40
- 60
- 80
- 20
I
S(off)
, I
D(off)
I
S
, I
D
- Current
100 pA
V+ = 22 V
V- = - 22 V
T
A
= 25 °C
1 nA
Input Switching Threshold vs. Supply Voltage
V+ = 15 V
V- = - 15 V
V
S,
V
D
= ± 14 V
I
S(off)
, I
D(off)
10 pA
I
D(on)
- 15
- 10
-5
0
5
10
15
20
1 pA
- 55
- 35
- 15
5
25
45
65
85
105 125
Temperature (°C)
Temperature (°C)
Leakage Currents vs. Analog Voltage
Leakage Currents vs. Temperature
Document Number: 70037
S11-0800-Rev. J, 25-Apr-11
www.vishay.com
5
This document is subject to change without notice.
THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
I am using a 3Brothers 28335 motherboard and a 100V3 emulator. After connecting, it reports an error of 183. Later, I changed to a 100v3 emulator and it reports an error of 1155. Please help me solve ...
It was too hot, so we had to give electricity to the people. Our entire park was shut down. The government said it was a week-long holiday for high temperatures, but enterprises are not paid by the go...
[size=4] I have been engaged in hardware and FPGA development, and embedded systems have always been a weak point. Although I have several embedded boards on hand, and I often make up my mind to learn...
I use timer 0 to set the 12s to send serial port data, use timer 1 or 2 as the baud rate generator, only open the interrupt of timer 0, and the serial port interrupt is not turned on, but the serial p...
Dong Yang, executive vice president of the China Association of Automobile Manufacturers, said on the 26th that according to the authorization of the Ministry of Industry and Information Technology...[Details]
Guangdong Traffic Regulation No. 355
To all municipal transportation bureaus (commissions) above the prefecture level, provincial transportation groups, Guangdong Power Grid Compa...[Details]
Recently, the Provincial Development and Reform Commission and the Provincial Poverty Alleviation Office jointly organized the application for a number of centralized photovoltaic poverty alleviation ...[Details]
With the large-scale development of the domestic household photovoltaic market and the improvement of component and inverter technology, the system cost has dropped significantly in the past year. The...[Details]
China Energy Storage Network News:
New era, new mission, new journey, the clarion call of the 19th National Congress report is loud and inspiring. Against this background, State Grid Corporat...[Details]
According to MiningWeekly, citing Bloomberg News, California, which is using power batteries to boost the electric vehicle craze, is launching another similar public utility revolution, which may c...[Details]
Distributed photovoltaic power generation, as the hottest project in recent years, is entering thousands of households. It can be said to be a household appliance or an investment project. However,...[Details]
Qinghai has "lithium" and it has attracted much attention. Recently, with the establishment of the industrialization project of Shenzhen Ruidefeng Precision Manufacturing Co., Ltd. with an annual o...[Details]
On September 5, 2017, in order to handle the key suggestions of the Fifth Session of the Twelfth National People's Congress, Wang Yan, Deputy Director of the Energy Conservation and Comprehensive U...[Details]
"Thanks to a number of new technological breakthroughs, Ginlong Technology has applied hardware dead zone technology on the fourth-generation inverter to achieve double safety protection. AFCI arc ...[Details]
China Energy Storage Network News:
On October 30th, local time in the United States, Liu Zhenya, Chairman of the Global Energy Interconnection Development Cooperation Organization and Chairma...[Details]
Driven by policies, my country's photovoltaic industry has achieved leapfrog growth. By the end of 2016, my country's cumulative photovoltaic installed capacity reached 77.42GW, with an additional ...[Details]
Inverter, also known as inverter power supply, is a current conversion device that converts DC power into AC power. Photovoltaic inverter is an inverter used in solar photovoltaic power generation ...[Details]
ABB (VTX:ABBN) will provide a 24.5 MW microgrid facility and energy storage system to help integrate solar and wind power into Jamaica’s electricity supply.
Microgrids will support...[Details]
China Energy Storage Network News:
—— Interview with Executive Vice President of Tsinghua University Energy Internet Innovation Institute
Reporter: In your opinion, what will the...[Details]
RF/Wirelessly
京公网安备 11010802033920号
EEWORLD
