MCP6401RT-E/OT: DescriptionMCP6401RT-E/OT amplifier basic information: MCP6401RT-E/OT is an operational amplifier - operational amplifier (Op Amps - Operational Amplifiers) from Microchip. MCP6401RT-E/OT amplifier core information: The minimum operating temperature of MCP6401RT-E/OT is - 40 C and the maximum operating temperature is + 125 C. The corresponding working power supply current is 45 uA. The output current of each channel is: 15 mA. The MCP6401RT-E/OT has a power supply rejection ratio of 78 dB. (Power supply rejection ratio (PSRR): An indicator used to determine the impact of the amplifier output on the power supply. PSRR = 20log[(Ripple(in) / Ripple(out))], that is, the larger the value, the less the amplifier output is affected by the power input. The smaller.) The gain bandwidth product (GBP, gain bandwidth product) of MCP6401RT-E/OT is 1 MHz. As a parameter to simply measure the performance of the amplifier, if you are not sure how to choose your amplifier, you can use this as a parameter. A relatively simple metric. The corresponding input voltage noise density is 28 nV/sqrt Hz When a voltage difference of 4.5 mV is applied across the input pins of the MCP6401RT-E/OT, the output voltage of the amplifier is 0V. (That is, its input bias voltage is 4.5 mV) Related dimensions of MCP6401RT-E/OT: Number of channels in total: 1 Channel. MCP6401RT-E/OT amplifier additional information: And its more detailed single package form is: SOT-23-5. When suppliers on the market sell MCP6401RT-E/OT, they use the form: Reel.; CategoryAnalog mixed-signal IC Amplifier circuit; File Size381KB，29 Pages; ManufacturerMicrochip; Websitehttps://www.microchip.com; Environmental Compliance; Alternative parts：MCP6401RT-E/OT

Download Datasheet Parametric Compare View All

MCP6401RT-E/OT Overview

MCP6401RT-E/OT amplifier basic information:

MCP6401RT-E/OT is an operational amplifier - operational amplifier (Op Amps - Operational Amplifiers) from Microchip.

MCP6401RT-E/OT amplifier core information:

The minimum operating temperature of MCP6401RT-E/OT is - 40 C and the maximum operating temperature is + 125 C. The corresponding working power supply current is 45 uA. The output current of each channel is: 15 mA.

The MCP6401RT-E/OT has a power supply rejection ratio of 78 dB. (Power supply rejection ratio (PSRR): An indicator used to determine the impact of the amplifier output on the power supply. PSRR = 20log[(Ripple(in) / Ripple(out))], that is, the larger the value, the less the amplifier output is affected by the power input. The smaller.) The gain bandwidth product (GBP, gain bandwidth product) of MCP6401RT-E/OT is 1 MHz. As a parameter to simply measure the performance of the amplifier, if you are not sure how to choose your amplifier, you can use this as a parameter. A relatively simple metric. The corresponding input voltage noise density is 28 nV/sqrt Hz

When a voltage difference of 4.5 mV is applied across the input pins of the MCP6401RT-E/OT, the output voltage of the amplifier is 0V. (That is, its input bias voltage is 4.5 mV)

Related dimensions of MCP6401RT-E/OT:

Number of channels in total: 1 Channel.

MCP6401RT-E/OT amplifier additional information:

And its more detailed single package form is: SOT-23-5. When suppliers on the market sell MCP6401RT-E/OT, they use the form: Reel.

MCP6401RT-E/OT Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Microchip
Parts packaging code	SOT-23
package instruction	LSSOP, TSOP5/6,.11,37
Contacts	5
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	19 weeks
Amplifier type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Maximum average bias current (IIB)	0.0001 µA
Nominal Common Mode Rejection Ratio	78 dB
frequency compensation	YES
Maximum input offset voltage	4500 µV
JESD-30 code	R-PDSO-G5
JESD-609 code	e3
length	2.9 mm
low-bias	YES
low-dissonance	NO
micropower	YES
Humidity sensitivity level	1
Number of functions	1
Number of terminals	5
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	LSSOP
Encapsulate equivalent code	TSOP5/6,.11,37
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH
method of packing	TAPE AND REEL
Peak Reflow Temperature (Celsius)	260
power	NO
power supply	2/5 V
Programmable power	NO
Certification status	Not Qualified
Maximum seat height	1.45 mm
Nominal slew rate	0.5 V/us
Maximum slew rate	0.07 mA
Supply voltage upper limit	7 V
Nominal supply voltage (Vsup)	1.8 V
surface mount	YES
technology	CMOS
Temperature level	AUTOMOTIVE
Terminal surface	Matte Tin (Sn) - annealed
Terminal form	GULL WING
Terminal pitch	0.95 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	40
Nominal Uniform Gain Bandwidth	1000 kHz
Minimum voltage gain	31620
broadband	NO
width	1.55 mm

Preview

Download Datasheet

View All

MCP6401/1R/1U

1 MHz, 45 µA Op Amps

Features

•

Low Quiescent Current: 45 µA (typical)

Gain Bandwidth Product: 1 MHz (typical)

Rail-to-Rail Input and Output

Supply Voltage Range: 1.8V to 6.0V

Unity Gain Stable

Extended Temperature Range: -40°C to +125°C

No Phase Reversal

Description

The Microchip Technology Inc. MCP6401/1R/1U family

of operational amplifiers (op amps) has low quiescent

current (45 µA, typical) and rail-to-rail input and output

operation. This family is unity gain stable and has a

gain bandwidth product of 1 MHz (typical). These

devices operate with a single supply voltage as low as

1.8V. These features make the family of op amps well

suited for single-supply, battery-powered applications.

The MCP6401/1R/1U family is designed with

Microchip’s advanced CMOS process and offered in

single packages. All devices are available in the

extended temperature range, with a power supply

range of 1.8V to 6.0V.

Applications

•

Portable Equipment

Battery Powered System

Medical Instrumentation

Data Acquisition Equipment

Sensor Conditioning

Supply Current Sensing

Analog Active Filters

Package Types

MCP6401

SC70-5, SOT-23-5,

OUT

+ 3

4 V

–

5 V

MCP6401R

SOT-23-5,

OUT

+ 3

4 V

–

5 V

Design Aids

•

SPICE Macro Models

FilterLab

Software

Mindi

™

Circuit Designer & Simulator

Microchip Advanced Part Selector (MAPS)

Analog Demonstration and Evaluation Boards

Application Notes

MCP6401U

SOT-23-5,

+ 1

– 3

4 V

OUT

5 V

Typical Application

OUT

MCP6401

Precision Half-Wave Rectifier

2009 Microchip Technology Inc.

DS22229A-page 1

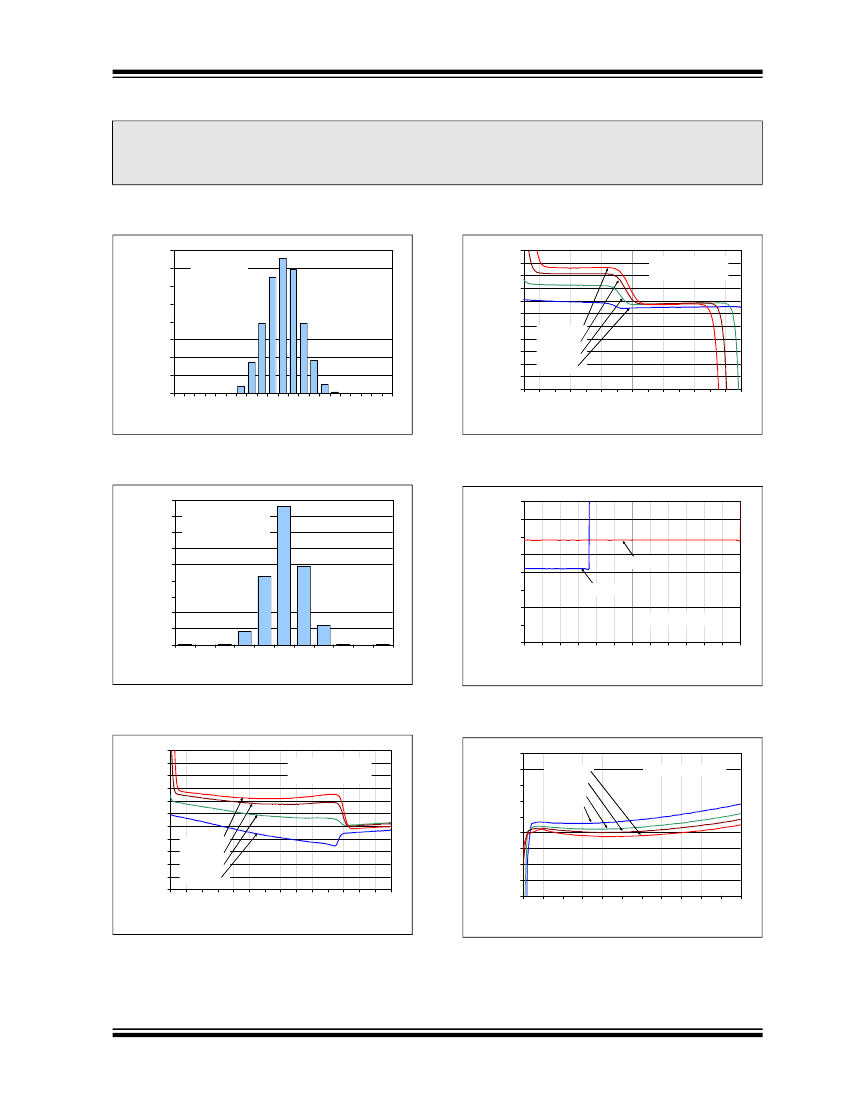

MCP6401RT-E/OT Related Products

	MCP6401RT-E/OT	MCP6401T-H/OT
Description	Operational Amplifier - Operational Amplifier Single 1.8V 1MHz Op E temp	Operational Amplifier - Operational Amplifier Single, 1.8V 1MHz Op, H temp
Is it Rohs certified?	conform to	conform to
Maker	Microchip	Microchip
Parts packaging code	SOT-23	SOT-23
package instruction	LSSOP, TSOP5/6,.11,37	LSSOP, TSOP5/6,.11,37
Contacts	5	5
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
Factory Lead Time	19 weeks	19 weeks
Amplifier type	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK
Maximum average bias current (IIB)	0.0001 µA	0.0001 µA
Nominal Common Mode Rejection Ratio	78 dB	78 dB
frequency compensation	YES	YES
Maximum input offset voltage	4500 µV	4500 µV
JESD-30 code	R-PDSO-G5	R-PDSO-G5
JESD-609 code	e3	e3
length	2.9 mm	2.9 mm
low-bias	YES	YES
low-dissonance	NO	NO
micropower	YES	YES
Humidity sensitivity level	1	1
Number of functions	1	1
Number of terminals	5	5
Maximum operating temperature	125 °C	150 °C
Minimum operating temperature	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	LSSOP	LSSOP
Encapsulate equivalent code	TSOP5/6,.11,37	TSOP5/6,.11,37
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH
method of packing	TAPE AND REEL	TAPE AND REEL
Peak Reflow Temperature (Celsius)	260	260
power	NO	NO
power supply	2/5 V	2/5 V
Programmable power	NO	NO
Certification status	Not Qualified	Not Qualified
Maximum seat height	1.45 mm	1.45 mm
Nominal slew rate	0.5 V/us	0.5 V/us
Maximum slew rate	0.07 mA	0.07 mA
Supply voltage upper limit	7 V	7 V
Nominal supply voltage (Vsup)	1.8 V	1.8 V
surface mount	YES	YES
technology	CMOS	CMOS
Temperature level	AUTOMOTIVE	AUTOMOTIVE
Terminal surface	Matte Tin (Sn) - annealed	Matte Tin (Sn) - annealed
Terminal form	GULL WING	GULL WING
Terminal pitch	0.95 mm	0.95 mm
Terminal location	DUAL	DUAL
Maximum time at peak reflow temperature	40	40
Nominal Uniform Gain Bandwidth	1000 kHz	1000 kHz
Minimum voltage gain	31620	17780
broadband	NO	NO
width	1.55 mm	1.55 mm
