CPU-301-16
• Flexible Deployment – CoM or standalone SBC
• Multi-Core Configurations
• Ultra Low Power, 1-2W Typ.
• Feature-Rich in Just 67x85mm
• HD Multimedia Playback Support
Rugged, Ultra Low Power
i.MX6 SBC/CoM
F EATU RE S

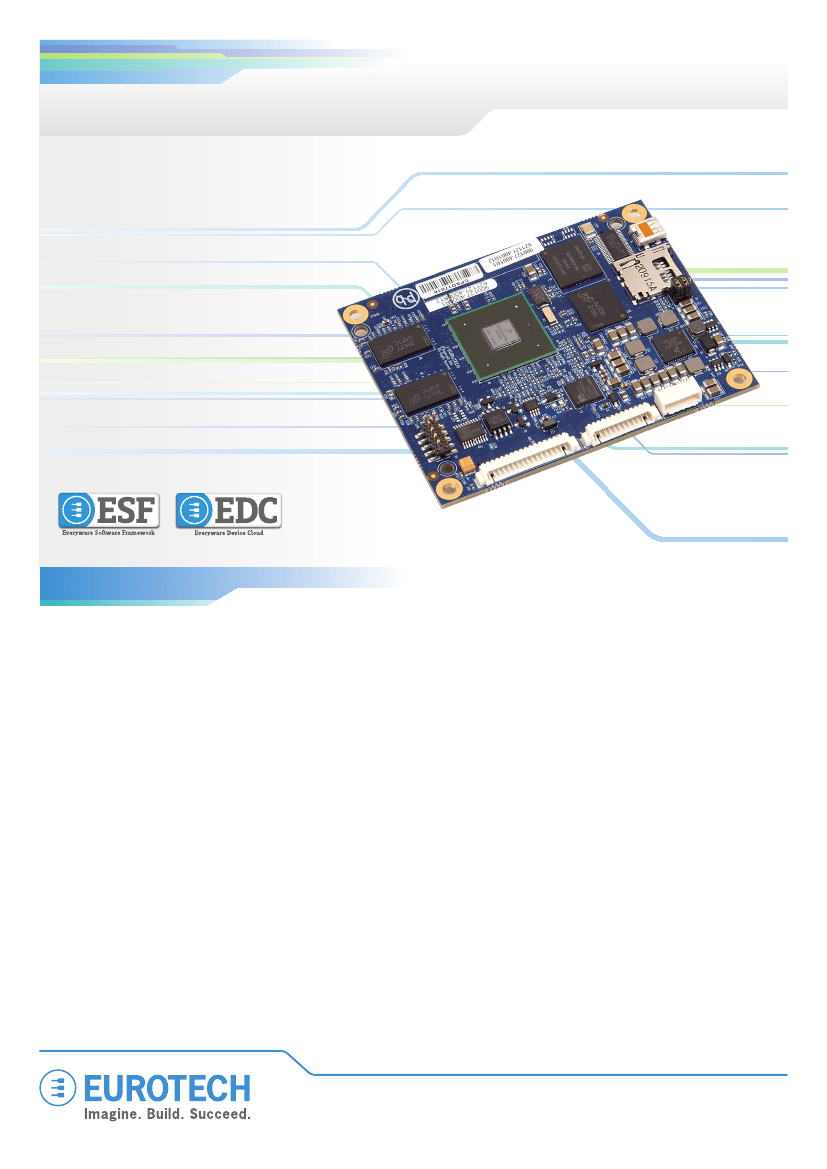

The CPU-301-16 is
available in two versions: as Computer on
Module (COM) to be coupled to a carrier board and as a stand-
alone Single Board Computer (SBC).
Multi-Core Options
– The CPU-301-16 offers configurations
using single core, dual core or quad core technology to give
device manufacturers just the right amount of processing
power for their application.
Ultra Low Power Consumption
– Thanks to Eurotech’s
proprietary power management, the CPU-301-16 can typically
operate at 1-2W or less, making it ideal for battery-operated
devices and power-constrained uses.
HD Multimedia Playback
– For applications like kiosk, digital
signage, and point of sale, the CPU-301-16 can run up to four
independent displays at 1080p.
Rugged and Efficient Design
– With optional support for
industrial temperature range and enhanced vibration tolerance,
at 67x85mm the CPU-301-16 fits into very small enclosures,
with little or no need for heat dissipation in low power
configurations.
Long Life-Cycle
– With options for extended lifecycle, any
design using the CPU-301-16 will have proven supply and
support for many years to come.
Delivering a full range of capabilities in a low-power and compact design, the
CPU-301-16 is the embedded platform of choice for a wide range of applications,
such as retail kiosk displays, medical equipment, and control panels for fitness
equipment. The CPU-301-16 uses leading-edge i.MX6 technology to deliver
significant functionality into a form factor that allows for efficient packaging
and design. Being extremely power efficient, the CPU-301-16 greatly simplifies
heat management, allowing fanless designs for most applications.
The CPU-301-16 is available in two versions: as a stand-alone Single Board
Computer (no need for a carrier board: just add a power source, the cables and
an enclosure to make a smart device) and as a traditional Computer on Module,
where the native interfaces are exposed and expanded through a carrier board.
The board support package (BSP) from Eurotech enables the capabilities of
the i.MX6 processor, providing an application-ready embedded platform that
makes it easy to exploit the full feature set of the module.
The CPU-301-16 extends the Eurotech family of products that make
Machine-to-Machine applications possible. With the Everyware Software
Framework (ESF) or the Everyware Cloud Cliet loaded on the CPU-301-16, any
device using this platform is Everyware Cloud-enabled and ready to be part of
the Internet of Things.
To learn how the CPU-301-16 can speed time to market and simplify
development for sophisticated devices, contact the Eurotech sales team to
order a development kit.
CPU-301-1 6
Specifications
System Architecture
PROCESSOR
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Rugged, Ultra Low Power
i.MX6 SBC/CoM
MEMORY
BOOT OPTIONS
STAND ALONE SBC MODE INTERFACES
CoM MODE INTERFACES
PHYSICAL
ENVIRONMENTAL
POWER
•
OPERATING SYSTEMS
•
Freescale i.MX6Solo (Single Core ARM Cortex-A9, up to 1.0 GHz)
Freescale i.MX6DualLite (Dual Core ARM Cortex-A9, up to 1.0GHz)
Freescale i.MX6Dual (Dual Core ARM Cortex-A9, up to 1.2GHz)
Freescale i.MX6Quad (Quad Core ARM Cortex-A9, up to 1.2GHz)
Main Memory: DDR3L, memory down, up to 4GB
On Board Flash: Memory down, up to 64GB
On Board Flash Expansion: microSD slot, up to 64GB
Off Board Flash Expansion: 8bit SD port
Boot Support: SD, NAND, eMMC, USB
Graphics/Audio: 1x HDMI
USB: 1x USB 2.0, OTG
Ethernet: 1x Gb Ethernet, with integrated PHY
Serial: 1x RS232 (2 wire)
GPIO: 5x GPIO, 3.3V
I2C: 1x I2C bus
Power Supply Single: 3.3V input
Connector Type: Direct Board to Wire (no carrier board required)
Graphics: 2x LVDS, 1x RGB, HDMI, MIPI
Audio CODEC Interface: S/PDIF
SATA: 1x SATA-300
USB: 2x USB 2.0 (1x Host, 1x OTG)
Serial: 4x UART
Expansion/Flash Port: 1x SD interface, 8 bit
Ethernet: 1x 10/100/1000 with integrated PHY, IEEE1588 Support
CAN: 2x CAN 2.0
PCIe: x1 PCIe
Camera Interfaces:
- MIPI Camera
- CMOS Camera (Optional)
GPIO:
- 21x GPIO, 3.3V (with support for an 8x8 keyboard matrix)
I2C: 2x I2C bus
SPI: 2x SPI bus
Dimensions: 67mm x 85mm
CoM Connector: 2x Tyco Series, 220 Pin
Operat. Temp.:
- Extended -40° to +85°C
- Commercial 0° to +70°C
RoHS: Compliant
Power Supply:
- 3.3V Input
- 1-2W Typical
- 5W Max
Power Management:
- Eurotech Power Management
- Sleep/Run/Selective Power Down/Scaling
Linux and Windows Embedded Compact 7
microSD Card Slot
(4-bit)
CMOS Camera I/F
(8-bit)
LVDS Display I/F
HDMI Display I/F
(1080p)
MIPI Camera I/F
1 x EIA-232
(4-wire)
1 x EIA-232/485
(4 wire)
MIPI Display I/F
miniPCIe Slot
with USB
SATA Drive
Header
SIM Socket
Xcvr UART C
Xcvr UART D
HDMI I
2
C Bus
SIM
GPIO
Header
UART A
Sys Mgmt I/O
I
2
C Bus
I
2
C Bus
I
2
C Bus
I
2
C Bus
microHDMI
Socket
(Dual Lite/Dual/Quad Only)
microSD
Card Slot
(4-bit)
I
2
C Bus
USB 4
CPU-301-16 (CoM Version)
Freescale
™
i.MX 6
Solo/Dual/Quad
Processor
(800MHz-1.2GHz)
(32-bit, 800MT/s‒Solo Only)
(64-bit, 1066MT/s‒Dual Lite/Dual/Quad Only)
HDMI I
2
C
LVDS Display 1
CSI Data/UART 4
CSI Data/UART 5
125MB-64GB
NAND Flash
(Up to 200MB)
HDMI Display
User GPIO 0-3
MIPI DSI x 2
MIPI CSI x 4
CSI Control
SD 4 (8-bit)
SPI Bus 3
PCIe x 1
SATA-2
S/PDIF
MLB
256MB-4GB
DDR-3 DRAM
(16/32/64-bit)
2-64GB
eMMC
(8-bit)
(Up to QVGA 2048 x 1536)
(Dual Display–Solo Only)
(Quad Display–Dual Lite/Dual/Quad Only)
Power
Management
Peripherals
Header
LVDS Display 0
CAN 2.0 Bus 1
CAN 2.0 Bus 2
Keypad (8 x 8)
USB 2.0 OTG
USB 2.0 Host
Sys Mgmt I/O
Digital Audio
RGB (24-bit)
SD 2 (4-bit)
USB OTG Port
GPIO 1–5
3.3V Input
I
2
C Bus
SPI Bus 2
PWM 1-3
HDMI I C
UART 1
I
2
C Bus
GPIO
PWM 4
UART 2
CPU-301-16 Dev Kit
HDMI I
2
C Bus
GigE
UART A
UART B
USB 1
USB 2
USB 3
USB 4
RTC
Sensors
Accelerometer
Power
Management
Sys Mgmt I/O
Touch
Panel
Controller
Stereo
Codec
USB
Hub
Xcvr
Xcvr
I
2
C Bus
I
2
C Bus
CAN
I/F
Buf
EIA-232
I
2
C Bus
Backlight Headers
Digital Display I/F
(24-bit RGB)
Microphone Input
LVDS Display I/F
Gigabit Ethernet
(RJ45)
1 x EIA-232/485
(4-wire )
Resistive
Touch Panel I/F
DC Power Input
Speaker Output
Dual CAN 2.0
Ports
8 x 8 Keypad/
GPIO Header
SD Card Slot
(4-bit)
1 x EIA-232
(8-wire)
3 x USB 2.0
Host Ports
(Type A)
USB 2.0
Client Port
(Type B)
Line Out
Note: The information in this document is subject to change without notice and should not be construed as a commitment by EUROTECH.
While reasonable precautions have been taken, EUROTECH assumes no responsibility for any error that may appear in this document.
All trademarks or registered trademarks are the properties of their respective companies.
I C Bus
2
BAT
USB OTG Circuitry
SPI Flash
PHY
GPIO 1–5
Gigabit
Ethernet
Header
Xcvr
2
UART 2
USB 2.0 OTG
ETH_CPU-301-16_DS_05/2014
