SQCAVA0R4BATME\500 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> Ceramic capacitor> MLCC, multilayer ceramic capacitors> Multilayer ceramic capacitor MLCC - SMD/SMT> SQCAVA0R4BATME\500

Preview

SQCAVA0R4BATME\500: DescriptionMultilayer Ceramic Capacitor MLCC - SMD/SMT 250V 0.4pF .1pF Tol 505; CategoryPassive components capacitor Ceramic capacitor MLCC, multilayer ceramic capacitors Multilayer ceramic capacitor MLCC - SMD/SMT; File Size303KB，8 Pages; ManufacturerAVX; Environmental Compliance

Download Datasheet Parametric View All

SQCAVA0R4BATME\500 Overview

Multilayer Ceramic Capacitor MLCC - SMD/SMT 250V 0.4pF .1pF Tol 505

SQCAVA0R4BATME\500 Parametric

Parameter Name	Attribute value
Maker	AVX
Product Category	Multilayer Ceramic Capacitor MLCC - SMD/SMT
terminal	Standard
capacitance	0.4 pF
Voltage ratingDC	250 VDC
Dielectric	A
Tolerance	0.1 pF
shell code - in	0505
Shell code - mm	1414
high	0.508 mm
Minimum operating temperature	- 55 C
Maximum operating temperature	+ 125 C
product	RF Microwave / High Q
Termination type	SMD/SMT
series	SQ
Encapsulation	Cut Tape
Encapsulation	Reel
length	1.4 mm
Package/box	0505 (1414 metric)
type	RF Capacitor Low ESR High Q
width	1.4 mm
Factory packaging quantity	500

Preview

Download Datasheet

View All

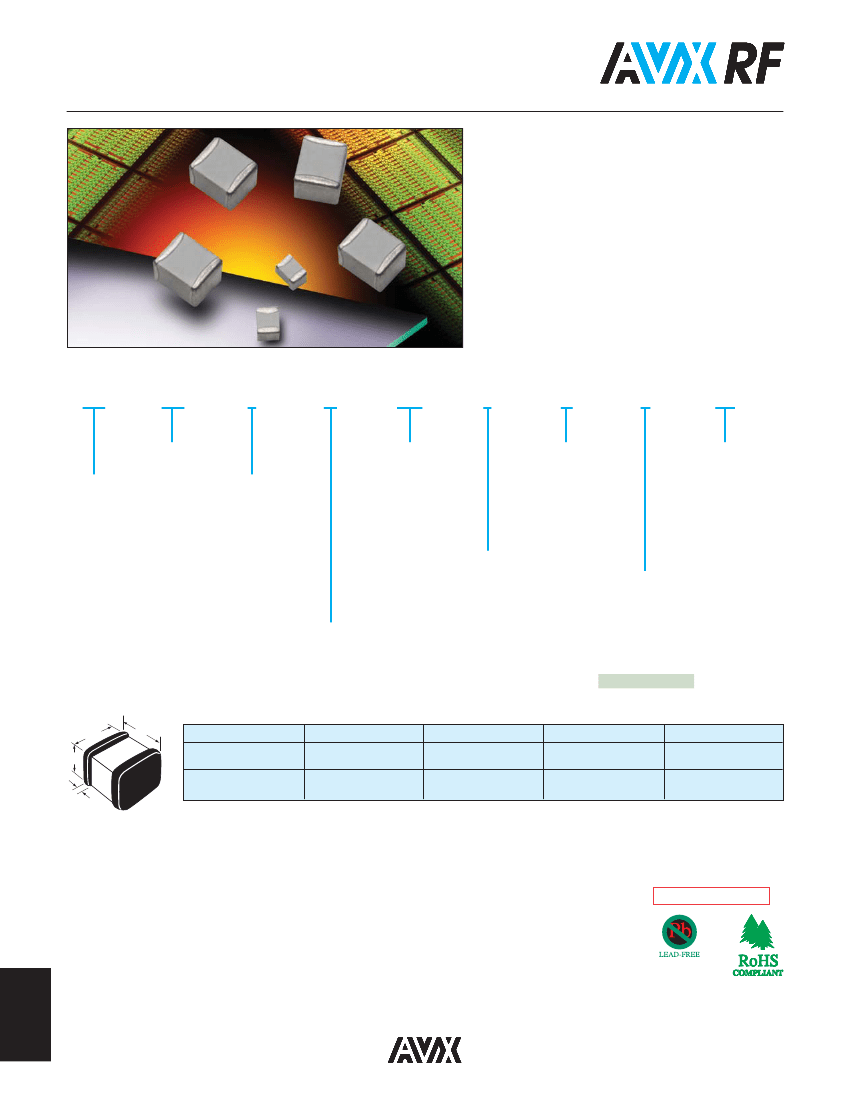

RF/Microwave MLC’s

SQ Series Ultra Low ESR MLC

FEATURES:

•

Low ESR

High Q

High Self Resonance

Capacitance Range 0.1 pF to 5100 pF

175ºC Capability SQCB

(Standard voltages only)

APPLICATIONS:

•

RF Power Amplifiers

Low Noise Amplifiers

Filter Networks

MRI Systems

HOW TO ORDER

Case Size

CA = 0505

CB = 1111

100

Capacitance

Failure Rate

Code

A = Not

Applicable

Packaging Code

1A = 7" Reel Unmarked

6A = Waffle Pack Unmarked

ME = 7" Reel Marked

WE = Waffle Pack Marked

* Vertical T&R available

AVX Style

See mechanical

dimensions below

Voltage

Code

5 = 50V

1 = 100V

E = 150V

2 = 200V

V = 250V

9 = 300V

7 = 500V

C = 600V

A = 1000V

S = 1500V

EIA Capacitance Code in pF.

First two digits = significant

figures or “R” for decimal

place.

Third digit = number of zeros

or after “R” significant figures.

Capacitance

Tolerance Code

B = ±.1 pF

C = ±.25 pF

D = ±.5 pF

F = ±1%

G = ±2%

J = ±5%

K = ±10%

M = ±20%

N = ±30%

Termination Style Code

**T

= 100% Tin

J = Nickel Barrier Sn/Pb

(60/40)

**7

= Ag/Ni/Au

H = Cu/Sn (Non-Magnetic)

Temperature

Coefficient Code

M = +90±20ppm/°C

A = 0±30ppm/°C

C = 15% (“J” Termination only)

**RoHS compliant

MECHANICAL DIMENSIONS:

inches (millimeters)

Width (W)

.055±.015

(1.40±.381)

.110±.010

(2.79±.254)

Case

SQCA*

SQCB*

Length (L)

.055 + .015 - .010

(1.40+ .381 - .254)

.110 + .020 - .010

(2.79 +.508 -.254)

Thickness (T)

.020/.057

(.508/1.45)

.030/.102

(.762/2.59)

Band Width (bw)

.010 + .010 -.005

(.254 +.254 -.127)

.015±.010

(.381±.254)

TAPE & REEL:

All tape and reel specifications are in compliance with EIA RS481 (equivalent to IEC 286 part 3).

—8mm carrier

—7" reel: SQCA/SQCB = 1000 pcs

Not RoHS Compliant

WAFFLE PACK

SQCA 100 pcs

SQCB 100 pcs

LEAD-FREE COMPATIBLE

COMPONENT

192

For RoHS compliant products,

please select correct termination style.

12132017
