DFEG12060D-470M=P3

Description
fixed inductor
CategoryPassive components    inductor
File Size3MB,4 Pages
ManufacturerMurata
Websitehttps://www.murata.com
Environmental Compliance
Download Datasheet Parametric View All

DFEG12060D-470M=P3 Online Shopping

Suppliers Part Number Price MOQ In stock
DFEG12060D-470M=P3 - - View Buy Now

DFEG12060D-470M=P3 Overview

fixed inductor

DFEG12060D-470M=P3 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Reach Compliance Codecompliant
Factory Lead Time12 weeks
core materialMETAL ALLOY
DC Resistance0.079 Ω
Nominal inductance(L)47 µH
Inductor typeGENERAL PURPOSE INDUCTOR
Number of functions1
Number of terminals2
Maximum operating temperature125 °C
Minimum operating temperature-40 °C
Maximum rated current3.6 A
GuidelineAEC-Q200
Shape/Size DescriptionRECTANGULAR PACKAGE
shieldYES
surface mountYES
Terminal locationDUAL ENDED
Terminal shapeWRAPAROUND
Test frequency0.1 MHz
Tolerance20%
Base Number Matches1

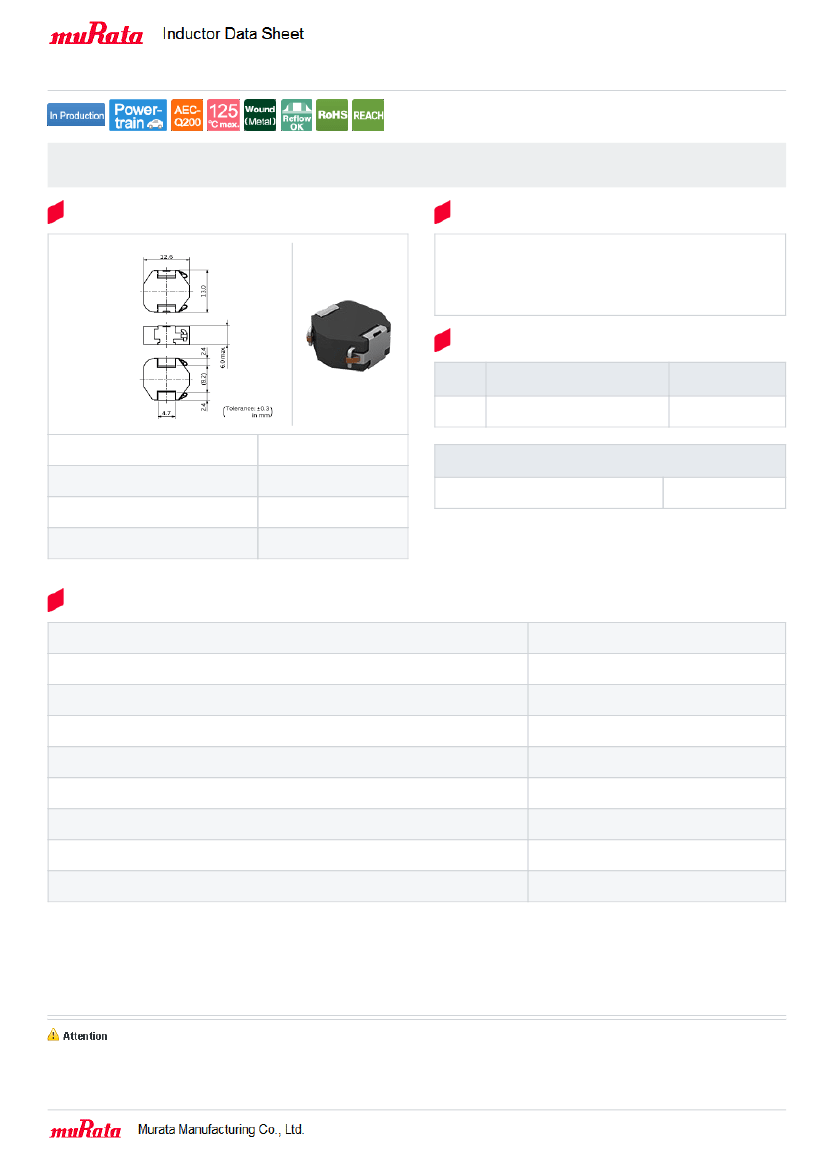

DFEG12060D-470M#
< List of part numbers with package codes >
“#” indicates a package specification code.
DFEG12060D-470M=P3
Shape
Notes
Rated current (Isat) is specified when the decrease of the initial
inductance value at 20%.
Rated current (Itemp) is specified when temperature of the inductor is
raised 40°C by DC current.
References
Packaging
code
=P3
Specifications
φ330mm
Embossed taping
Minimum quantity
500
L size
W size
T size
Size code in inch (mm)
13.0 ±0.3mm
12.6 ±0.3mm
6.0 mm
5150 (130126)
Mass (Typ.)
1 piece
4.4519g
Specifications
Inductance
Inductance test frequency
Rated current (Isat) (Based on Inductance change)
Rated current (Itemp) (Based on Temperature rise)
Max. of DC resistance
Operating temperature range (Self-temperature rise is included)
Class of magnetic shield
Absolute maximum voltage
Series
47µH ±20%
0.1MHz
3000mA
3600mA
0.0790Ω
-40to125℃
Metal Alloy
50V DC
DFEG12060D

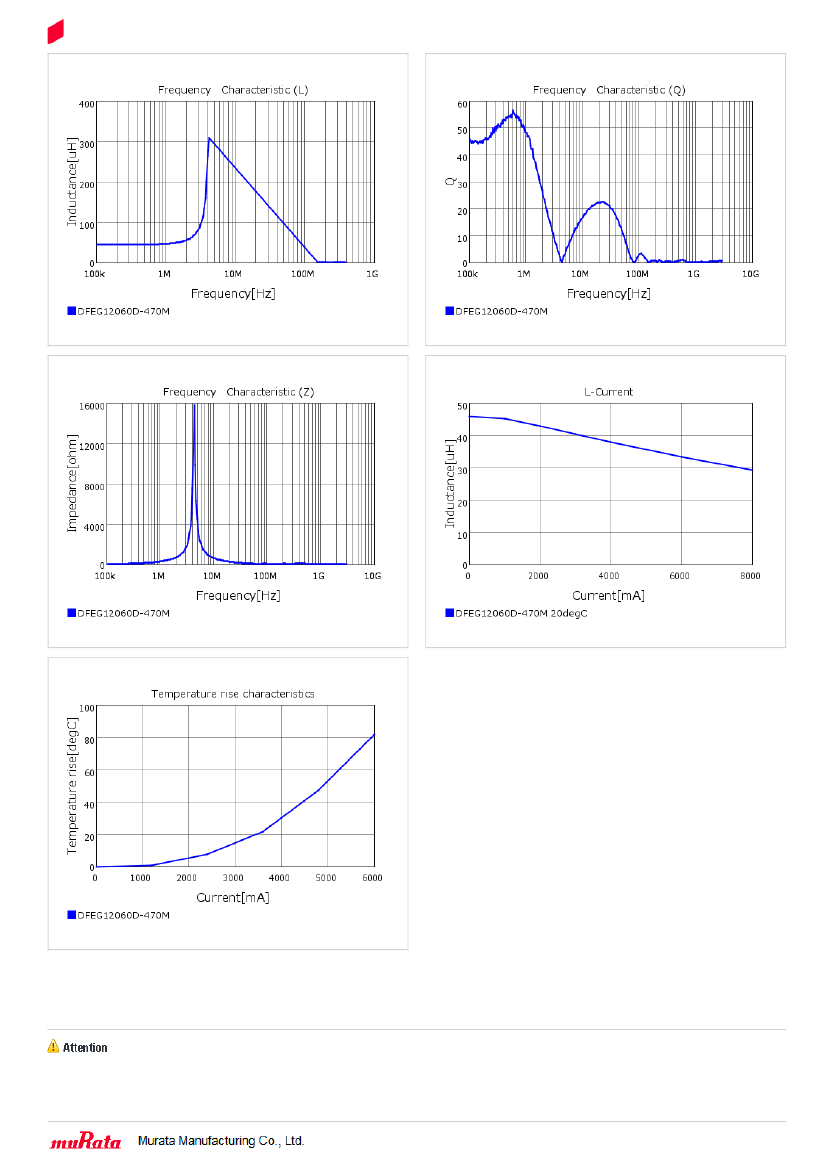

1 of 3
1.This datasheet is downloaded from the website of Murata Manufacturing Co., Ltd. Therefore, it’s specifications are subject to change or our products in it may be discontinued
without advance notice. Please check with our sales representatives or product engineers before ordering.
2.This datasheet has only typical specifications because there is no space for detailed specifications.
Therefore, please review our product specifications or consult the approval sheet for product specifications before ordering.
URL : https://www.murata.com/
Last updated: 2018/12/03
