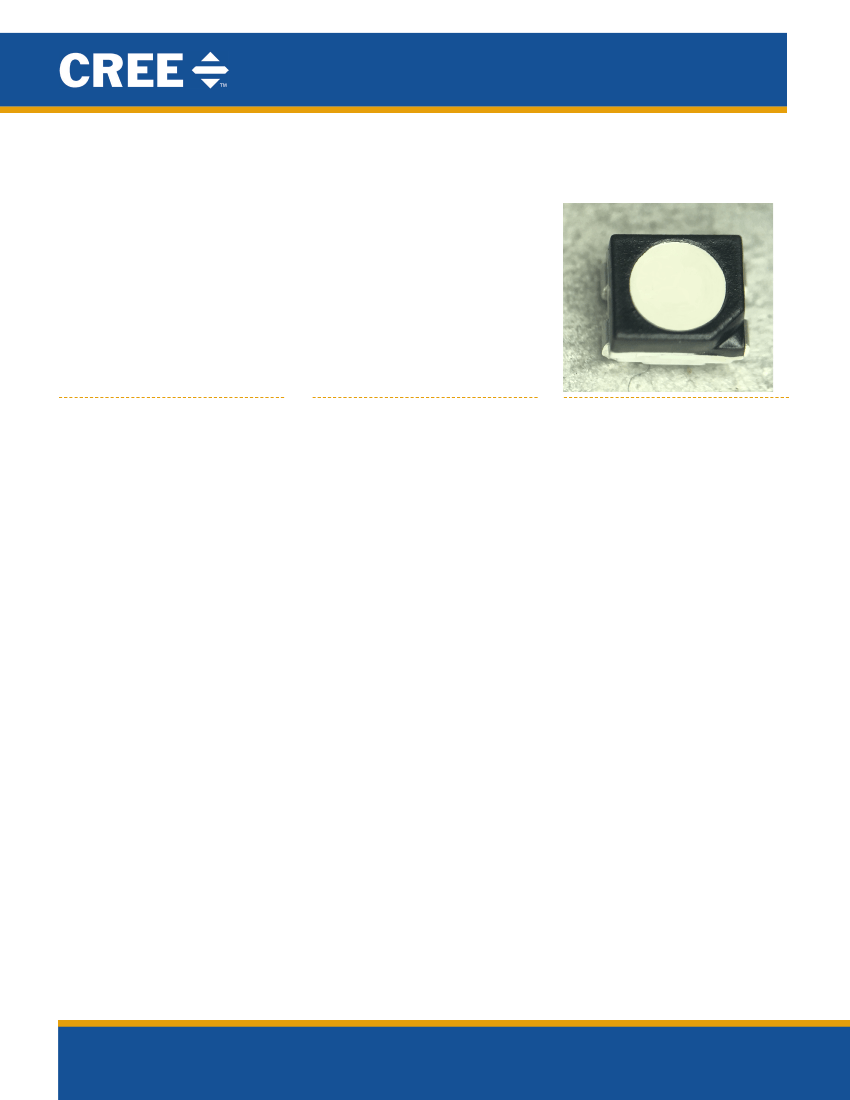

Cree PLCC4 1 in 1 SMD LED
CLM4B-RKC/AKC
INTENSITY BIN LIMIT (I
F
= 50
mA)
Red(CLM4B-RKC)
Bin Code
Wa
Wb
Xa
Min.(mcd)
1120
1400
1800
Max.(mcd)
1400
1800
2240
Amber(CLM4B-AKC)
Bin Code
Wb
Xa
Xb
Min.(mcd)
1400
1800
2240
Max.(mcd)
1800
2240
2800
Tolerance of measurement of luminous intensity is ±10%.
COLOR BIN LIMIT (I
F
= 50
mA)
Red (CLM4B-RKC)
Bin Code
RA
Min.(nm)
618
Max.(nm)
630
Amber(CLM4B-AKC)
Bin Code
A3
A4
A5
Min.(nm)
587
590
593
Max.(nm)
590
593
596
Tolerance of measurement of dominant wavelength is ±1 nm.
of Cree, Inc. 2018 Cree, Inc. All rights reserved. The information in this document is subject to change without notice. Cree and the Cree logo are registered trademarks of Cree, Inc.
3
Cree PLCC4 1 in 1 SMD LED
CLM4B-RKC/AKC
ORDER CODE TABLE*
Color
Red
Red
Kit Number
CLM4B-RKC-CWaXaAA3
CLM4B-RKC-CWbXaAA3
Luminous Intensity (mcd)
Min.
1120
1400
Max.
2240
2240
Color Bin
RA
RA
Dominant Wavelength
Min.(nm)
618
618
Color Bin
RA
RA
Max.(nm)
630
630
Color
Amber
Amber
Kit Number
CLM4B-AKC-CWbXb353
CLM4B-AKC-CWbXb343
Luminous Intensity (mcd)
Min.
1400
1400
Max.
2800
2800
Color Bin
A3
A3
Dominant Wavelength
Min.(nm)
587
587
Color Bin
A5
A4
Max.(nm)
596
593
Notes:
1. The above kit numbers represent order codes that include multiple intensity-bin and color-bin codes. Only one
intensity-bin code and one color-bin code will be shipped on each bulk. Single intensity-bin code and single color-bin
codes will not be orderable.
2. Please refer to the “Cree LED Lamp Reliability Test Standards” document for reliability test conditions.

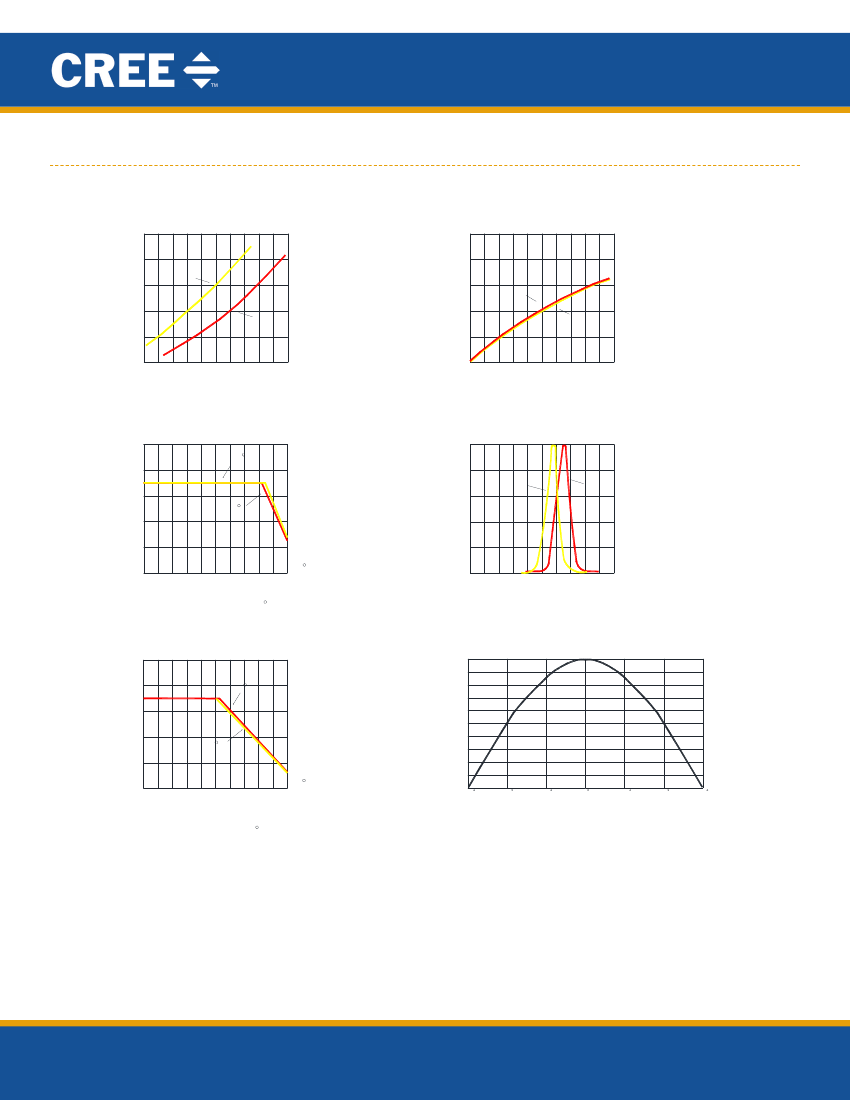

3. Please refer to the “Cree LED Lamp Soldering & Handling” document for information about how to use this LED
