REV.
DESCRIPTION
DATE
APPROVED
E
Engineering Update w/o Changes
F
Added Concave Entry Feature
G
Updated General Specifications Note 1.
H
Added Panel Thickness.
J
Added Color Options, Sheet #2.
03/09/04
08/26/09
10/01/12
05/01/15
02/02/16
M. C.
T. Y.
T. Y.
J. C.
J. C.
Ø.230 [Ø5.8mm]
FLANGE
X
Ø.196 [Ø5.0mm]
REF.
Ø.194 [Ø4.9mm]
LIGHT PIPE
Ø.157 [Ø4.0mm]
0.320 [8.1mm]
0.040 [1.0mm]
Ø.195±.001
Part No.
PLP5-125
PLP5-250
PLP5-350
PLP5-375
PLP5-500
PLP5-625
PLP5-750
PLP5-1000
PLP5-1250
PLP5-1500
X = Body Length
0.125 (3.2mm)
0.250 (6.4mm)
0.350 (8.9mm)
0.375 (9.5mm)
0.500 (12.7mm)
0.625 (15.9mm)
0.750 (19.0mm)
1.000 (25.4mm)
1.250 (31.8mm)
1.500 (38.1mm)
Recommended Mounting Holes
Panel Thickness: 0.047"-0.093"
STANDARD TOLERANCE
( UNLESS OTHERWISE SPECIFIED )
DECIMALS
ANGULAR
®
2. MATERIAL: POLYCARBONATE, 94V-0, CLEAR.
1. GENERAL SPECIFICATIONS: BIVAR MOLDED COMPONENT SPECIFICATION BV00-E101
and BSMC-1001.
.X
.XX
.XXX
DESIGNED:
± .1
± .02
± .010
X°
± 1°
4 THOMAS, IRVINE, CA. 92618
TEL: (949) 951-8808
FAX: (949) 951-3974
DATE:
Michael Chen
CHECKED:
01/14/03
DATE:
TITLE:

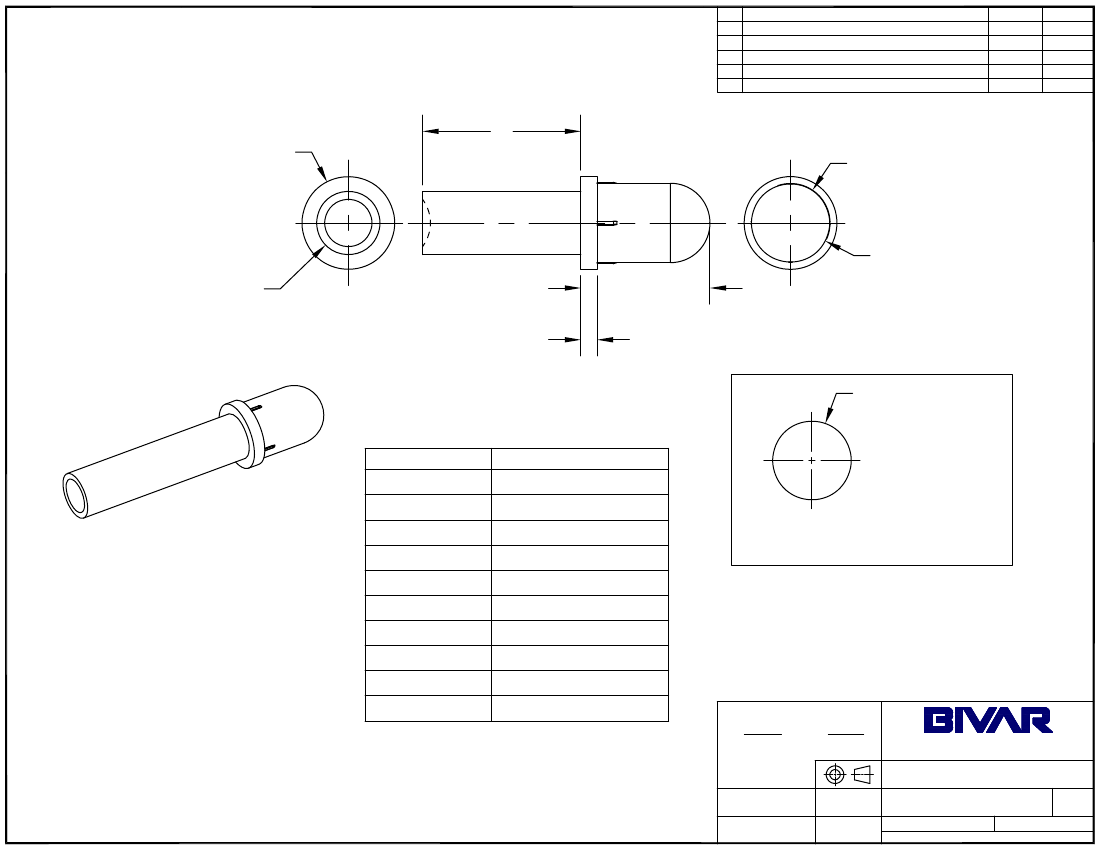

LIGHT PIPE, PRESS-FIT
PANEL MOUNT , ROUND TOP, 5mm
REVISION:
PART NO:
PLP5-XXX
J
D. Green
01/14/03
CAGE CODE : 32559
SHEET #
1
OF
2
CAD GENERATED DOCUMENT, DO NOT MEASURE DRAWING.
REV.
DESCRIPTION
DATE
APPROVED
OTHER AVAILABLE COLORS
* SEE TABLE FOR ORDERING INFORMATION
SEE SHEET #1
RIGID LIGHT PIPE
SERIES
LENGTH
COLOR
BLUE
BLACK
GREEN
GRAY
RED
YELLOW
Order Code
BE
BK
GN
GY
RD
YW
NOTE: LEAVE ORDER CODE BLANK
IF NO COLOR IS DESIRED.
STANDARD TOLERANCE
( UNLESS OTHERWISE SPECIFIED )
DECIMALS
ANGULAR
®
4 THOMAS, IRVINE, CA. 92618
TEL: (949) 951-8808
FAX: (949) 951-3974
DESIGNED:
DATE:
TITLE:
LIGHT PIPE, PRESS-FIT
PANEL MOUNT, ROUND TOP, 5mm
REVISION:
PART NO:
K. Aukshunas
01/22/16
DATE:
PLP5-XXX
3. PARTS ARE DYED TO COLOR UPON REQUEST.
J
CHECKED:
J. Chiang
CAGE CODE : 32559
SHEET #
2
OF
2
01/22/16
CAD GENERATED DOCUMENT, DO NOT MEASURE DRAWING.
