PLW3014ACA Series
Product Datasheet
Bulb
Wall
Light
Floor
Light
Tube
Light
General
Lighting
Introduction

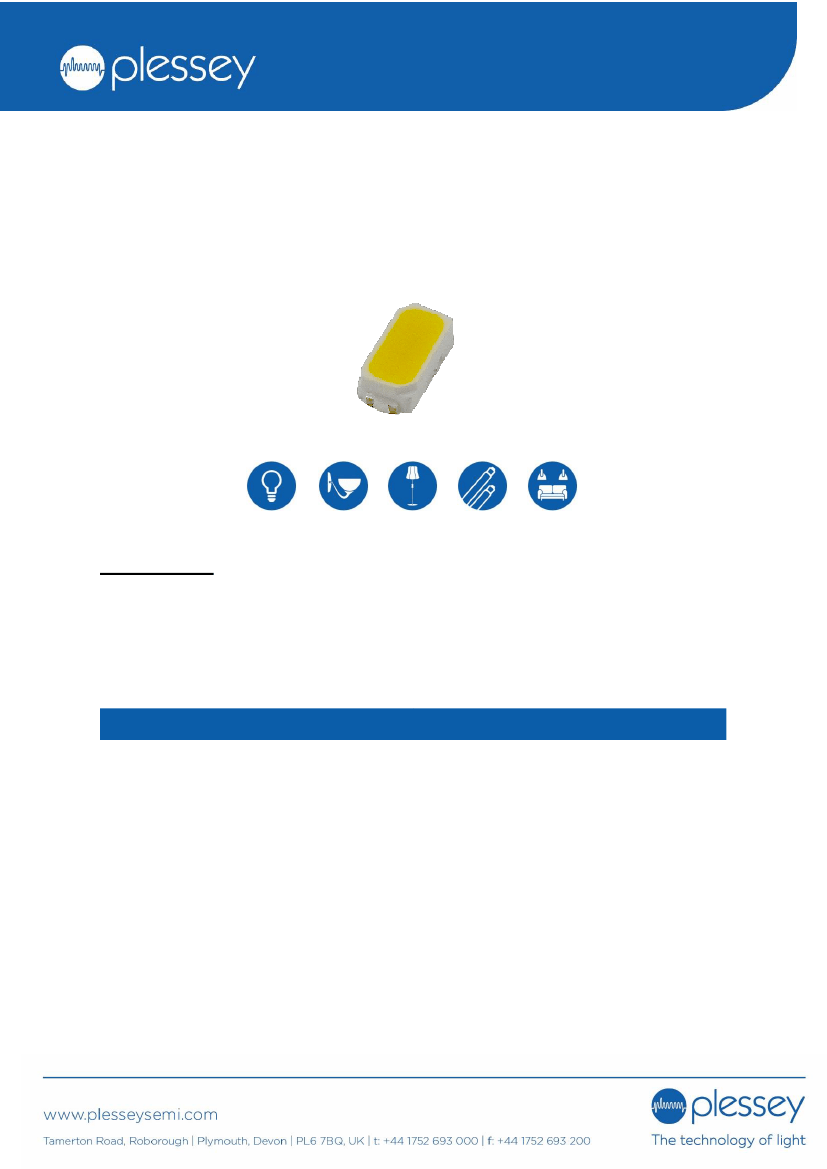

Plessey PLW3014ACA SMT LEDs are designed for flashlights, backlighting, linear tubes
and other general lighting applications. The light is emitted close to a Lambertian distribution
and hence this SMT package is naturally suitable for backlighting panels and symbols. The
LEDs are packed in reels containing 4,000 pcs; each individual reel will be shipped in single
intensity and colour bin, to provide close uniformity.
Description
Best luminous and colour uniformity.
Enables halogen and CDM replacement.
The article itself presents the actual
colour.
Features and Benefits
High luminous Intensity and high
efficiency.
Based on Blue: InGaN technology.
Wide viewing angle: 120°.
Excellent performance and visibility.
Suitable for all SMT assembly methods.
IR reflow process compatible.
Environmental friendly; RoHS
compliance.
Page 2 of 21
Document number MP1039 V2
Contents
Order Codes ..........................................................................................................
Absolute Maximum Ratings....................................................................................
General Characteristics..........................................................................................
Luminous Flux Characteristic .................................................................................
Forward Voltage Bins .............................................................................................
Characteristic Curves .............................................................................................
Forward Current vs. Forward Voltage .........................................................
Forward Current vs. Junction Temperature ................................................
Relative Luminous Intensity vs. Forward Current ........................................
Relative Luminous Intensity vs. Junction Temperature ...............................
Δx, Δy vs. Forward Current.........................................................................
Δx, Δy vs. Junction Temperature ................................................................
Current Derating vs. Ambient Temperature ................................................
Beam Pattern .............................................................................................
Spectrum, CRI 80 and CRI90 .....................................................................
Chromaticity Groups ..............................................................................................
Cool White; 5000, 5700 and 6500K ............................................................
Neutral White; 4000K .................................................................................
Warm White; 2700, 3000 and 3500K ..........................................................
Mechanical Dimensions .........................................................................................
Soldering Temperature Profile ...............................................................................
Reliability ...............................................................................................................
Reliability – Environmental/Mechanical Evaluation .....................................
Reliability - Lumen Maintenance .................................................................
Product Packaging Information ..............................................................................
Cautions.................................................................................................................
Legal Notice ...........................................................................................................
Contact ..................................................................................................................
3
3
4
5
7
8
8
8
9
9
10
10
11
11
12
13
13
14
15
16
17
18
18
18
19
20
21
21
Page 4 of 21
Document number MP1039 V2
General Characteristics
T
amb
= +25°C unless otherwise stated.
Parameter
Viewing angle
[1]
Thermal resistance
2Ø
1/2
R
thj-sp
Value
120
30
6500
Units
°
°C/W
Cool White
5700
5000
Correlated Colour
Temperature
[2]
Neutral White
CCT
4000
3500
K
Warm White
3000
2700
Colour Rendering Index
[3]
JEDEC Moisture Sensitivity
[4]
Notes
[1] :
[2] :
[3] :
[4] :
CRI
-
80 / 90
2a (4 weeks)
V
-
Viewing angle, 2Ø1/2, is the off-axis angle where the luminous intensity is 50% of the axial
luminous intensity.
The CIE x/y tolerance is ±0.005
The CRI tolerance is ±2
MSL 2a
Floor life conditions: ≤30°C/60%RH.
Soak Requirement (Standard): 120 +1/-0 hr, 60°C/5%RH.
